Brand: Woodward
Model: 8237-1604
Product type: High performance module
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
Technical specifications of 8237-1604:Input voltage: 24VDC
Output voltage: 0~10VDC
Output current: 0~20mA
Signal bandwidth: 0 to 500Hz
Operating temperature: -40℃~85℃
Dimensions: 100mm×50mm×25mm
Control types and accuracy of 8237-1604:Control type: Proportional-Integral-derivative (PID)
Control mode: open loop or closed loop
Control range: 0~100%
Control accuracy: ±0.5%
Response time: <20ms

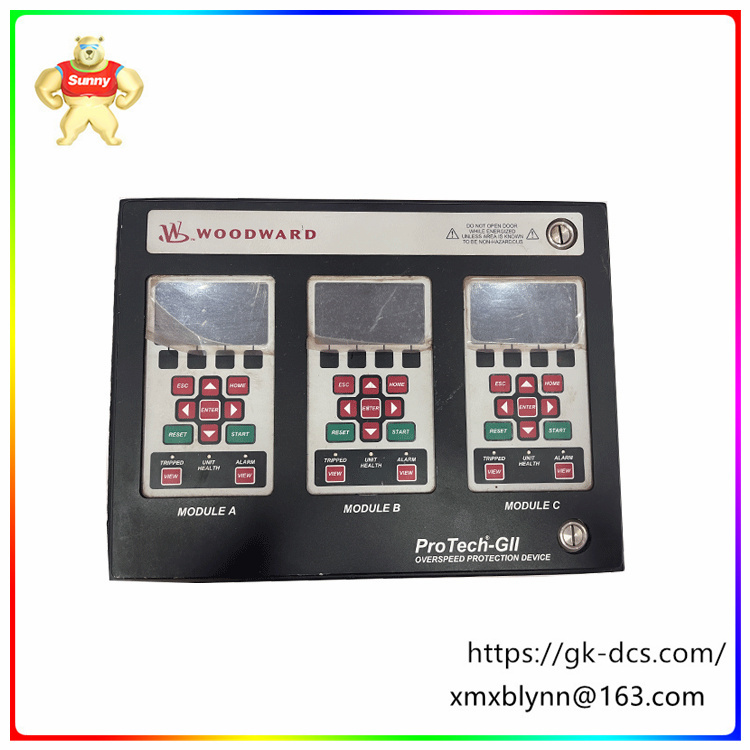

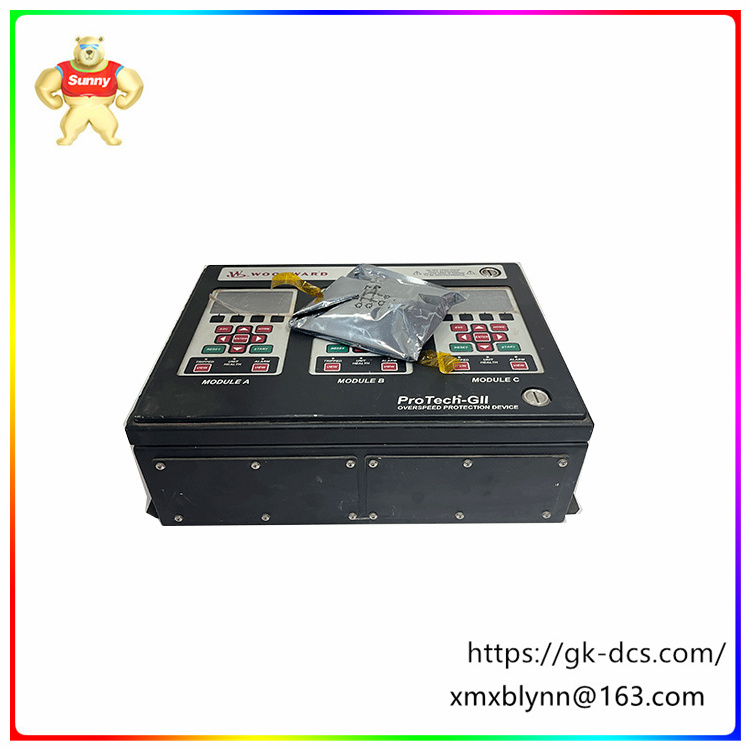

The Model 8237-1600 can be configured to work with turbines of any size, as long as it is powered by steam, gas or water. The speed reading of the hyperaccelerator is between 4 and 20 mA. If the turbine starts to accelerate dangerously, the model will safely shut down a turbine of any size. The panel mount has a backplane structure for easy maintenance and replacement. The Model 8237-1600 can be easily integrated into any turbine system with Modbus communication. In addition to acceleration detection, it is also equipped with MPU detection. The coating of the product makes it resistant to sulfur contamination and can be used in class 3C2 environments. It has the IEC 721-3-3 1994 international standard.
ProTechTPS is a safety PLC with integrated overspeed protection designed to safely shut down any plant process equipment, engine, steam, gas or water turbine if a safety incident is sensed. Two dual redundant trip relay outputs are available in a two-thirds voting architecture, or three independent no-vote trip relay outputs. Programmable inputs and outputs, 4-20 mA speed readings, and Modbus® communication make this safety PLC easy to integrate into any plant safety system or use as a stand-alone device safety system. The ProTech TPS model is a comprehensive protection system for partition mounting, high/low voltage power input, and voting relay/voting input.
