Actuator type numbers used :1712/1724 and 512/524
Ambient temperature range: -40 to +167 °F
Maker: The Woodward Company of Fort Collins, Colo
Model Type: Speed control, droop
Series: Electric governor, EPG
System battery voltage: 24 volts
VDC range: minimum 20 VDC to maximum 32 VDC

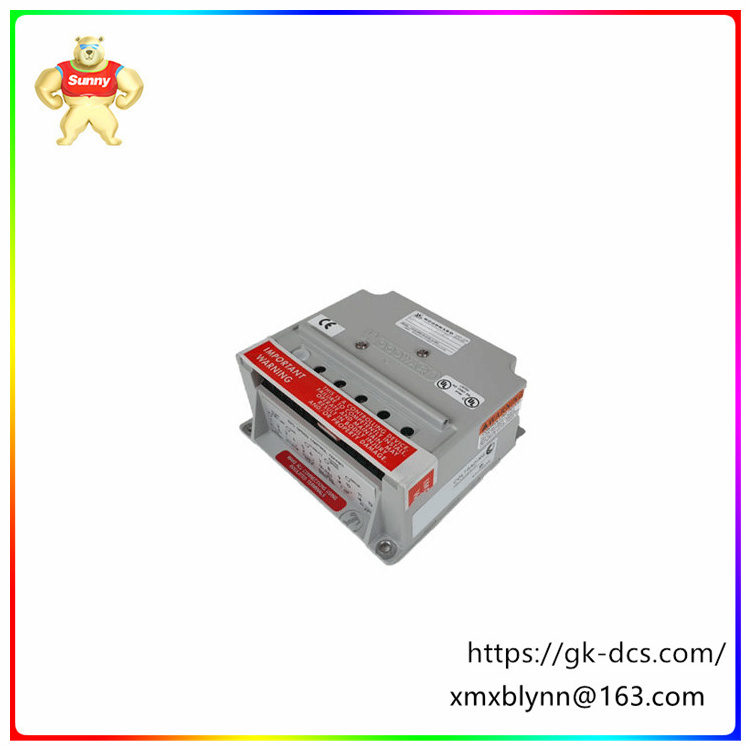

Model 8290-191 is a Woodward droop speed control. This product is only compatible with certain types of actuators and comes from the electric governor family. Actuators that can be operated with this device include 1712, 1724, 512, and 524.
Operational details of the speed control model 8290-191 include:
The system battery voltage is 24.
Ambient temperatures range from -40 to 167 degrees Fahrenheit.
The VDC range is 20 VDC to 32 VDC.
Maximum power consumption is 95 watts.
The minimum battery charger capacity is 5A.
Available work is 1.7 pounds.
Activate fuel limit.
The Type 8290-191 speed control complies with EU directives and can work on prime movers without mechanical drive or hydraulic oil supply. To create a complete EPG system for the prime mover, speed controls, magnetic pickups, and actuators are required. When installing the speed controller, it can be placed between the battery and the actuator for optimal use. This product can also accept load sharing attachments at runtime and use switch selected dual dynamics.
