Communication link with a profibus-dp host. It collects data from the module at high speed
The LAN operates at speeds of up to 6mbaud, allowing the host to respond quickly to the control process
Conditions in...
BIM collects data from I/O modules and makes them available at the owner's request. It's Profi
A slave to the bus master. And cyclic data exchange, which is necessary to read the input
BIM supports Profibus Extended to write diagnostic status letters for output data
Breath. It also supports a number of special features that have been implemented to allow highly complete system operation
Parameter: 8502-BI-DP bus interface module Provides a communication link between the 8000 series I/O module and A
8502-BI-DP (Bus Interface Module) The BIM provides a communication link between the 8000 series /O modules and A profibus-dp host. It collects data from the module at high speed while running the LAN
Speeds up to 6mbaud allow the host to respond quickly to control conditions during the process.
BIM collects the data of |/O module and produces it according to the owner's request. It's a slave to the Profibus mainframe. And cyclic data exchange, which is the BIM support necessary to read the input
Profibus Extended supports writing diagnostic status information to output data. It also supports a number of special features that have been implemented to allow for high integrity system operation and field maintenance.
◆ Connect the MTL8000 node to the Profibus-DP host LAN
◆ Supports up to 24 I/O module HART processes and status changes via Profibus-DP
◆ Expansion module and channel status diagnosis
◆ LAN speed up to 6mbaud
◆ Configure with non-volatile memory
◆ The software can be maintained through a local port or Profibus host configured with HART⑧ via a communication adapter
The 8502 supports parameterization from the Profibus host. This is configured on a "per module" basis, that is, all channels on one channel module carry the same configuration. The configuration is created using a GSD file
Details provided in the Profibus configurator. This method is fast and builds can be configured based on it on "logical" modules that represent physical modules. Modules are added one at a time to configuration and parameters
All channels that are selected to apply to the module.
Logic modules can be selected to provide HART state and process variables in the Profibus-DP loop input telegrams. In addition, it can be used in applications that need to access many HART changes
HART "mailbox". The technique collects HART variables as required; Saving space in telegrams and sometimes over-processing data. This method can be parameterized only when used.
The configuration is passed down from the Profibus master to the BIM at the beginning of the meeting. If the system stops and restarts, the configuration file is transferred back to the BIM.

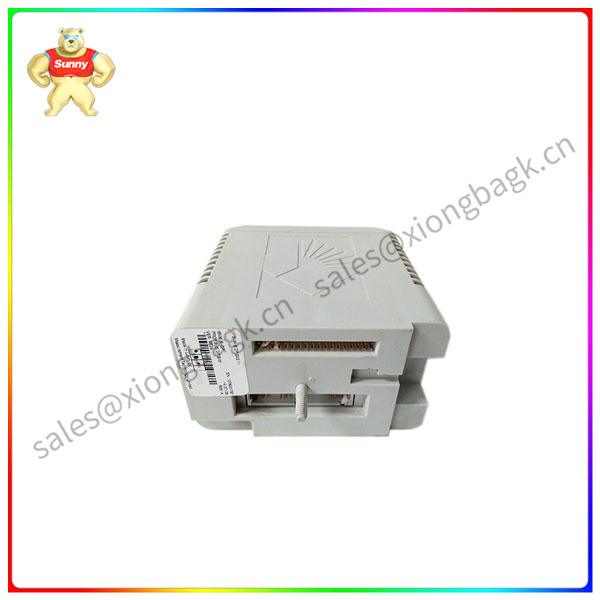

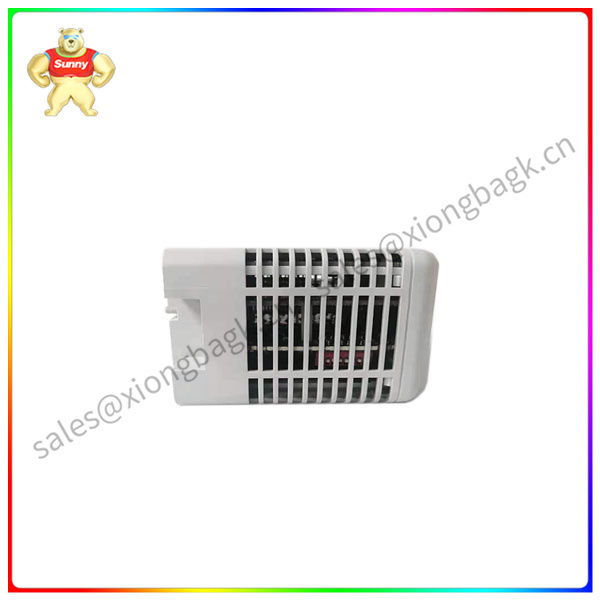

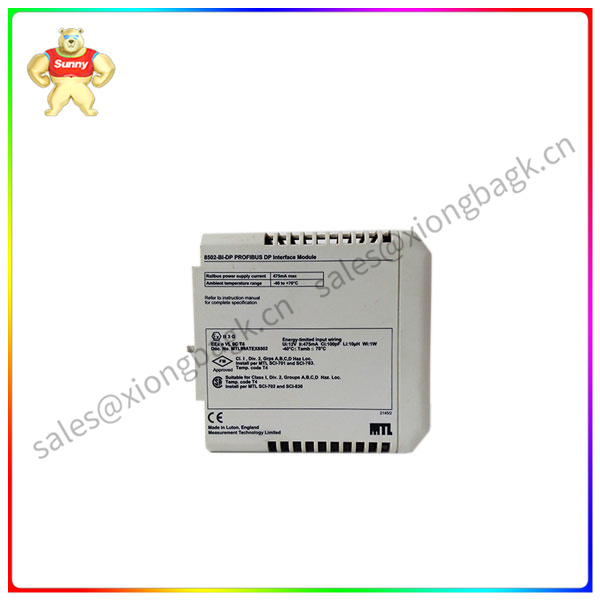

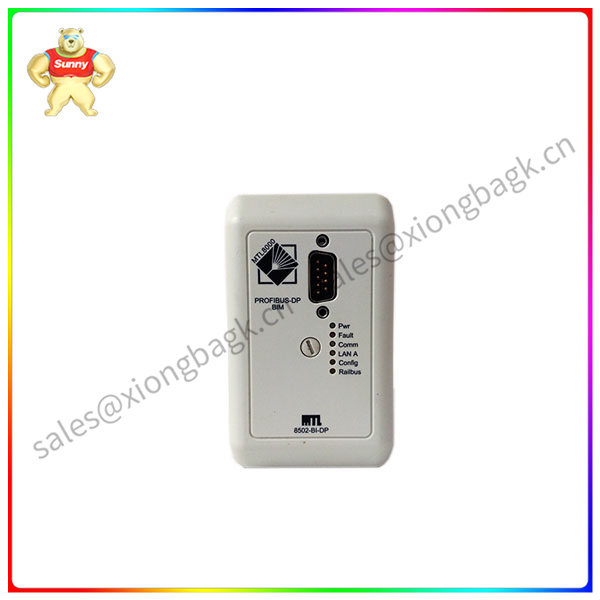

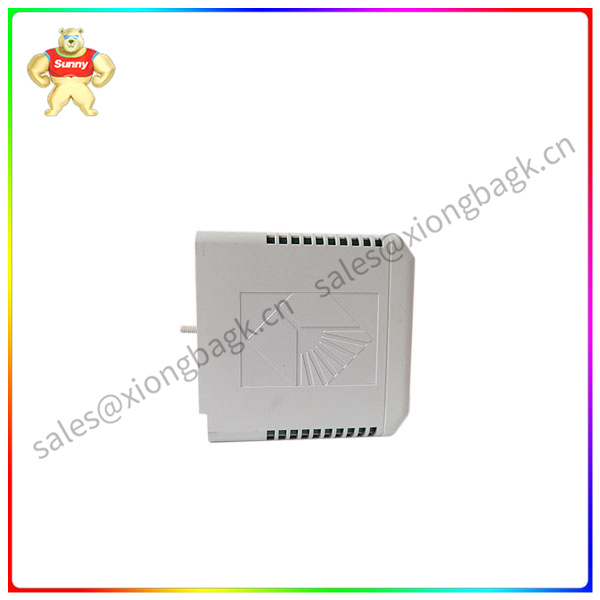

Part Number: 8502-BI-DP bus interface module Provides a communication link between the 8000 series I/O module and A
Manufacturer: GE
Origin: Made in the USA
Condition: Brand new, 12 months warranty
Delivery time: from stock
