TB). It is an I/O module accessory that must be ordered separately. 1756-TBCH in interconnect 1
Flexibility in terms of 756 /O modules and factory wiring. It plugs into the front of the I/O module

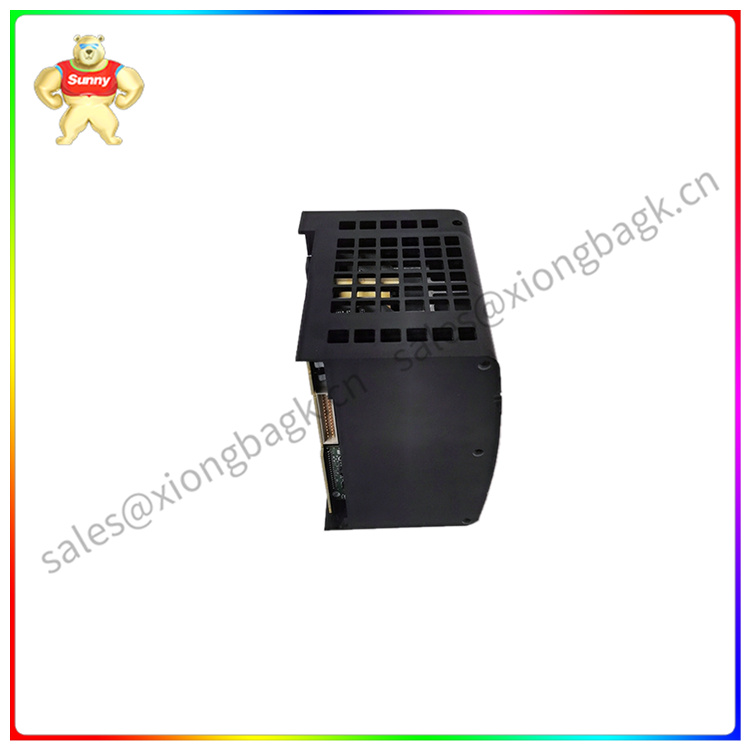

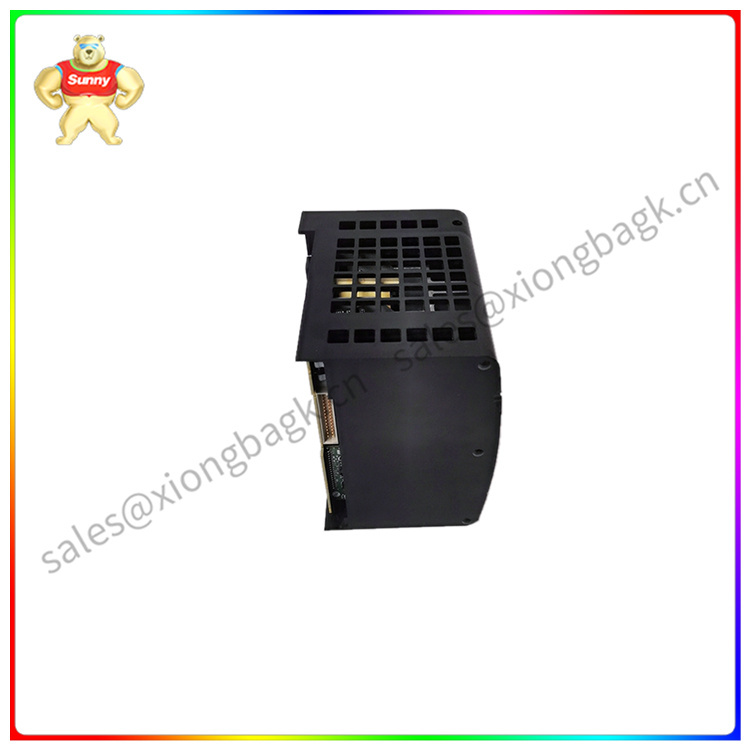

Basic Information: 1756-TBCH/A Allen-Bradley Removable patch Board (RTB) for the 1756 I/O module

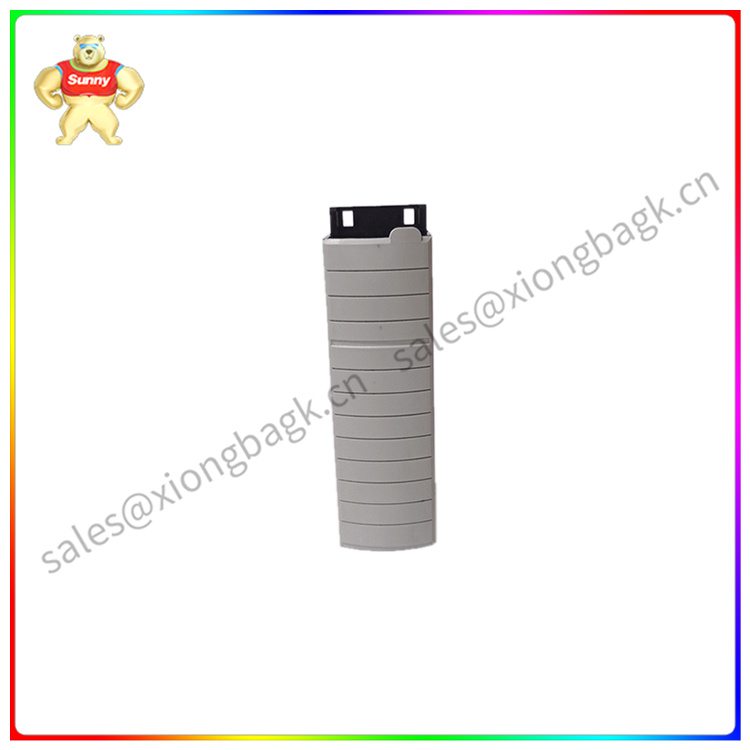

The Alan Bradley 1756-TBCH is a removable patch board (RTB) for the 1756 I/O module. It is an I/O module attachment that must be ordered separately. 1756-TBCH Interconnects 1756 I/O modules and
Flexibility in factory wiring. It plugs into the front end of the I/O module.

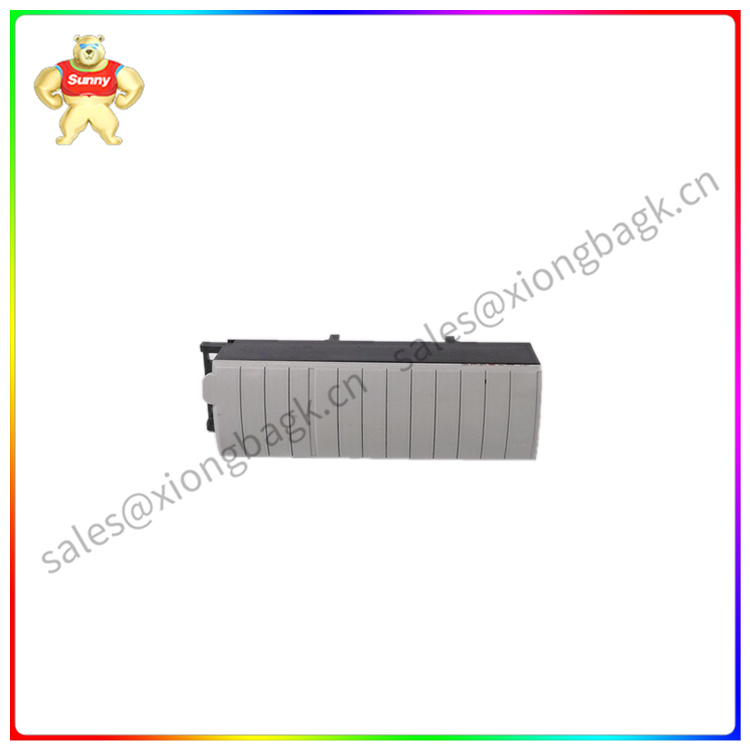

The 1756-TBCH detachable patch panel is a 36-pin cage clamp with a standard housing (the arm depth is 2.5 mm square). When sending a termination signal to the RTB, the torque required is 0.5 Nm of the screw
Nail torque. A screwdriver with a width of 3.2 mm (1/8 inch) is recommended. Screwdriver width. It measures 5.51 x4.41 x5.71 inches. It weighs 0.3 pounds. For wiring, use a solid core rated at 90 degrees
Or twisted copper wire. 194 degrees Celsius. Fahrenheit) or larger, with a size of 1.2 mm (3/64 inch.) Maximum insulation must be used. If it is a single wire connection, the wire size must be 0.33- 2.1 mm square.
(22-14 AWG), for two-wire connections, the wire size must be 0.33-1.3 mm2. (22-16 US Standard wire gauge). Do not connect more than two wires to any single terminal.
Each ControlLogix I/O module can be installed in any ControlLogix chassis, and they all require a removable patch board (RTB) to connect all field side wiring. Every I/O module has it
Many applications, from high-speed digital processing to process control. In the ControlLogix architecture, producer-consumer technology is used to share input and output profiles between multiple controllers in the same or different chassis
State. The.1756-TBCH RTB is suitable for clean and dry industrial environments of 0-60 degrees. Celsius _ Operating temperature and 30g working impact.

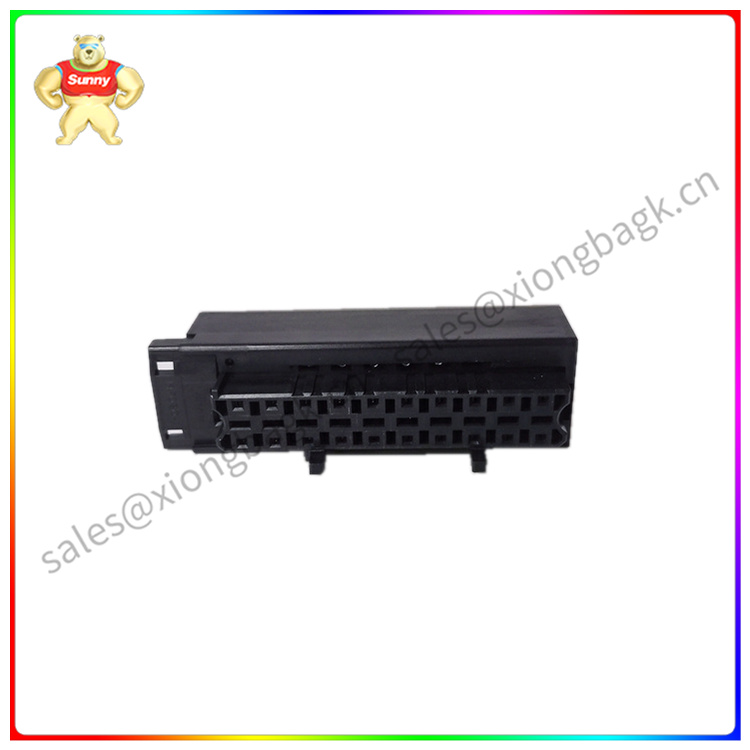

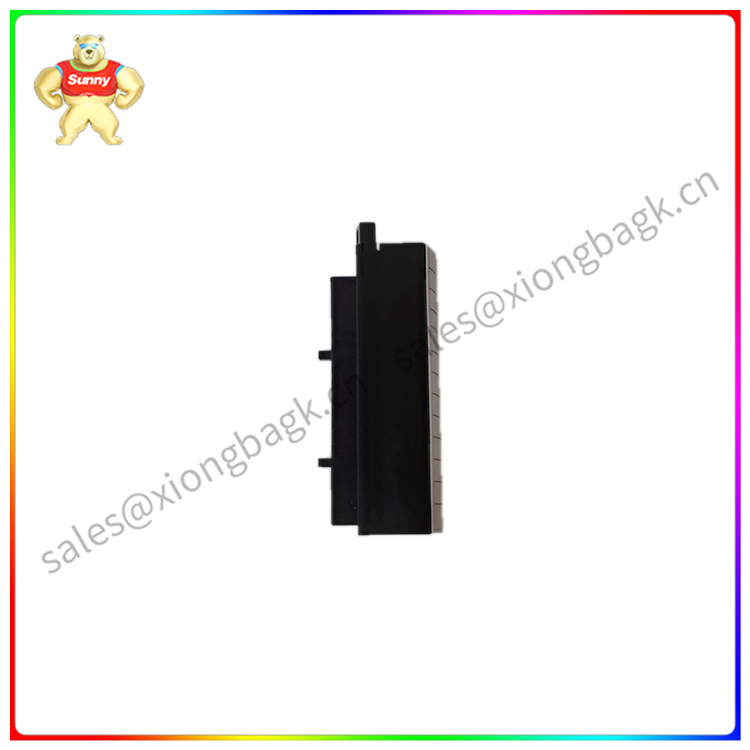

The 1756-TBCH is a 36-pin cage clamp removable patch panel (RTB) that provides modular and flexible terminals for input and output devices. The RTB is a module component that is installed in
The front end of the ControlLogix /O module is hidden by the module i] cover.
rtb must be ordered separately. Depending on the module, the appropriate RTB is required. However, the 1756-TBCH supports most 1756 ControlL ogix modules.
The idea of rtb is to allow wires to be terminated without the need for an actual module. The contract can be terminated separately with RTB. - Done, RTB can be easily attached to the main module. In addition, RTB saves energy
Obstacle removal and maintenance time, especially during module replacement. When a module is replaced, the entire RTB is uninstalled from the main module. It is then reinstalled on the replacement module without rewiring.
Use wire with a size of 0.33 to 2.1 square millimeters. (22 to 14 AWG) in a single wire connection or 0.33 to 1.3 mm solid or stranded copper wire. (22 to 16 AWG) Solid or stranded for two-wire connections
Copper wire. By using the right wire size, the module door can be closed, leaving room for access to the group terminals. Connect more than two (2) wires at the upper end of the same terminal.
