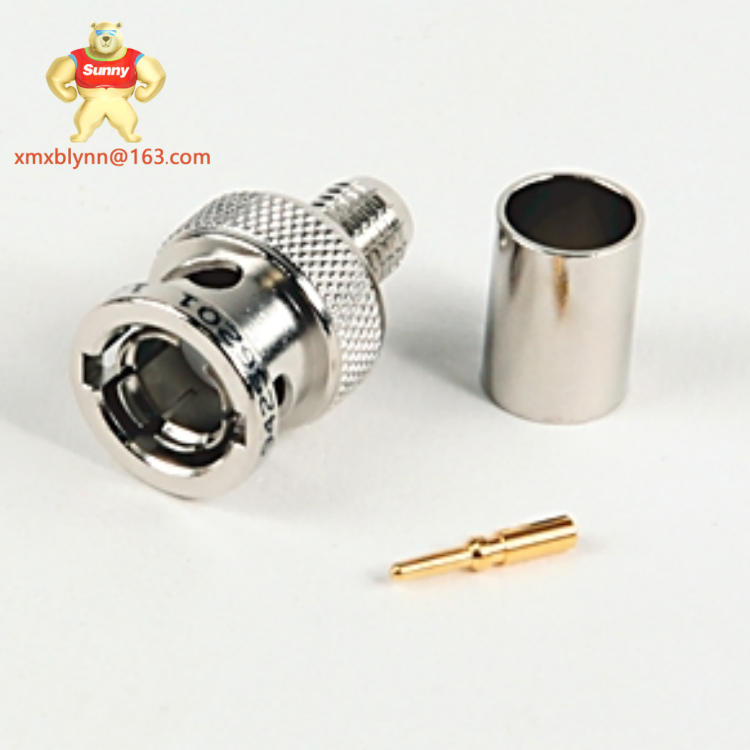

The A-B 1786-XT from Allen-Bradley stands as a cornerstone in industrial communication, designed to facilitate seamless data exchange between I/O devices and control systems in demanding automation setups. As part of Allen-Bradley’s trusted lineup of industrial automation spare parts, this module plays a critical role in distributed control systems (DCS) and PLC architectures, ensuring real-time data transmission even in unstable environments.
Ideal for bridging field devices and central controllers, the A-B 1786-XT excels in applications where reliability is non-negotiable. In automotive assembly plants, for example, engineers often mount the A-B 1786-XT alongside other ABB I/O modules in control cabinets, connecting robotic arms, sensors, and actuators to the main PLC. Its robust design minimizes data loss, a common pain point in high-vibration manufacturing floors, making it a go-to choice for maintaining consistent production workflows.
The A-B 1786-XT combines durability with precision, starting with its wide operating temperature range that withstands extreme cold in food processing freezers and high heat in steel mills. This ruggedness reduces replacement frequency, lowering long-term maintenance costs—a stark advantage over less robust modules that falter in temperature fluctuations.
Diagnostics are simplified through intuitive status LEDs, allowing technicians to quickly identify power issues, communication links, or faults without specialized tools. For example, a flashing “Fault” LED immediately signals a wiring error, cutting troubleshooting time from hours to minutes.
Integration is seamless with Allen-Bradley’s AC 800M-compatible systems and legacy PLCs, outperforming generic alternatives that require complex configuration. Unlike some ABB I/O modules designed for specific DCS frameworks, the A-B 1786-XT offers flexible compatibility with mixed-brand setups, making it a versatile choice for brownfield retrofits. Its compact design also saves valuable cabinet space, a boon in crowded industrial enclosures.
The A-B 1786-XT thrives across industries where reliable communication is critical. In oil and gas refineries, it connects pressure sensors and valves to central DCS, ensuring timely alerts during pressure spikes. Water treatment plants rely on it to link filtration systems and pump controls, withstanding humidity and chemical exposure that would degrade lesser modules.
In discrete manufacturing, such as electronics assembly, the A-B 1786-XT synchronizes conveyor belt sensors and robotic pickers, reducing lag that causes production bottlenecks. A recent retrofit at a mid-sized auto parts plant saw technicians replace outdated modules with A-B 1786-XT units, resulting in 30% fewer communication errors and a 5% increase in daily output—a tangible impact on operational efficiency.
- 1786-XB – Previous generation ControlNet module with basic functionality, suitable for low-complexity setups.
- 1786-XT/B – Enhanced variant of the A-B 1786-XT with extended vibration resistance for heavy machinery environments.
- 1786-IO8 – Companion I/O module with 8 digital outputs, designed to pair with the A-B 1786-XT for expanded connectivity.
- 1756-CNB – ControlLogix ControlNet bridge module, ideal for scaling systems using the A-B 1786-XT.
- 1784-KTCX – USB-to-ControlNet adapter, essential for programming and configuring the A-B 1786-XT.
- 1786-NET – Ethernet-enabled variant of the A-B 1786-XT for IP-based industrial networks.
- 1786-HSC – High-speed counter module, compatible with the A-B 1786-XT for precision timing applications.
Installing the A-B 1786-XT requires a 35mm DIN rail in a clean, dry control cabinet with adequate ventilation—avoid direct exposure to dust or moisture. Ensure proper grounding (PE connection) to prevent electrical noise, and verify 24 VDC power supply stability before energization. Mount the module at least 50mm from heat sources like variable frequency drives to maintain optimal operating temperatures.
For maintenance, weekly visual checks of status LEDs suffice for routine monitoring. Quarterly firmware backups via compatible software prevent data loss during unexpected failures. Clean connectors annually with compressed air to remove dust buildup, and replace terminal blocks every 5–7 years to ensure secure wiring. Leverage the module’s event logs to track communication errors, enabling proactive maintenance that reduces unplanned downtime.
The A-B 1786-XT comes with a one-year warranty and free replacement service provided exclusively by Xiamen Xiongba E-commerce Co., Ltd. Branch, not the original equipment manufacturer. Customers can initiate claims via email or phone, with Xiongba’s technical team verifying issues through serial-number traceability. Pre-shipment testing and datasheet verification are available upon request, ensuring the module meets operational specifications before delivery.
Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing.
