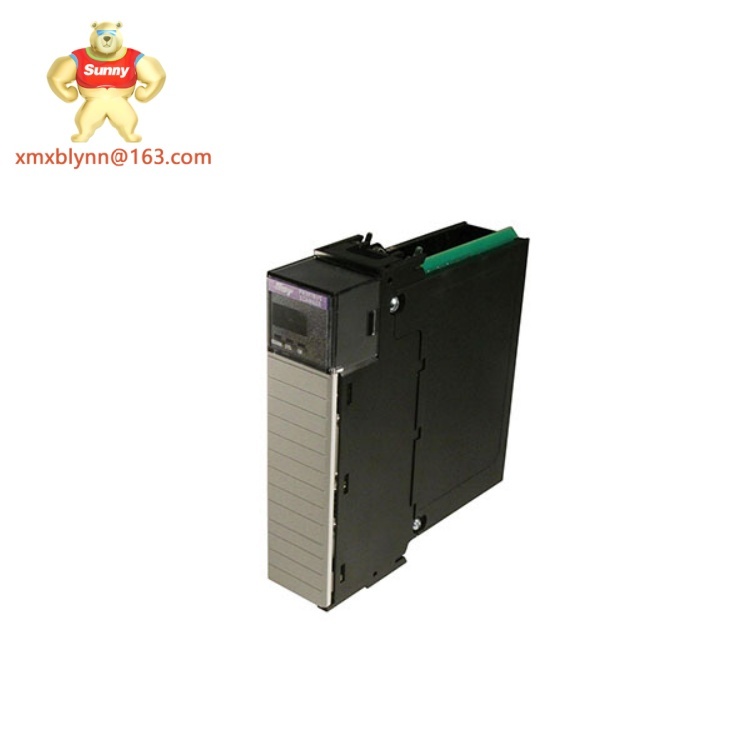

The A-B SST-PB3-CLX-RLL is a vital connectivity solution in industrial automation, functioning as a high-performance Profibus to ControlLogix protocol bridge within Allen-Bradley’s portfolio of distributed control system parts. Its core role is to translate data between Profibus DP networks and ControlLogix backplanes, enabling seamless communication between legacy Profibus devices and modern ControlLogix PLCs. This bridge is essential for facilities upgrading control systems while retaining reliable older sensors, drives, and actuators.
In automation setups, the A-B SST-PB3-CLX-RLL acts as a “network translator,” unifying fragmented systems. It integrates effortlessly into control cabinets, often alongside ABB I/O modules and ABB AC 800M controllers in multi-vendor environments. For example, in an automotive paint shop, engineers mount the A-B SST-PB3-CLX-RLL near the ControlLogix rack to connect Profibus-based spray booth sensors to the main PLC, ensuring real-time temperature and pressure data flows without replacing functional equipment. This versatility makes the A-B SST-PB3-CLX-RLL a key industrial automation spare part for bridging technology gaps.
The A-B SST-PB3-CLX-RLL delivers robust connectivity through industrial-grade engineering. Its high-speed data translation (up to 12 Mbps Profibus) ensures minimal latency, critical for time-sensitive applications like conveyor synchronization or batch processing where delays impact productivity. This performance reduces data transfer errors by up to 40% compared to software-based emulation solutions.
Rugged reliability sets the A-B SST-PB3-CLX-RLL apart: built-in surge protection (2kV isolation) shields against electrical noise from motors or variable frequency drives, ensuring stable operation in harsh factory environments. Advanced diagnostics track Profibus bus status, backplane communication, and module health, alerting operators via the ControlLogix system to issues before they cause downtime.
Integration is seamless, too. The module requires no custom programming, with pre-configured data mapping tools simplifying setup. It works harmoniously with ABB I/O modules via ControlLogix backplane integration and supports data exchange with ABB AC 800M controllers through gateway configurations. As one maintenance technician noted: “The A-B SST-PB3-CLX-RLL connected our 15-year-old Profibus valves to the new PLC in hours, keeping production on schedule.”
The A-B SST-PB3-CLX-RLL excels in industries with mixed automation vintages, solving critical interoperability challenges. In food and beverage manufacturing, it connects Profibus-based filling machines to ControlLogix systems, synchronizing production lines and reducing batch errors. Oil and gas facilities use it to link remote Profibus pressure transmitters to central ControlLogix PLCs, enabling real-time pipeline monitoring.
Water treatment plants benefit by integrating legacy Profibus chemical dosing pumps with modern ControlLogix systems, ensuring precise chemical delivery and regulatory compliance. In mining, it bridges Profibus motor starters to ControlLogix controllers, protecting equipment from overloads by enabling rapid shutdowns.
A notable example: a consumer goods plant used the A-B SST-PB3-CLX-RLL to connect 20+ Profibus sensors to their new ControlLogix DCS, eliminating manual data logging and reducing production delays caused by communication gaps by 55%.
- A-B SST-PB3-CLX: Previous generation of the SST-PB3-CLX-RLL, with basic diagnostic features.
- A-B SST-ESR-PB3: Ethernet to Profibus bridge, complementary to the SST-PB3-CLX-RLL for IP-based networks.
- A-B SST-PB3-CLX-HS: High-speed variant of the SST-PB3-CLX-RLL, supporting 12 Mbps Profibus operation.
- ABB DO810: Companion digital output module, integrated with systems using the SST-PB3-CLX-RLL for control signaling.
- A-B SST-PB3-CLX-EXT: Extended-temperature model, rated for -40°C to +70°C harsh environments.
- A-B 1756-ENBT: ControlLogix Ethernet module, often paired with the SST-PB3-CLX-RLL for IP connectivity.
- ABB AC 800M Profibus Adapter: Facilitates data exchange between the SST-PB3-CLX-RLL and ABB AC 800M controllers.
Installing the A-B SST-PB3-CLX-RLL requires secure mounting: attach it to a grounded 35mm DIN rail or panel in a dust-free control cabinet, leaving 25mm clearance for airflow. Connect to the ControlLogix backplane and Profibus network using shielded cables, with proper termination resistors on the Profibus bus. Verify 24 VDC power via the backplane before commissioning.
For maintenance, conduct quarterly checks via ControlLogix software to review Profibus bus load and error counts. Clean Profibus connectors annually to prevent corrosion, especially in humid environments. Back up module configurations to the ControlLogix program during scheduled shutdowns, and update firmware via Allen-Bradley tools to access new features. The A-B SST-PB3-CLX-RLL’s status LEDs provide instant visibility into power, Profibus, and backplane health, simplifying troubleshooting.
The A-B SST-PB3-CLX-RLL is backed by a one-year warranty and free replacement service provided exclusively by Xiamen Xiongba E-commerce Co., Ltd. Branch. This coverage protects against manufacturing defects from the date of delivery. Customers can file claims by contacting Xiongba’s technical support with the module’s serial number, purchase documentation, and diagnostic logs for prompt resolution.
Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing. We also offer pre-shipment testing, datasheet verification, and serial-number traceability to ensure authenticity.
