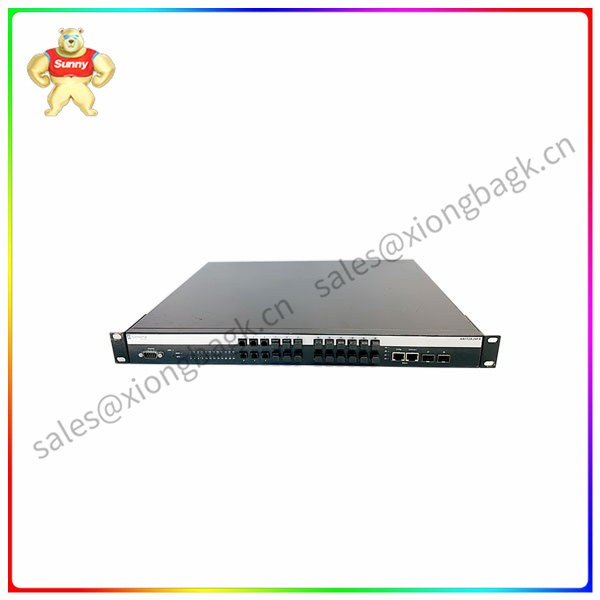

The A4H124-4FX-P0973JN is a switch equipped with 24 fast Ethernet ports and managed desktop device types. It belongs to the managed stackable shell class and has 2 gigabit SFP ports with a throughput of 9.5 Mpps, a switching capacity of 12.8 Gbps, support for Virtual interface (VLAN) 4096 and MAC addresses.
A4 Series 24-port Fibre Channel management switch, Part number :P0973JN (A4H124-24FX)
Invensys P0973JN - Switchboard - 24 ports - Management - Surface Device type Switchboard - 24 ports - Managed - Stackable shell Type Desktop port 24 100Base-FX + 2
Gigabit SFP Performance Gulch :9.5 Mpps Switching capacity :12.8 Gbps Capacity Virtual Interface (VLAN):4096MA(Address table size 16K entries Mega frame bracket 9216 Remote Management Protocol SNMP 2, SNMP, RMON, Telnet.HTTP, TFTP, SSH feature traffic control, BOOTP support, IGMP monitoring, system log support port mirroring, DiffServ support half-duplex mode,
Duplex mode, Spanning Tree Protocol (STP) support, Fast Spanning Tree Protocol (RSTP) support, Quality of Service (QoS) support, RADIUS support, Link Aggregation Control Protocol (LACP) comply with standard EEE
802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE
802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1AD, IEEE 802.1T, IEEE 802.1 Force AC 1 20/230 volts (50-60 Hz) dimensions (aspect ratio)17.4 inches x 14.5 inches
x 1.7-inch weight 10.8 LBS Manufacturer's Warranty Limited Lifetime warranty
General Device Type Switch - 24 Ports - Managed - Stackable Housing Type Desktop Port 24 100Base-FX + 2 Gigabit SFP Performance throughput :9.5 Mpps
Switching capacity: 12.8 Gbps Capacity Virtual Interface (VLAN):4096MAC Address Table Size 16K frame bracket 9216 Remote Management protocol SNMP 2, SNMP, RMON, Telnet,
HTTP, TFTP, and SSH encoding algorithms encryption Socket protocol layer authentication Method RADIUS, security shell Version 2 (SSH2) features traffic control, BOOTP support, IGMP listening, and system daily support
Hold, Port mirroring, DiffServ support, Duplex mode, duplex mode, Spanning Tree Protocol (STP) support, Fast Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), RADIUS support, Chain
The Path Aggregation Control Protocol (LACP) complies with the standards IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE
802.3ad (LACP), IEEE 802.1W, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1AD, IEEE 802.1T, IEEE 802.1

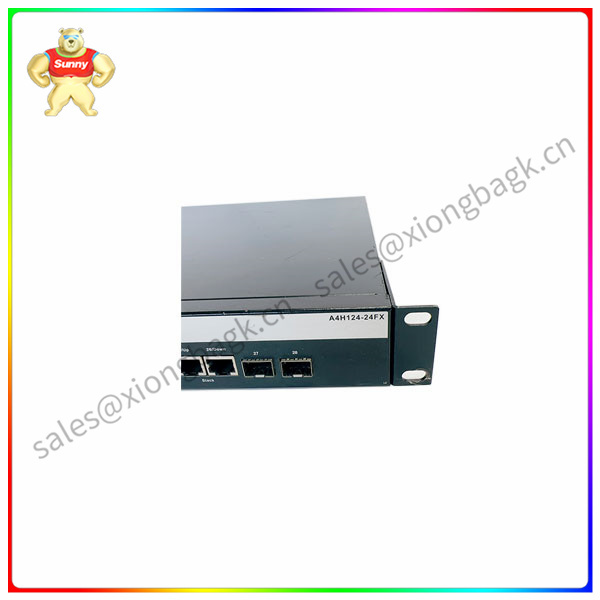

Extending/connecting interfaces 24 x 100Base-FX-MT-RJ
2 SFP(Mini GBIC)
1 RS-232-9 pin D-Sub (DB-9) - management
Network stack devices :2
Power device Power supply Internal voltage required AC 1 20/230 volts (50-60 Hz) Power consumption Operation 66 Watt redundant Power system (RPS) connector
Multi-aspect Width 17.4 inches Depth 14.5 inches Height 1.7 inches Weight 10.8 pounds Average time between failures 333, 685/ h compliant with VCCI, BSMI, CISPR Class 22, EN 61000-3-
2, EN 61000-3-3, EN55024, EN55022 Class A, CSA 22.2 No. 60950, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1,
WEEE, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15A, IEC 60068-2-29 Manufacturer Warranty Service and Support Limited Lifetime Warranty Service and Support Details Limited lifetime Warranty
Environmental Specifications Minimum operating temperature Maximum operating temperature on Layer 32 122 F Humidity range 5-95% (non-condensing) Minimum storage temperature 40 F Maximum storage temperature 158 F
