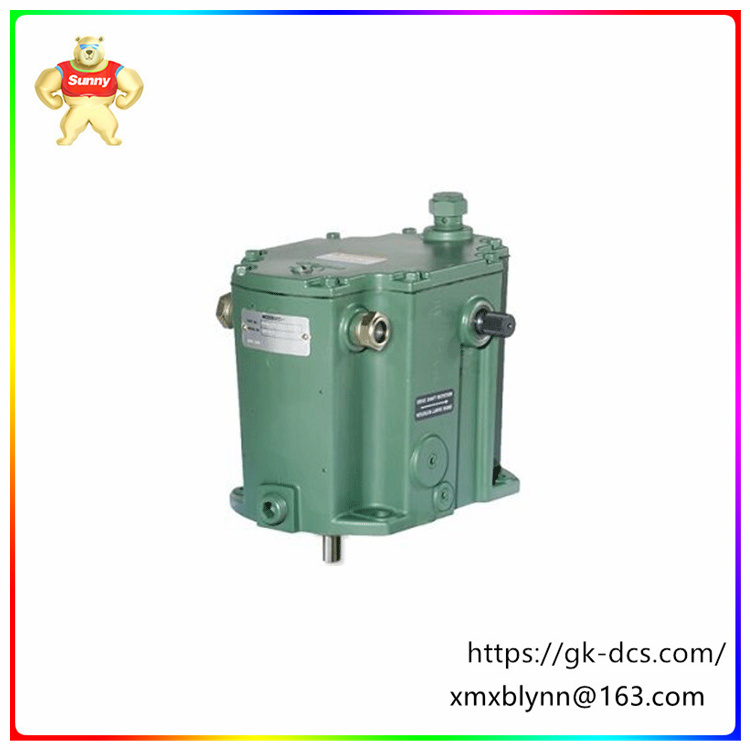

- A turbine mechanical hydraulic governor, screw speed setting range of 4000-6000 rpm, rated speed down to 6050 rpm). The drive shaft rotates clockwise for ATEX position. The 16Nm(12 ftlb) counterclockwise rotating output terminal shaft of the governor is connected to the speeder-regulating valve of the turbine to control the steam flow at the turbine inlet.
The TG-13 die-cast Aluminum Mechanical Hydraulic downspeed regulator controls the API61 1 steam turbine to drive pump compressors or generators, where synchronous (constant speed) operation is not required. The governor senses the steam turbine through the input drive shaft
The rotor speed is used to control the turbine speed. This speed is compared to the internal speed set value, and the steam flow at the turbine inlet is controlled using the rotary output terminal shaft connected to the turbine speed-regulating valve.
This independent governor utilizes an integrated drive shaft-driven ball head assembly to detect turbine speed and an integrated drive shaft-driven oil pump to generate the necessary output force to move/control
Speed regulating valve for turbine.
Features:
● Low cost
● Speed down control
● Clockwise drive shaft
● Weatherproof structure
● Separate sump.
●NEMA A speed control
●16 nm (12 ft lb) output
● Designed for harsh environments
● Certified by HAZLOC and ATEX regions
