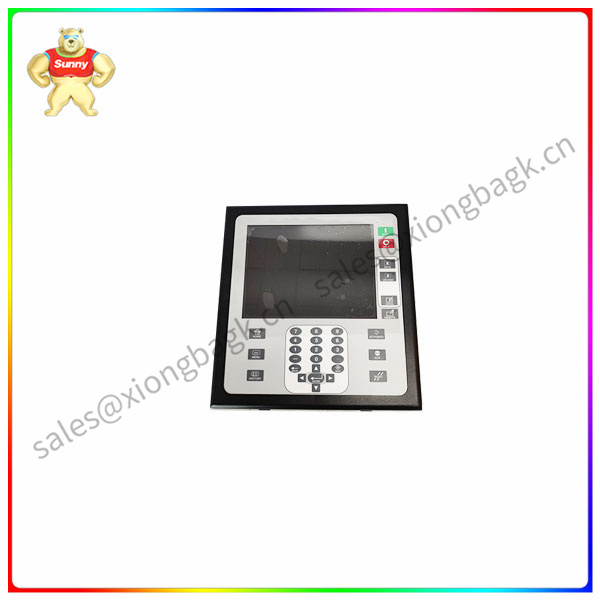

AAP3798102-00130 is an operational display compressor control module from Cameron brand. It is a general purpose display compressor control module for mounting a general purpose patch board or patch board inside the control housing and connecting shielded cables from the patch board to each input circuit on the module patch board terminals. The shield for each cable is connected to the gold panel next to the patch board, but the shield cannot be connected at the module end.
Cabinet compatible hardware With EMC filters and a built-in brake chopper, the new drivers are well equipped. At the same time, the drive is very compact and the 480 V drive with over 1 HP is the smallest in its class. The width of the group only increases with power, which helps easy installation into a cabinet or stand-alone configuration. The cable tunnel can be arranged in a straight line, and all screw holes can be drilled in one line. DIN rail mounting is also available for all ACS350 units and the drivers can be mounted side-by-side without air gaps. When the cabinet depth is very limited, the driver can even be side-mounted on the back of the cabinet. At just 9.7 pounds, handling and installing the 25-horsepower unit is easy. The enclosure of the drive itself provides IP20 protection.
High-speed communication and full control connection The driver has a full control connection with two bipolar analog and five digital inputs (one of which can be configured as a pulse train), one analog, one relay and one digital output. These drivers feature a new generation of fieldbuses with small, closed, plug-in adapters that provide high-speed communication.
The driver has an embedded Modbus RTU and includes several small, closed, plug-in fieldbus adapters that provide high-speed communication, such as DeviceNet, PROFIBUS-DP, and CANopen. Several options are also available, including a potentiometer, pulse encoder interface, cabinet panel mount NEMA12 or NEMA 4X and programming software.
ABB's universal mechanical drives are single-phase (240 V), rated up to 3 HP; Three-phase (240 volts) up to 5 HP; Three-phase (480 volts) up to 25 HP. In the third quarter of 2008, the three-phase (240V) will be expanded to 15HP and the three-phase (480 V) will be expanded to 30 HP. Michael Mikolajczak, product line manager for the ACS350 Drive line, said: "This is a very compact R4 frame drive with a larger donkey that can quickly replicate parameter sets across units at a competitive price.
