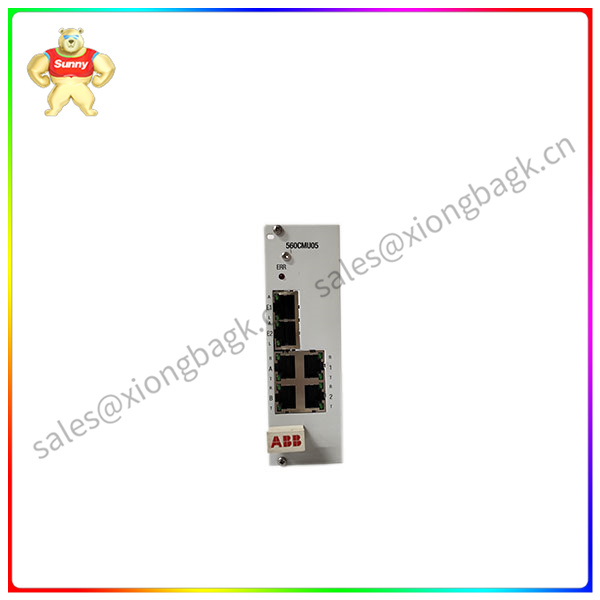

ABB 560CMU05 communication unit
Global Business Alias :560CMU05 R0002 Product ID:1 KGT012700R0002 ABB Model Name :- Catalog Description: Communication unit for RTU560
(CMU), 4 serial ports, 2 Ethernet ports Details: Central module of the RTU560 with 32-bit CPU-4x serial communication interface (RS-232 or RS-
485) for local/remote communication-2X Ethernet Interface (10/100BaseT) protocol license. Features and compact flash memory are not included in the category Parts and services
Product Overview:
Grid Automation and Communication products Remote Terminal Units as long as additional information is available ABB Type Name :- Country of Origin: Germany (DE) Customs Tariff Number :85176200 Global Business
Alias :560CMU05 R0002 Gross Weight: 0.29kg Invoice Description: Communication Unit (CMU) for RTU560, 4 serial ports, 2 Ethernet ports Custom:
None Min order quantity :1 piece Order multiple :1 piece package level 1 unit :0 Carton component Type: New Product Name :560CMU05 R0002 Product Net height: 5.8cm Product
Net length :14 cm Net Weight :0.21 kg Net Width :20.3 cm Product Type: Undefined Offer: None Replacement Product ID(old):1 KGT012700R0001
Replacement product ID(new):1 KGT036300R0002 sales unit
Features:
- SPB I/O bus connection
- Protocol based on UART characters
These two functions are mutually exclusive. SPB always allocates
The two interfaces are parallel. In this case, the interface CPB is automatically routed to
A unit of centimeters. If the interface is running in UART mode, both interfaces can be used
Handle different communication protocols. The actual firmware version will be delivered on CompactFlash
Memory card. The new firmware file can be loaded via Web and inserted into removable CompactFlash memory card by diagnostic tool. CompactFlash memory card can be replaced.
Settings
Use the RTUtil500 configuration tool for hardware setup and communication interface operations
