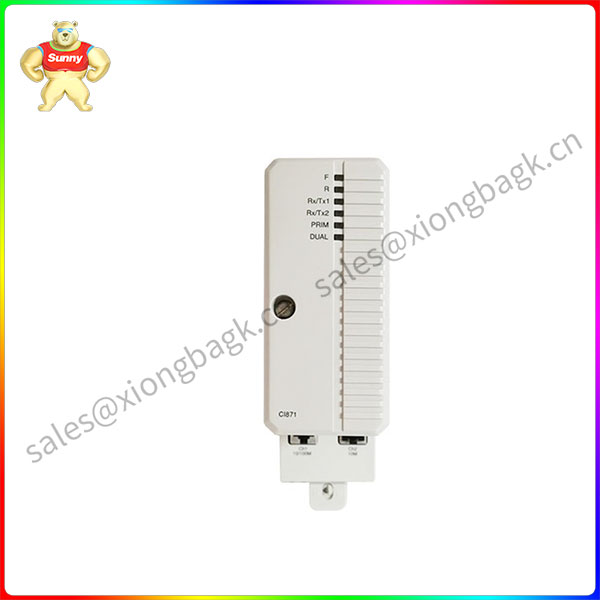

Model CI871K01
Brand ABB
Type: Communication module
Communication capabilities of ABB PLCs
AC800PLC equipment:
CI871K01 This PLC model family is designed for process automation. Communicate with these devices have many choices, but the most commonly used are procyanidins (with OligomericProanthoCyanidins) server.
List of communication interfaces and protocols supported in PLC equipment:
- Industry standard serial communication connection (standard 2 ports on the processor) supports communication protocol master, American Standard Code for Information Exchange
- Ethernet (standard 2 ports on the processor for control network bus redundancy)
-Modbus TCP/IP(Optional communication module)
|
Label
|
Specification
|
|
Model Number
|
CI871K01
|
|
Brand
|
ABB
|
|
Type
|
Communication Interface Module (AC 800M Series)
|
|
Input Voltage
|
24VDC ±10%
|
|
Operating Temp
|
-25°C to +70°C
|
|
Communication Method
|
Profinet IRT, Ethernet
|
|
Mounting
|
35mm DIN Rail
|
|
Weight
|
Approximately 0.45 kg
|
|
Certifications
|
IEC 61158, UL 508, CSA C22.2 No. 14, CE
|
|
Dimensions
|
190mm × 100mm × 45mm (H×W×D)
|
|
IP Rating
|
IP20
|
|
Protocols Supported
|
Profinet IRT, Modbus TCP/IP, Ethernet/IP, UDP/IP
|
|
Data Transfer Rate
|
Up to 100 Mbps
|
|
Number of Ports
|
2 x RJ45 Ethernet Ports
|
|
Latency
|
ms (Profinet IRT)
|
|
Redundancy Support
|
Yes (Dual Port for Ring Topology)
|
-CI871K01 process field bus (short for Process Field Bus) DP V1(Optional communication module - in Profibus host mode)
- Industry standard for serial communication connections (optional communication modules support communication protocol master,Comli host/slave, Siemens 3964 host, American Standard Code Protocol for Information Interchange)
-MasterBus 300(optional communication module for connection to ABB Advant controller system)
The CI871A is an AC80OM communication interface connected to PROFINET IO devices over Ethernet. The TP867 Baseplate has two RJ45 Ethernet connectors, but only the CH1 connector that supports 100Mbps is used for PROFINET IO connections. The Ethernet cable must be connected to the PROFINET IO network through an Ethernet switch.
The Cl871 expansion unit contains the CEX bus logic, communication unit, and DC/DC converter to provide the required voltage +24 V over the CEX bus.
