General information
Product Number: 57120001-DP
ABB model name: DSAI 110 series
Directory Description: DSAI 110 analog input board
Detailed description: DSAI 110 analog input unit
32 channels +/-10 V, +/-20 mA, 0.4
% Single ended
Other information

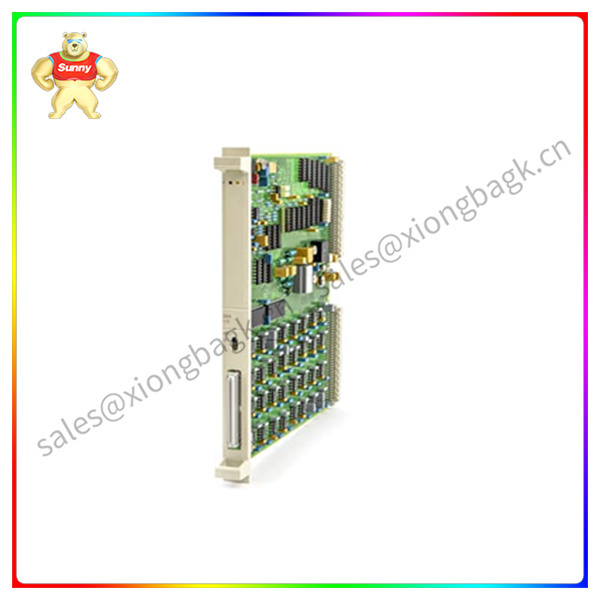

DSAI 110 Analog input module
Estimated shipping size
Size: 10.0 "x 1.0" x 10.0"
(25.4cm x 2.5cm x 25.4cm) Weight: 0 lb 15.0 oz (0.4 kg)
Attention! In accordance with Articles 2 (4) (c), (e), (f) and (j), this part is not subject to 2011/65/EU (RoHS)
Reference: 3BSE088609 - EU compliance
Statement - ABB Advant Master Process Control System)
The ABB DSAI110 57120001-DP has 6 slots and 1 power slot, 2 of them
The slots use fast DMA technology to directly communicate with the CPU for high-speed data, and the two slots implement the Ethernet control layer based on the standard TCP/IP protocol through the Ethernet module
Information transfer, the remaining 4 slots F1... F4 Exchange data using interrupt mode
With the CPU and main memory, each module can generate its own interrupt source, powerful interrupt controller, and advanced multitasking
The operating system can quickly respond to interrupt messages from these four
ABB DSAI110 57120001-DP Analog input
Communication module and rapid exchange of data with it. Meanwhile,
Through priority control, the error report information of communication module can be received in real time.
