Brand Name: ABB
Model: DSBB175 57310256-CC

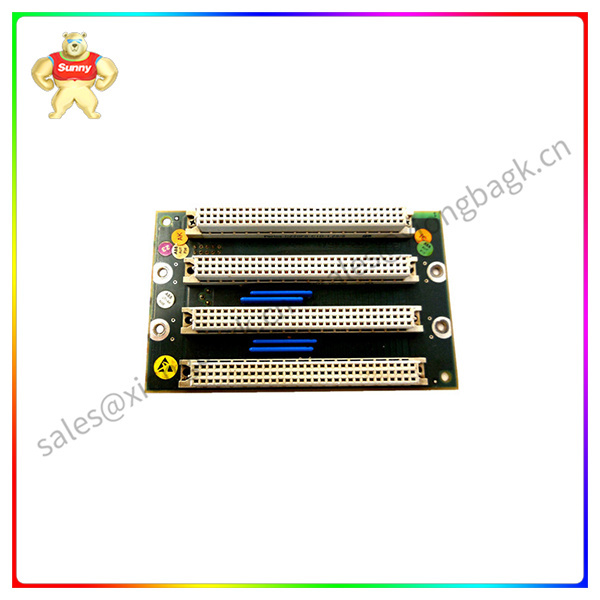

Description: ABB DSBB 175 57310256-CC MXB bus backplane
Warranty: 1 year
| Parameter |
Value |
| Product Model |
ABB DSBB 175 57310256-CC |
| Manufacturer |
ABB |
| Product Type |
Industrial Automation Control Module (PLC I/O Expansion Module) |
| Power |
24V DC ±10%, 9W Maximum Consumption |
| Communication / Protocol |
ABB PLC Local Bus, PROFINET IO, Modbus RTU |
| Operating Temperature |
-10°C – 65°C (14°F – 149°F), 5% – 95% RH (Non-Condensing) |
| Mounting |
DIN Rail Mount (35mm Standard) |
| Dimensions (HxWxD) |
132mm x 48mm x 118mm (5.2" x 1.9" x 4.6") |
| Weight |
510g (1.12 lbs) |
| Typical Interfaces |
16 Digital Inputs (Isolated), 8 Digital Outputs (Relay), 4 Analog Inputs (4-20mA/0-10V), 2 Analog Outputs (4-20mA), 1 PLC Bus Interface |
| Compliance |
IEC 61131-2, CE, UL 508, RoHS 3.0, ISO 9001 |
High reliability is the key performance of electrical control equipment. Due to the use of modern large-scale integrated circuit technology, PLC adopts strict production process manufacturing, the internal circuit adopts advanced anti-interference technology, with high reliability. The use of PLC to form a control system, and the relay contactor system of the same size, electrical wiring and switch contacts have been reduced to hundreds or even thousands of one, the fault is greatly reduced. In addition, the PLC has a hardware fault self-detection function, which can issue alarm information in time when there is a failure. In the application software, the user can also program the fault self-diagnosis program of peripheral devices, so that the circuit and equipment other than PLC in the system can also obtain fault self-diagnosis protection. In this way, the whole system will be extremely reliable
Other information
Product: Spare_Parts
order
Customs Code: 85389091
dimension
Net weight: 0.250 kg
environmental
WEEE Category: The product is not included in the WEEE
