Origin: USA
Brand Name: ABB
Model:

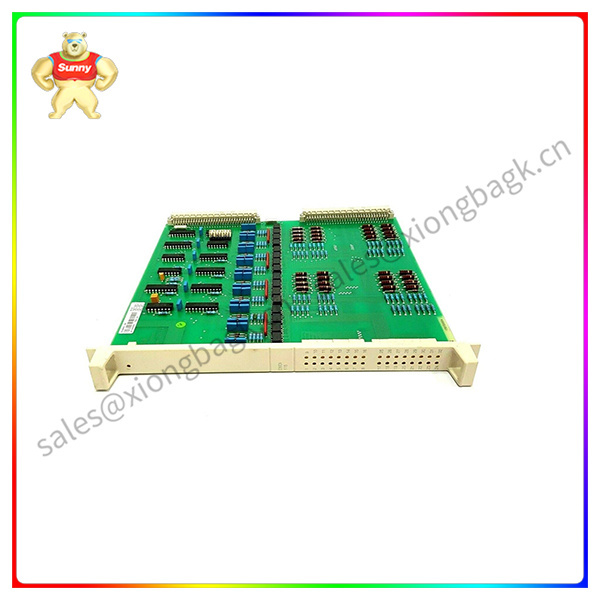

DSDI 115 57160001-NVDescription: ABB DSDI 115 57160001-NV digital input unit
Warranty: 1 year
Directory Description: DSDI 115 digital input unit
Detailed description: DSDI 115 digital input unit
32:00 24VDC, photoelectric isolation
|
Label
|
Specification
|
|
Model Number
|
DSDI 115 57160001-NV
|
|
Brand
|
ABB
|
|
Type
|
Digital Input Module (16-channel)
|
|
Input Voltage
|
24 V DC (19.2–30 V DC)
|
|
Operating Temp
|
-25°C to 70°C (-13°F to 158°F)
|
|
Communication Method
|
Profinet, Ethernet/IP (via backplane)
|
|
Mounting
|
DIN Rail (35mm)
|
|
Weight
|
0.35 kg (0.77 lbs)
|
|
Certifications
|
CE, UL, CSA, IECEx
|
|
Dimensions
|
100 x 160 x 60 mm (3.94 x 6.30 x 2.36 in)
|
|
IP Rating
|
IP20 (Front Panel)
|
|
Protocols Supported
|
Modbus TCP, Profibus DP, PROFINET IO
|
|
Input Channels
|
16 isolated channels
|
|
Signal Sampling Rate
|
1 ms per channel
|
Attention! In accordance with Articles 2 (4) (c), (e), (f) and (j), this part is not subject to 2011/65/EU (RoHS)
Reference: 3BSE088609 - EU compliance
Statement - ABB Advant Master Process Control System)
ABB Safety has selected TUV Products & Services Limited as our external validation and certification
A partner. TUV Product Services is a highly recognized certification body.
All the development of Safeguard 400 series products is related to
TUV maintains a close relationship. The following key milestones are part of the development project:
• Concept approval • Design approval
• Functional verification
For more information about the certification, see Safeguard 400 Series Safety Manual 3BNP000432R301
. Safety manuals are TUV approved documents that contain information related to the implementation and maintenance of safety systems
Message.
Single assurance and dual assurance have different levels of certification. Safeguard 410 and
Safeguard 415 is designed to meet AK 6/SIL 3 requirements. sole
The assurance system can be configured to comply with AK 4/SIL 2
The requirements for different types of authentication status for various system components are defined below
.
