ABB AI810-EA | 3BSE008516R2 | Analog Input Module

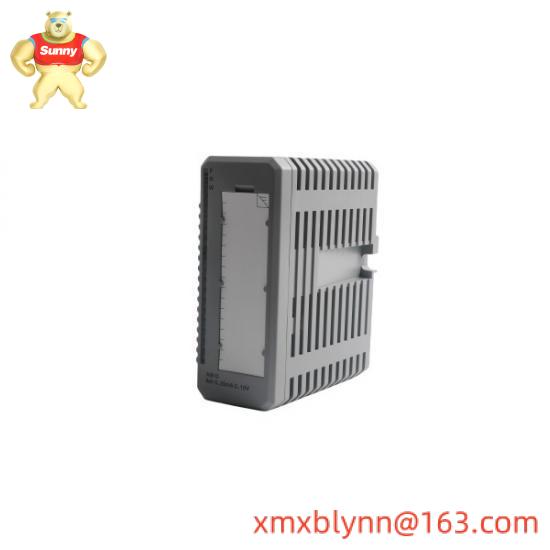

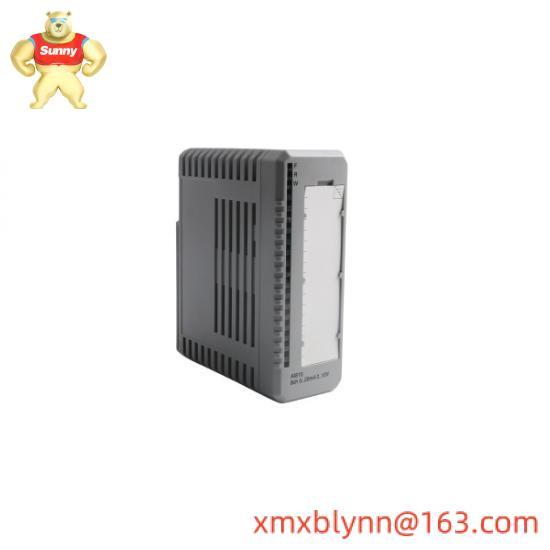

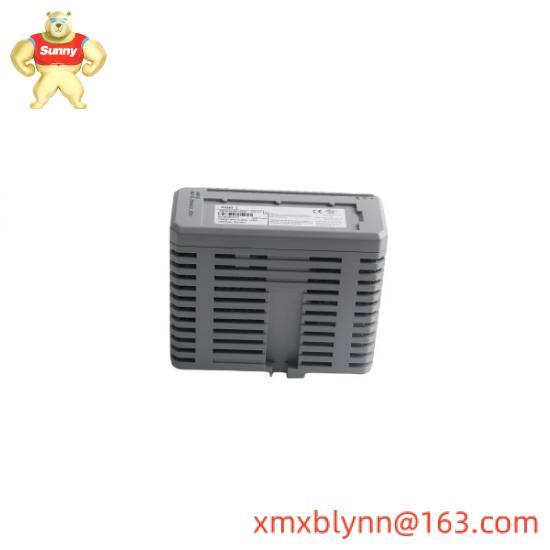

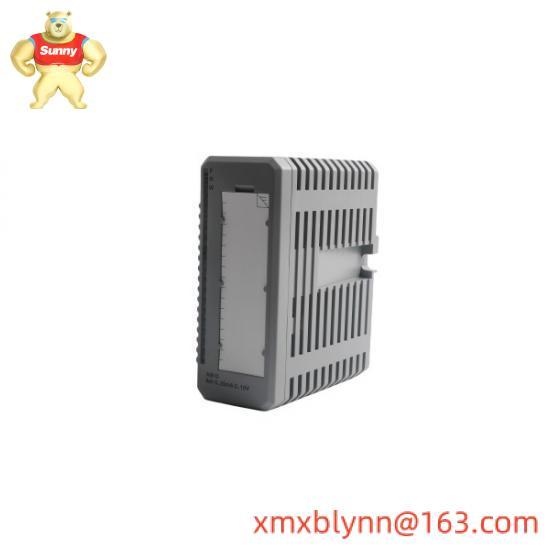

ABB AI810-EA 3BSE008516R2 Analog Input Module

Product Overview

The ABB AI810-EA 3BSE008516R2 represents cutting-edge signal acquisition technology in industrial automation. As a critical component of ABB's System 800xA platform, this 8-channel analog input module delivers 16-bit resolution for precision measurement of 0-10V and 4-20mA signals. Engineered for process control systems, the AI810-EA 3BSE008516R2 features galvanic isolation up to 500V AC between channels, ensuring reliable operation in electrically noisy environments.

With its -25°C to +70°C operational range and IP20 protection, the ABB AI810-EA excels in harsh industrial settings. The module supports HART protocol communication, enabling seamless integration with smart field devices. As part of ABB's modular I/O system, the 3BSE008516R2 version offers hot-swappable functionality, significantly reducing maintenance downtime in continuous process operations.

Technical Specifications

Key Advantages

1. High-Density Design: The AI810-EA 3BSE008516R2 packs 8 isolated channels in compact 44mm width, optimizing cabinet space utilization.

2. Advanced Diagnostics: Continuous monitoring of field wiring integrity with open-circuit detection and range violation alerts.

3. Flexible Configuration: Software-selectable input ranges and built-in signal linearization for various sensor types.

Industrial Applications

The ABB AI810-EA module is extensively used in:

• Process variable monitoring in chemical plants
• Temperature/pressure acquisition in power generation
• Production line automation in manufacturing

Why Choose Us

As ABB's certified partner, Xiamen Xiongba e-Commerce Co., LTD maintains ready stock of AI810-EA 3BSE008516R2 modules with same-day shipping. Our technical team assists with configuration, integration, and provides lifetime maintenance support.
