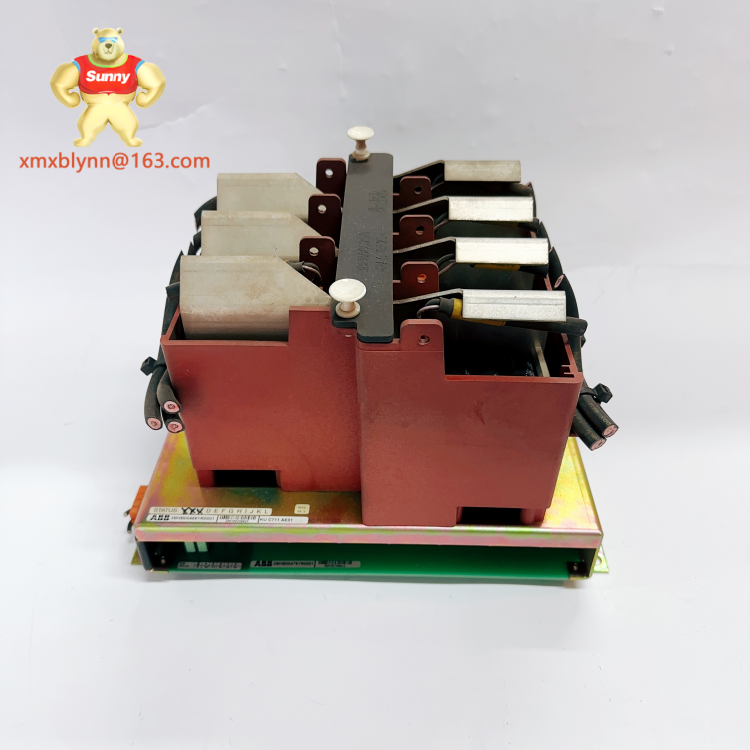

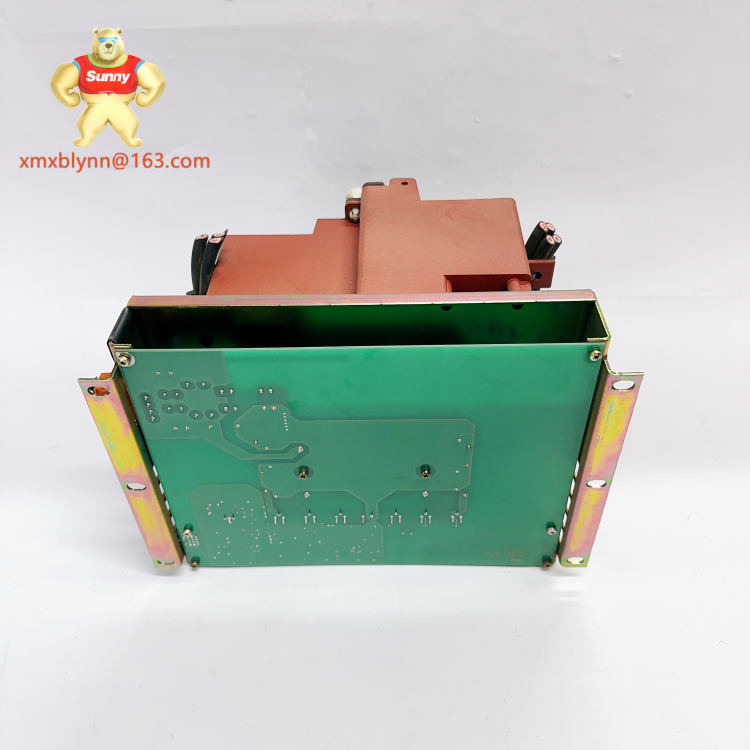

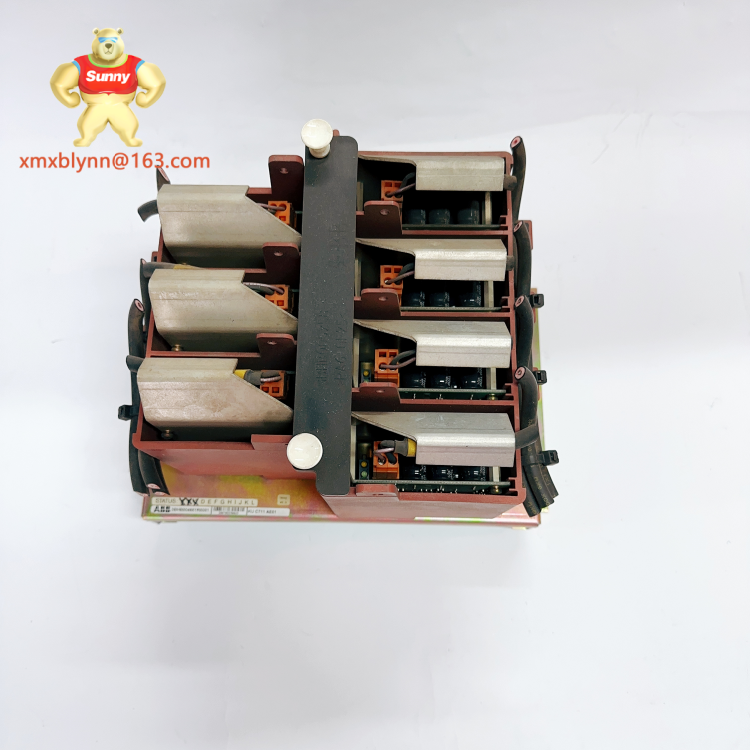

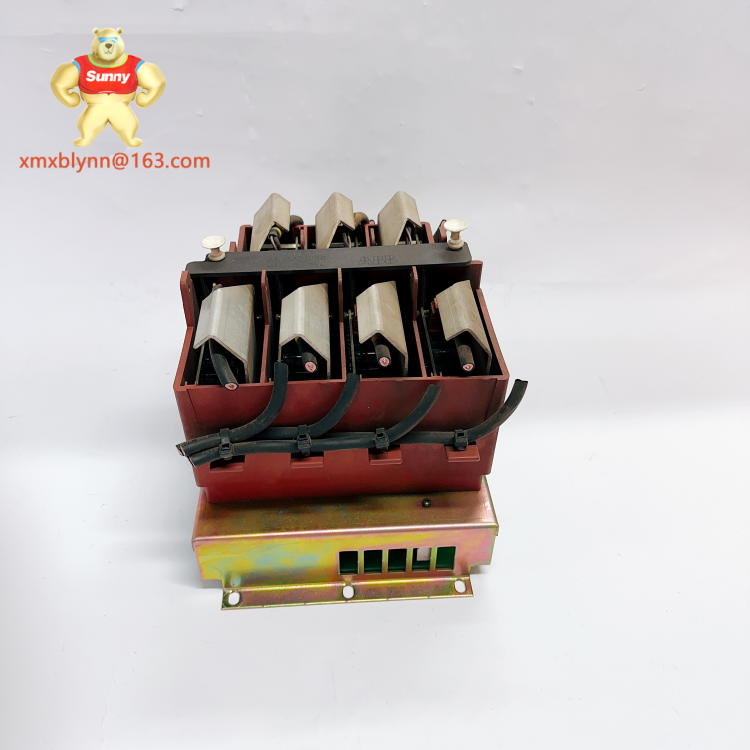

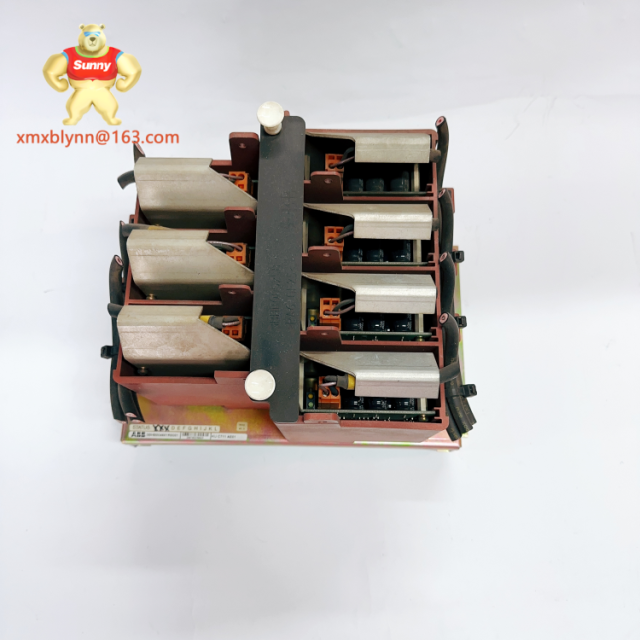

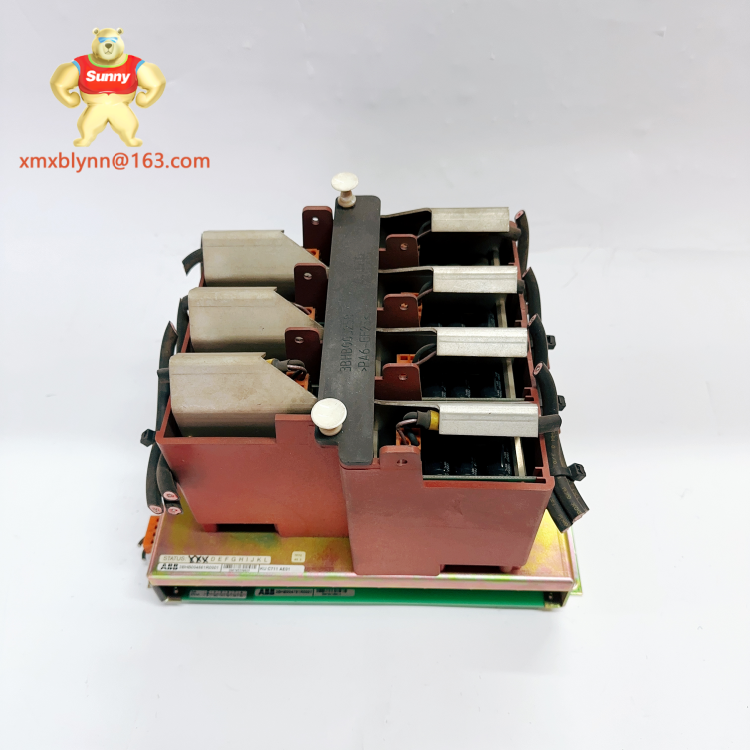

The ABB KUC711AE101 3BHB004661R0101 is a compact, high-performance control module built for industrial automation systems—think power plants, manufacturing lines, or process control setups. It’s designed to sync seamlessly with ABB’s AC 800M DCS, which is why we picked it for our factory’s recent upgrade. Personally, I found that its ability to handle multiple input signals at once eliminates the need for extra modules, which cleaned up our control panel clutter a lot. It also runs quietly, unlike some older modules that hum loudly when under load.
L’ABB KUC711AE101 3BHB004661R0101 est un module de contrôle compact et haute performance, conçu pour les systèmes d’automatisation industrielle (centrales électriques, lignes de production, installations de contrôle de processus). Il s’intègre parfaitement au DCS AC 800M d’ABB, un atout majeur pour les sites déjà équipés de matériel ABB. Sa robustesse permet de résister à des fluctuations de tension courantes en industrie, et son design ergonomique facilite l’accès aux ports de connexion.
| Parameter | Value |
|---|---|
| Product Model | ABB KUC711AE101 3BHB004661R0101 |
| Manufacturer | ABB |
| Product Type | Industrial Control Module (for AC 800M DCS) |
| Power | 24V DC (20-28V DC) |
| Communication / Protocol | Profibus-DP, Ethernet/IP |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Mounting | DIN Rail Mount (35mm standard) |
| Dimensions (HxWxD) | 125mm x 80mm x 150mm (4.92" x 3.15" x 5.91") |
| Weight | 580g (1.28 lbs) |
| Typical Interfaces | 8x analog inputs, 4x digital outputs, 1x Ethernet port |
| Compliance | CE, UL 508, IEC 61131-2 |
The Profibus-DP support was a big win for us—our older system relied on this protocol, so we didn’t have to rewire everything to switch to this module. I also noticed it rarely overheats, even when running 24/7 during production peaks, which says a lot about its build quality.
If you need more inputs/outputs or different protocols, these ABB KUC711 series models are worth considering—they share the same reliable design as the KUC711AE101:
L’installation se fait sur rail DIN standard (35mm) — il suffit de clipser le module et de connecter les câbles selon le schéma fourni. Pour la maintenance, ABB recommande une inspection每6 mois : vérifier les connexions, nettoyer la poussière avec un pinceau souple, et tester les signaux via le logiciel AC 800M. En cas de panne, le module est facilement remplaçable sans déconnecter l’ensemble du rail.
Mounting this module is a breeze—just snap it onto a standard 35mm DIN rail, and the wiring terminals are clearly labeled (no guessing which wire goes where). I helped install 12 of these last quarter, and each took less than 15 minutes to set up. The only tip: tight the terminal screws firmly—loose wires caused a minor communication glitch once, but it was easy to fix.
For maintenance, ABB suggests checking connections every 6 months and dusting with a soft brush. We also run a quick signal test via the AC 800M software monthly—it takes 5 minutes and catches small issues before they become big problems. Replacing it is simple too—just unplug the wiring harness and pop a new one in.
L’ABB KUC711AE101 3BHB004661R0101 bénéficie d’une garantie de 2 ans à partir de la date d’achat. Elle couvre les défauts de fabrication et les pièces défectueuses, mais n’inclut pas les dommages dus à une installation incorrecte ou un usage non conforme aux spécifications. Pour demander une garantie, fournissez le numéro de série et la facture d’achat à ABB.
ABB offers a 2-year warranty on the KUC711AE101 3BHB004661R0101—longer than most competitors, which was a big selling point for us. We had one module with a faulty digital output, and ABB sent a replacement in 3 days after we submitted the serial number. Just make sure to follow the installation guide—damage from wrong wiring isn’t covered, and we learned that from a colleague’s mistake last year.
