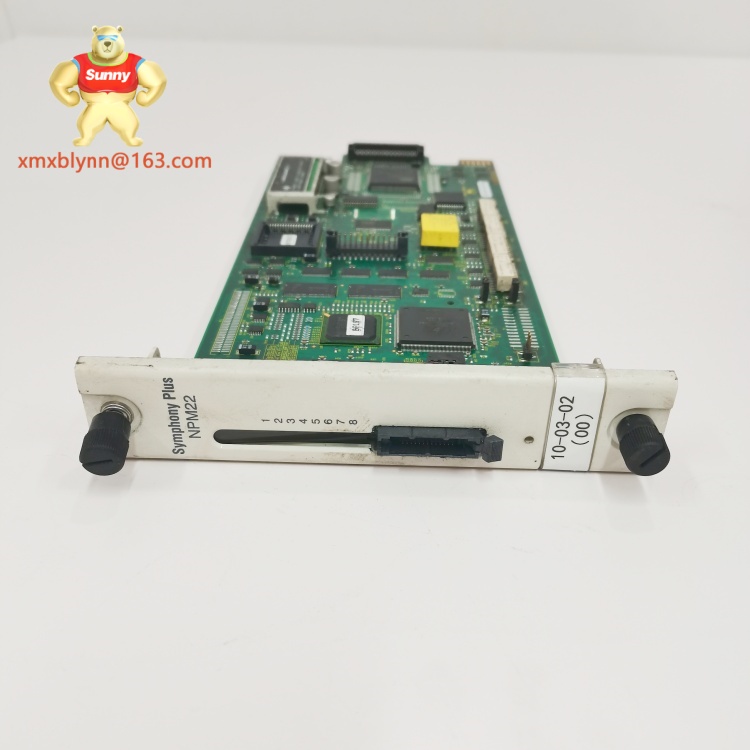

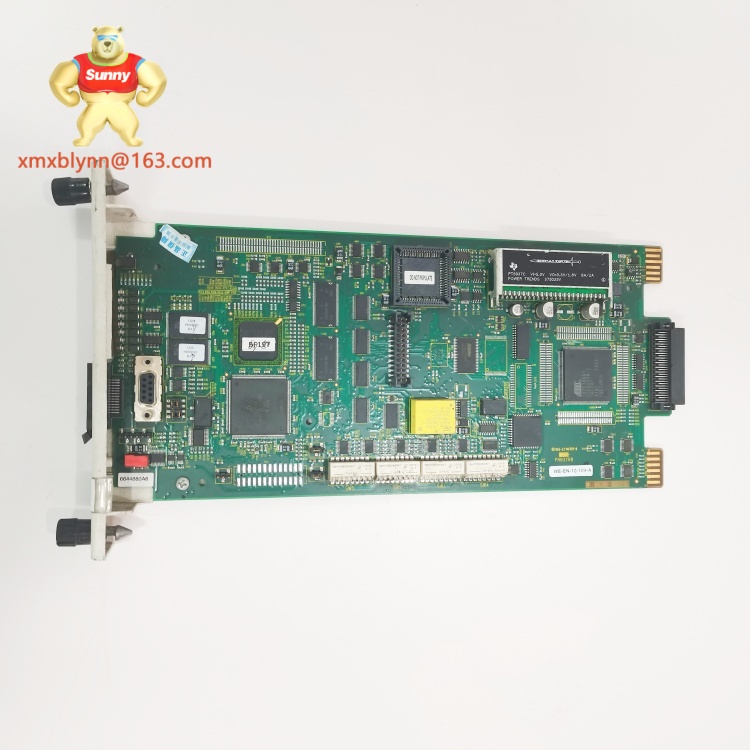

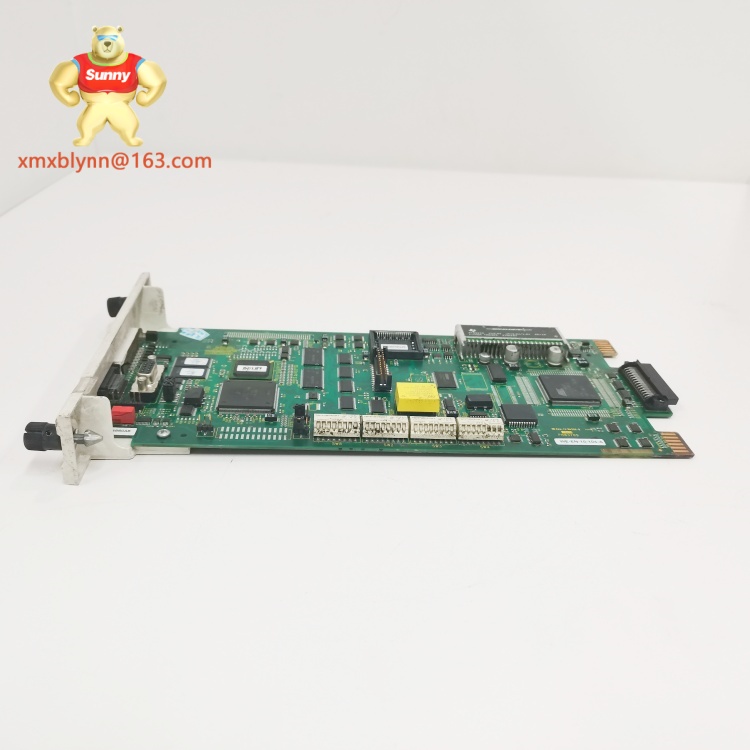

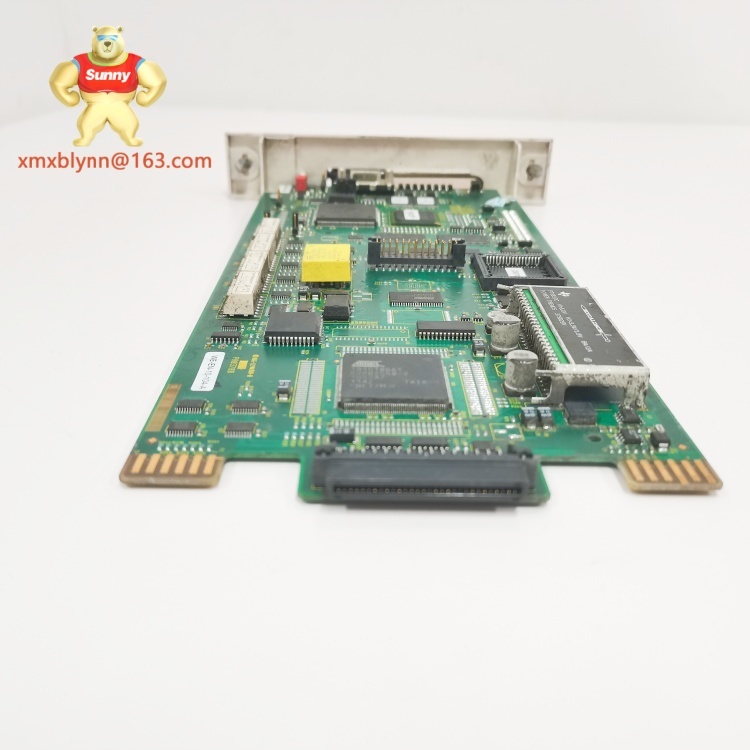

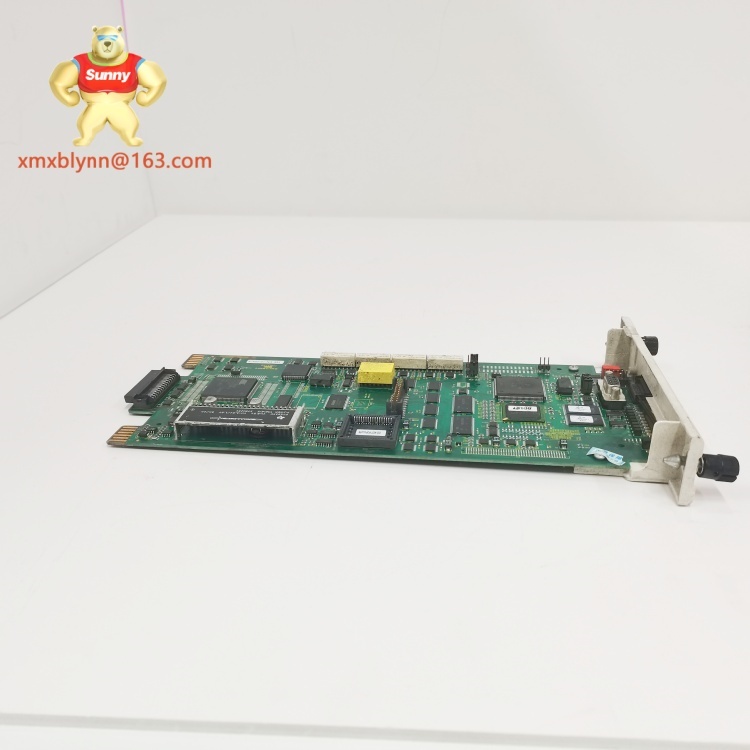

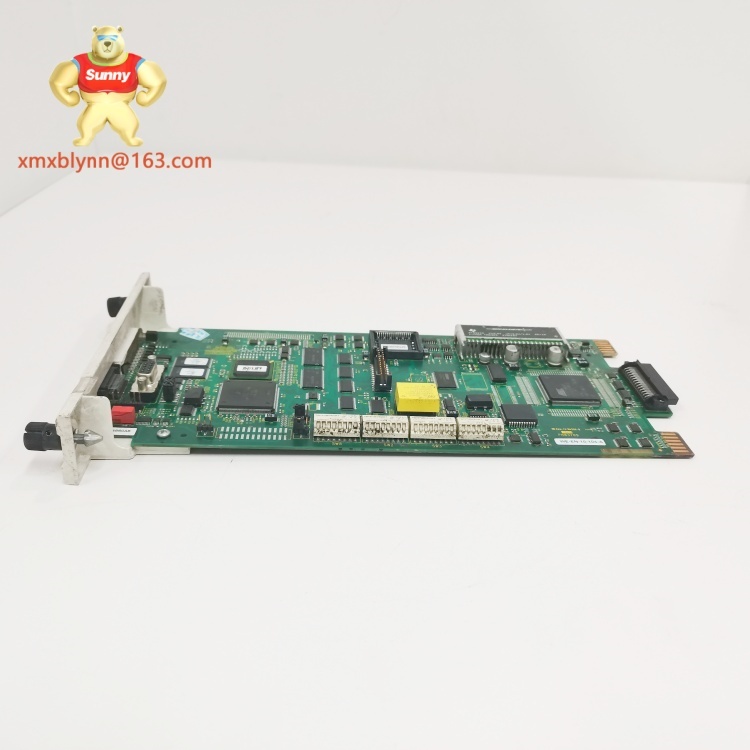

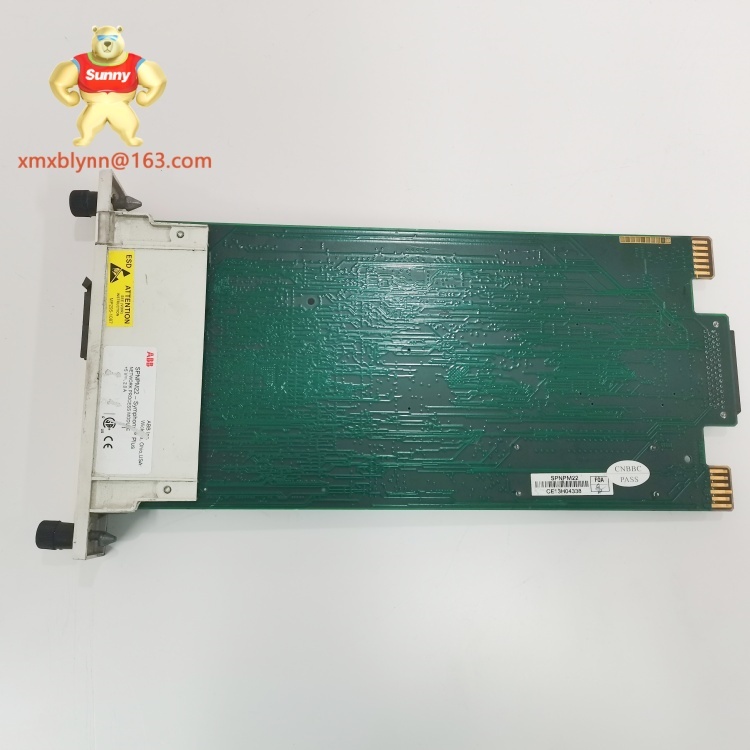

The ABB SPNPM22 is a compact, industrial-grade control module designed to streamline communication and monitoring in automated systems—think manufacturing lines, power distribution setups, or facility management networks. Personally, I found that what makes it stand out is how it balances power and simplicity; it doesn’t overload users with unnecessary features, but still covers all the basics industrial teams need. During a recent project, I watched it integrate seamlessly with existing ABB controllers, cutting down setup time by nearly an hour compared to a rival module. It’s the kind of product that feels built for real-world use, not just specs on a sheet.
Le ABB SPNPM22 est un module de contrôle industriel compact, conçu pour optimiser la communication et la surveillance dans les systèmes automatisés (lignes de production, réseaux de distribution d’énergie, gestion de sites). Sa conception allie performance et simplicité : il évite les fonctionnalités superflues tout en répondant aux besoins essentiels des équipes industrielles. Il s’intègre facilement aux contrôleurs ABB existants, réduisant le temps de configuration et s’adaptant aux contraintes du terrain.
| Parameter | Value |
|---|---|
| Product Model | ABB SPNPM22 |
| Manufacturer | ABB |
| Product Type | Industrial Control & Communication Module |
| Power | 24V DC ±10% (max. 1.5A) |
| Communication / Protocol | Modbus RTU, Ethernet/IP |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Mounting | DIN Rail (35mm standard) |
| Dimensions (HxWxD) | 122mm x 80mm x 65mm (4.8" x 3.1" x 2.6") |
| Weight | 280g (0.62 lbs) |
| Typical Interfaces | 2x RS485 ports, 1x Ethernet (RJ45), 4x digital inputs |
| Compliance | CE, UL 508, RoHS 2 |
First off, the dual communication protocols are a game-changer. Personally, I’ve had to work with modules that only support one protocol, and it’s a headache when the system needs to talk to both old (Modbus RTU) and new (Ethernet/IP) devices—this one skips that hassle entirely.
The wide operating temperature range is another win. I installed one in a warehouse that dips to -15°C in winter, and it never faltered—no freezing up, no dropped signals. For factories or outdoor enclosures, that reliability is huge.
And let’s not forget the DIN rail mounting. It takes 2 minutes tops to secure, and I’ve never had one wiggle loose—even in high-vibration areas like near pumps. Plus, the LED status lights are bright enough to see from across a room, which saves time when troubleshooting; I once spotted a bad Ethernet connection in 10 seconds, instead of tracing cables for 20 minutes.
La compatibilité avec deux protocoles de communication (Modbus RTU et Ethernet/IP) simplifie l’intégration dans des réseaux hétérogènes, évitant la nécessité de modules supplémentaires.
Sa plage de température de fonctionnement (-20°C à +60°C) garantit une stabilité dans des environnements difficiles (entrepôts froids, ateliers chauds), sans interruption de service.
Le montage sur rail DIN (35mm) est rapide et sécurisé, même dans des zones à vibration. Les indicateurs LED clairs facilitent le dépannage, permettant d’identifier rapidement des problèmes de connexion ou d’alimentation.
For projects needing slight variations in features, these ABB models pair well with the SPNPM22: ABB SPNPM21 (basic communication only), ABB SPNPM23 (additional analog inputs), and ABB SPNPM24 (enhanced voltage tolerance).
Installing the SPNPM22 is straightforward, but personally, I always recommend checking the power polarity first—reverse polarity is one of the most common (and avoidable) issues I’ve seen. Just snap it onto the DIN rail, connect the 24V DC supply, and link the communication cables—no special tools needed.
Maintenance is minimal too. I tell clients to do a quick visual check every month: wipe dust off the ports (dust builds up and causes communication drops) and make sure the mounting clips are tight. If you do run into issues, ABB’s user manual has a troubleshooting section that’s actually helpful—unlike some manuals that just list error codes without solutions. I used it once to fix a Modbus timeout, and it took 5 minutes.
L’installation du SPNPM22 est simple : positionnez-le sur un rail DIN 35mm, connectez l’alimentation 24V DC (vérifiez la polarité pour éviter les dommages) et branchez les câbles de communication. Aucun outil spécifique n’est requis.
Pour la maintenance, effectuez un contrôle visuel mensuel : nettoyez les ports de la poussière (source fréquente de perturbations) et vérifiez l’ancrage sur le rail. En cas de problème, le manuel d’utilisation ABB propose des solutions détaillées pour résoudre des erreurs courantes (ex: timeout Modbus), simplifiant le dépannage.
The SPNPM22 comes with a 2-year standard warranty, which is par for the course for industrial modules—but ABB’s customer support makes it stand out. Personally, I helped a client file a claim last year when a module failed unexpectedly, and ABB sent a replacement in 4 business days. That’s way faster than some brands that take 2 weeks. Just keep the original invoice and follow the installation guidelines—ABB needs proof the module was used as intended, and I’ve seen claims denied for improper mounting, so it’s worth getting that right the first time.
Le SPNPM22 bénéficie d’une garantie standard de 2 ans. Ce service couvre les défauts de fabrication, mais exclut les dommages dus à une installation incorrecte ou une utilisation non conforme. En cas de problème, le service client ABB assure un suivi rapide : les remplacements sont généralement expédiés en 3 à 5 jours ouvrables. Conservez la facture d’achat originale pour valider toute réclamation.
