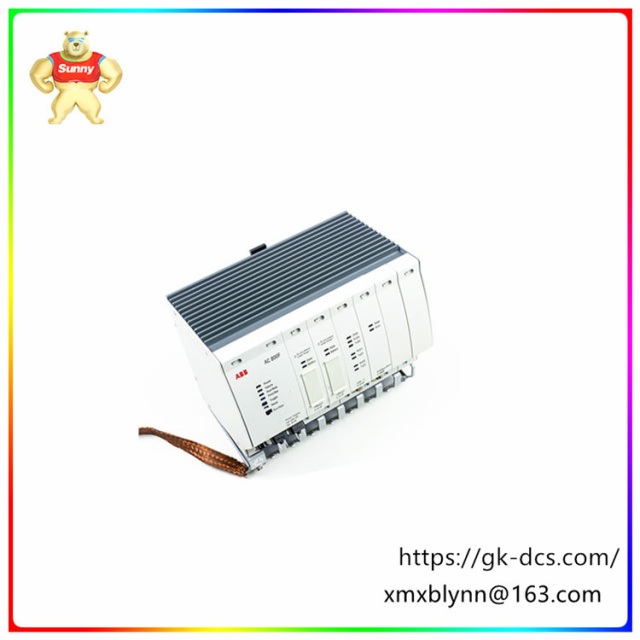

The AC-800F is a powerful controller designed primarily to support process automation applications. This controller has some notable features and functions:
Modular structure: The AC-800F controller adopts a modular design, and the CPU is integrated on the baseboard of the controller, which can be easily inserted into different modules, such as power modules, Ethernet modules and fieldbus modules for various applications. This design makes the controller very flexible and expandable.
Fieldbus support: The AC-800F controller supports several major Fieldbus types, including PROFIBUS-DPV1, FOUNDATION Fieldbus HSE, MODBUS (master/slave, RTU or ASCII), IEC60870-5-101, and CAN bus for rack-mounted I/O. This makes it easy to integrate into various automation systems.
Redundant configuration: The AC-800F controller supports redundant configuration. You can install two AC-800F controllers to implement controller redundancy and improve system reliability and stability.
Input/output module: The input/output module (I/O) of the AC-800F has high redundancy and fault tolerance, and can achieve multiple conversion of input and output signals to meet the data acquisition needs of various applications.
Central Processor module: The Central processor module (CPM) of the AC-800F is based on Intel Core 2 single processor technology, which provides powerful control performance for the system and implements comprehensive configuration, communication protocols and program execution of the control system.
In addition, the AC-800F controller has a compact, robust design and supports DIN rail (C-rail) or wall mounting for easy installation. At the same time, it also has a wide range of certifications, including CE, NAMUR, CSA, UL and EN61000-6-2, which comply with relevant standards and specifications.
The AC-800F controller supports a wide range of automation applications. As a powerful controller, it can meet the needs of various industrial automation systems.
The AC-800F controller supports all major fieldbuses for process automation applications, including PROFIBUS-DPV1, FOUNDATION Fieldbus HSE, MODBUS (Master/slave, RTU or ASCII), IEC 60870-5-101, etc. These fieldbus protocols enable the AC-800F to communicate with various automation devices, sensors and actuators for real-time data acquisition, transmission and processing.
In addition, the AC-800F controller also has a modular structure, which can be connected to different modules according to different application requirements, such as power supply units, Ethernet and fieldbus modules. This design allows the AC-800F to flexibly adapt to the needs of a variety of automation applications, whether simple control tasks or complex automation systems, which can be well supported.
Therefore, the AC-800F controller is suitable for various industrial automation fields, including manufacturing, energy, chemical, water treatment, etc. It can be used to monitor and control equipment on the production line, optimize the production process, improve production efficiency, but also can be used to achieve energy management, environmental monitoring and other tasks.
In summary, the AC-800F controller is a powerful, flexible and reliable automation control device that can support the needs of a wide range of automation applications.
