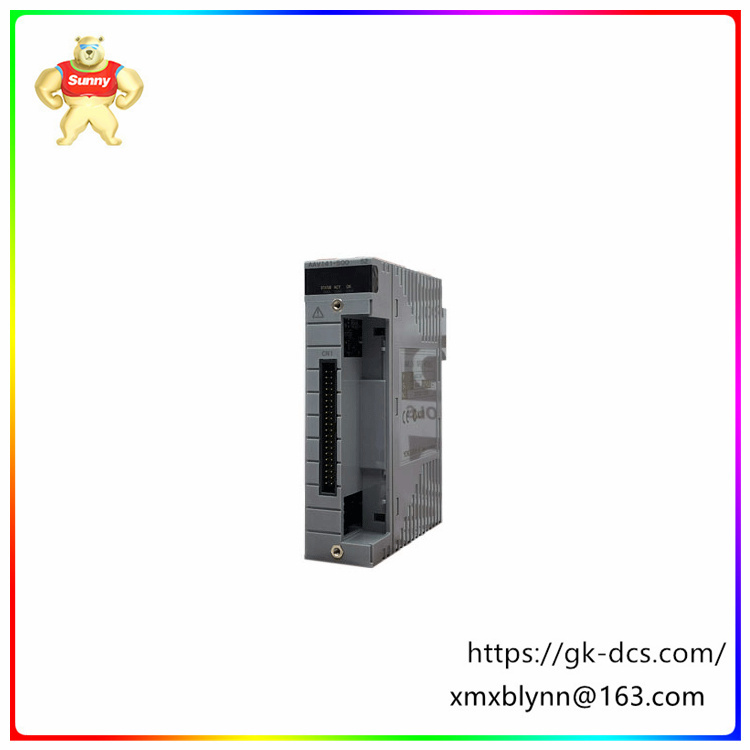

The YOKOGAWA ADV559 control unit is used to connect the thermocouple input unit to the thermocouple probe and convert the temperature signal output from the probe into a digital signal that can be recognized by the control unit. The wiring group adopts 2-wire connection mode and has the characteristics of waterproof, dustproof and corrosion resistance.
The main components of the wiring group are as follows:
Connector: Used to connect thermocouple probes
Circuit board: Used to convert temperature signals
Ground terminal: Used for grounding
The wiring group is used as follows:
Connect the connector to the thermocouple probe.
Connect the circuit board to the control unit.
Connect the ground terminal to the ground point.
The parameters of the wiring group are as follows:
Input voltage: 24 VDC
Input current: 10 mA
Output signal: 4-20 mA
Temperature range: -200~+600 °C
