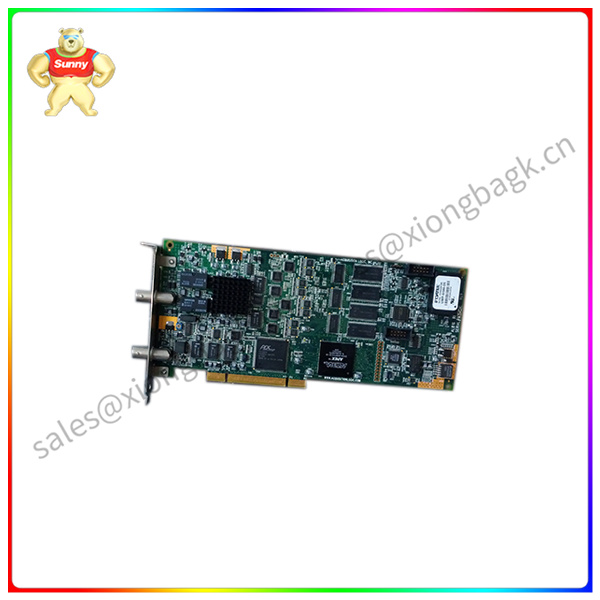

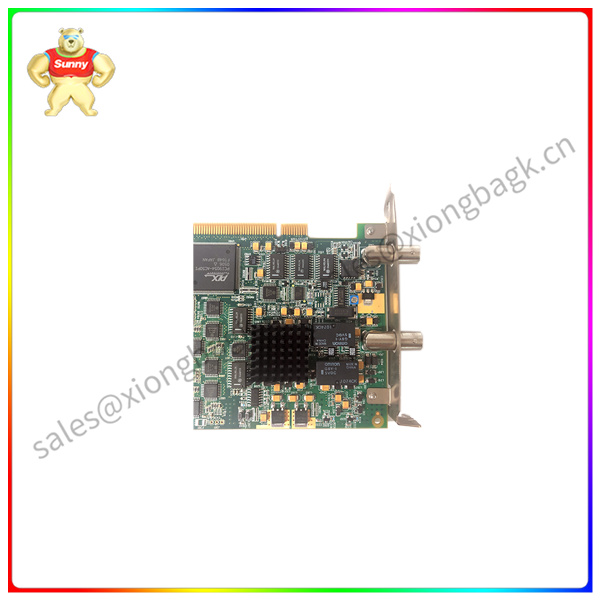

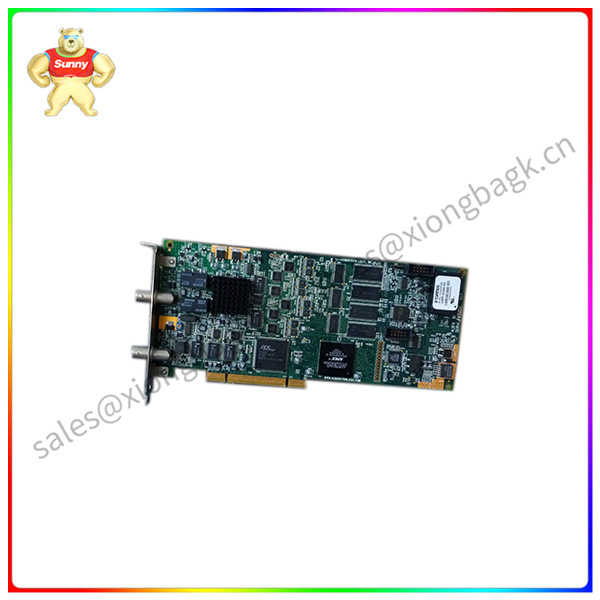

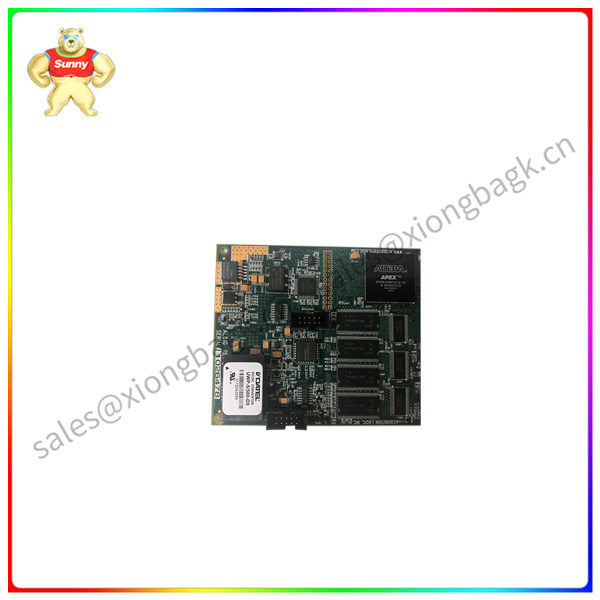

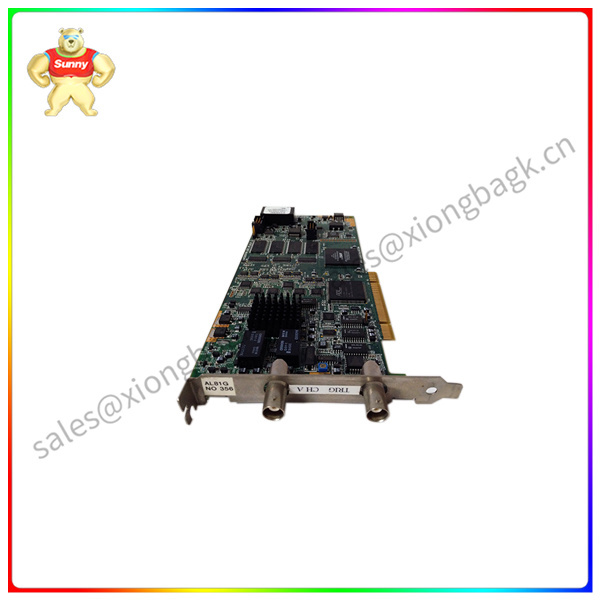

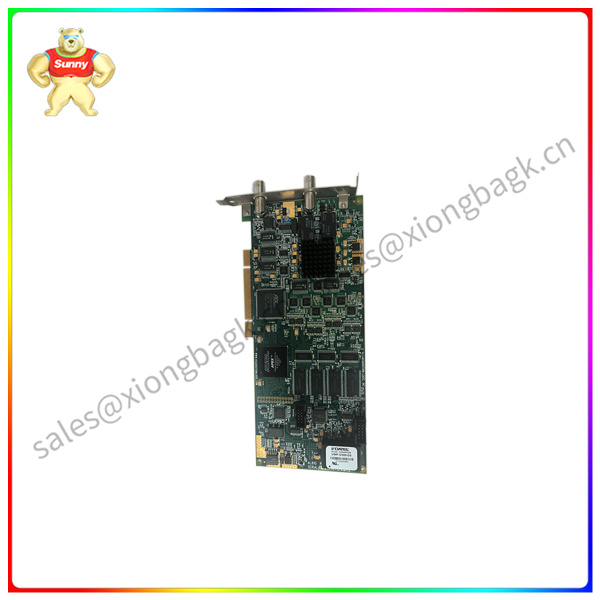

Product details: The AL81G ACQUISITION 1 GHz ADC board features single-channel digitization with 8-bit resolution
The AL81G is popular in high speed maps that use high frequency ultrasonic signals. It is most commonly used to digitize signals from UT340 or other high frequency pulse receivers.
It has single-channel digitization with 8-bit resolution and sampling frequencies up to 1 GHz. This provides a useful dynamic range of about 40 dB and is suitable for RF signal numbers up to about 200 MHz center frequency
Melt. The AL81G has one input, either an orthogonal encoder or a step and direction signal. This feature enables the digitizer to keep up with the movement of the high-speed scanning system.
Application example:
Voli rate automatic scanners,
Voluminescent thickness measurement
Flaw detection of advanced metals, coatings and laminates
Ultrasonic microscope
Lab scanning system.
