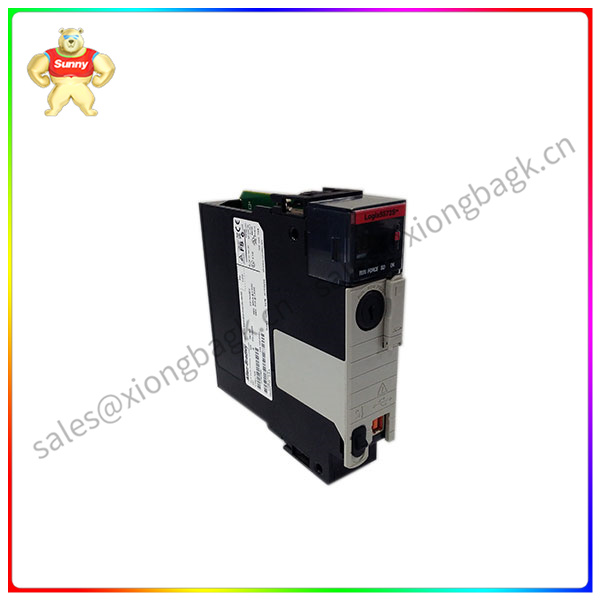

Allen-Bradley 1756-L72S is the GuardLogix 5570 controller, part of the Logix5000 controller family. It is a Control ogix controller with security control functions. This is one
A dual-processor solution that must be used with the 1756-L7SP safety module to comply with SIL 3 or Cat. 4/PLe Safety standard. The security Partner controller is automatically configured to favor individual items
Eye. It has powerful motion processing power and speed as well as high-performance logic. It has a USB port for communication. It can support up to 500 controller connections. The 1756-L72S controller has
4MB of user storage, 2MB of secure storage, and 0.98MB of I/O storage. It can support 128,000 digital I/ OS and 4,000 analog I/ OS. It consumes 5mA of current at 1.2V DC, in
800mA current is consumed at 5.1V DC. Power consumption 2.5W, heat dissipation 8.5BTU /hr, weight 0.55lbs, isolation voltage 30V(continuous) for basic insulation. It can be installed in ControlLogix 1756
Multiple controllers can be installed in the same chassis in any slot of the chassis. For secure communication, it uses a control network, device network, or Ethernet /IP network.
The 1756-L72S controller can control or monitor I/O through a backplane or I/O link. For controller diagnostics, it has a front display that provides run-time information. It uses energy storage modules to work, which means
This means that lithium batteries are not needed. The 1 GB (1784-SD1) secure digital card comes pre-loaded with optional non-volatile storage, expandable up to 2 GB (1784-SD2).
The Allen-Bradley 1756-L72S is a 5570 GuardLogix programmable Automation controller (PAC). The controller has both standard and safety controller functions. The controller is the master controller, with the eye
Security partner - stripped as 1756-L7SP or 1756-L7SPK - can be used to achieve Security Comprehensive Rating (SI) Category Rating (CL)3/ Performance Rating e (PLe) /Cat. 4. Rating. With dedicated security controls
Unlike with 1756-L72S, standards and security items are integrated in a single file.
The 1756-L72S has high capacity standard memory and dedicated security memory. These storage areas are equivalent to 4 megabytes of user memory, 2 megabytes of secure memory, 0.98 megabytes of I/O memory, and 1,000
Megabytes of non-volatile memory, non-volatile memory is provided by the 1784-SD1 that comes with the controller. It enables the 1756-L72S to connect up to 128,000 input and output (/O) signals to these letters
The number may consist of 128,000 discrete 1/ OS and 4,000 analog I/ OS.
The 1756-L72S is an environmentally friendly controller because it is equipped with a modern energy storage module instead of a traditional lithium battery to retain random access memory (RAM). These memory storage modules include controllers
The accompanying 1756-ESM cap; The 1756-ESMNSE is a removable power backup with no remaining wall clock time, or the 1756-ESMNRM is a non-removable one that helps prevent USB connections and
SD card is used to help protect the controller.
The 1756-L72S can be installed into any standard or conformal coated ControlLogix chassis, such as 1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A10K, 1756-A7K, 1756-A10K.
1756-A13, 1756-A13K, 1756-A17, and 1756-A17K, as well as standard power supplies such as 1756-PA50, 177k
