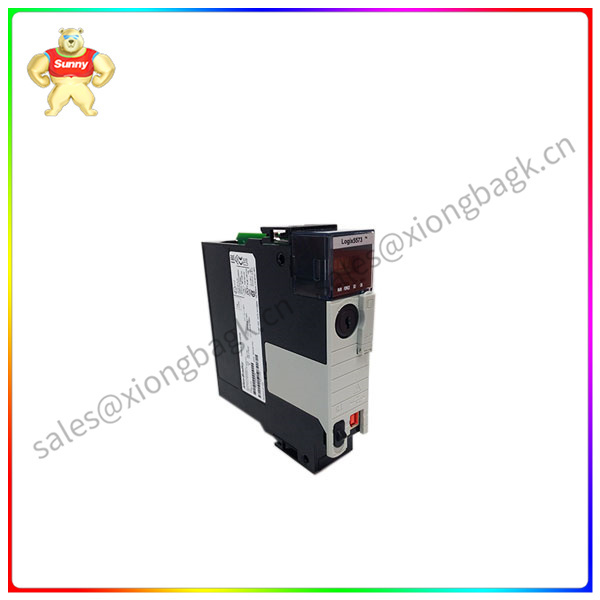

The 1756-L73 is the ControlLogix 5570 controller from Allen-Bradley. This is a programmable automation controller (PAC) that can control large applications or process automation applications in the factory. It supports simplex configuration and high availability (redundant) controller configuration to improve system availability.
The controller can connect 128,000 input and output signals and 4,000 analog input and output signals. It can enable a local I/O configuration, where the I/O module is installed in the same chassis where the controller is installed, or a distributed I/O topology, where the extended I/O is installed away from the processor and provides I/O over an extended communication bus.
The controller supports Ethernet I/P, DeviceNet, ControlNet, Synchlink, and traditional communication protocols such as Data Highway Plus (DH+), Remote I/O (RIO), and third-party protocols. It can also be configured to communicate with gateways and protocol converters.
Support Profibus DP dual bus, support for the standard specification of the scheduled communication rate, but also support manually set by the dip switch standard rate or rate adaptive.
It provides a flexible choice of 1 or 2 Profibus DP electrical ports and 1 or 2 155M optical fiber ports, and supports redundant dual-network optical fiber ring network topology. Its fiber optic interface supports fiber optic distances of more than 20km and high-speed data transmission of 155Mb/s.
Equipped with 6 two-color LED status indicators, it can output alarms through fiber link and power failure relay.
With electrical interface 4000V lightning protection, 1.5A overcurrent, 600W surge protection measures, as well as industrial grade design and EMC test certification.
DC9-36V wide redundant dual power supply to achieve DC1500V power isolation and reverse protection.
It has IP30 protection grade, adopts wavy aluminum reinforced housing, and adopts standard industrial 35mm rail mounting method.
Support Profibus DP dual bus, support for the standard specification of the scheduled communication rate, but also support manually set by the dip switch standard rate or rate adaptive.
