Brand: ABB Model: Product type: position I/O module Payment method: Wire transfer, Western Union Port of shipment for remittance: Xiamen, China Delivery time: 1-3 working days Condition: 100% original Warranty: 12 months

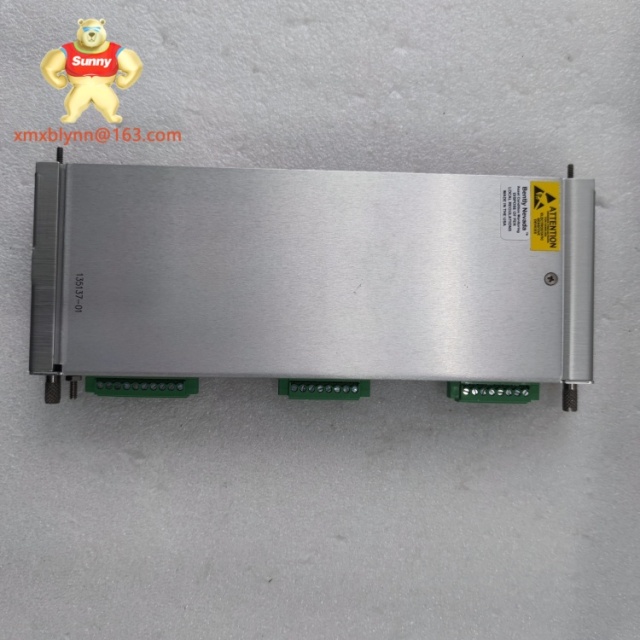

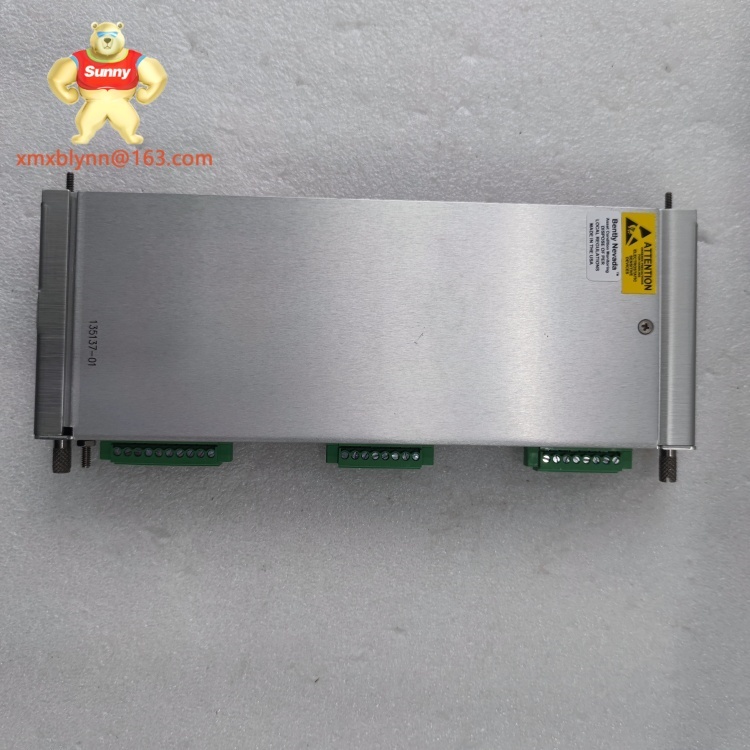

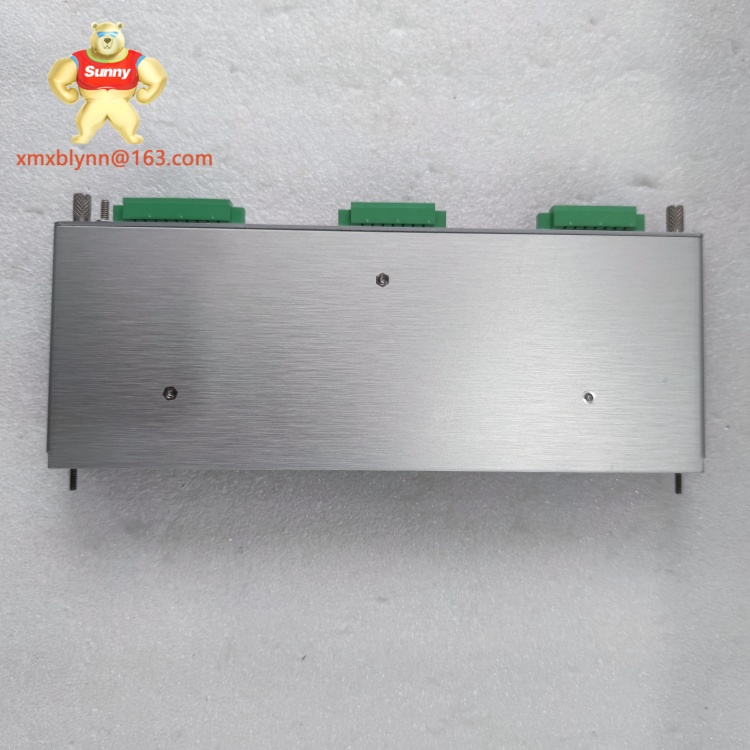

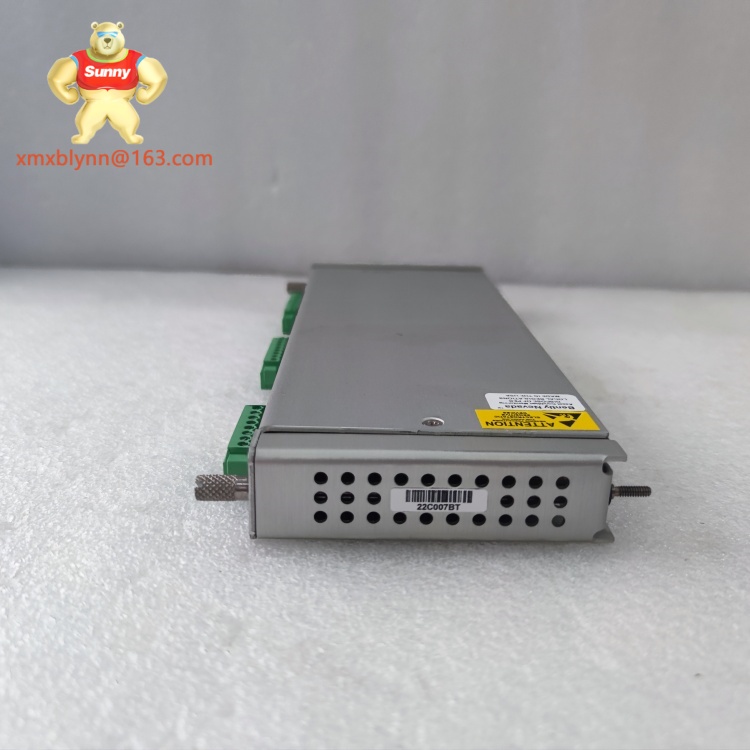

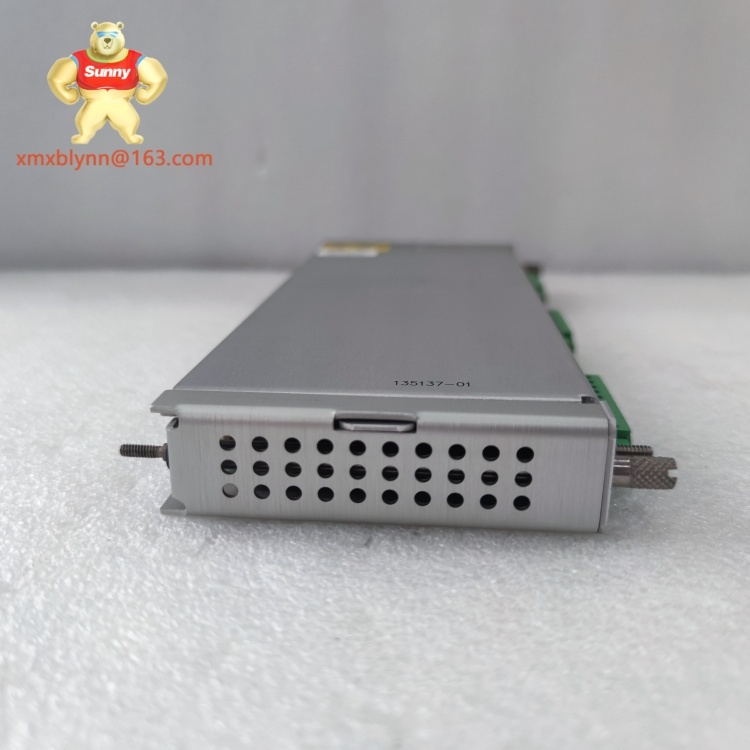

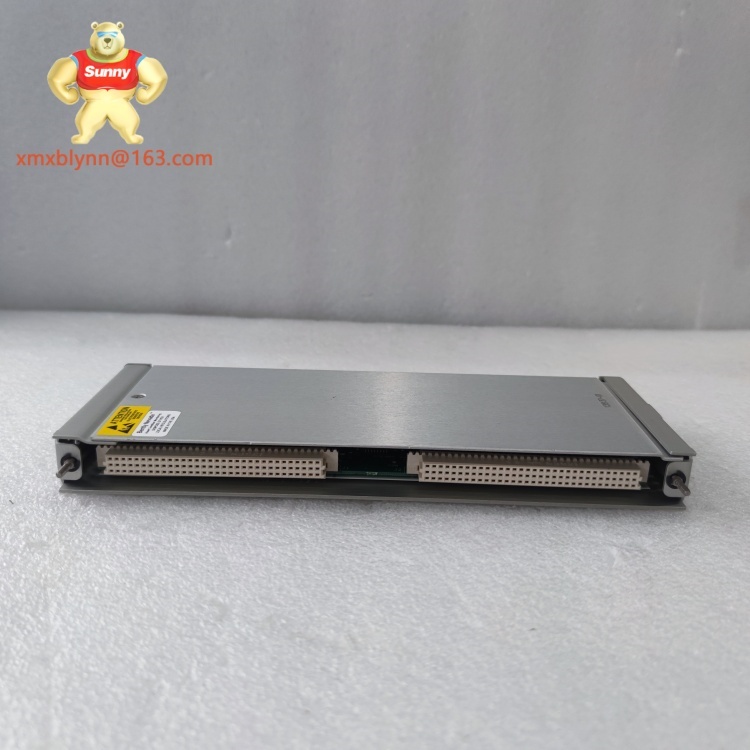

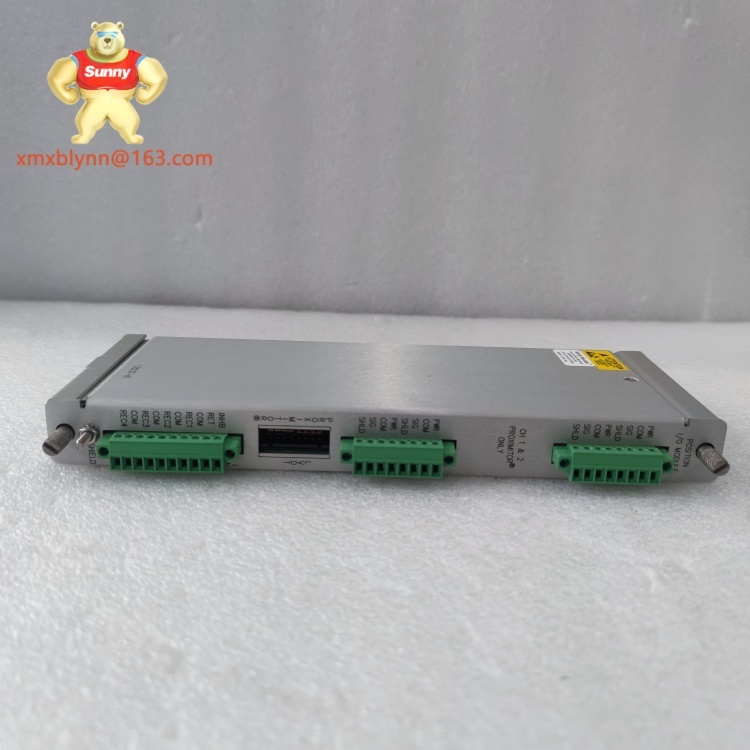

TheBENTLY 135137-01is a high-precision position I/O module designed for Bently Nevada’s 3500/45 monitoring system, specialized in protecting and optimizing industrial rotating machinery. As a cornerstone of condition monitoring, this module ensures early detection of mechanical issues in critical equipment like turbines, compressors, and pumps, minimizing downtime and maintenance costs.
Core Functions & Technical Features
Multi-Sensor Compatibility Supports 4 independent channels for inputs from:
Proximity transducers
Rotary position transducers (RPTs)
DC/AC linear variable differential transformers (LVDTs)
Rotary potentiometers. This versatility allows it to monitor shaft displacement, vibration, and rotational speed simultaneously.
Robust Specifications
Voltage: 24V DC or 125V DC input; 24V DC output.
Temperature Range: Operates reliably from -40°C to 85°C, suitable for extreme environments.
Protection: IP67-rated enclosure safeguards against dust and water ingress.
Communication: Features RS-485 interface with Modbus protocol for seamless integration into SCADA or PLC systems.
Precision Monitoring Achieves ±0.01% full-scale accuracy and <2ms response time, ensuring real-time detection of deviations from user-configured alarm thresholds. The module continuously compares sensor data against preset limits, triggering alerts via digital outputs to prevent catastrophic failures.
Applications
Energy Sector: Critical for wind turbines (shaft alignment monitoring) and solar inverters (thermal expansion tracking).
Oil & Gas: Monitors compressor and pump shaft positions in offshore platforms to avoid misalignment-related failures.
Manufacturing: Used in steel mills to ensure rolling mill rollers maintain precise positioning, preventing material defects.
Mining: Withstands harsh conditions in haul truck drivetrains and excavators, providing vibration analysis for predictive maintenance.
Operational Advantages
Modular Design: Channels can be programmed in pairs for simultaneous dual functions (e.g., vibration analysis on channels 1-2 and temperature monitoring on 3-4).
Data Logging: Stores up to 2000 alarm events and 1000 system events, enabling post-fault diagnostics and trend analysis.
Remote Access: Network connectivity allows configuration and troubleshooting via web interfaces, reducing onsite visits for offshore or remote installations.
Purchase & Warranty
The135137-01is available through authorized distributors like Runto Electric and Amikon, with stock availability and 12-month warranties covering manufacturing defects. For example, Xiamen Xiongba E-commerce Co., Ltd. offers free replacement for units failing to meet specifications within the first year.
Related Models
3500/42M Proximitor (176449-02): Complementary module for vibration amplitude monitoring.
3500/92 Communication Gateway: Enables integration with plant-wide control systems.
Installation & Maintenance
Mounting: Requires DIN rail installation in a 3500 Series rack, with torque-controlled screws (8-10 Nm) to ensure stable connections.
Thermal Management: Use thermal interface material (0.1-0.2mm thickness) between the module and heatsink to maintain junction temperatures below 125°C.
Routine Checks: Quarterly inspections for dust accumulation and annual torque verification are recommended to sustain optimal performance.
By combining high-precision sensing, rugged durability, and intelligent analytics, theBENTLY 135137-01delivers actionable insights to enhance machinery reliability in demanding industrial settings. Its compatibility with Bently Nevada’s ecosystem ensures seamless integration into existing monitoring frameworks, making it a preferred choice for mission-critical applications.
