Product Overview

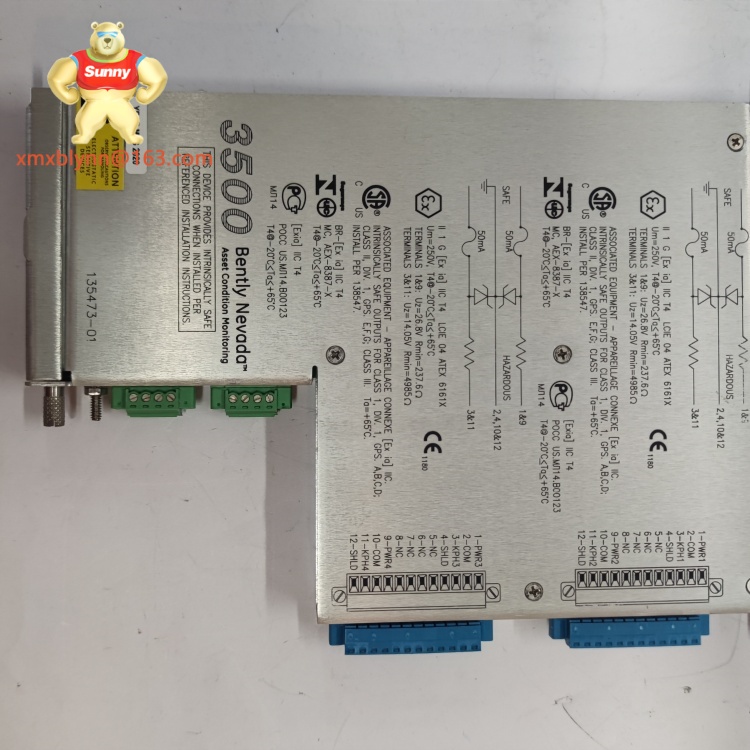

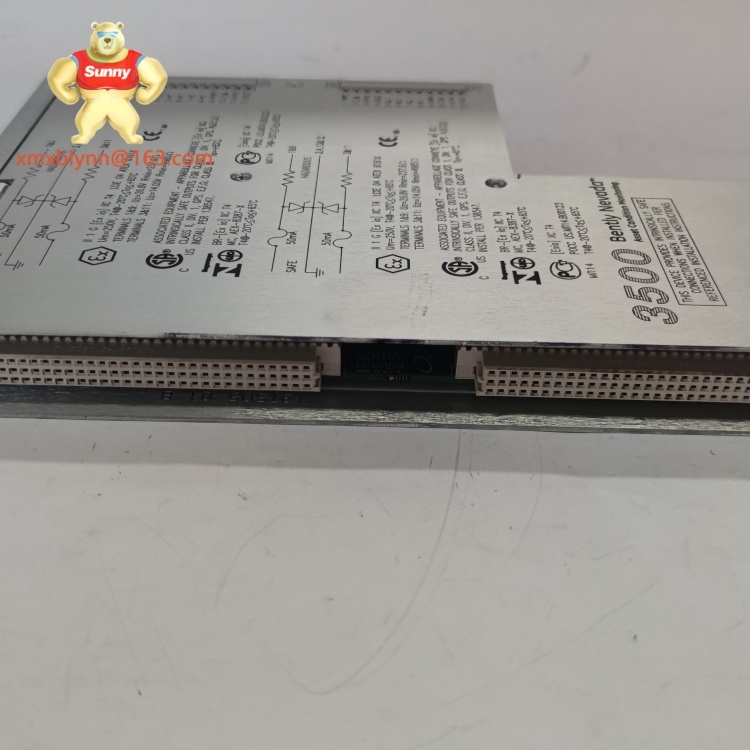

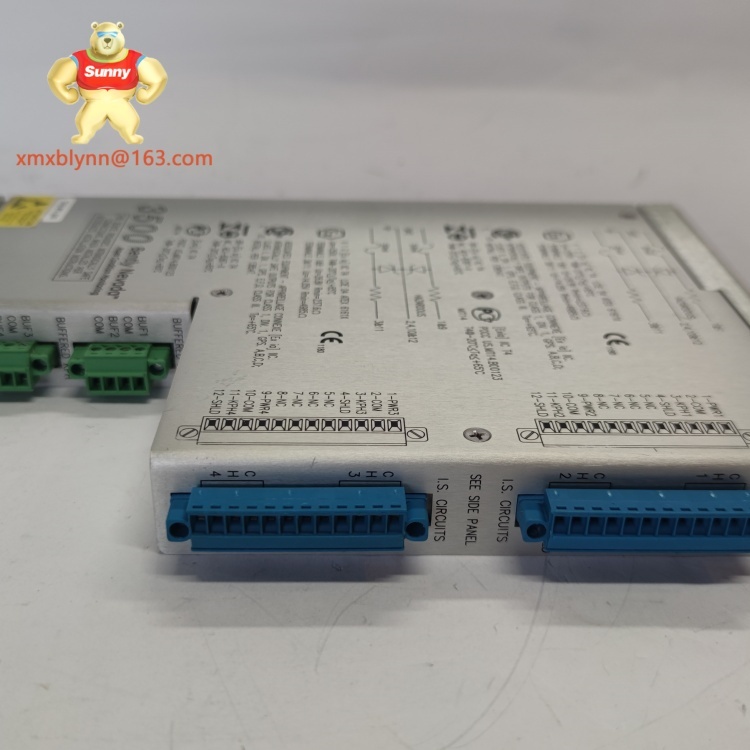

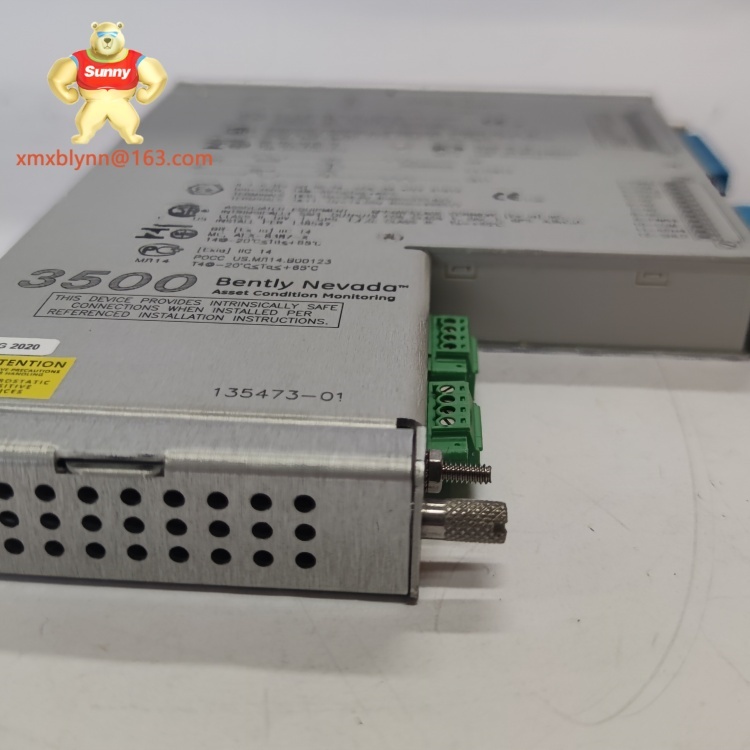

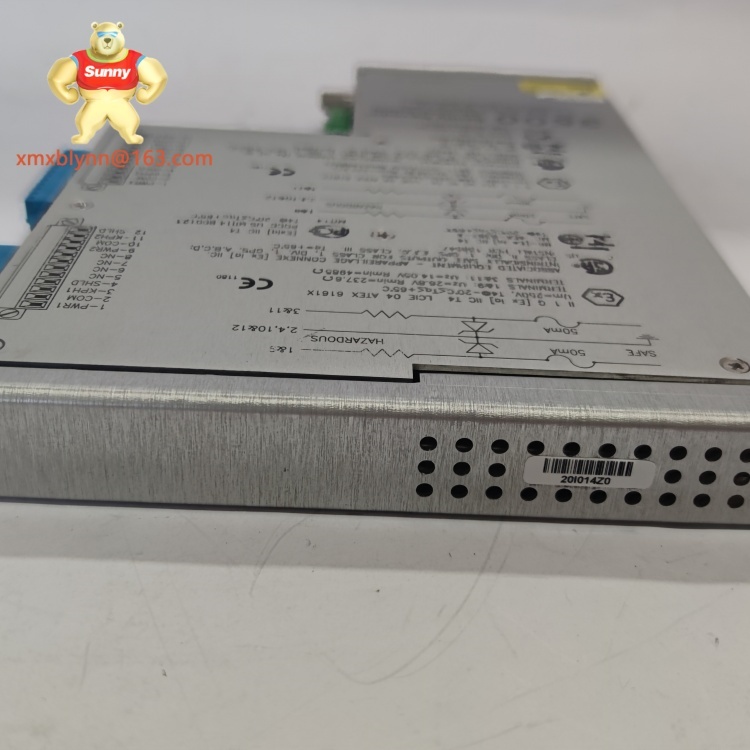

The 135473-01 is a high-performance multi-channel vibration monitoring module from Bently Nevada, integral to the 3500 machinery protection system. Designed to safeguard critical rotating equipment, its core function is to process signals from proximity probes and accelerometers, measuring vibration amplitude, frequency, and phase to detect early signs of mechanical issues like imbalance, misalignment, or bearing wear. This makes the 135473-01 a cornerstone of predictive maintenance strategies in industries such as power generation, oil & gas, and chemical processing, where unplanned downtime can have severe safety and financial consequences.
What distinguishes the 135473-01 is its seamless integration with the 3500 ecosystem, working alongside modules like the 3500/05 power supply and 3500/22M communication gateway to provide a unified view of machinery health. Its rugged design withstands extreme temperatures, vibration, and electromagnetic interference, ensuring reliable performance in harsh environments—from turbine rooms to offshore platforms. By delivering precise, real-time vibration data, the 135473-01 enables operators to act proactively, preventing catastrophic failures and extending equipment lifespan.
Technical Specifications
| Parameter |
Value |
| Product Model |
135473-01 |
| Manufacturer |
Bently Nevada |
| Product Type |
Multi-Channel Vibration Monitoring Module (3500 Series) |
| Input Channels |
8 configurable channels |
| Supported Sensors |
Proximity probes (3301 series), accelerometers |
| Frequency Range |
0.5 Hz – 10 kHz |
| Measurement Range |
0–25.4 mm peak-to-peak (vibration) |
| Operating Voltage |
24 VDC (from 3500 chassis backplane) |
| Operating Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Mounting Type |
3500 system chassis slot |
| Certifications |
UL, CE, ATEX, IECEx |
| Output Signals |
4–20 mA analog, digital (EtherNet/IP) |
| Compatibility |
3500/05 power supply, 3500/22M gateway, 330103 probes |
Key Features and Benefits
The 135473-01 excels in precision and versatility, offering 8 configurable channels to monitor multiple vibration parameters from a single module. This reduces system complexity, eliminating the need for multiple specialized units and lowering installation costs—particularly valuable in large facilities with diverse equipment like combined-cycle power plants.
Accuracy is a defining strength. The module processes vibration signals with ±0.5% precision, capturing even subtle anomalies such as a 0.02 mm spike in compressor shaft vibration—early indicators of impending failure. Configurable alarm thresholds, set via Bently’s 3500 Configuration Software, trigger instant alerts, enabling operators to intervene before issues escalate.
Ruggedness ensures reliability in harsh environments. The 135473-01 operates flawlessly in extreme temperatures and resists vibration and electrical noise, making it suitable for offshore rigs, dusty cement mills, and chemical plants. Its conformal coating protects internal components from moisture and corrosion, extending operational lifespan.
Integration with the 3500 ecosystem is seamless. It communicates via the chassis backplane with other modules, such as the 3500/42M temperature monitor, providing a holistic view of machinery health. This synergy allows technicians to correlate vibration data with thermal trends, simplifying root-cause analysis.
Application Scenarios
In coal-fired power plants, the 135473-01 monitors steam turbine vibration using 330103 proximity probes. By tracking 1X harmonic vibration (synchronous with rotor speed), it detects rotor imbalance caused by blade fouling, enabling scheduled cleaning to avoid efficiency losses or unplanned shutdowns.
On offshore oil platforms, the module monitors centrifugal compressor bearings, processing signals from accelerometers to identify high-frequency vibration—indicative of bearing fatigue. Its ATEX certification ensures safe operation in hazardous zones, while integration with the 3500/22M gateway sends real-time data to onshore control rooms, allowing remote diagnostics.
In chemical processing facilities, the
135473-01 tracks agitator shaft vibration in reactor vessels. By correlating vibration amplitude with process pressure, it detects seal wear, preventing leaks that could compromise product quality or trigger safety incidents.
Related Models
135473-02 – 16-channel variant of the 135473-01, ideal for large machinery trains like gas turbine-generator sets.
3500/05 – Power supply module providing 24 VDC to the 135473-01 in 3500 chassis.
3500/22M 288055-01 – Communication gateway transmitting vibration data from the 135473-01 to enterprise systems.
330103-00-04-10-02-00 – Proximity probe whose signals are processed by the 135473-01.
135472-01 – Previous generation 4-channel module, compatible with legacy 3500 systems.
Installation and Maintenance
Installing the 135473-01 requires an available slot in a 3500 chassis. Power off the chassis, slide the module into place until it locks, and connect sensors via shielded cables to minimize interference. Ensure the chassis is grounded to ≤4Ω and verify 24 VDC supply from the 3500/05 module before powering on.
For maintenance, inspect the
135473-01 quarterly. Check front-panel LEDs to confirm power and sensor connectivity; red indicators may signal wiring faults. Clean dust from vents with compressed air to prevent overheating. Calibrate annually using Bently’s calibration tools to maintain accuracy, especially in critical applications like turbine monitoring. Replace the module every 8–10 years to ensure reliable performance.
Product Warranty
The 135473-01 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and premature failure under normal operating conditions. If the module malfunctions, Xiamen Xiongba provides free replacement, minimizing downtime for your 3500 system. Their technical team, experienced in Bently Nevada’s 3500 series, offers guidance on installation, sensor integration, and troubleshooting, leveraging direct access to genuine parts. This commitment ensures users trust the 135473-01 for critical vibration monitoring.
