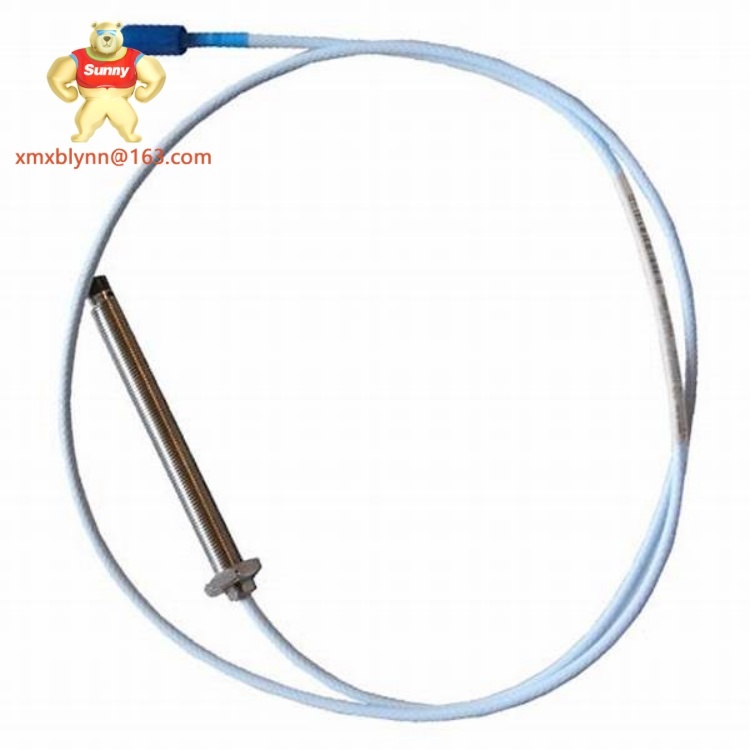

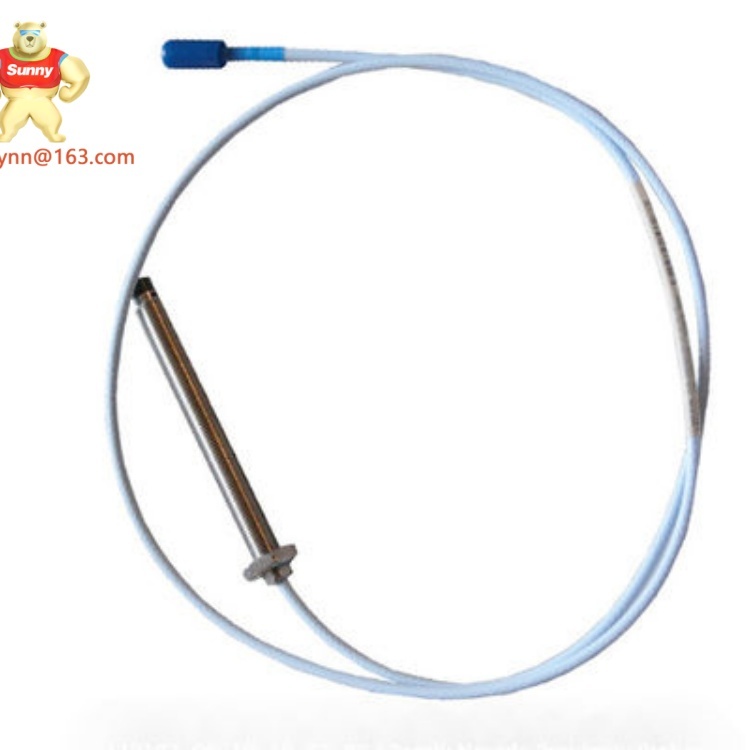

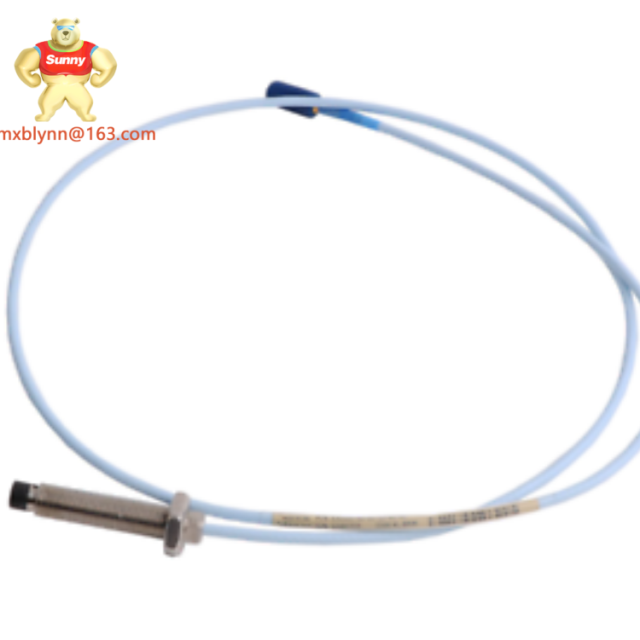

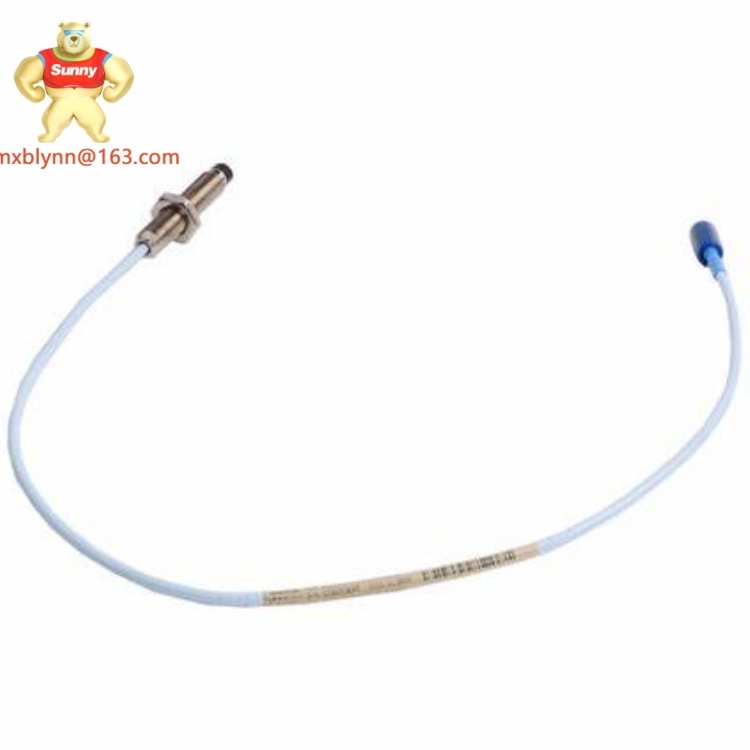

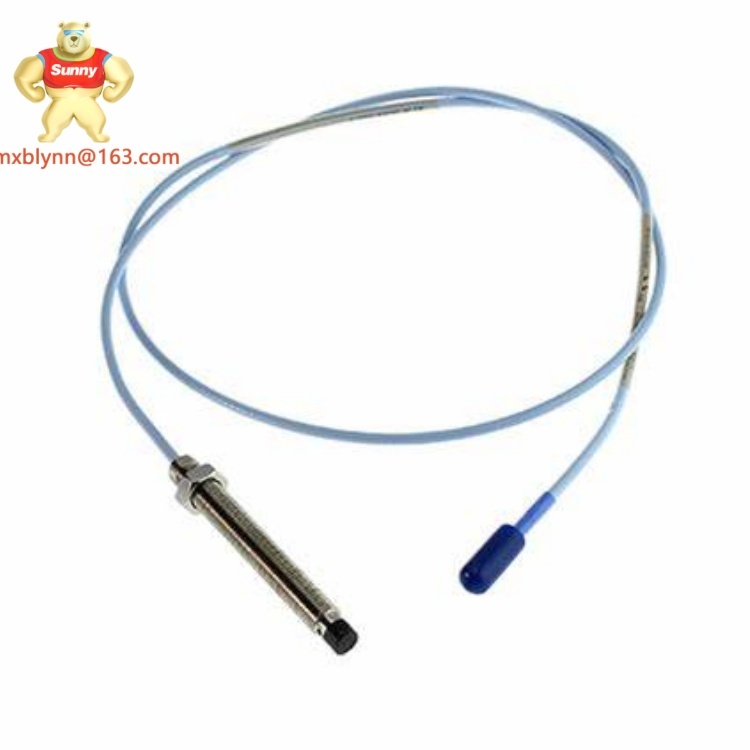

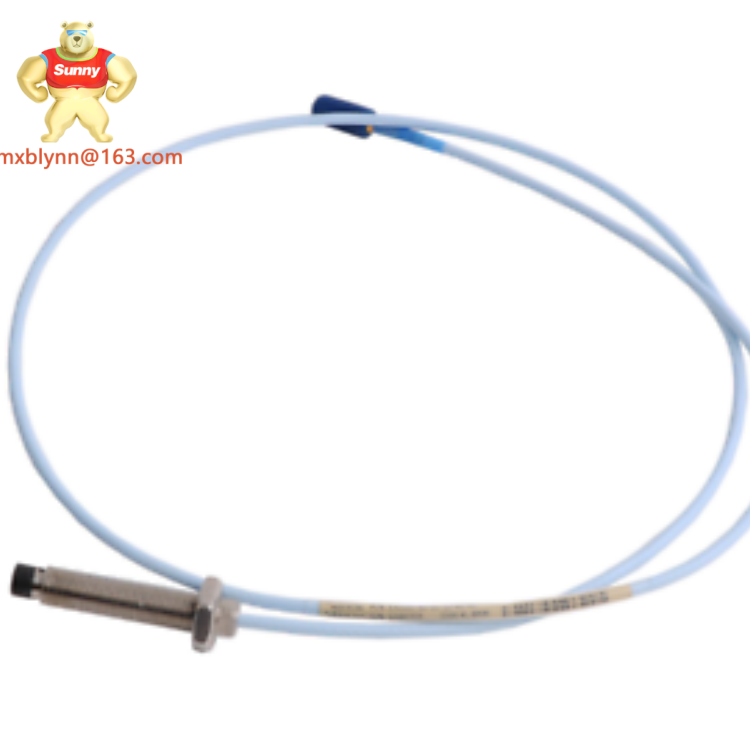

The BENTLY 330103-00-06-10-01-00 is a high-precision proximity probe engineered for critical vibration and position monitoring in rotating machinery. It forms part of the renowned Bently Nevada 3300 series, widely recognized for accuracy and long-term stability. In industrial automation and condition monitoring systems, this probe connects to extension cables and proximitor modules to deliver exact shaft displacement data in real time.
In an operational setting, engineers often mount the BENTLY 330103-00-06-10-01-00 inside turbine bearing housings, compressors, or large motor enclosures. For example, in a steam turbine control cabinet at a power generation facility, this probe enables early detection of shaft misalignment, preventing costly unplanned outages.
Designed for reliability, the BENTLY 330103-00-06-10-01-00 meets rigorous requirements for mechanical robustness, electromagnetic immunity, and temperature stability. Whether integrated into a new distributed control system or retrofitted to extend the life of legacy monitoring setups, this probe ensures continuous, precise data collection for predictive maintenance strategies.
| Parameter | Value |
|---|---|
| Product Model | BENTLY 330103-00-06-10-01-00 |
| Manufacturer | Bently Nevada |
| Product Type | Proximity Probe |
| Power | Supplied via proximitor module |
| Communication / Protocol | Analog signal output |
| Operating Temperature | -35°C to +180°C (probe tip) |
| Mounting | Threaded probe mounting |
| Protection / Ingress | IP68 |
| Dimensions (HxWxD) | Probe length: 80 mm |
| Weight | 0.12 kg |
| Typical Interfaces | Bently Nevada 3300/3500 series systems |
| Compliance | CE, RoHS |
Built for mission-critical applications, the BENTLY 330103-00-06-10-01-00 offers exceptional measurement repeatability and mechanical stability. Its advanced design ensures accurate vibration and displacement readings, even in high-temperature and high-vibration environments. The robust probe tip construction withstands oil splash, moisture, and chemical exposure, extending service life.
Installation flexibility is a major advantage. Threaded mounting allows easy integration into tight spaces within bearing housings or motor frames. When paired with ABB AC 800M or similar DCS architectures, it connects smoothly via standard signal conditioning modules, enabling engineers to incorporate precise vibration feedback into plant-wide control logic without complex rewiring.
The BENTLY 330103-00-06-10-01-00 minimizes false alarms through stable signal quality, reducing unnecessary maintenance interventions. This leads to lower lifecycle costs and more predictable maintenance planning. For example, in a municipal water pump station, technicians replaced legacy probes with the BENTLY 330103-00-06-10-01-00 and restored full vibration monitoring in under a day, preventing pump bearing failures that had previously caused service interruptions.
Additional benefits include compatibility with existing Bently Nevada cabling, simplified probe replacement, and proven durability in environments ranging from offshore oil rigs to paper mills. For operators aiming to enhance their condition monitoring without a complete system overhaul, this probe is a practical and dependable choice.
The BENTLY 330103-00-06-10-01-00 is suited for a wide range of industries requiring continuous machinery health monitoring:
Power Generation: Mounted on turbine bearing journals, it detects vibration changes that precede imbalance or misalignment issues, avoiding forced outages.
Oil & Gas: In offshore platforms, it withstands corrosive atmospheres while monitoring compressor shaft displacement, supporting safe operation.
Water Treatment Plants: Provides early warning for pump and motor bearing wear, ensuring consistent water supply to municipalities.
Mining Operations: Integrated into conveyor drive motors, it helps prevent costly stoppages due to bearing failures.
Manufacturing Lines: Works with ABB I/O modules in distributed control systems to feed vibration data into automated fault detection routines.
By delivering stable, real-time measurements, the BENTLY 330103-00-06-10-01-00 solves problems such as nuisance trips from unstable readings or delayed maintenance responses. In brownfield retrofits, it fits into existing threaded mounting points, minimizing installation time and production disruption.
BENTLY 330102-00-12-10-01-05 – Shorter probe length for confined spaces.
BENTLY 330104-00-09-10-02-00 – Higher temperature tolerance variant.
BENTLY 330105-02-12-10-02-05 – Probe with armored cable for rugged environments.
BENTLY 330130-045-00-05 – Extension cable for longer probe runs.
BENTLY 330180-50-00 – Compatible proximitor module for signal conditioning.
BENTLY 330171-00-94-10-01-00 – Probe with reverse thread option.
Before installing the BENTLY 330103-00-06-10-01-00, ensure the mounting hole is clean, dry, and threaded to match the probe. Maintain proper grounding and shielding for the entire sensor circuit to avoid noise interference. The installation space should allow full probe insertion without bending the cable excessively, preserving signal integrity.
For ongoing reliability, inspect probe tip alignment during scheduled maintenance. Periodically check cable insulation for wear, verify proximitor module calibration, and back up configuration parameters. If vibration patterns shift unexpectedly, review event logs from your DCS or vibration monitoring software to identify mechanical changes early. Replacing the probe is straightforward due to its threaded design and plug-compatible connectors.
Preventive maintenance should include cleaning the probe tip if exposed to oil deposits, and confirming that mounting threads remain secure to avoid measurement drift. These steps keep the BENTLY 330103-00-06-10-01-00 performing at specification over long service intervals.
The BENTLY 330103-00-06-10-01-00 is supplied with a one-year warranty and free replacement service from Xiamen Xiongba E-commerce Co., Ltd. Branch, not the original manufacturer. Customers can contact Xiongba via phone or email to initiate warranty claims. Pre-shipment testing, datasheet verification, and serial-number traceability are available to ensure product authenticity and performance before delivery. Our warranty covers manufacturing defects and functional failures under normal operating conditions, giving buyers peace of mind for critical automation and monitoring applications.
