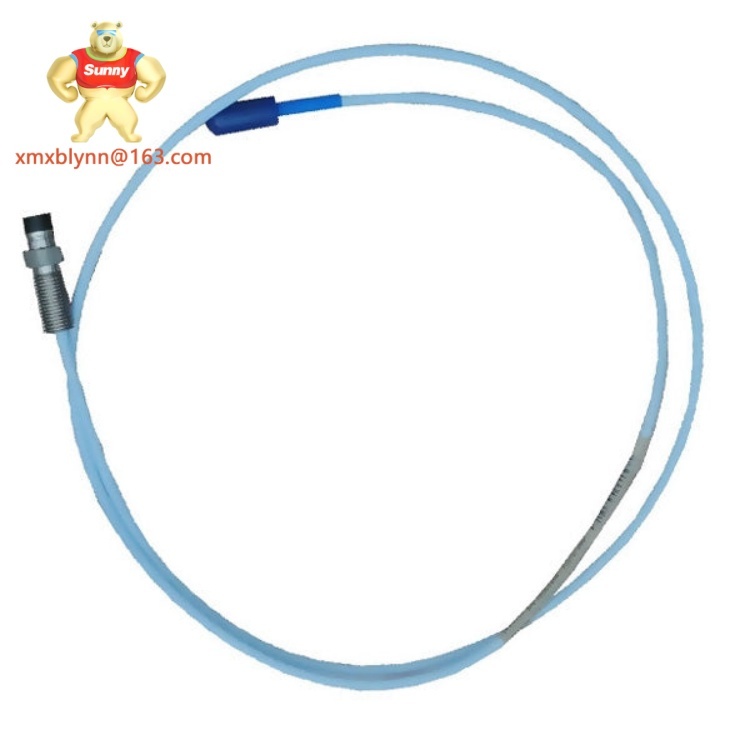

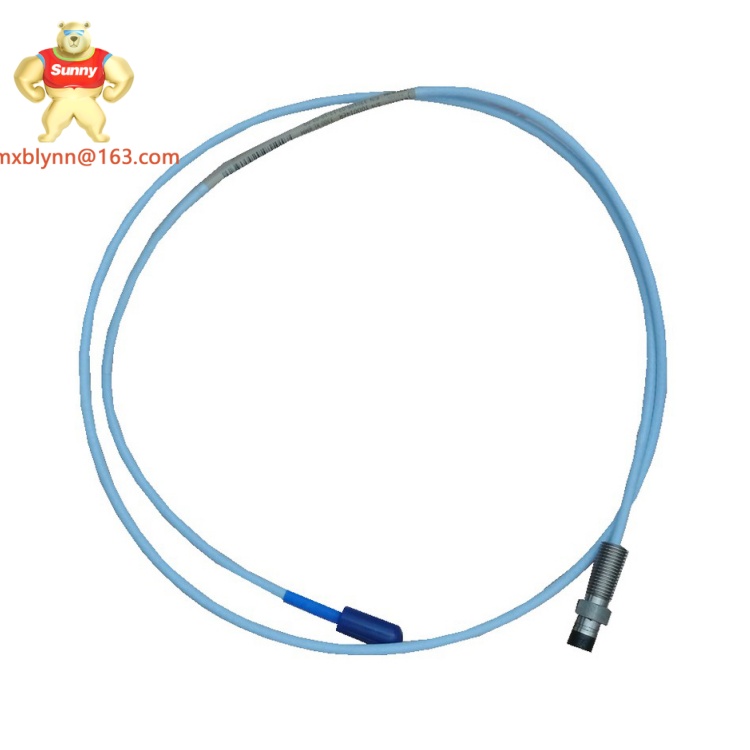

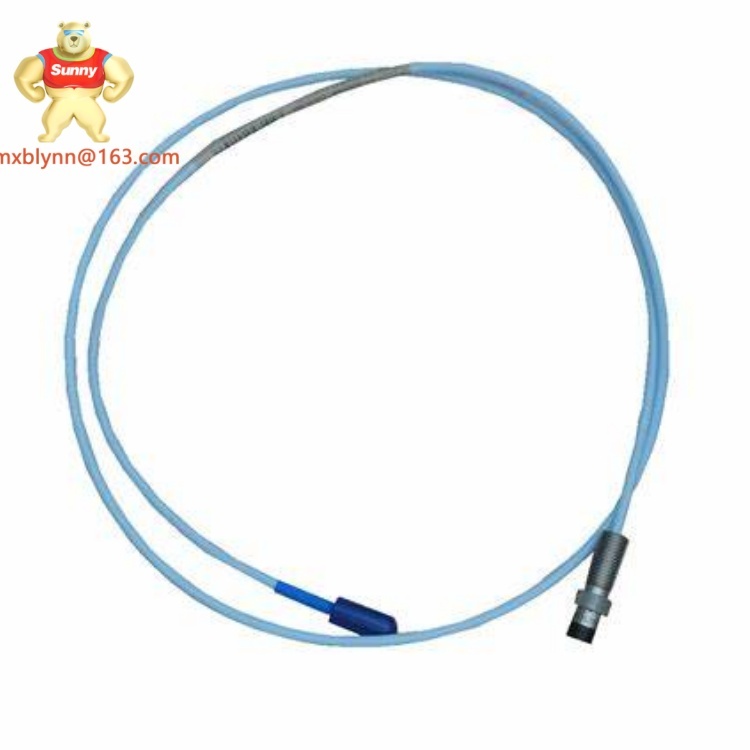

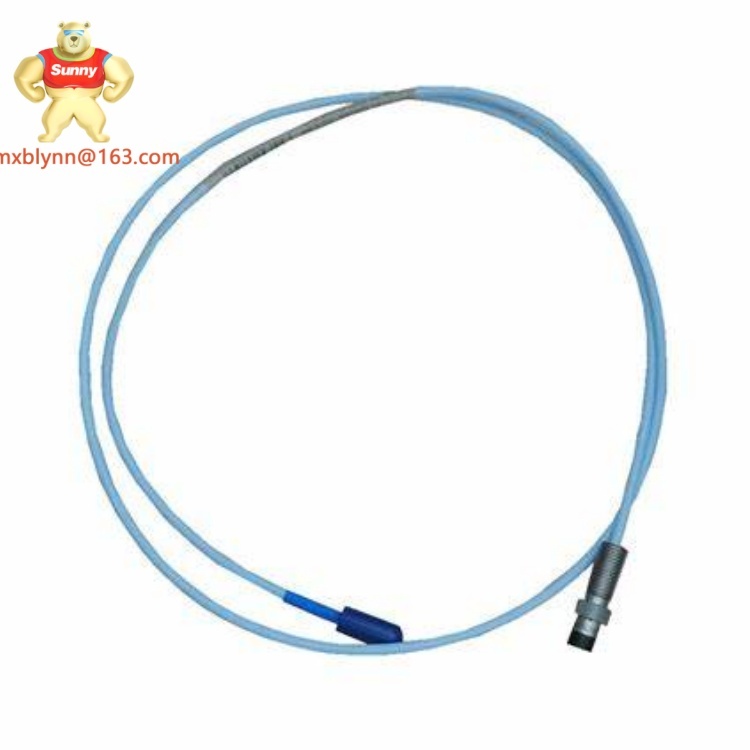

The BENTLY 330171-00-08-10-02-00 is a modular transducer assembly designed to serve as the local interface between proximity/vibration probes and the 3500-series machinery protection system. Engineers typically mount the BENTLY 330171-00-08-10-02-00 inside a relay cabinet or directly on a machine skid junction box to keep probe cable runs short and shielded, which preserves signal fidelity and reduces electrical noise. In practical terms, the assembly simplifies field wiring, provides standard terminations and conditioning, and streamlines initial commissioning by delivering consistent input levels to the protection rack.
Because many plants manage mixed inventories of distributed control system parts and spare hardware, the BENTLY 330171-00-08-10-02-00 is particularly useful when teams must integrate vibration protection alongside PLCs and DCS equipment. For instance, technicians can retain existing analog channels while using the transducer assembly to feed dedicated 3500 signal-conditioning cards, thus avoiding extensive panel rewiring. Xiamen Xiongba E-commerce Co., Ltd. Branch supplies and tests these assemblies. “Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing.” Additionally, this product complements common ABB I/O modules deployments and is compatible with inventories of industrial automation spare parts used in brownfield upgrades.
| Parameter | Value |
|---|---|
| Product Model | BENTLY 330171-00-08-10-02-00 |
| Manufacturer | Bently Nevada |
| Product Type | Transducer assembly / probe termination and conditioning |
| Power | Passive assembly (powered by 3500 rack signal-conditioning cards where required) |
| Communication / Protocol | Analog probe signals (eddy-current / proximity outputs), terminated for input to 3500 modules |
| Operating Temperature | −40 °C to +85 °C (probe junction box rating dependent) |
| Mounting | Panel or junction box mounting; short shielded cable runs to 3500 rack |
| Protection / Ingress | IP54 typical for junction-box installations (model-dependent) |
| Dimensions (HxWxD) | Approx. 120 × 80 × 40 mm (assembly and mounting plate) |
| Weight | ~0.3–0.6 kg (depending on connectors and housing) |
| Typical Interfaces | Coax/probe connectors, shield termination, grounding lug, test/loop connectors |
| Compliance | CE, RoHS (confirm with serial label/datasheet) |
The BENTLY 330171-00-08-10-02-00 delivers clean signal handoff from the sensor to the monitor. Its precision terminations and robust shielding minimize induced noise and stray capacitance, which improves waveform clarity and helps avoid false alarms. Installers notice that consistent input impedance and standard connector layouts reduce commissioning time; this repeatability is valuable when multiple machines are brought online in succession.
Serviceability was also considered. The BENTLY 330171-00-08-10-02-00 uses accessible connectors and a single-point shield termination so technicians can perform loop checks, bench tests, and quick swaps without disturbing probe mounts. Consequently, mean time to repair drops because a pre-tested assembly can be substituted quickly. The assembly’s modest footprint and mounting versatility make it suitable for cramped MCC pockets or nearby junction cabinets.
Integration is straightforward. The BENTLY 330171-00-08-10-02-00 preserves specialized vibration processing at the 3500 rack while allowing summarized alarms to feed plant systems. In mixed-architecture sites, this approach reduces the need to route raw probe signals into PLC analog channels, thereby simplifying mapping into DCS historians. Compared with direct PLC analog wiring, using this assembly with dedicated 3500 signal conditioners and then passing alarm states to ABB I/O modules or ABB AC 800M commonly requires less rewiring and fewer channel conversions, streamlining brownfield upgrades.
Finally, the assembly supports predictable lifecycle economics. By protecting signal integrity and reducing false trips, the BENTLY 330171-00-08-10-02-00 helps lower spare-part consumption and avoids unnecessary downtime—two practical benefits that matter where industrial automation spare parts inventories must be optimized.
In steam and gas turbine applications, the BENTLY 330171-00-08-10-02-00 provides the essential cable termination and shielding needed for proximity probes and eddy-current sensors. There, short, shielded runs from probe to junction reduce susceptibility to EMI and preserve the data quality that protection logic requires. For example, during a unit recommissioning, technicians used the assembly to relocate probe terminations into a nearby cabinet and eliminated intermittent noise that had triggered nuisance alarms for months.
In reciprocating compressors and centrifugal compressors, the unit supports accurate clearance and vibration monitoring by stabilizing probe inputs before they reach the 3500 signal conditioners. In water pump stations, the BENTLY 330171-00-08-10-02-00 makes brownfield retrofits practical: installers can move probe terminations to a compact junction assembly and restore continuous monitoring within a short outage window. (e.g., in a municipal water pump station, technicians replaced legacy junction boxes with BENTLY 330171-00-08-10-02-00 to recover 24/7 monitoring within a day.)
For heavy industry—mining, paper, and petrochemical plants—the assembly reduces troubleshooting time by delivering repeatable inputs to the protection rack, which in turn feeds concise alarms to SCADA and condition-monitoring historians. It is therefore a pragmatic choice when coordinating specialized vibration systems with broader distributed control system parts and plant automation architectures.
330171-00-08-10-02-01 — Variant with alternate connector types for different probe families.
330171-00-08-10-03-00 — Hardened housing option for extended outdoor installations.
330170-00-00-00-00-00 — Simple terminal plate for basic probe terminations.
3500/22 — Companion 3500 signal-conditioning card that accepts the terminated probe outputs.
3500/40 — Rack controller that aggregates alarms produced from the 3500 cards.
330120-00 — Calibration/test adapter used during loop checks and bench verification.
3500/45 — Ethernet gateway to forward consolidated alarms into plant historians.
Begin installation by selecting a nearby junction cabinet or panel that keeps probe cable runs as short and straight as possible. The BENTLY 330171-00-08-10-02-00 should be mounted using vibration-dampened hardware if the cabinet sits on the machine frame; otherwise secure it to a stable panel with access for test leads. Grounding is critical: attach the probe shield to the assembly’s single-point ground lug and route the cabinet earth to the plant main ground to avoid ground loops and induced noise.
For maintenance, archive wiring diagrams and a photograph of the original shield terminations before any service. Check connector integrity and coax shields during scheduled outages, and perform loop-checks with a calibrated source to confirm amplitude and phase. Replace assemblies if insulation breakdown or connector wear appears; typical field replacement intervals vary by site conditions, but a documented spare and bench-test validation will minimize downtime. Use event captures from the 3500 rack to correlate signal anomalies with physical installation issues—trending often reveals creeping connector degradation before it becomes critical.
A one-year warranty and free replacement service for BENTLY 330171-00-08-10-02-00 units are provided by Xiamen Xiongba E-commerce Co., Ltd. Branch (not the OEM). Customers should retain proof of purchase and the assembly serial number when contacting Xiongba for claims. Xiongba offers pre-shipment testing, datasheet verification, and serial-number traceability to reduce risk before dispatch, and coordinates diagnostics and cross-border logistics to accelerate replacement handling. To initiate a claim, contact Xiamen Xiongba’s support team with purchase documentation and the unit serial number for prompt assistance.
