Brand: BENTLY Model:3500/05-01-01-01-00-00 Product type:System Rack Payment method: Wire transfer, Western Union Port of shipment for remittance: Xiamen, China Delivery time: 1-3 working days Condition: 100% original Warranty: 12 months

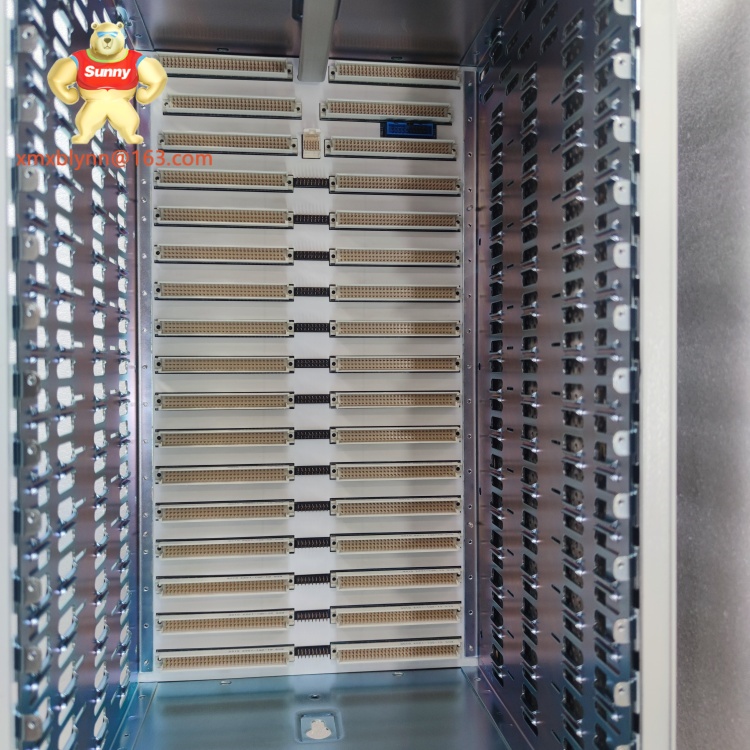

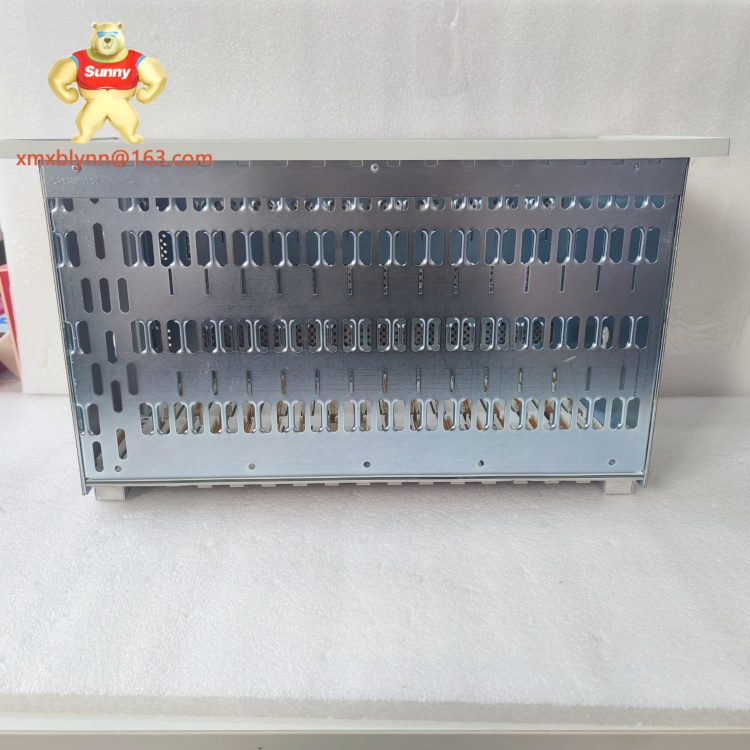

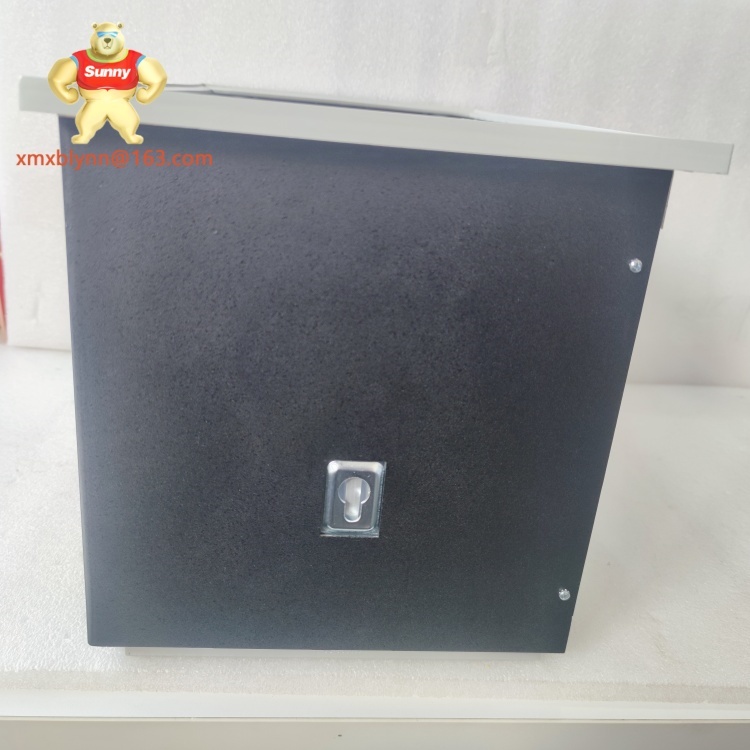

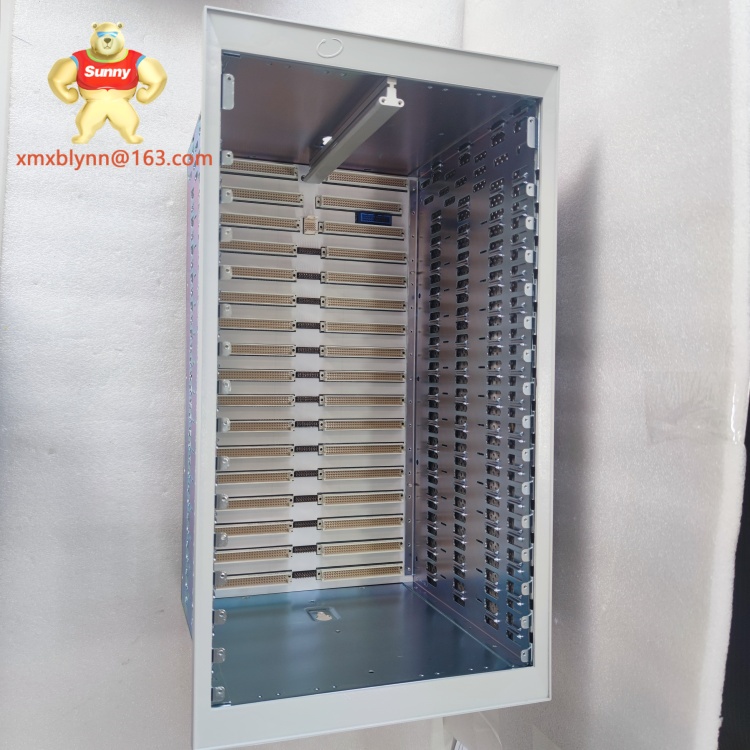

BENTLY 3500/05-01-01-01-00-00is a system rack belonging to Bently Nevada's 3500 series, which is widely used in machinery condition monitoring systems. Its core functionality is to accommodate all 3500 monitor modules and rack power supplies, enabling communication among various modules and ensuring that the power supplies can distribute power to each module as required. As a key component of the automation setup, it plays a vital role in organizing and integrating different parts of the monitoring system, ensuring the stable operation of the entire system. The value of this product lies in its ability to provide a reliable and organized platform for industrial automation, facilitating efficient monitoring and control of machinery, and thus helping to improve production efficiency and reduce equipment downtime.
Technical Specifications
Parameter
Value
Product Model
3500/05-01-01-01-00-00
Manufacturer
Bently Nevada
Product Type
System Rack
Rack Size
19 - inch (14 module slots)
Mounting Options
Panel mount, rack mount, bulkhead mount
Dimensions (L x W x H)
15.25 cm x 11.5 cm x 13 cm
Weight
Approximately 3 kg
Operating Temperature Range
Industrial - standard temperature range (usually - 20℃ to 70℃, specific value may vary by model)
Protection Level
Meets relevant industrial protection standards, suitable for harsh industrial environments
Power Supply
Compatible with the power supply of the 3500 series system
Communication Protocol
Compatible with the communication protocols within the 3500 series system
Number of Rack Positions
14 for full - size rack, 7 for mini - rack
Certification
Meets international standards, such as CE certification
Key Features and Benefits
BENTLY 3500/05-01-01-01-00-00has many remarkable features and benefits. Its streamlined design is compact and efficient, which allows for seamless integration into various industrial setups, saving space and facilitating installation. The rack provides a stable and reliable platform for the 3500 series modules, ensuring the stable operation of the entire monitoring system. It has excellent compatibility, which can perfectly match with other modules of the 3500 series, enabling efficient data communication and interaction.
In addition, this system rack has strong environmental adaptability, which can work stably in harsh industrial environments, with a certain degree of dust - proof, moisture - proof and shock - proof capabilities. The intelligent diagnostic function is also one of its highlights. It can conduct in - depth analysis of the operating status of the machinery, realize predictive maintenance, help users find potential problems in time, and reduce the risk of equipment failure. Moreover, it meets a series of international standards, which not only ensures the product quality but also facilitates its application in various industrial scenarios around the world.
Application Scenarios
BENTLY 3500/05-01-01-01-00-00is widely used in various industrial fields. In the power generation industry, it can be used to monitor the vibration and temperature of key equipment such as turbines and generators, timely detect the early - warning signs of equipment failures, and ensure the stable power supply of power plants. In oil and gas refineries, it is used to monitor the operation of pumps, compressors and other equipment, which is crucial for the safe and efficient operation of the refinery.
In the discrete manufacturing industry, such as the automotive manufacturing line, it can monitor the vibration of machine tools and other equipment to ensure the accuracy of parts processing and improve product quality. In addition, in smart infrastructure projects, such as large - scale water treatment plants and wastewater treatment plants, this system rack can also play a role in monitoring the operation of key equipment, helping to realize intelligent management and maintenance of the infrastructure, and improving the overall operation efficiency of the system.
Related Models
3500/05-01-02-01-00-01– Similar system rack, may have some differences in configuration or function, and is also an integral part of the 3500 series.
3500/05-01-01-00-00-01– May be a variant of the same series, with a similar structure, and may have some differences in size or mounting method.
3500/15– Power supply module of the 3500 series, which is used in conjunction with3500/05-01-01-01-00-00, providing power support for the rack and modules.
3500/22M– Vibration monitoring module of the 3500 series, which can be installed in3500/05-01-01-01-00-00to realize the vibration monitoring function.
3500/32– Proximitor monitor module, which is compatible with this rack and is used to monitor the displacement of the shaft and other parameters.
3500/42M– Dual - channel vibration / acceleration monitor, which can be installed in the rack to provide more comprehensive vibration monitoring for the equipment.
3500/60M– Temperature monitor module, which can be integrated into3500/05-01-01-01-00-00, used to monitor the temperature of the equipment.
3500/92– Rack interface module, which is an important part of the 3500 series rack, and is responsible for the communication and data transfer between the rack and the upper - level system.
3500/01– Mini - rack of the 3500 series, which is a smaller - sized version of3500/05-01-01-01-00-00, with 7 module slots.
Installation and Maintenance
Installation preparation forBENTLY 3500/05-01-01-01-00-00requires ensuring a suitable physical space. According to the selected mounting method (panel mount, rack mount, or bulkhead mount), prepare the corresponding installation position. The mounting surface should be flat and firm to ensure the stability of the rack. Grounding is also an important part of the installation. It is necessary to ensure that the grounding meets the requirements to prevent electrical interference and ensure the safe operation of the equipment. The environment should be kept clean, with good ventilation to avoid excessive dust and high - temperature environment.
For maintenance, regularly check whether the connection of each module in the rack is firm to ensure that there is no loose wire, which may lead to communication failures or power - on problems. Periodically monitor the operating temperature of the rack. If the temperature is too high, check whether the ventilation is good or whether there is a problem with the power supply. Although the rack has a certain protection level, it is still necessary to check the appearance regularly to ensure that there is no damage caused by external forces. There is no fixed replacement interval, but according to the actual use environment and frequency, if the rack has abnormal noise, unstable operation and other phenomena, it should be inspected and repaired in time, and the aging parts should be replaced as needed.
Product Warranty
Xiamen Xiongba E - commerce Co., Ltd. Branch offers a one - year warranty forBENTLY 3500/05-01-01-01-00-00. During the warranty period, if the product has quality problems caused by non - human factors, the company will provide free replacement service. This reflects the company's confidence in product quality and its commitment to customer satisfaction. With over a decade of industry experience, the company has established a global supply network, which can provide strong support for product warranty services. Whether it is technical consultation or after - sales service, customers can get timely responses, ensuring that the product can be used with confidence in various industrial applications.
