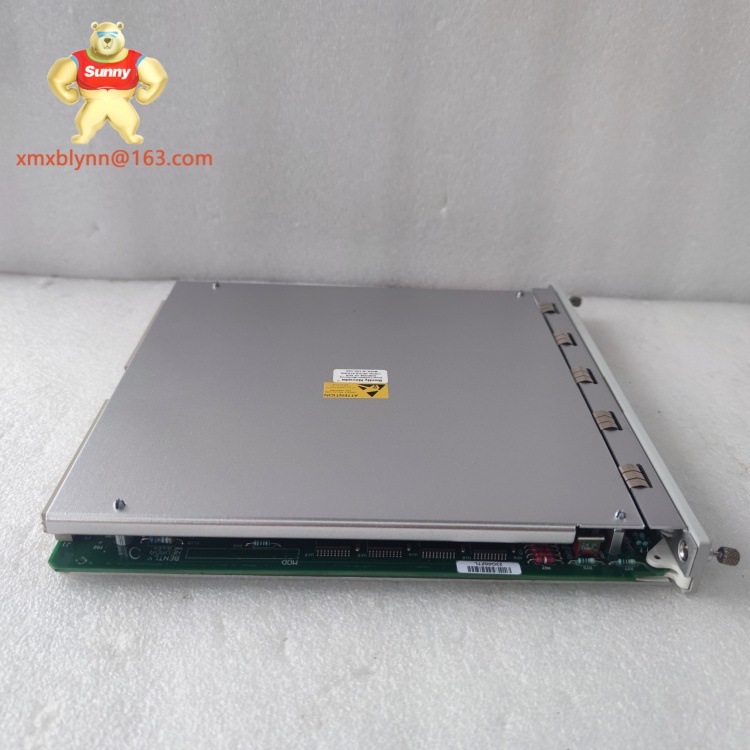

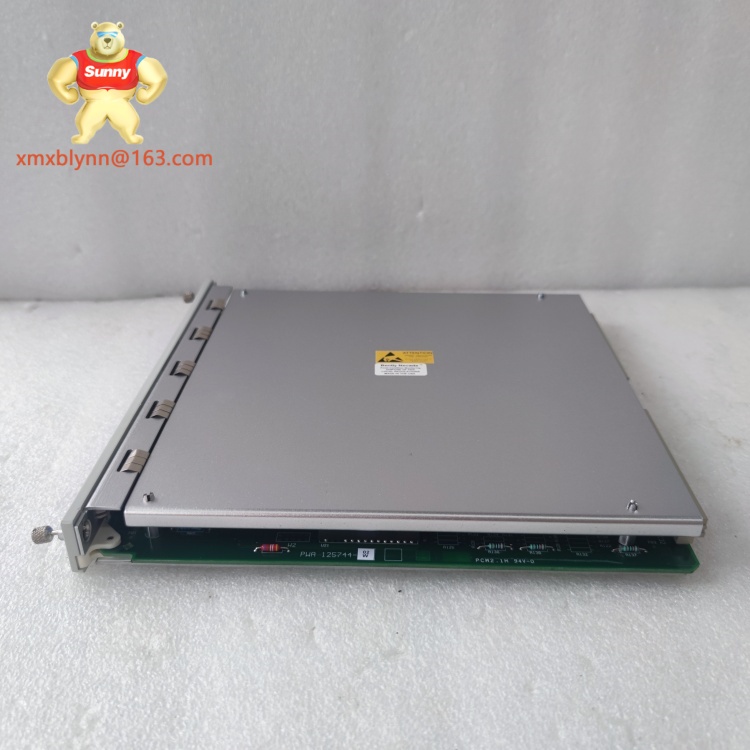

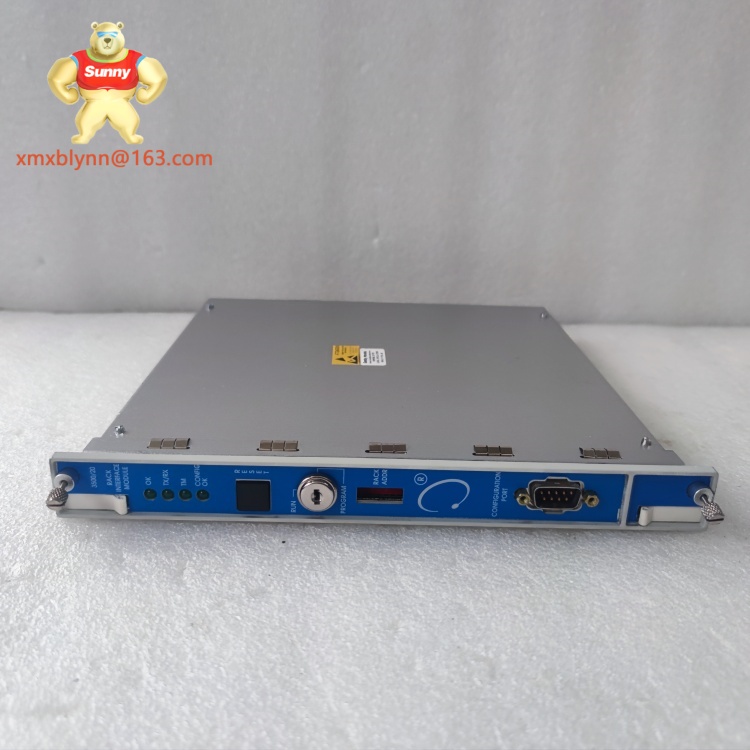

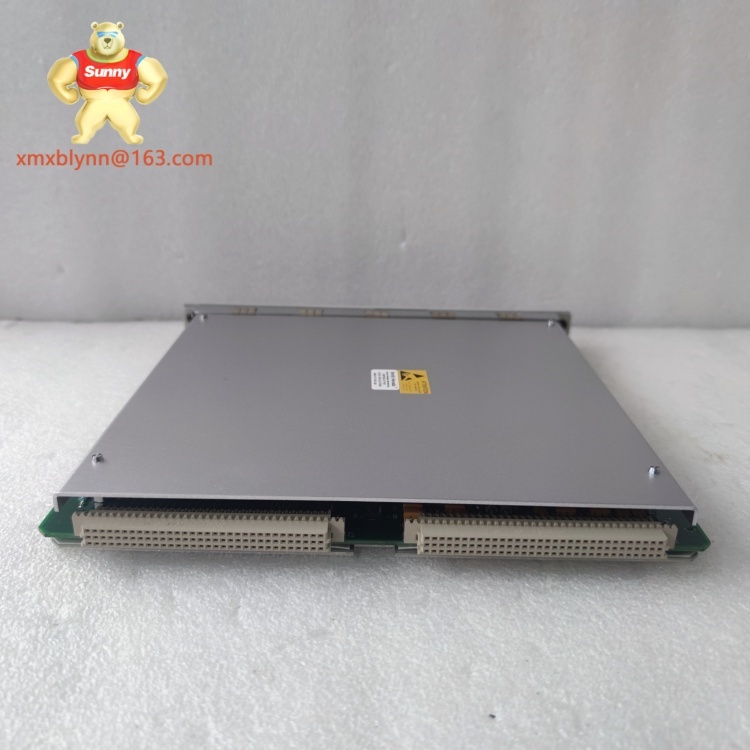

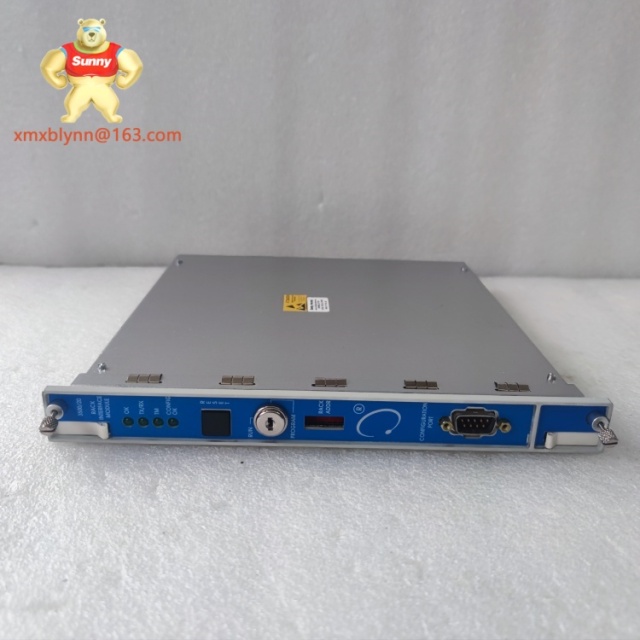

Product Overview
The 3500/20 125744-01 is a critical communication interface module within Bently Nevada’s 3500 machinery protection system, designed to serve as the bridge between on-machine condition monitoring components and external data systems. As a core part of the 3500 series, its primary function is to aggregate real-time data from 3500 monitoring modules—such as vibration transducers, proximity probes, and temperature sensors—and transmit it to SCADA systems, HMIs, or cloud-based analytics platforms. This enables operators to access actionable insights into machinery health, making the 3500/20 125744-01 indispensable in industries where early fault detection directly reduces downtime and operational risks.
What distinguishes the 3500/20 125744-01 is its versatility in protocol support and seamless integration with the 3500 ecosystem. It works with modules like the 3500/15 vibration monitor and 3500/42 temperature monitor, consolidating their outputs into standardized formats for easy interpretation. Its rugged design ensures reliable performance in harsh industrial environments—from high-vibration turbine rooms to corrosive refineries—while its compact form factor fits neatly into 3500 chassis. Whether deployed in power plants, oil rigs, or chemical facilities, the 3500/20 125744-01 ensures critical machinery data flows unimpeded, empowering teams to make proactive maintenance decisions.
Technical Specifications
| Parameter |
Value |
| Product Model |
3500/20 125744-01 |
| Manufacturer |
Bently Nevada |
| Product Type |
Communication Interface Module (3500 Series) |
| Supported Protocols |
Ethernet/IP, Modbus TCP/IP, RS-485 |
| Communication Ports |
1 x Ethernet (10/100 Mbps), 1 x RS-485 |
| Operating Voltage |
24 VDC (from 3500 chassis) |
| Operating Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Storage Temperature |
-55°C to 85°C (-67°F to 185°F) |
| Mounting Type |
3500 system chassis slot |
| Data Transfer Rate |
Up to 100 Mbps (Ethernet) |
| Certifications |
UL, CE, ATEX |
| Compatibility |
Bently 3500/15, 3500/42 modules; 3500 chassis |
Key Features and Benefits
The 3500/20 125744-01 excels in enabling seamless data flow between the 3500 monitoring system and external platforms. Its support for Ethernet/IP and Modbus TCP/IP—industry-standard protocols—ensures compatibility with most SCADA, HMI, and enterprise resource planning (ERP) systems, eliminating the need for custom integration tools. This flexibility reduces setup time, allowing teams to deploy monitoring solutions faster.
Reliability is a hallmark of the 3500/20 125744-01. Its ruggedized design withstands extreme temperatures, vibration, and electromagnetic interference common in industrial settings, ensuring uninterrupted data transmission even in turbine enclosures or offshore platforms. Built-in diagnostic features, such as LED status indicators and error logging, enable quick troubleshooting, minimizing downtime during system checks.
Another key strength is its ability to handle high-volume data from multiple 3500 modules simultaneously. This ensures operators receive real-time updates on machinery health—from vibration peaks in a compressor to temperature spikes in a pump—enabling proactive maintenance. The module’s compact design fits seamlessly into 3500 chassis, preserving space for other critical components. For industries reliant on continuous operation, the 3500/20 125744-01 is the linchpin that turns raw monitoring data into actionable intelligence.
Application Scenarios
The 3500/20 125744-01 is vital in industries where machinery reliability directly impacts safety and profitability. In coal-fired power plants, it connects 3500 systems monitoring steam turbines to plant-wide SCADA, transmitting real-time vibration and shaft position data. This enables operators to detect early signs of turbine imbalance, preventing costly unplanned outages and ensuring consistent power generation.
In offshore oil platforms, the 3500/20 125744-01 links 3500 modules monitoring centrifugal pumps and compressors to remote monitoring centers via Ethernet/IP. Its rugged design withstands salt spray and temperature swings, ensuring data on bearing wear or seal degradation reaches onshore engineers, who can schedule maintenance during planned shutdowns.
For chemical processing facilities, the module integrates 3500 temperature and pressure monitors with HMI systems, providing operators with a unified view of reactor agitator health. By enabling real-time alerts on abnormal vibration patterns, it helps prevent seal failures that could lead to chemical leaks, safeguarding both personnel and production. In all these scenarios, the
3500/20 125744-01 ensures critical data flows freely, keeping machinery—and operations—running smoothly.
Related Models
3500/20 125744-02 – Enhanced variant with 1 Gbps Ethernet for high-data-volume applications.
3500/15 – Vibration monitoring module, whose data is transmitted by the 3500/20 125744-01 to external systems.
3500/05 – Power supply module that provides stable voltage to the 3500/20 125744-01 within the 3500 chassis.
3500/92 – Advanced gateway module, complementary to the 3500/20 125744-01 for cloud integration.
330103-00-04-10-02-00 – Proximity probe whose data is processed by 3500 modules and transmitted via the 3500/20 125744-01.
3500/20 125744-00 – Previous generation model with basic protocol support, compatible with legacy systems.
Installation and Maintenance
Installing the 3500/20 125744-01 requires inserting it into a dedicated slot in the 3500 chassis, ensuring secure seating to maintain backplane connectivity. Connect Ethernet and RS-485 cables to external systems, routing them away from high-voltage lines to minimize interference. Verify the 24 VDC supply from the 3500/05 power module is stable, and ground the chassis properly (≤4Ω) to ensure signal integrity.
For maintenance, inspect the
3500/20 125744-01 quarterly. Check LED indicators to confirm active data transmission and no fault conditions. Clean dust from vents using compressed air to prevent overheating, especially in dusty environments like coal plants. Update firmware annually via Bently’s 3500 Configuration Software to ensure compatibility with new protocols. Periodically test communication links by simulating data transmission to SCADA, confirming no packet loss. With proper care, the module operates reliably for 8–10 years.
Product Warranty
The 3500/20 125744-01 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and premature failure under normal operating conditions. If the module malfunctions, Xiamen Xiongba provides free replacement, ensuring minimal disruption to your machinery monitoring system. Their technical team, experienced in Bently Nevada’s 3500 series, offers support for installation, protocol configuration, and troubleshooting, leveraging direct overseas sourcing to guarantee genuine parts. This commitment ensures users can trust the 3500/20 125744-01 to perform reliably in critical industrial environments.
