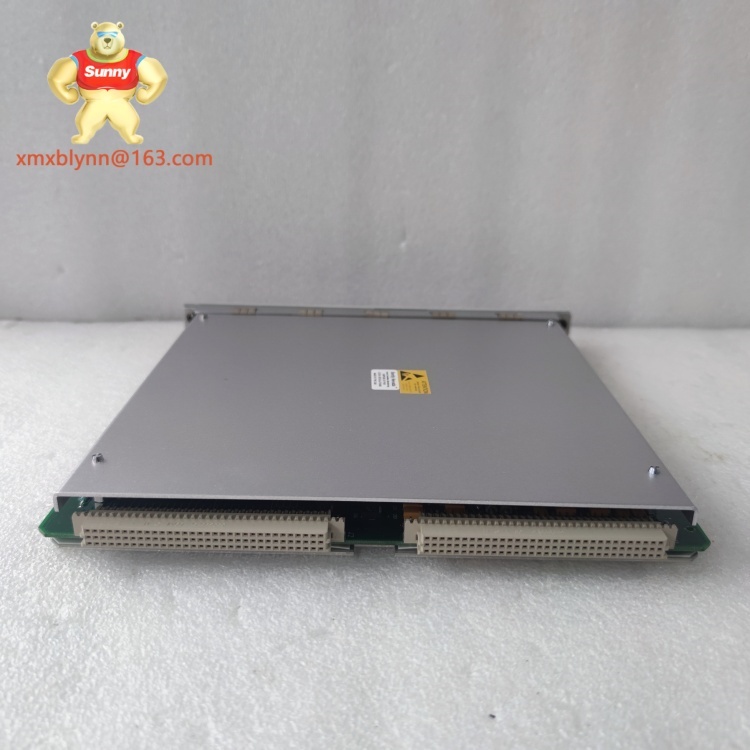

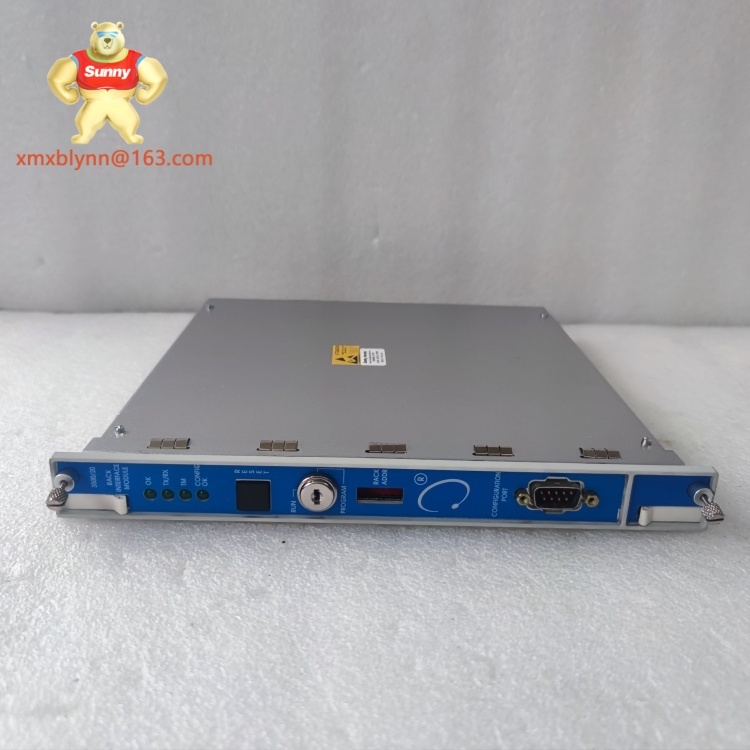

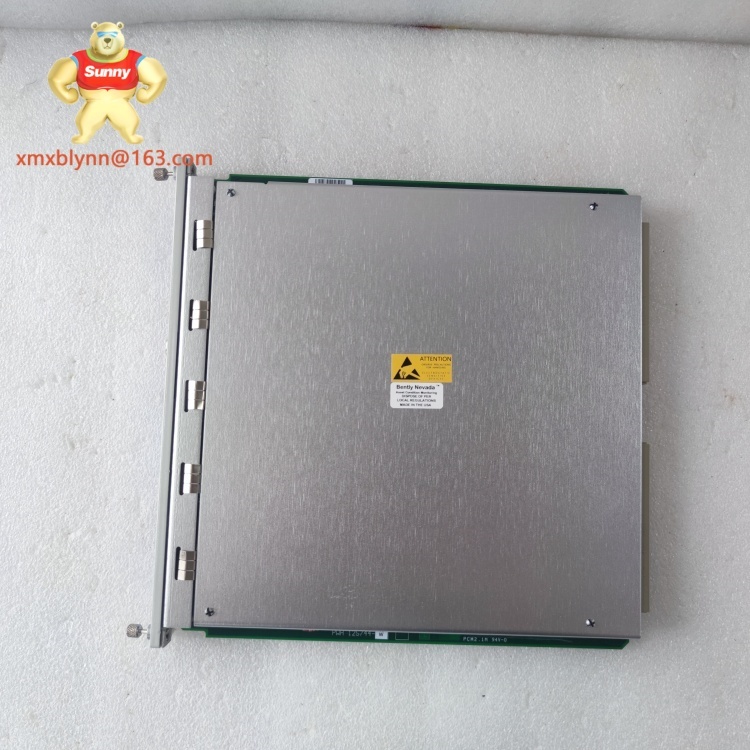

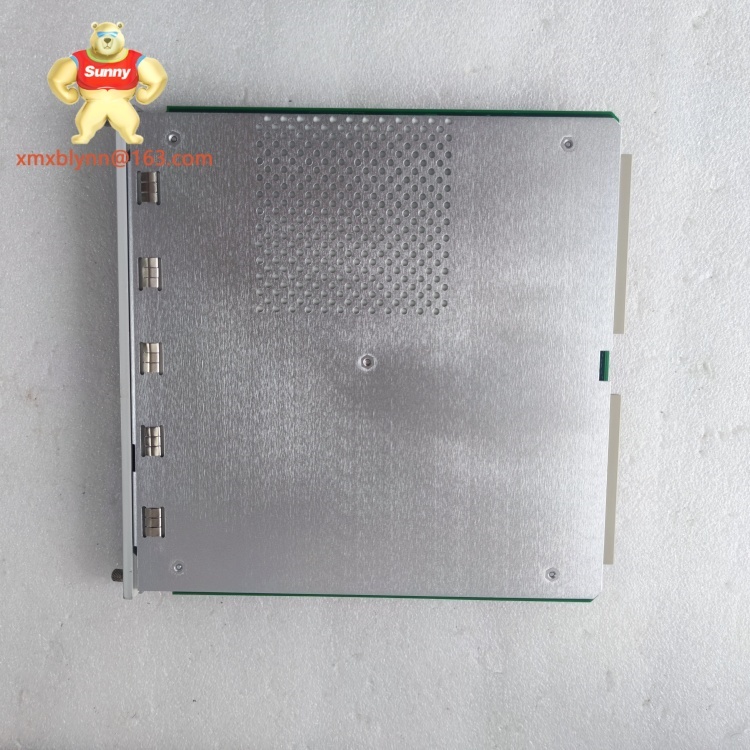

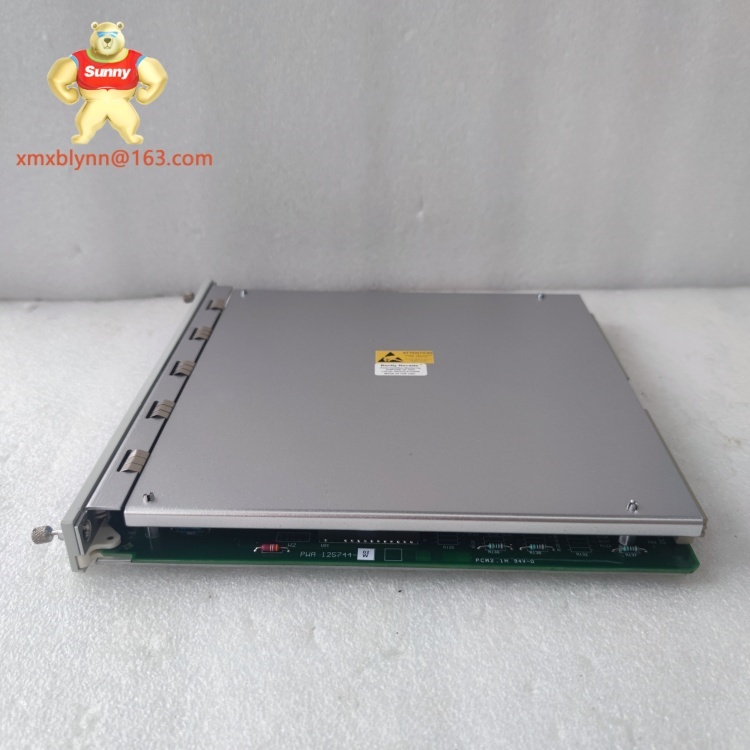

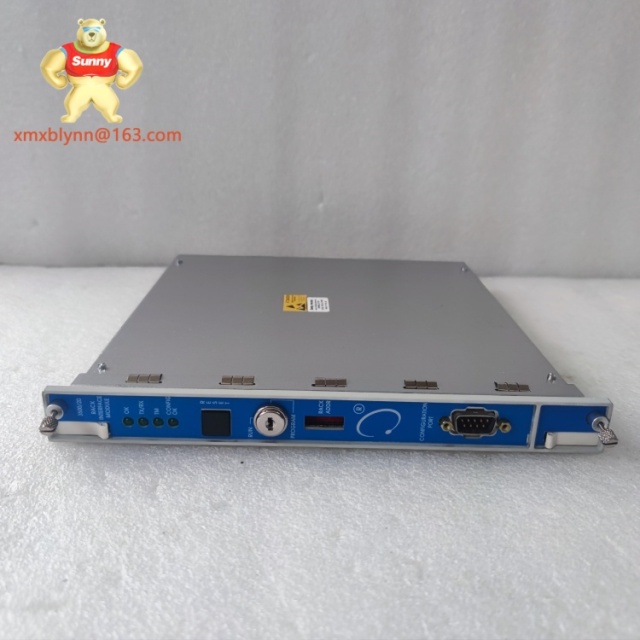

BENTLY 3500/20 125744-02 | Rack Interface Module

Desciption

BENTLY 3500/20 125744-02 is a rack interface module that plays a crucial role in the 3500 monitoring system. Its core functionality is to serve as a bridge, connecting the 3500 monitoring system with external control systems or other modules. This enables real - time monitoring and analysis of equipment conditions. As an essential part of the 3500 series, it is typically installed in slot 1 of the rack, next to the power supplies. In an automation setup, it facilitates data communication, allowing for seamless integration with various control systems and data acquisition devices, which is of great value for ensuring the reliable operation of industrial equipment.

Technical Specifications

Parameter	Value
Product Model	BENTLY 3500/20 125744-02
Manufacturer	BENTLY
Product Type	Rack Interface Module
Power Consumption	4.75 watts (typical)
Data Rate	38.4 k baud
Maximum Current	< 1 ma dc, dry contact to common
Operating Temperature	- 30 °C to + 65 °C (- 22 °F to + 150 °F)
Storage Temperature	- 40 °C to + 85 °C (- 40 °F to + 185 °F)
Cable Length	Maximum 2.1 metres (7 feet)
Input Channels	4
Sampling Rate	1000 Hz
Resolution	16 bits
Communication	Supports Modbus, TCP/IP, etc.

Key Features and Benefits

BENTLY 3500/20 125744-02 offers several notable features and benefits. Firstly, it has a robust design, capable of withstanding harsh industrial environments with an operating temperature range from - 30 °C to + 65 °C. This ensures reliable operation in various industrial scenarios. Secondly, the module supports multiple communication protocols, including Modbus and TCP/IP. This high - compatibility feature enables easy integration with a wide range of external devices, enhancing the flexibility of the automation system.

In addition, it has an LED indicator that can display the operating status of the module, which is convenient for real - time monitoring and fault diagnosis. The data rate of 38.4 k baud ensures efficient data transmission, allowing for timely collection and processing of equipment condition information. Moreover, with a low - power consumption design of only 4.75 watts, it helps save energy and reduce operating costs. Its compact size also makes it easy to install in the rack, saving space for the overall system.

Application Scenarios

BENTLY 3500/20 125744-02 is widely used in various industrial fields. In power plants, it can be used to monitor the operation of turbines and generators. By connecting the monitoring system with the control system, it can real - time detect the thrust position and vibration of the equipment, helping to prevent equipment failures and ensure the stable power supply.

In oil and gas refineries, this module is essential for monitoring key equipment such as compressors. It can accurately collect equipment operation data, enabling operators to adjust the equipment in time to maintain optimal operation. In discrete manufacturing lines, it can be used for the monitoring of high - precision machine tools, ensuring the accuracy and stability of processing. For smart infrastructure projects, such as large - scale water treatment plants, it can also play a role in monitoring the operation of pumps and other equipment, contributing to the intelligent management of the infrastructure.

Related Models

3500/22M – A vibration monitoring module, which can work with BENTLY 3500/20 125744-02 to provide a more comprehensive machinery health monitoring solution.
3500/32 – A 16 - channel analog input module, used for collecting various analog signals, and is part of the 3500 series compatible with this rack interface module.
3500/42M – A dual - channel vibration and axial position monitor, which can transmit the monitored data to BENTLY 3500/20 125744-02 for further communication and processing.
3500/92 – A communication gateway module, which can enhance the communication capabilities of the 3500 system, and has a complementary relationship with BENTLY 3500/20 125744-02.
3500/01 – The power supply module of the 3500 series, which provides power support for BENTLY 3500/20 125744-02 and other modules in the rack.

Installation and Maintenance

Before installing BENTLY 3500/20 125744-02, ensure that there is enough physical space in the 3500 rack, especially slot 1 where it is installed. The installation environment should be kept clean and dry, with a temperature within the range of - 30 °C to + 65 °C. Grounding measures should be well - implemented to prevent electromagnetic interference. The module is usually installed in a rack - mounted way, and it should be ensured that the installation is firm to avoid looseness caused by vibration.

For maintenance, regularly check the LED indicator of the module to observe its operating status. If an abnormal light is found, it may indicate a fault, and further diagnostic measures should be taken. Periodically clean the module to remove dust, which can help maintain its good heat - dissipation performance. Although the module has a long - service life, it is recommended to replace it every 5 - 10 years according to the actual use situation to ensure stable operation, especially in harsh industrial environments.

Product Warranty

We are confident in the quality of BENTLY 3500/20 125744-02. This product comes with a one - year warranty. During the warranty period, if there are any quality problems caused by non - human factors, we will provide free replacement service. Our company, Xiamen Xiongba E - commerce Co., Ltd., has more than a decade of experience in the industrial automation field and can provide global support. Whether it is technical consultation or after - sales service, our professional team will respond in a timely manner to ensure customer satisfaction, helping customers use this product with peace of mind.
