Product Overview

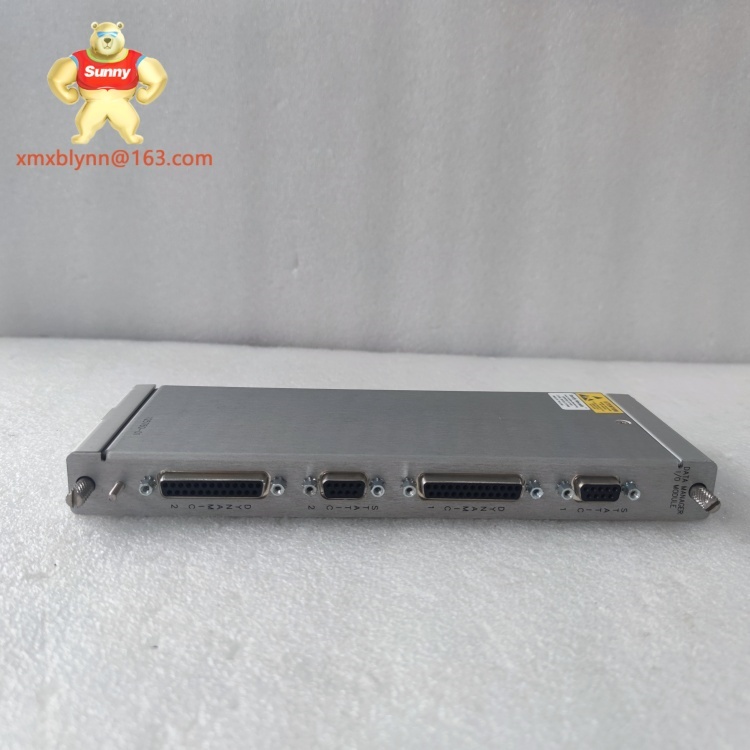

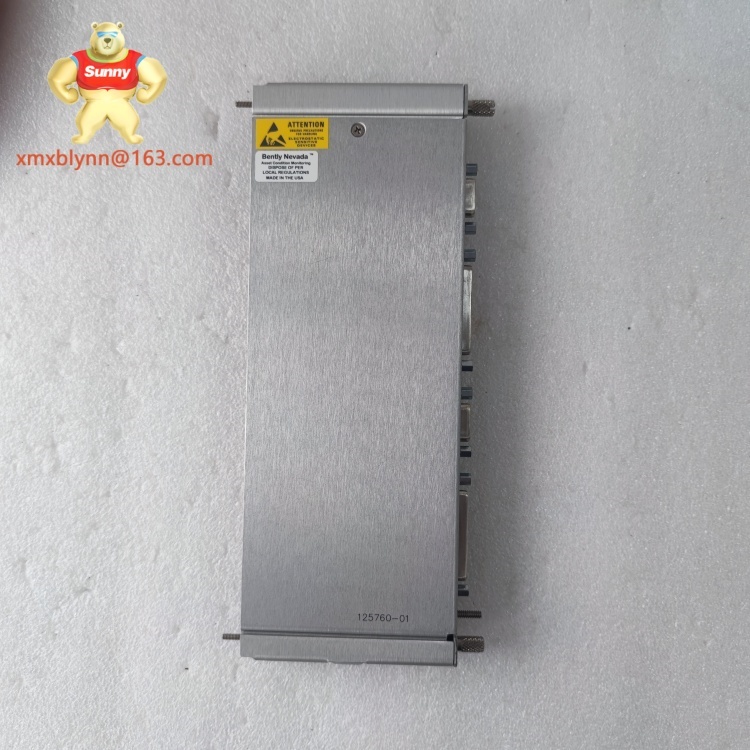

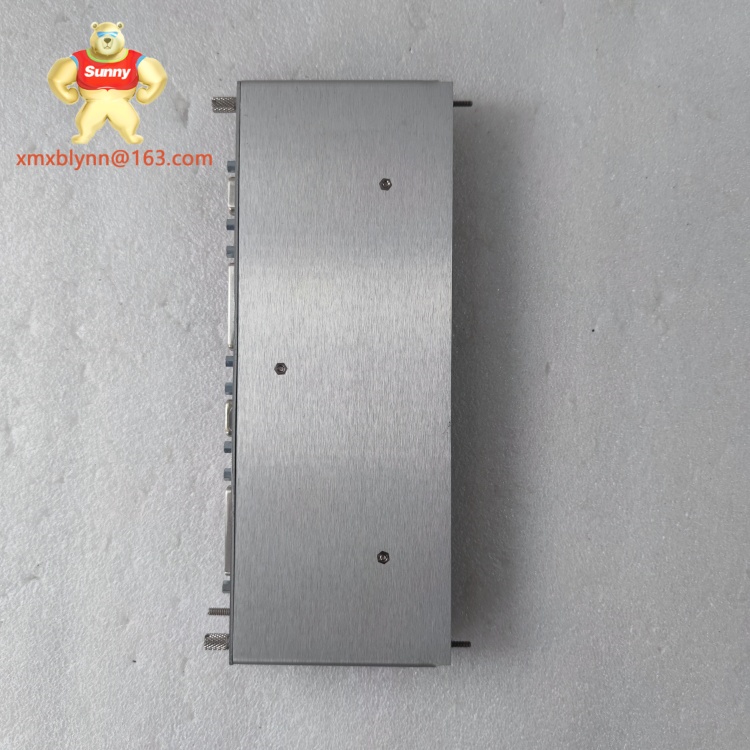

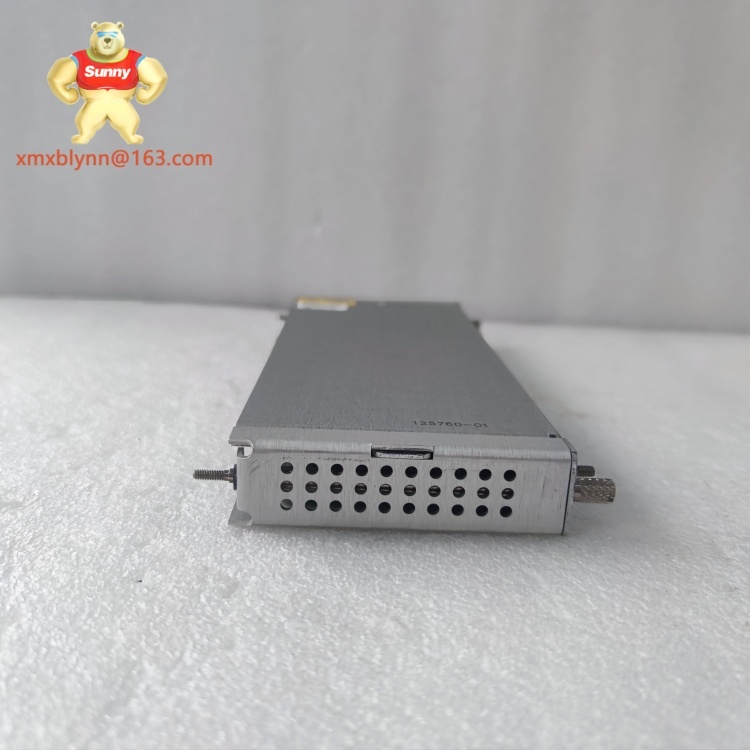

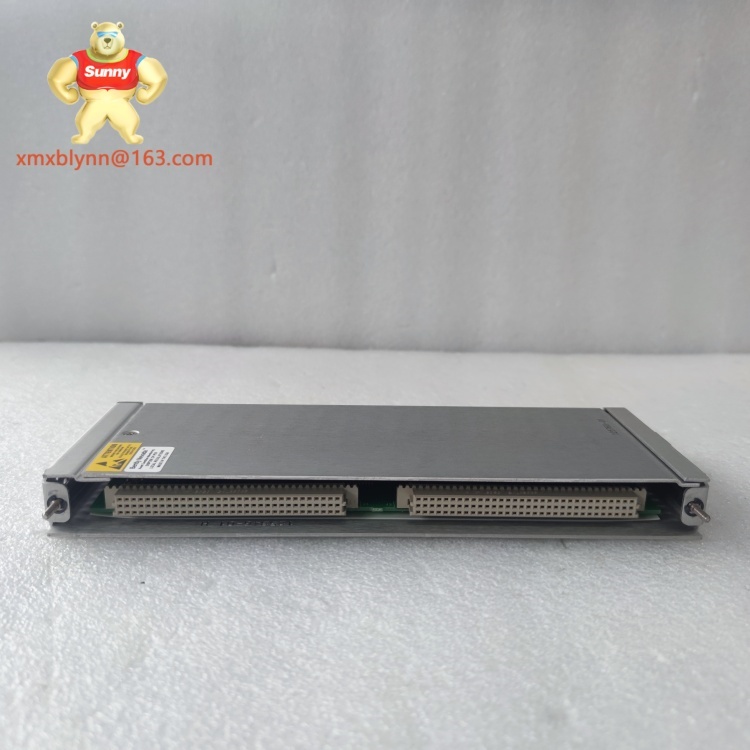

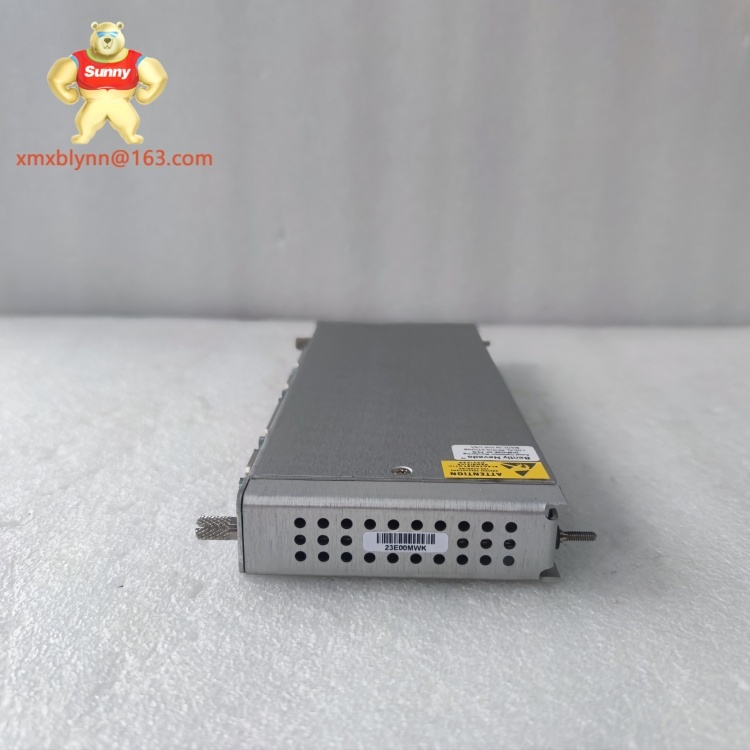

The 3500/20 125760-01 is a foundational rack assembly within Bently Nevada’s 3500 Machinery Protection System, serving as the physical and operational backbone for housing critical monitoring modules. This rack provides a structured, integrated platform that enables seamless communication between modules—such as vibration monitors, position transmitters, and power supplies—ensuring cohesive data flow for real-time machinery health analysis.
Designed specifically for industrial durability, 3500/20 125760-01 accommodates multiple 3500-series modules in a compact, organized layout, reducing cable clutter and simplifying system management. Its robust construction withstands the rigors of industrial environments, including temperature fluctuations and mechanical vibration, ensuring long-term reliability. What distinguishes 3500/20 125760-01 is its role in unifying the 3500 system: by providing standardized mounting and electrical interconnections, it enables quick module swaps, upgrades, and troubleshooting—critical for minimizing downtime in high-stakes operations like power plants or refineries. Whether part of a new installation or a system upgrade, this rack is essential for maintaining the integrity and efficiency of machinery protection setups.
Technical Specifications
| Parameter |
Value |
| Product Model |
3500/20 125760-01 |
| Manufacturer |
Bently Nevada (GE) |
| Product Type |
System Rack Assembly |
| Number of Module Slots |
14 |
| Dimensions |
483 mm × 305 mm × 254 mm (W × H × D) |
| Mounting Type |
Panel-mount or rack enclosure |
| Material |
Powder-coated steel chassis with aluminum front bezel |
| Compatibility |
All 3500-series modules (3500/05, 3500/42, 3500/50, etc.) |
| Operating Temperature Range |
0°C to 60°C (32°F to 140°F) |
| Weight |
7.5 kg (16.5 lbs) |
| Electrical Backplane |
Integrated 24 V DC distribution and data bus |
| Certification |
CE, UL 508, IEC 61010-1 |
| Environmental Rating |
NEMA 12 (when installed in enclosed cabinet) |
| Cooling |
Passive convection with vented design |
Key Features and Benefits
The 3500/20 125760-01 excels in modular flexibility, with 14 slots that support a wide range of 3500-series modules—allowing customization for specific monitoring needs, from basic vibration tracking to complex multi-parameter machinery analysis. This adaptability makes it easy to scale systems as operations expand, eliminating the need for complete overhauls when adding new monitoring capabilities.
Its integrated backplane is a standout feature: it streamlines both power distribution (24 V DC) and data communication between modules, reducing the need for external wiring and minimizing points of failure. The rugged steel chassis resists corrosion and mechanical stress, ensuring stability even in high-vibration environments like turbine rooms or compressor bays.
Installation and maintenance are simplified by the rack’s intuitive design: modules slide into place with secure locking mechanisms, preventing accidental dislodging during operation. The front bezel provides clear labeling for each slot, making module identification and troubleshooting faster for technicians. By centralizing all system components,
3500/20 125760-01 enhances system reliability, as interconnections are protected within the rack, reducing exposure to dust, moisture, and industrial debris.
Application Scenarios
The 3500/20 125760-01 is indispensable in industries where continuous monitoring of rotating equipment prevents costly failures. In power generation facilities, it forms the core of turbine monitoring setups, housing vibration modules (like 3500/42) and power supplies (3500/05) to track rotor health in steam and gas turbines. Its compact design fits easily into control rooms or turbine enclosures, ensuring critical data reaches operators without delay.
In oil and gas refineries, 3500/20 125760-01 supports compressor monitoring systems, integrating proximity probe interfaces and temperature modules to detect early signs of bearing wear or shaft misalignment. Its rugged construction withstands the high temperatures and hydrocarbon exposure common in these environments, maintaining performance where less durable racks would falter.
Chemical processing plants rely on 3500/20 125760-01 to centralize monitoring for mixers and agitators, combining position and vibration data to ensure consistent operation. By housing all modules in one organized rack, it simplifies compliance with safety regulations, as system audits can quickly verify all monitoring components are functioning as intended.
Related Models
3500/20 125760-02 – 10-slot compact variant of 3500/20 125760-01, ideal for smaller systems with fewer monitoring points.
3500/20 125760-03 – Ruggedized version with enhanced sealing, designed for outdoor or high-moisture environments like offshore platforms.
3500/22 126324-01 – Companion backplane extender, allowing 3500/20 125760-01 to connect with additional racks for large-scale systems.
3500/92 133469-01 – Rack enclosure kit, providing NEMA 4 protection for 3500/20 125760-01 in washdown or dusty environments.
3500/20 125760-00 – Previous generation model with basic backplane functionality, still compatible with legacy 3500 modules.
3500/25 130924-01 – High-temperature variant of 3500/20 125760-01, rated for up to 70°C, suitable for furnace-adjacent installations.
3500/20 125760-04 – Low-profile design with the same 14-slot capacity as 3500/20 125760-01, optimized for tight control cabinet spaces.
Installation and Maintenance
Installing 3500/20 125760-01 requires a stable, level mounting surface—typically a 19-inch equipment rack or wall panel—with sufficient clearance (minimum 150 mm) around the rack for ventilation. Ensure the mounting area is free from direct exposure to water or chemicals, though pairing with a 3500/92 enclosure adds protection in harsh environments. Proper grounding of the rack chassis to the facility’s main ground bus is critical to minimize electrical noise that could disrupt data transmission.
For maintenance, inspect
3500/20 125760-01 quarterly: check that all modules are fully seated in their slots, verify the backplane connectors are clean and free of corrosion, and ensure the chassis is free of dust (use compressed air to clean vents). Annually, test the backplane’s power distribution using a multimeter to confirm 24 V DC reaches all slots consistently. If modules fail to communicate, check for bent pins in the backplane—these can be gently straightened, but severe damage may require rack replacement, typically every 10-15 years in heavy-use environments.
Product Warranty
The 3500/20 125760-01 is covered by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., which includes free replacement for any units found defective due to manufacturing flaws under normal operating conditions. This warranty reflects our confidence in Bently Nevada’s engineering and our commitment to supporting industrial operations that rely on uninterrupted machinery protection. Our global support team provides guidance on installation, troubleshooting, and warranty claims, ensuring minimal downtime if issues arise. Direct overseas sourcing channels guarantee replacement racks are available promptly, reinforcing our dedication to keeping your 3500 system operational.
