BENTLY 3500/22M 138607-01 10AG | Transient Data Interface Module

BENTLY 3500/22M 138607-01 10AG is a transient data interface module (TDI) that plays a crucial role in industrial automation systems. It serves as the interface between the 3500 monitoring system and compatible software, such as System 1 status monitoring and diagnostic software, as well as 3500 system configuration software. This module combines the function of a 3500/20 rack interface module (RIM) with the data - collection capabilities of communication processors like TDXNET. It can continuously collect steady - state and transient waveform data, which is essential for analyzing the operating status of mechanical equipment and diagnosing potential problems, making it a valuable component in monitoring the health of critical machinery.

Efficient Data Acquisition: The 3500/22M 138607-01 10AG excels in real - time data acquisition, capable of continuously collecting both steady - state and transient waveform data. This feature is vital for monitoring the performance of critical machinery, providing operators with the data needed to assess equipment health.
High - speed Data Transmission: It supports high - frequency data transmission via an Ethernet connection. The collected data can be quickly sent to the host computer software, ensuring real - time and accurate data availability, which enables operators to make timely decisions.
Compatibility and Integration: Fully compatible with Bently Nevada's 3500 series monitoring system and System 1 mechanical management software, it can be seamlessly integrated into existing industrial automation systems. This allows for easy expansion and upgrade of the monitoring system without major overhauls.
User - friendly Operation: It has a user - friendly interface, which simplifies configuration and troubleshooting. This can reduce system downtime and increase productivity, as operators can quickly address any issues that arise.
Durable and Reliable: Built with precision engineering and durable materials, it can withstand extreme conditions. The robust build quality makes it suitable for harsh industrial environments, ensuring long - term stable performance and minimal maintenance requirements.

The BENTLY 3500/22M 138607-01 10AG is widely used in various industrial fields. In power plants, it is used to monitor the operation of turbines, collecting transient data during start - up, shutdown, and normal operation, helping to detect potential mechanical problems early and ensure the safe and stable operation of the power generation equipment. In oil & gas refineries, it plays a key role in monitoring compressors and pumps, providing real - time data on shaft vibration, displacement, and other parameters, which is crucial for preventing equipment failures and ensuring the smooth operation of the refining process. In discrete manufacturing lines, especially those with high - speed rotating machinery, this module can monitor the running status of motors and spindles, ensuring product quality by maintaining the stability of the equipment. It is also applicable in smart infrastructure projects, such as large - scale ventilation and air - conditioning systems in buildings, where it can monitor the operation of fans and ensure energy - efficient and reliable operation.

Installation preparation for the 3500/22M 138607-01 10AG requires a suitable physical space in the 3500 rack, specifically the slot adjacent to the power supplies. The installation environment should meet the temperature and humidity requirements, with an operating temperature range of -30 to +65 degrees celsius and a humidity of no more than 95% non - condensing. Ensure proper grounding to prevent electrical interference. The module can be mounted easily in the designated slot, and the connection should be checked to ensure reliable communication with other modules.

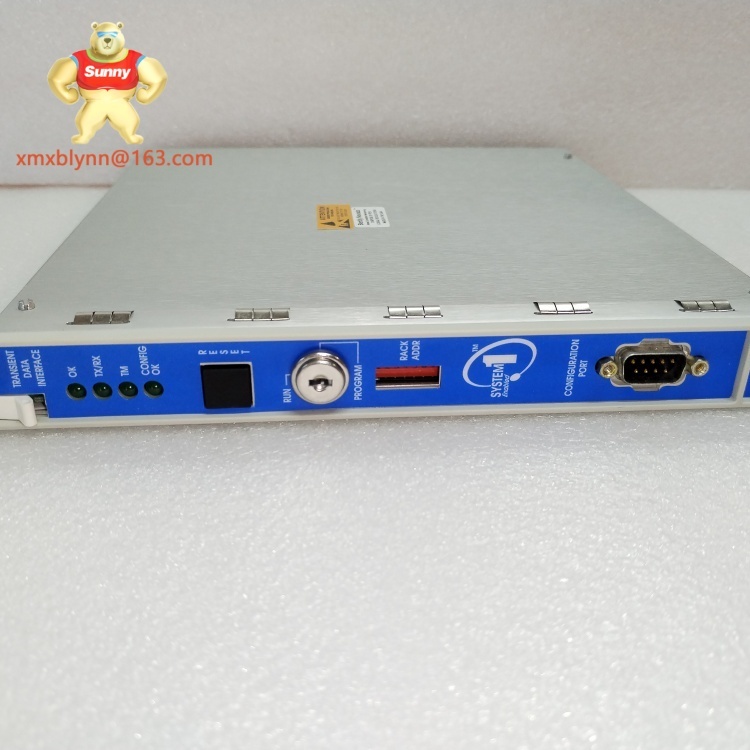

For maintenance, regular checks of the module's LED indicators are recommended. The OK LED, TX/RX LED, TM LED, and Config OK LED can provide information about the module's operation status. Periodically, verify the data transmission accuracy and check for any abnormal noise or overheating. Although the module is designed for low - maintenance operation, it is advisable to replace it according to the manufacturer's recommendations or when significant performance degradation is detected, usually after a long - term operation under harsh conditions.

The BENTLY 3500/22M 138607-01 10AG comes with a one - year warranty. During this period, if there are any quality problems caused by non - human factors, the manufacturer will provide free repair or replacement services. Our company, Xiamen Xiongba E - commerce Co., Ltd., also offers free replacement service, demonstrating our confidence in the product's quality and our commitment to customer satisfaction. With global support available, customers can get timely technical support and solutions, ensuring the continuous and stable operation of the module in their industrial automation systems.
