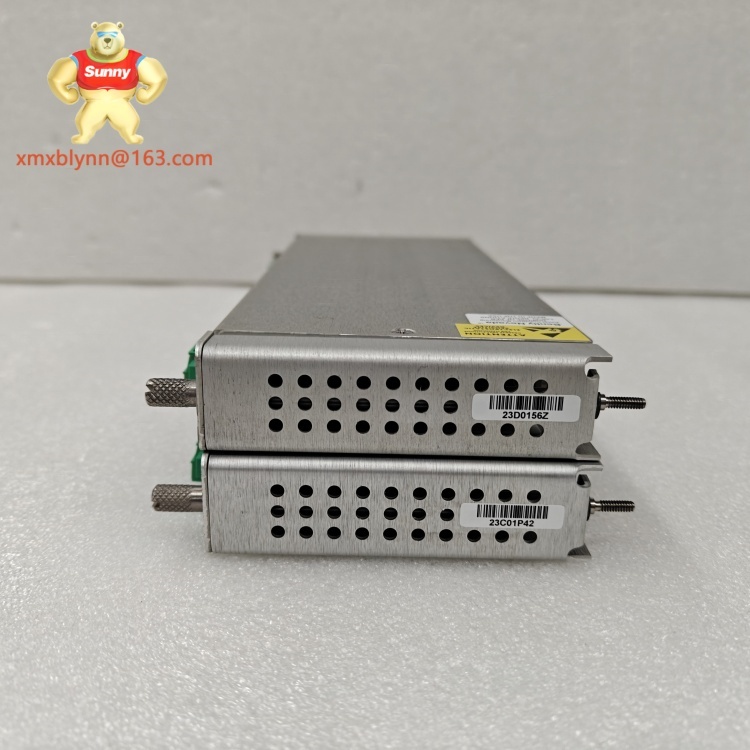

The Bently 3500/22M 146031-01 is a high-reliability power supply module designed as a core component of Bently Nevada’s 3500 Machinery Protection and Condition Monitoring System. As part of the trusted 3500 series, this module delivers stable, regulated power to critical monitoring components—including vibration transducers, temperature sensors, and communication modules—ensuring uninterrupted operation of machinery health monitoring systems.
What distinguishes the Bently 3500/22M 146031-01 is its robust design and redundant capabilities, which are essential in environments where power disruptions could compromise equipment protection. By maintaining consistent voltage output even during input fluctuations, the Bently 3500/22M 146031-01 safeguards the integrity of monitoring data, enabling timely detection of machinery anomalies. Its seamless integration with the 3500 system rack and adherence to industrial safety standards make it a vital component for industries relying on continuous machinery health surveillance, such as power generation and oil & gas.
The Bently 3500/22M 146031-01 is engineered for uncompromising reliability, starting with its redundant design that ensures failover capability—critical for protecting machinery in mission-critical applications. This redundancy minimizes the risk of power interruptions to the 3500 system, ensuring continuous monitoring of vibration, temperature, and other key machinery parameters.
A standout feature is its wide input voltage range (100–240 V AC), allowing seamless operation across global industrial power grids without the need for additional transformers. The module delivers a stable 24 V DC output with tight regulation (±0.5 V), protecting sensitive monitoring components from voltage fluctuations that could corrupt data or damage hardware.
Comprehensive protection mechanisms, including overload, short circuit, and overvoltage safeguards, prevent damage to both the module and connected equipment. Its compact form factor fits seamlessly into the 3500 system rack, simplifying integration, while built-in status indicators provide at-a-glance visibility of power health, enabling quick diagnostics. The Bently 3500/22M 146031-01’s rugged construction ensures reliable performance in harsh industrial environments, from refineries to power plants.
The Bently 3500/22M 146031-01 is indispensable in industries where machinery downtime poses significant safety, operational, or financial risks. In power generation facilities, it supplies reliable power to 3500 system modules monitoring steam turbine vibrations and generator bearing temperatures, ensuring early detection of issues that could lead to unplanned outages.
In oil and gas refineries, the module powers condition monitoring systems on compressors and pumps, where consistent power is critical for tracking equipment health in high-pressure, high-temperature environments. This enables predictive maintenance, reducing the risk of costly shutdowns due to machinery failures.
Manufacturing plants rely on the Bently 3500/22M 146031-01 to support monitoring systems on production line motors and gearboxes, ensuring continuous operation of assembly processes. It also plays a key role in chemical processing facilities, powering sensors that monitor agitator and mixer performance, protecting against process disruptions caused by equipment malfunctions.
Bently 3500/22 146030-01 – Non-redundant predecessor of the
Bently 3500/22M 146031-01 with similar output specs.
Bently 3500/94 145988-01 – Communication gateway module powered by the
Bently 3500/22M 146031-01 in 3500 systems.
Bently 3500/42 146053-01 – Vibration monitoring module that relies on the
Bently 3500/22M 146031-01 for power.
Bently 3500/63 146072-01 – Temperature monitoring module compatible with the
Bently 3500/22M 146031-01.
Bently 3500/15 146015-01 – Relay module powered by the
Bently 3500/22M 146031-01 to trigger alarms.
Bently 3500/53 146062-01 – Transducer input module that receives power from the
Bently 3500/22M 146031-01.
Bently 3500/25 146034-01 – High-current power supply variant for larger 3500 system configurations.
Installation of the Bently 3500/22M 146031-01 requires integration into the 3500 system rack, ensuring proper alignment with adjacent modules for secure electrical connectivity. The rack should be mounted in a control cabinet or room with ambient temperatures between 0°C and +60°C, protected from excessive dust and moisture. Proper grounding is critical—connect the module’s ground terminal to the system’s protective earth to minimize electrical noise and ensure safety. Verify the input voltage matches the 100–240 V AC range before powering on.
For maintenance, regularly inspect status indicators to confirm normal operation and check wiring connections quarterly for tightness and corrosion. Clean dust from ventilation areas to maintain cooling efficiency. The
Bently 3500/22M 146031-01 is designed for long-term reliability, but periodic output voltage checks with a multimeter ensure regulation remains within specs. Consider replacement after 10–15 years of operation to maintain optimal performance in critical applications.
The Bently 3500/22M 146031-01 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., a global industrial automation supplier with over a decade of experience. This warranty covers manufacturing defects, with free replacement services provided for eligible issues within the coverage period. Xiamen Xiongba sources products directly from trusted overseas manufacturers, ensuring the Bently 3500/22M 146031-01 meets strict quality standards.
Customers benefit from the company’s global support network, offering technical assistance for installation and troubleshooting. This commitment ensures users can rely on the Bently 3500/22M 146031-01 to power critical machinery monitoring systems, backed by a partner dedicated to minimizing downtime and maximizing operational reliability.
