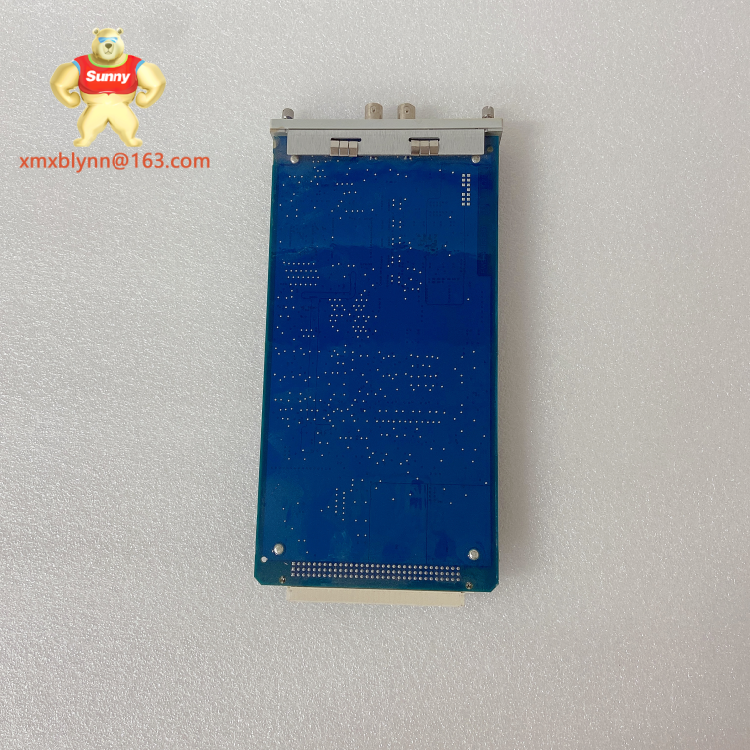

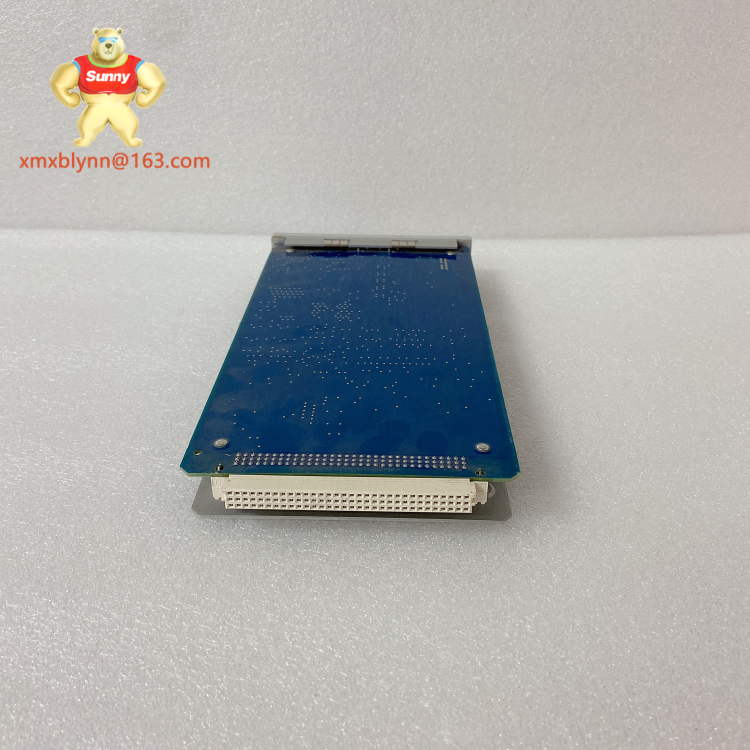

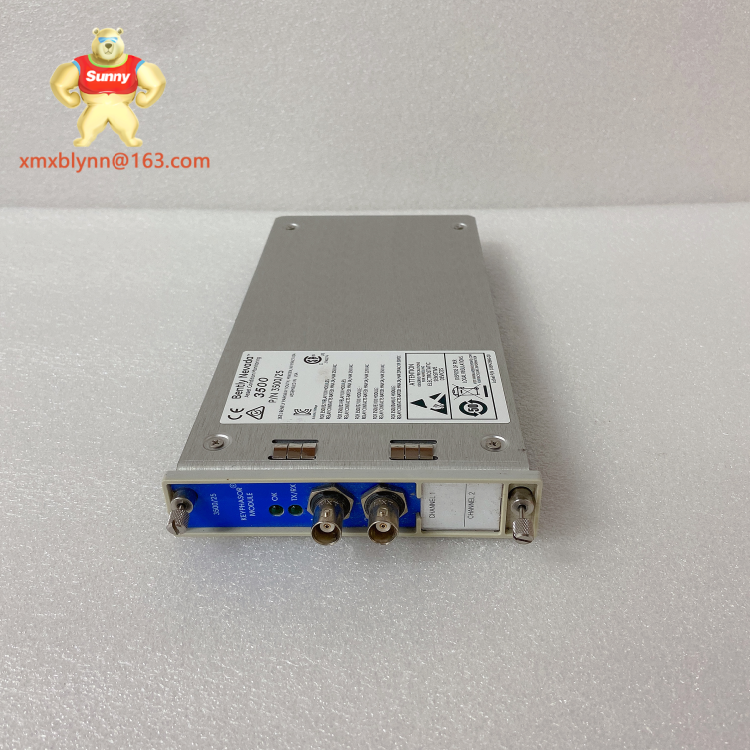

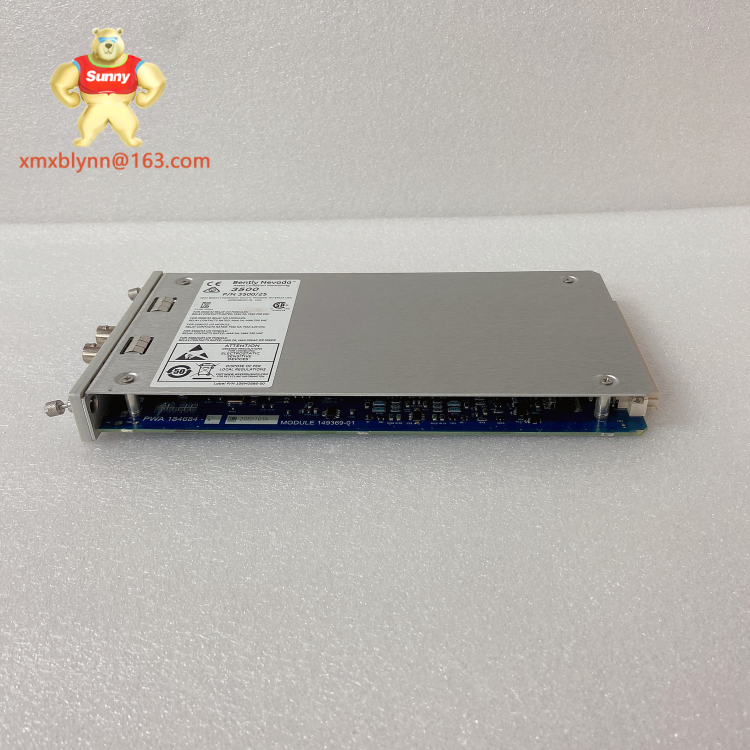

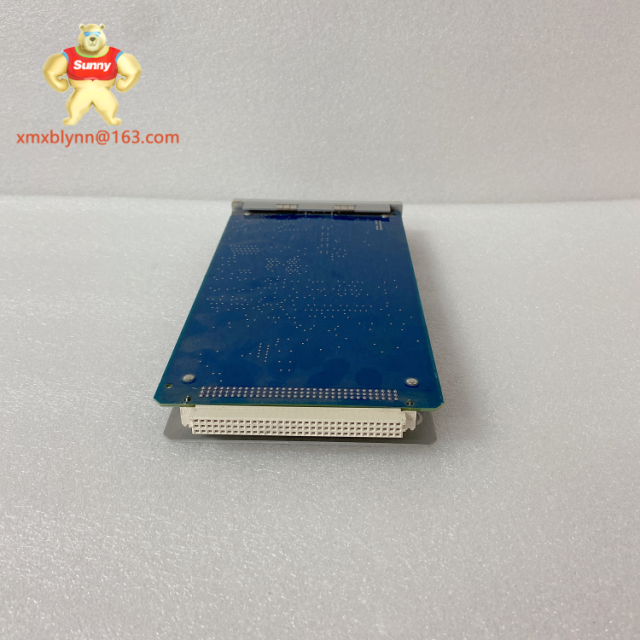

The BENTLY 3500/25 184684-01 is a rugged, high-sensitivity vibration transducer module engineered for continuous machinery protection and condition monitoring in heavy-industry applications. Built to sit inside monitor racks or control cabinets, the BENTLY 3500/25 184684-01 provides precise velocity and acceleration sensing, delivering early warning of imbalance, misalignment, bearing wear, and looseness. For rotating equipment engineers, this module is a straightforward way to add high-fidelity vibration inputs into protection systems and historians without redesigning the control architecture.
In practice, the BENTLY 3500/25 184684-01 is deployed at turbine and generator bearings, compressor spindles, and large pump shafts where small vibration deviations can precede costly failures. Because it integrates cleanly with rack-based monitor families and interfaces easily into DCS and PLC networks, the module commonly appears on lists of distributed control system parts and industrial automation spare parts when plants plan predictive-maintenance upgrades. For brownfield projects, technicians often mount the BENTLY 3500/25 184684-01 into existing cabinets and map outputs to PLC registers or historian inputs, restoring condition awareness in a single maintenance window.
| Parameter | Value |
|---|---|
| Product Model | BENTLY 3500/25 184684-01 |
| Manufacturer | Bently Nevada (GE/Bently lineage) |
| Product Type | Vibration transducer / monitor module |
| Power | Rack-supplied 24 VDC (typical backplane) |
| Communication / Protocol | Analog outputs to monitor rack / 4–20 mA option (model dependent) |
| Operating Temperature | −20°C to +70°C |
| Mounting | Rack-mounted / panel insert |
| Protection / Ingress | IP20 (installed in enclosed cabinet) |
| Dimensions (HxWxD) | Standard rack slot (consult rack guide) |
| Weight | ~0.4 kg (approx.) |
| Typical Interfaces | Accelerometer/velocity inputs, analog outputs, terminal block |
| Compliance | CE, RoHS (verify with datasheet) |
The BENTLY 3500/25 184684-01 excels at delivering high-resolution vibration data that operators can trust for early fault detection. Firstly, its front-end signal conditioning and low-noise amplification preserve the integrity of sensor signals, enabling accurate bearing- and shaft-health trending even at low amplitudes. Secondly, the module’s stable analog outputs make it easy to feed vibration metrics directly into rack monitors or PLC/DCS analog channels without complex signal processing.
Reliability is another strong suit. Designed for continuous industrial use, the BENTLY 3500/25 184684-01 uses robust connectors and components rated for vibration and thermal cycling, which minimizes maintenance interventions. Moreover, the module reduces mean time to diagnose by presenting consistent, repeatable signals so that root-cause analysis can rely on clean trend lines rather than noisy spikes. This quality lowers lifecycle cost because it reduces unnecessary mechanical inspections.
Integration is purposely pragmatic. The BENTLY 3500/25 184684-01 maps readily to common condition-monitoring racks and can be interfaced through analog cards into DCS and PLC systems, making it a natural companion to distributed control system parts and ABB I/O modules when sites blend brands. For engineers planning upgrades, that means less gateway work and faster commissioning. In short, the module offers precise sensing, durable construction, and straightforward integration that together enable more confident predictive maintenance outcomes.
The BENTLY 3500/25 184684-01 is widely used wherever rotating machinery reliability dictates production continuity. In power plants, it provides continuous bearing vibration monitoring on turbines and generator trains so protection systems can initiate orderly shutdowns before damage escalates. In oil & gas compressor houses, the module helps detect early-stage rotor rub or bearing fatigue and feeds alarm logic into the control room for immediate action.
Water-treatment plants and municipal pump stations also benefit: the BENTLY 3500/25 184684-01 supplies dependable trend data that maintenance teams use to schedule bearing replacement during planned outages rather than after catastrophic failure. In mining and mineral processing, the module monitors large mill and crusher bearings exposed to heavy loads and contamination; its robust signal fidelity supports long-term trending that flags gradual deterioration. For brownfield retrofits, technicians often pair the module with existing racks and PLCs—this pragmatic approach lets operators add condition awareness without replacing ABB AC 800M controllers or existing ABB DO810/ABB I/O modules. For example, in a municipal water pump station, technicians replaced legacy proximity sensors with the BENTLY 3500/25 184684-01 and restored 24/7 vibration monitoring within a single day.
BENTLY 3500/22 – Base transducer module with alternate signal filtering options.
BENTLY 3500/30 – High-sensitivity variant optimized for low-amplitude ring detection.
BENTLY 3500/46 – Expanded I/O module combining vibration inputs with speed pickup channels.
BENTLY 3500/13 – Rack analog output card commonly used with transducer modules.
BENTLY 3300 – Portable field unit for spot checks and calibration, complements rack modules.
BENTLY 3500/12 – Older generation transducer module for compatibility with legacy racks.
Install the BENTLY 3500/25 184684-01 into a properly grounded monitor rack inside an enclosed control cabinet. Choose a location away from direct heat sources and ensure the rack’s backplane and power supply meet the module’s voltage and current requirements. During wiring, route sensor cables separately from power runs and use screened accelerometer cables with recommended grounding at one end to reduce noise. Before finalizing mounting, perform a bench checkout: verify input wiring, confirm output levels into the monitor card or PLC analog channel, and label cables for future troubleshooting.
For maintenance, combine scheduled visual inspections with trend-based checks. Inspect connectors and cable shields for corrosion, and confirm terminal tightness during planned outages. Use the module’s repeatable analog output to build baseline vibration signatures; then set alert thresholds to catch deviations early. Keep a firmware and configuration record (if applicable) and store calibration data for each sensor. Finally, maintain a pre-configured spare module and a short test harness to reduce mean time to repair—this practice often restores monitoring in hours rather than days.
The BENTLY 3500/25 184684-01 units supplied by Xiamen Xiongba E-commerce Co., Ltd. Branch include a one-year warranty and a free replacement service for defects found under normal use. This commercial warranty is provided by Xiamen Xiongba (not the OEM). Customers should retain proof of purchase and the unit serial number when contacting Xiongba’s service desk to initiate a claim. Our support includes pre-shipment testing, datasheet verification, and serial-number traceability to accelerate verification and replacement and to minimize production disruption.
