Product Overview

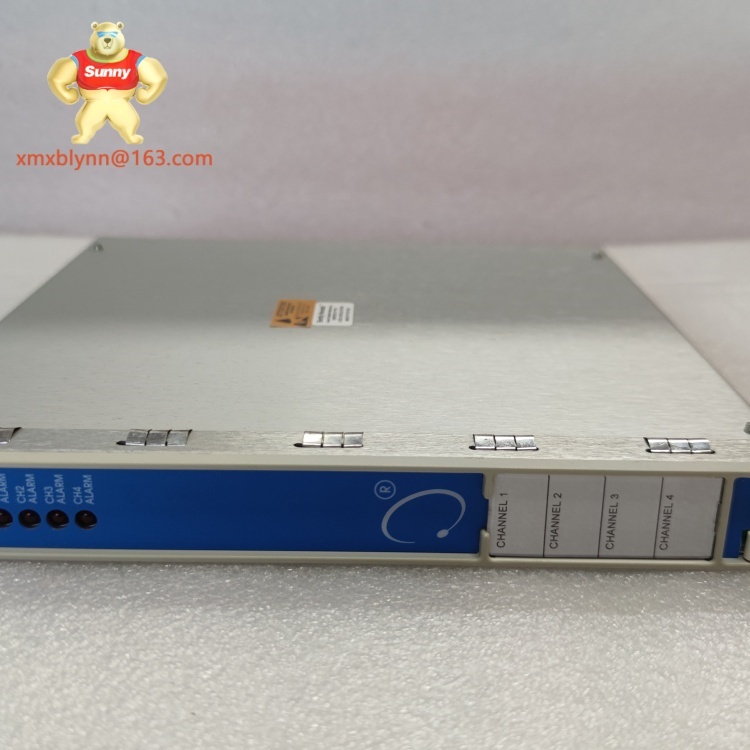

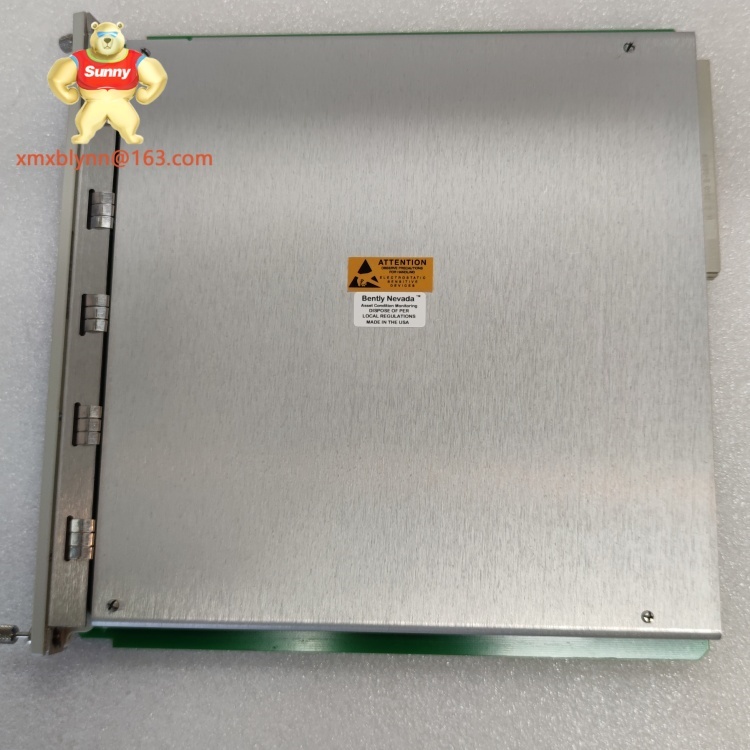

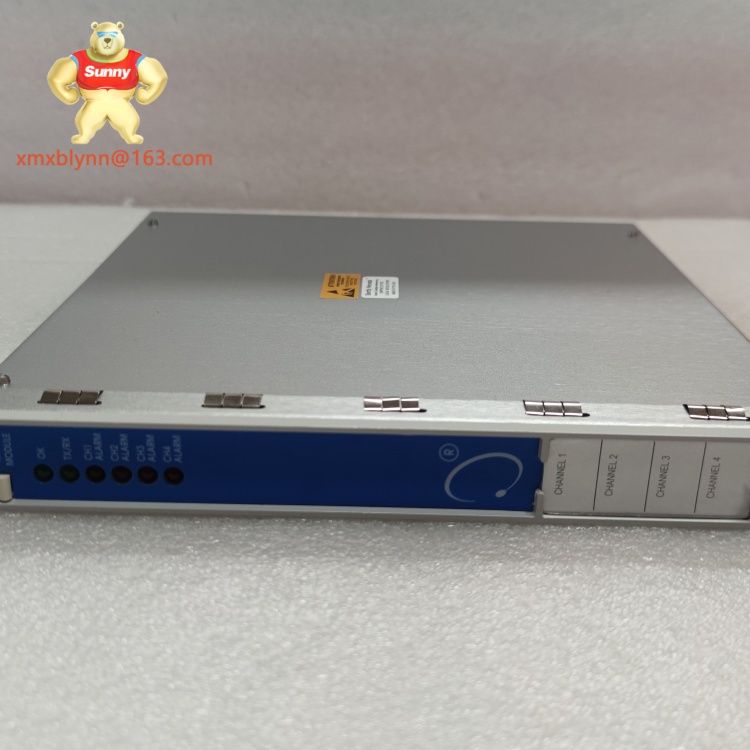

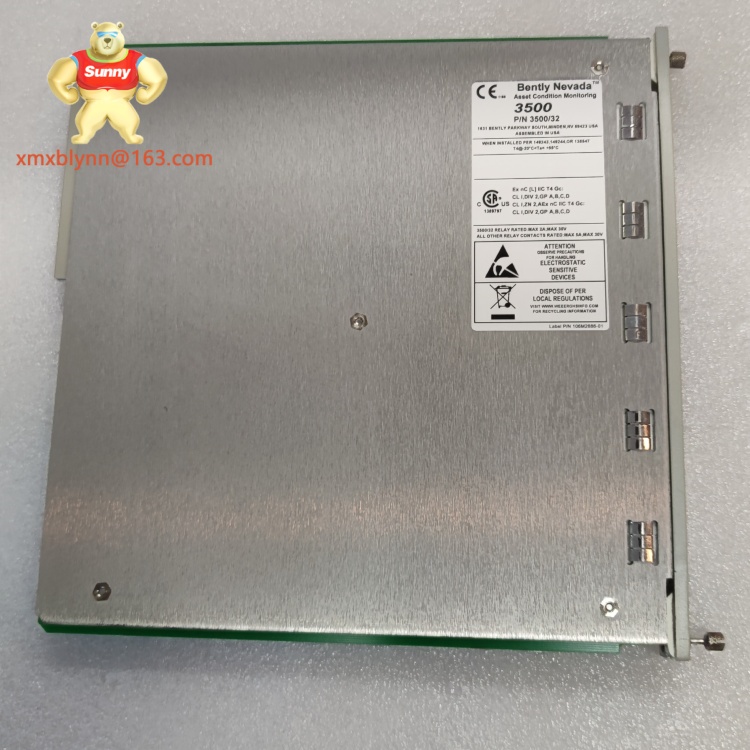

The BENTLY 3500/32 125712-01 is a high-reliability 4-channel relay module that serves as a critical safety interface within Bently Nevada’s 3500 Machinery Protection System, translating monitored machinery data into actionable alarm and shutdown signals. As a key component of the 3500 series, this module acts as a bridge between monitor modules (such as the 3500/42M) and safety systems, triggering predefined responses—like audible alarms or equipment shutdowns—when machinery parameters exceed safe thresholds.
The BENTLY 3500/32 125712-01 is designed to enhance operational safety by ensuring timely responses to abnormal conditions, such as excessive vibration or shaft displacement in rotating equipment. Its configurable relays allow customization to specific industry standards, making it adaptable to diverse applications from power generation to oil refining. What distinguishes the BENTLY 3500/32 125712-01 is its robust relay design and seamless integration with the 3500 system, ensuring reliable performance in critical scenarios where delayed or incorrect responses could lead to equipment damage or safety hazards.
Technical Specifications
| Parameter |
Value |
| Product Model |
BENTLY 3500/32 125712-01 |
| Manufacturer |
Bently Nevada |
| Product Type |
4-Channel Relay Module (3500 Series) |
| Number of Relays |
4 (independent channels) |
| Relay Type |
Double Pole Double Throw (DPDT) |
| Maximum Switching Voltage |
250 VAC / 125 VDC |
| Maximum Switching Current |
5 A (resistive load) |
| Response Time |
<10 ms (from input signal to relay actuation) |
| Input Interface |
3500 backplane (receives signals from monitor modules) |
| Configuration Method |
3500 Rack Configuration Software |
| Operating Voltage |
+5 VDC (from 3500 rack backplane) |
| Operating Temperature |
0°C to +60°C |
| Mounting |
3500 Series Rack (1-slot width) |
| Compliance |
UL 508, IEC 61508 (SIL 2), ATEX |
Key Features and Benefits
The BENTLY 3500/32 125712-01 offers exceptional flexibility with its 4 independent DPDT relays, each configurable to act on signals from any 3500 monitor module (e.g., vibration, position, or speed monitors). This allows users to tailor alarm and shutdown logic to specific machinery requirements—whether triggering a warning light for minor vibration or a full shutdown for critical shaft displacement.
A standout advantage is the module’s rapid response time of less than 10 ms, ensuring that safety actions are initiated before harmful conditions escalate. This speed is critical in high-speed rotating equipment like gas turbines, where even a slight delay could result in catastrophic failure.
The BENTLY 3500/32 125712-01 integrates seamlessly with the 3500 system’s configuration software, enabling easy programming of relay logic, time delays, and reset conditions without manual wiring changes. Diagnostic features, including relay status indicators and fault logging, simplify troubleshooting, reducing downtime during maintenance.
Built to meet SIL 2 safety standards, the module ensures reliable performance in safety-critical applications, providing confidence that alarms and shutdowns will activate when needed—no more, no less. Its rugged design also withstands industrial environments, with resistance to vibration and temperature fluctuations that could compromise less robust components.
Application Scenarios
The BENTLY 3500/32 125712-01 is indispensable in industries where machinery safety is paramount. In power generation, it is deployed in coal-fired and nuclear plants to manage relay outputs for steam turbine protection. When paired with 3500/42M vibration monitors, the BENTLY 3500/32 125712-01 triggers alarms for elevated vibration levels and initiates turbine shutdowns if thresholds are breached, preventing rotor damage and costly outages.
In oil and gas refineries, the module safeguards centrifugal compressors by translating bearing temperature and vibration data into relay actions—activating cooling systems for minor issues or isolating the compressor for major faults. This prevents hydrocarbon leaks and ensures compliance with safety regulations.
Chemical processing facilities rely on the BENTLY 3500/32 125712-01 to protect agitators and pumps, where equipment failure could contaminate batches or cause chemical spills. By linking to 3500/53 speed monitors, it shuts down machinery if rotational speed deviates from safe ranges, maintaining process integrity.
Marine applications, such as shipboard propulsion systems, use the module to manage relays for main engine safety, ensuring timely shutdowns during critical faults like excessive crankshaft vibration, protecting both equipment and crew at sea.
Related Models
3500/33 125713-01 – 8-channel variant of BENTLY 3500/32 125712-01, ideal for systems requiring more relay outputs.
3500/42M 125808-01 – Vibration monitor module that sends signals to BENTLY 3500/32 125712-01 to trigger relays.
3500/32 125712-02 – Enhanced version of BENTLY 3500/32 125712-01 with programmable time delays for relay actions.
3500/15 125771-01 – Communication module that transmits BENTLY 3500/32 125712-01 relay status to SCADA systems.
3500/53 125719-01 – Speed monitor module compatible with BENTLY 3500/32 125712-01 for rotational speed-based relay actions.
3500/32 125712-00 – Previous generation model with basic relay functionality, lacking SIL 2 certification.
3500/92 125782-01 – System display module that visualizes BENTLY 3500/32 125712-01 relay status for operators.
Installation and Maintenance
Installation of BENTLY 3500/32 125712-01 requires insertion into an available slot in the 3500 rack, ensuring a secure connection to the backplane for power and communication. Relay outputs must be wired to external safety systems (e.g., alarms, shutdown valves) using appropriately rated conductors, with polarity observed for DC circuits. Prior to operation, configure relay logic via the 3500 software, mapping each relay to the relevant monitor module and setting thresholds.
For maintenance, inspect the BENTLY 3500/32 125712-01 quarterly for loose connections and relay contact wear, especially in high-cycle applications. Test relay functionality annually by simulating input signals and verifying output actions. Update firmware periodically using the 3500 configuration tool to ensure compatibility with newer monitor modules. Replace the module every 7-9 years under normal operation, or immediately if relays fail to actuate—critical for maintaining safety system integrity.
Product Warranty
The BENTLY 3500/32 125712-01 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and performance issues under normal operating conditions. During this period, we provide free replacement for any unit that fails to meet relay response time, configuration, or safety standards, ensuring your 3500 Machinery Protection System remains reliable. Our technical team offers support for installation, software configuration, and troubleshooting, leveraging over a decade of industrial automation expertise. We stand behind the BENTLY 3500/32 125712-01’s role in safety-critical applications, ensuring customers receive consistent performance and responsive service to protect their equipment and operations.
