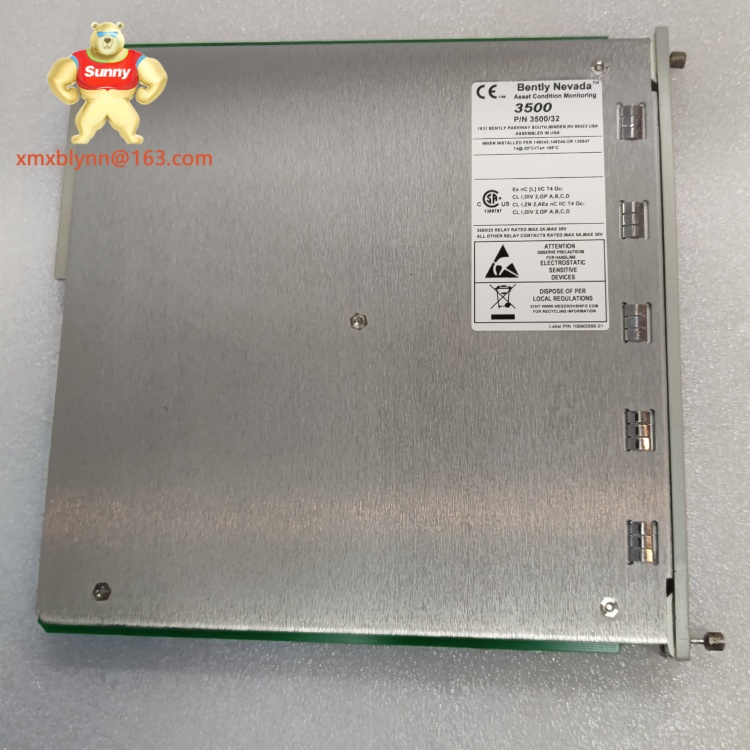

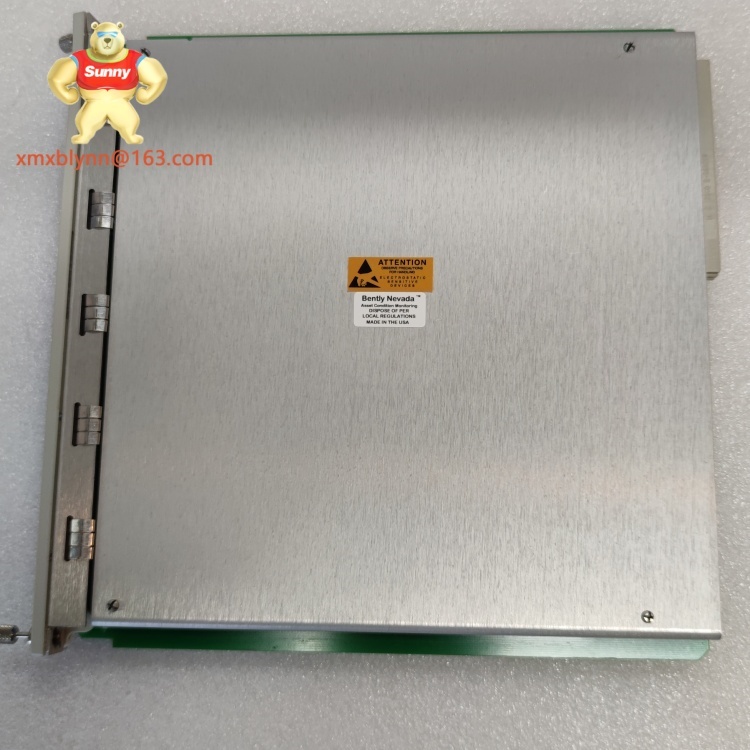

The BENTLY 3500/32 125712-01 is a high-reliability 4-channel relay module designed for critical machinery protection systems, serving as a core component within the Bently Nevada 3500 series. Its primary function is to convert monitored machinery data into actionable alarm and shutdown signals, ensuring safe and stable equipment operation in industrial environments. Below is a detailed overview of the product:
The BENTLY 3500/32 125712-01 acts as a safety interface within the 3500 system, connecting monitor modules (e.g., vibration, displacement, speed) to external safety devices such as alarms, shutdown valves, and control systems. It enables real-time response to abnormal conditions by triggering predefined actions when parameters exceed safe thresholds. Its design emphasizes rapid response, high reliability, and flexibility, making it suitable for safety-critical applications across industries.
| Parameter |
Value |
| Model |
BENTLY 3500/32 125712-01 |
| Manufacturer |
Bently Nevada |
| Product Type |
4-Channel Relay Module (3500 Series) |
| Relay Configuration |
4 independent DPDT relays (each channel combines two SPDT relays) |
| Maximum Switching Voltage |
250 VAC / 125 VDC |
| Maximum Switching Current |
5 A (resistive load) |
| Response Time |
<10 ms (from input signal to relay actuation) |
| Input Interface |
3500 backplane (receives signals from monitor modules) |
| Configuration Method |
3500 Rack Configuration Software |
| Operating Voltage |
+5 VDC (supplied via 3500 rack backplane) |
| Operating Temperature |
-30°C to +65°C (-22°F to +150°F) [Note: Some sources mention -40°C to +85°C for storage] |
| Mounting |
3500 Series Rack (1-slot width) |
| Compliance |
UL 508, IEC 61508 (SIL 2), ATEX, IECEx |
-
Flexible Relay Configuration
The module features 4 independent DPDT relays, each configurable to trigger actions based on signals from any 3500 monitor module. This allows customization for specific machinery requirements, such as activating warning lights for minor vibrations or initiating full shutdowns for critical shaft displacement.
-
Rapid Response
With a response time of <10 ms, the 3500/32 125712-01 ensures timely safety actions, minimizing risks in high-speed rotating equipment like gas turbines.
-
Comprehensive Diagnostics

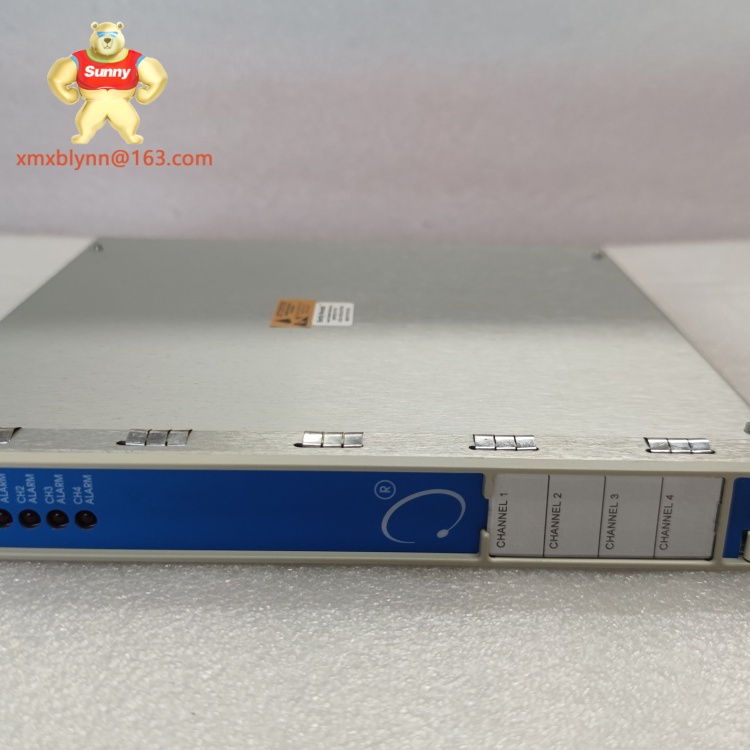

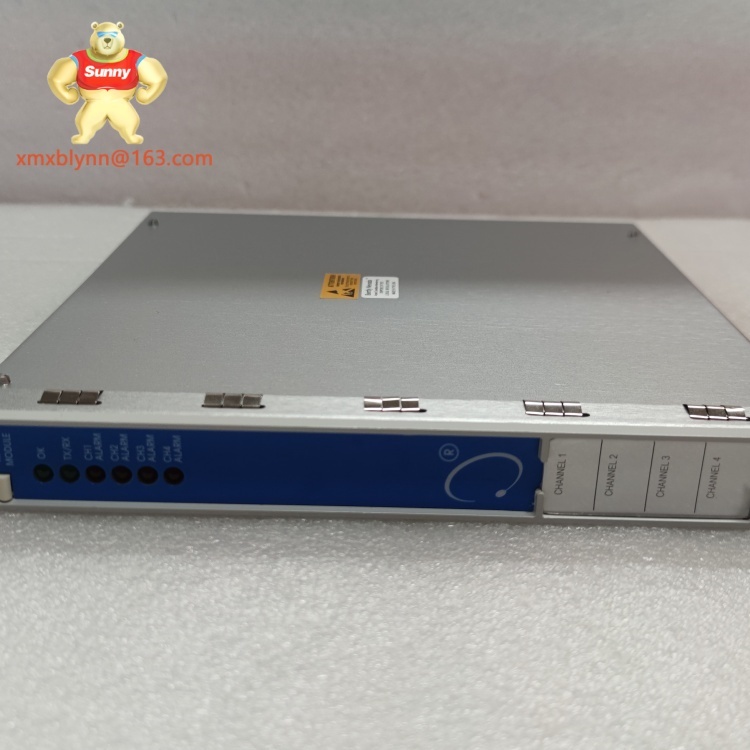

Real-time status indicators (front-panel LEDs) and fault logging enable quick troubleshooting. It also supports integration with the 3500 system interface for centralized monitoring.
-
Safety Compliance
Certified to SIL 2 standards, it meets rigorous safety requirements for hazardous environments. Models with ATEX/IECEx certifications are available for use in Zone 2/Division 2 areas, though voltage restrictions apply in functional safety systems (e.g., SIL applications) .
-
Robust Design
Encased in epoxy resin and built to withstand harsh conditions (vibration, dust, humidity), it ensures stable performance in industrial settings.
- Power Generation: Protects steam turbines by triggering alarms/shutdowns based on vibration or temperature data.
- Oil & Gas: Safeguards compressors and pumps in offshore platforms and refineries.
- Chemical Processing: Monitors agitators and reactors to prevent process disruptions.
- Marine: Ensures safe operation of shipboard propulsion systems through timely fault responses.
- 3500/33 125713-01: 8-channel relay module for higher output demands.
- 3500/32 125712-02: Enhanced version with programmable time delays.
- 3500/34 125696-01: Triple Modular Redundancy (TMR) relay module for critical applications.
- 3500/42M 125808-01: Vibration monitor module frequently paired with the 3500/32.
- Installation: Insert into a 3500 rack slot, connect to the backplane, and wire outputs to external safety systems. Configure relay logic via the 3500 software.
- Maintenance:
- Quarterly inspections for loose connections and relay wear.
- Annual functional tests to verify relay actuation.
- Firmware updates to ensure compatibility with newer modules.
- Replace every 7-9 years or immediately if relays fail.
Backed by a 1-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects. Technical support is available for installation, configuration, and troubleshooting.
Market prices vary by region and supplier, with approximate ranges of $123–$2,450 or ¥7,100–¥7,400. Lead times typically range from 2–3 days to 3–5 months, depending on stock and customization needs.
The BENTLY 3500/32 125712-01 is a critical component for machinery protection, offering rapid response, high reliability, and safety compliance. Its flexible design and robust construction make it ideal for industries where equipment downtime or failure could lead to severe consequences. By integrating seamlessly with the 3500 system, it ensures efficient and safe operation of critical machinery.
