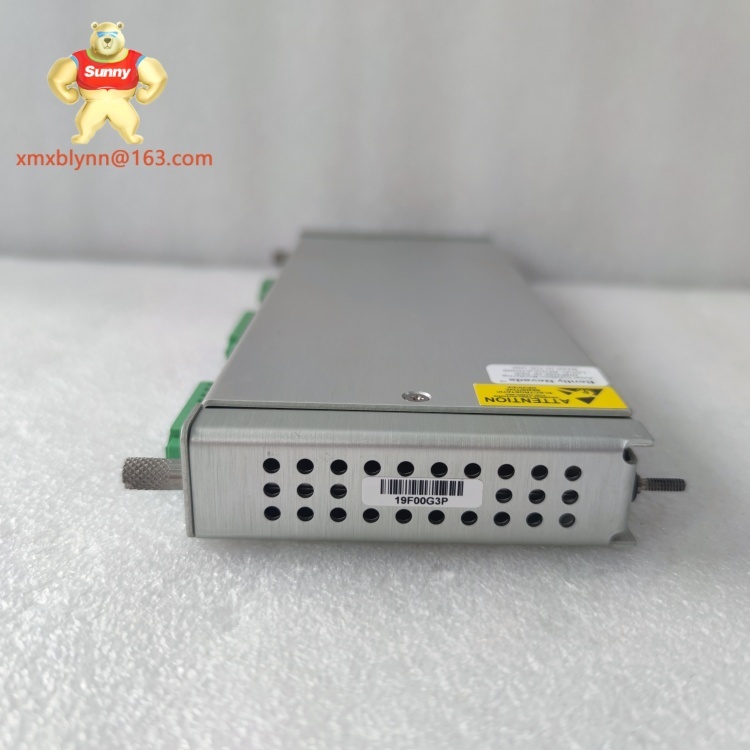

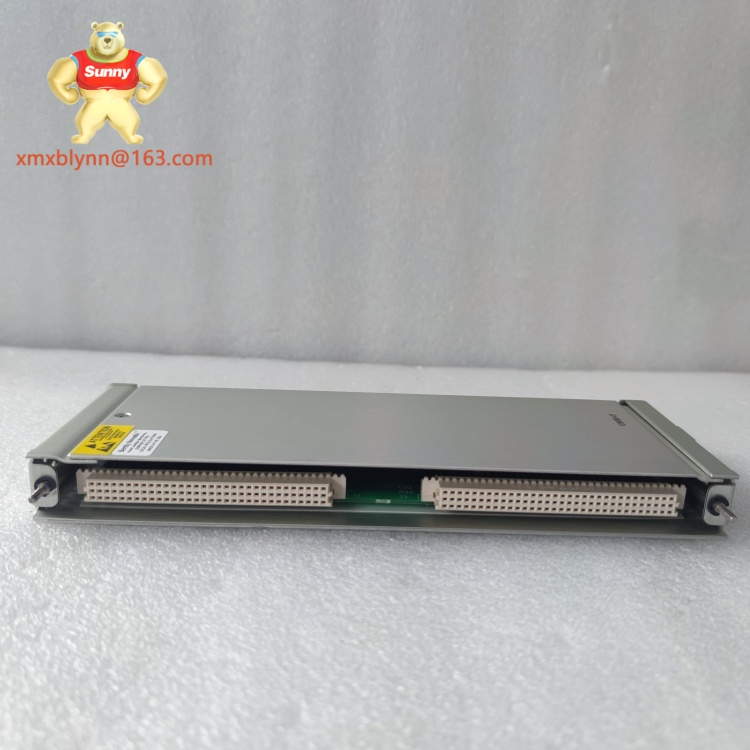

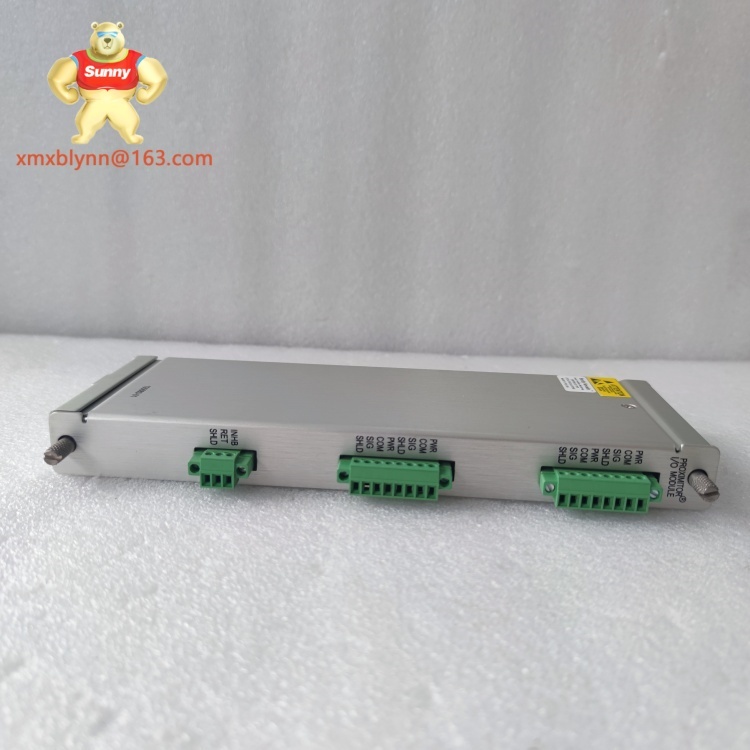

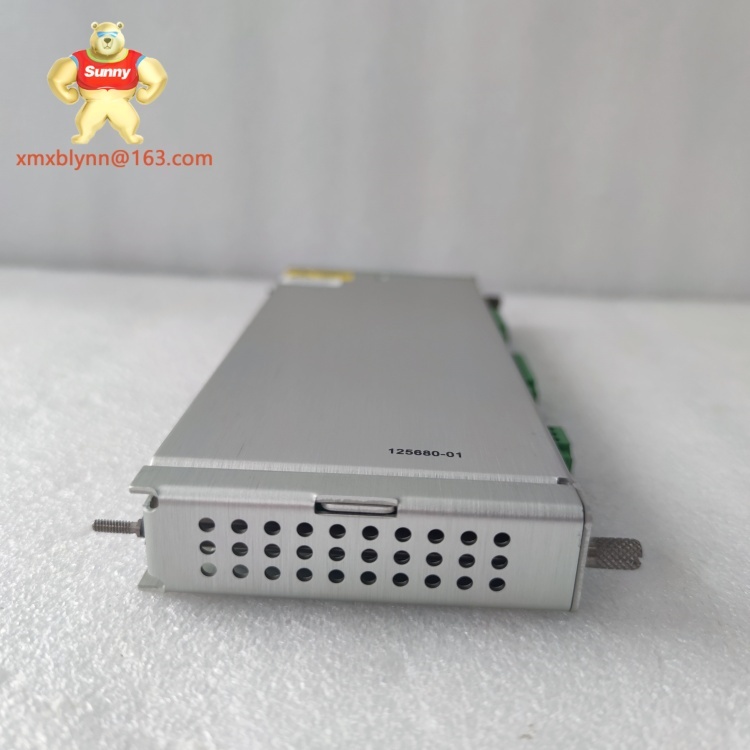

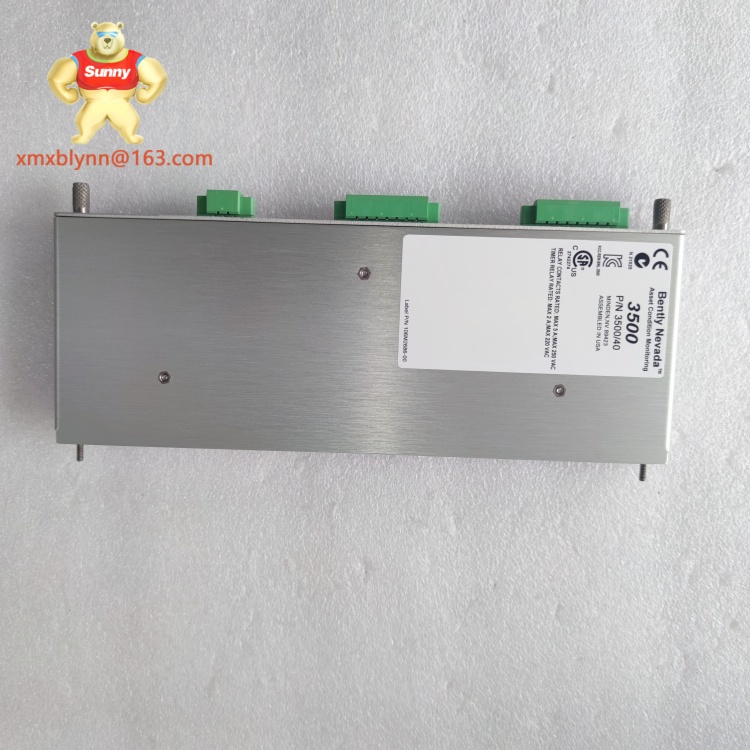

Product Overview
The 3500/40M 125680-01 is a versatile multi-point machinery protection module from Bently Nevada’s 3500 series, engineered to serve as a central hub for monitoring critical rotating equipment in industrial environments. As a key component of the 3500 machinery protection system, its primary function is to aggregate, process, and analyze data from multiple sensors—including proximity probes, accelerometers, and temperature transducers—delivering real-time insights into vibration, shaft position, speed, and temperature. This enables early detection of faults like imbalance, bearing wear, or overheating, making the 3500/40M 125680-01 indispensable in automation setups where equipment reliability directly impacts safety and operational efficiency.
What distinguishes the 3500/40M 125680-01 is its flexibility and seamless integration with the 3500 ecosystem. It works alongside modules such as the 3500/05 power supply and 3500/22M communication gateway, supporting up to 16 input channels to monitor diverse machinery types. Its rugged design withstands extreme temperatures, vibration, and electromagnetic interference, ensuring reliable performance in harsh settings—from turbine rooms to offshore platforms. Whether deployed in power plants, oil refineries, or chemical facilities, the 3500/40M 125680-01 provides a unified view of machinery health, empowering teams to act before failures occur.
Technical Specifications
| Parameter |
Value |
| Product Model |
3500/40M 125680-01 |
| Manufacturer |
Bently Nevada |
| Product Type |
Multi-Point Machinery Protection Module (3500 Series) |
| Input Channels |
16 configurable channels |
| Supported Sensors |
Proximity probes, accelerometers, RTDs, thermocouples |
| Measurement Range |
Vibration: 0–25.4 mm peak-to-peak; Temperature: -200°C to +850°C |
| Frequency Response |
0.5 Hz – 10 kHz (vibration); DC – 10 Hz (temperature) |
| Operating Voltage |
24 VDC (from 3500 chassis backplane) |
| Operating Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Mounting Type |
3500 system chassis slot |
| Certifications |
UL, CE, ATEX, IECEx |
| Output Signals |
Digital (EtherNet/IP), 4–20 mA analog |
| Compatibility |
3500/05, 3500/22M, 330103 probes, 3500 chassis |
Key Features and Benefits
The 3500/40M 125680-01 excels in versatility, supporting 16 configurable channels to monitor a mix of parameters—vibration, temperature, speed, and position—from a single module. This eliminates the need for multiple specialized units, reducing system complexity and cost. Its ability to interface with diverse sensors (proximity probes, RTDs, thermocouples) makes it ideal for mixed-equipment environments, such as a single chassis monitoring both a turbine and its auxiliary pump.
Accuracy is a defining strength. The module processes data with high precision, ensuring reliable detection of even subtle anomalies—like a 0.01 mm vibration spike in a compressor shaft—enabling proactive maintenance. Configurable alarm thresholds allow customization for specific machinery, with instant alerts triggering when parameters exceed safe limits, preventing catastrophic failures.
Integration with the 3500 ecosystem is seamless. It plugs into 3500 chassis, leveraging backplane communication to share data with 3500/22M gateways for transmission to SCADA or cloud platforms. Its rugged design, including conformal coating and vibration resistance, ensures performance in harsh conditions—from dusty mills to offshore rigs—minimizing downtime.
Diagnostic tools enhance usability. Built-in self-checks and status LEDs provide instant visibility into sensor health and module operation, simplifying troubleshooting. Firmware updates via Bently’s 3500 Configuration Software ensure compatibility with new sensors and protocols, extending the module’s lifespan.
Application Scenarios
The 3500/40M 125680-01 thrives in industries where multi-parameter monitoring is critical. In combined-cycle power plants, it monitors steam turbines and generators, aggregating data from proximity probes (shaft position), accelerometers (bearing vibration), and RTDs (stator temperature). This unified view allows operators to detect issues like rotor imbalance or overheating, adjusting load to prevent unplanned outages.
In oil refineries, the 3500/40M 125680-01 monitors centrifugal compressors, processing signals from vibration sensors and temperature transducers. Its 16 channels track multiple stages of the compressor, identifying seal wear or impeller imbalance early. Integration with 3500/22M gateways sends alerts to control rooms, enabling maintenance during scheduled shutdowns.
For chemical processing facilities, the module monitors agitator shafts in reactor vessels, combining vibration data (from accelerometers) and temperature readings (from thermocouples). This ensures mixing efficiency and prevents overheating, safeguarding product quality and reducing waste. Its ATEX certification allows deployment in hazardous zones, expanding its utility in high-risk environments.
Related Models
3500/40M 125680-02 – Enhanced variant with 32 channels, suitable for large-scale machinery trains.
3500/05 – Power supply module providing 24 VDC to the 3500/40M 125680-01 in 3500 chassis.
3500/22M 288055-01 – Communication gateway transmitting data from the 3500/40M 125680-01 to enterprise systems.
330103-00-04-10-02-00 – Proximity probe whose signals are processed by the 3500/40M 125680-01.
3500/42 – Dedicated temperature module, complementary to the 3500/40M 125680-01 for extended thermal monitoring.
3500/40M 125680-00 – Previous generation model with basic channel support, compatible with legacy 3500 systems.
Installation and Maintenance
Installing the 3500/40M 125680-01 requires inserting it into a dedicated slot in the 3500 chassis, ensuring secure seating to maintain backplane connectivity. Wiring sensors (probes, transducers) to input terminals must follow Bently’s guidelines, with shielded cables routed away from high-voltage lines to minimize interference. Verify 24 VDC supply from the 3500/05 module and proper grounding (≤4Ω) before powering on.
Maintenance involves quarterly inspections: check LED statuses to confirm normal operation, clean dust from vents to prevent overheating, and verify sensor connections. Calibrate annually using Bently’s calibration tools to ensure measurement accuracy. Update firmware via 3500 Configuration Software yearly to access new features. With proper care, the 3500/40M 125680-01 operates reliably for 8–10 years.
Product Warranty
The 3500/40M 125680-01 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and premature failure under normal operating conditions. If the module malfunctions, Xiamen Xiongba provides free replacement, ensuring minimal downtime for your 3500 system. Their technical team, experienced in Bently Nevada’s 3500 series, offers guidance on installation, configuration, and troubleshooting, leveraging direct access to genuine parts. This commitment ensures users trust the 3500/40M 125680-01 for critical machinery protection.
