Product Overview

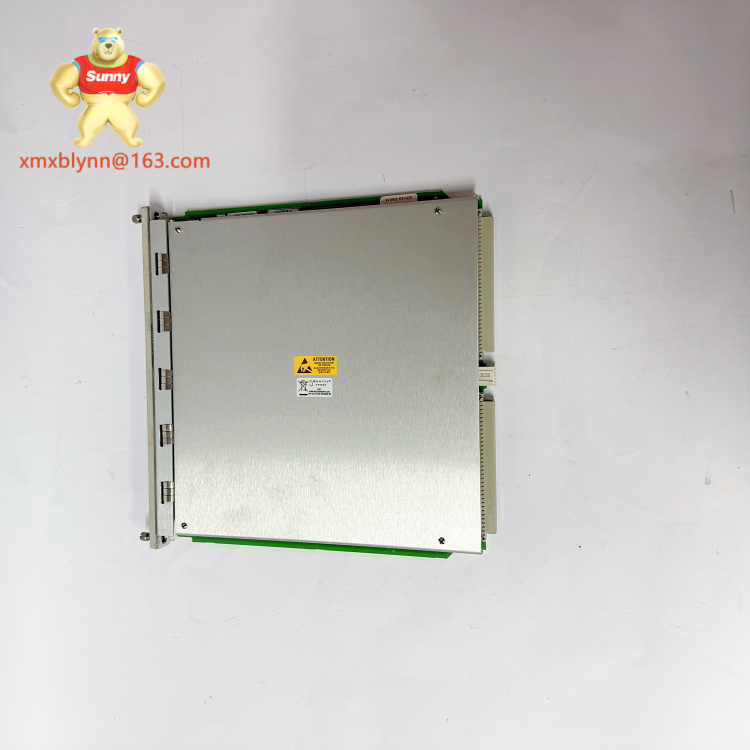

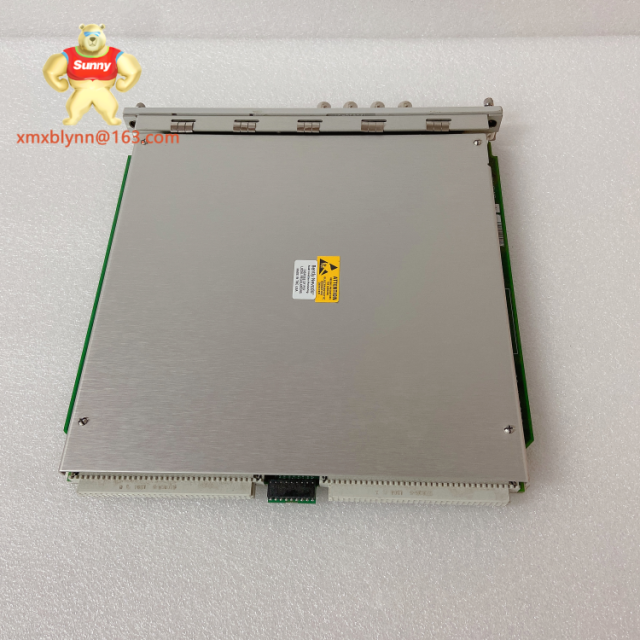

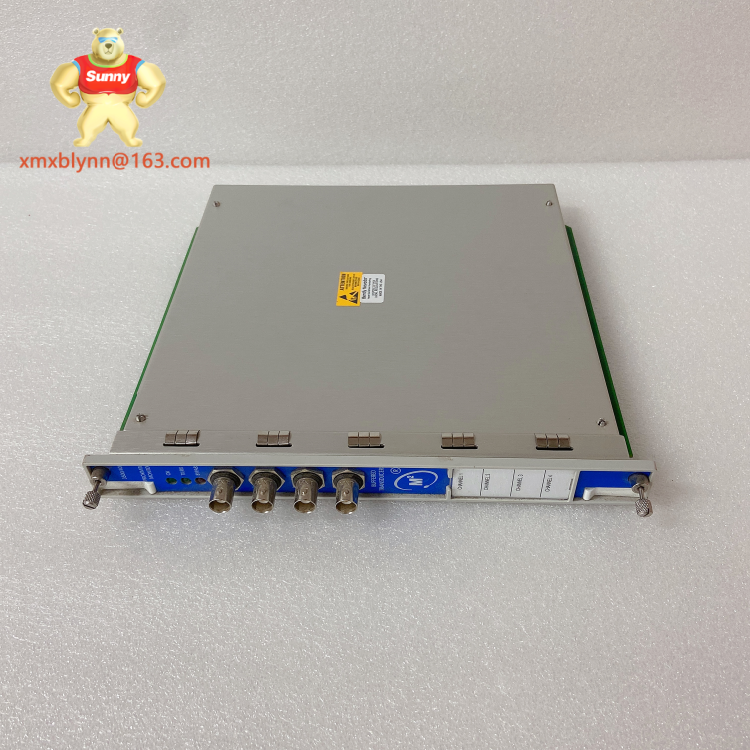

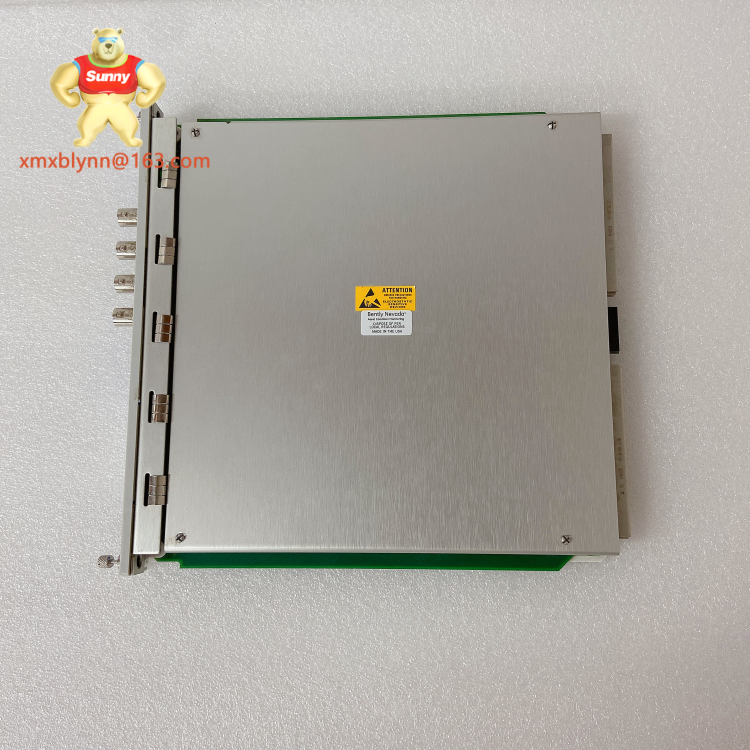

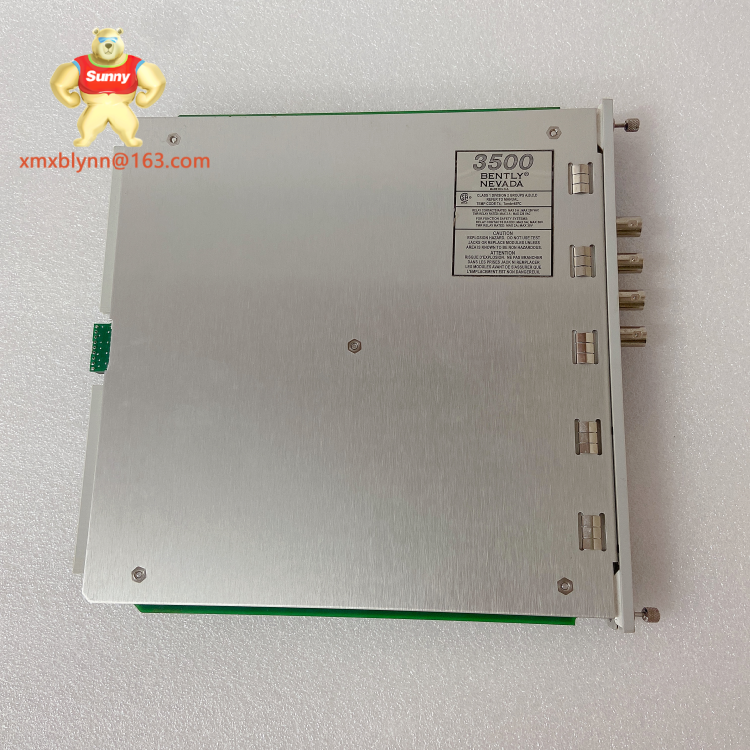

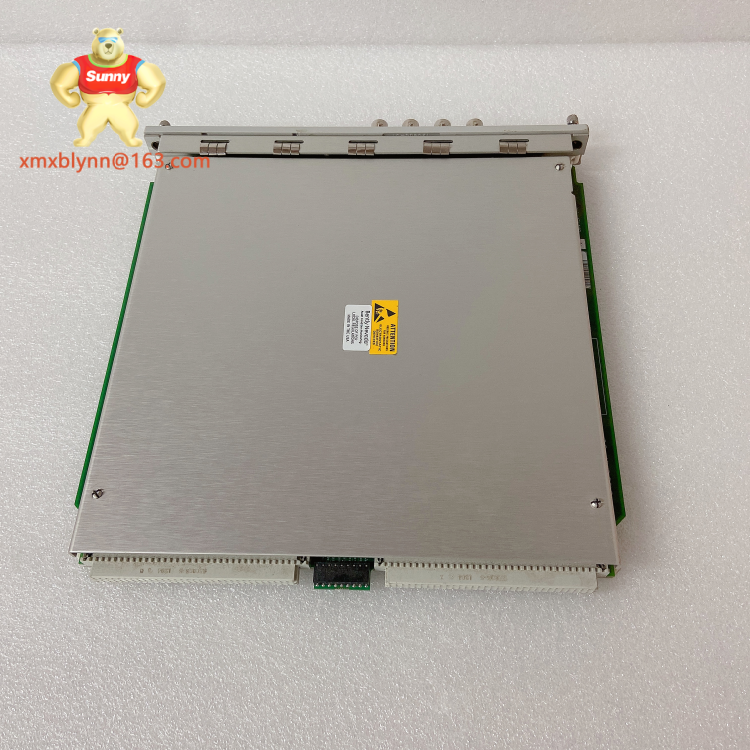

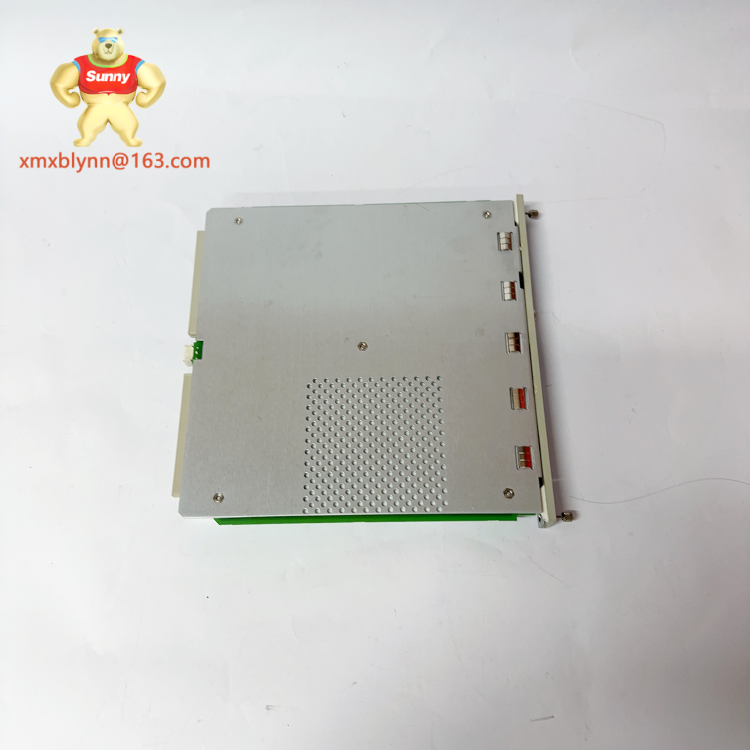

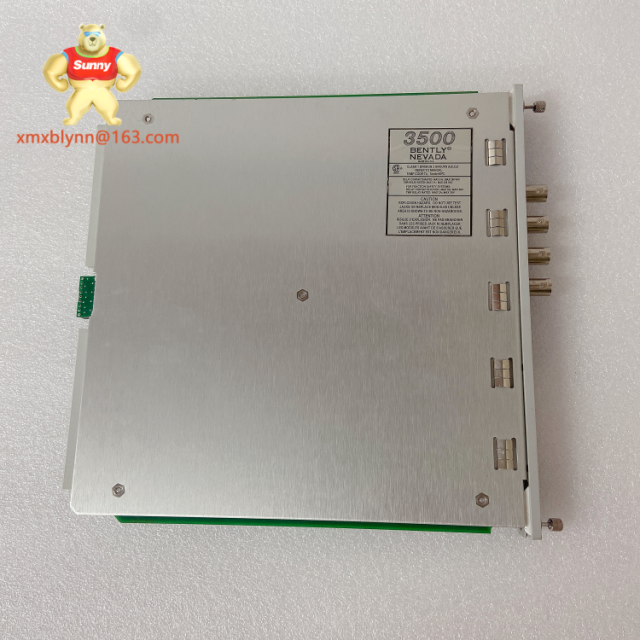

The BENTLY 3500/40M 176449-01 is the rack controller and communications heart of a 3500 Machinery Protection System, designed to gather processed channel alarms from 3500 modules and present consolidated machine-state information to higher-level SCADA and DCS systems. It coordinates alarm thresholds, timestamps sequence-of-events data, and offers deterministic handoff of critical trip and alert information. Engineers typically mount the BENTLY 3500/40M 176449-01 in a protected relay cabinet or 19" rack beside turbine or compressor control panels so that probe cabling remains short and shielded; this placement reduces noise and preserves signal fidelity.
Because many plants run mixed-vendor architectures, the BENTLY 3500/40M 176449-01 is often used where distributed control system parts must interoperate with specialized vibration protection. For example, a maintenance crew can retain existing 3500-series modules while adding the rack controller to deliver Modbus or ProLink outputs into a DCS. Xiamen Xiongba E-commerce Co., Ltd. Branch supports supply and logistics for these modules. “Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing.”
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | BENTLY 3500/40M 176449-01 |
| Manufacturer | Bently Nevada |
| Product Type | Rack controller / 3500 system interface module |
| Power | +24 VDC nominal (from rack power supply) |
| Communication / Protocol | ProLink, Modbus RTU/TCP via gateway, discrete alarm outputs |
| Operating Temperature | −20 °C to +70 °C (cabinet-rated) |
| Mounting | 3500-series rack insertion / 19" chassis |
| Protection / Ingress | IP20 (when installed in enclosed cabinet) |
| Dimensions (HxWxD) | Standard 3500 card form factor (refer to datasheet for exact mm) |
| Weight | ~0.6 kg (module dependent on options) |
| Typical Interfaces | Rack bus, alarm relays, Ethernet/serial gateway port, front panel LEDs |
| Compliance | CE, RoHS (verify serial label/datasheet for site-specific certs) |
Key Features and Benefits
Repeatable event capture and precise timestamping are core strengths of BENTLY 3500/40M 176449-01. It aggregates processed channels from 3500 cards and produces a single, consistent event stream that operators and historians can trust for post-fault analysis. In practice, this reduces investigation time because events are easy to correlate across subsystems. Moreover, the controller’s alarm consolidation reduces noisy downstream telemetry by sending only validated trip and warning states to supervisory systems.
Resilience and serviceability were primary design goals. The BENTLY 3500/40M 176449-01 offers clear front-panel diagnostics and a straightforward card extraction path, so a pre-tested spare restores protection quickly. Because the rack controller centralizes logic and communications, plants avoid repeated configuration across multiple I/O cards; technicians update thresholds centrally and distribute changes to the rack—this simplifies commissioning and lowers lifecycle cost. Additionally, the module’s filtered inputs and robust rack bus coupling protect against induced noise common on long probe runs.
Integration with plant control is pragmatic. BENTLY 3500/40M 176449-01 presents summarized machine-state information that aligns well with DCS and historian workflows, easing mapping into supervisory systems. In mixed environments it coexists with ABB I/O modules and can feed key alarms into ABB AC 800M or other PLC/DCS architectures with minimal rework. Consequently, incorporating the rack controller typically requires less panel rewiring than replacing point-by-point vibration sensing with PLC analog channels.
Finally, predictive maintenance workflows benefit. The controller’s clean event streams, paired with waveform captures retained on module inputs, support condition-based strategies that shift maintenance from calendar tasks to intervention on real indicators—reducing unplanned outages and optimizing spare-part consumption across industrial automation spare parts inventories.
Application Scenarios
In steam turbine applications, BENTLY 3500/40M 176449-01 aggregates bearing vibration limits, proximity probe signals, and speed-sensing inputs to provide precise trip logic and alarm escalation. Operators use the consolidated output to automate safe shutdown sequences and to feed the historian for trend analysis. Similarly, on compressor skids in petrochemical plants, the controller isolates high-frequency signatures and passes only alarmed conditions upstream, allowing field teams to prioritize inspections rather than blanket shutdowns.
Water and wastewater utilities gain immediate value by retrofitting 3500 racks with BENTLY 3500/40M 176449-01 modules. For instance, in a pump station a single maintenance window can add continuous machinery protection while retaining existing probe wiring; technicians then regain 24/7 visibility without long rewiring campaigns. In mining, the controller protects crushers and mills by consolidating multiple sensor inputs and staging fast interlocks when imbalance or bearing distress is detected.
OEMs also embed the BENTLY 3500/40M 176449-01 for packaged rotating equipment to provide turnkey protection that integrates with customer DCS. The rack controller’s concise alarm feed makes it straightforward to map into SCADA or PLC systems; this is particularly helpful where teams are managing mixed inventories of distributed control system parts and need to coordinate with ABB DO810 or ABB I/O modules during phased upgrades.
Related Models
3500/22M — Signal-conditioning module for eddy-current and velocity probes (companion channel card).
3500/45 — Ethernet-enabled gateway for translating rack alarms into Modbus/TCP or ProLink.
3500/40 — Alternate rack controller variant (previous firmware family).
3500/23 — Accelerometer interface card for alternative sensor types.
3500/55 — High-frequency waveform capture module for transient analysis.
3500/40R — Redundant rack controller option for high-availability systems.
ProLink Gateway — Communications bridge that converts 3500 rack outputs to common plant protocols.
Installation and Maintenance
Start installation by confirming rack power and backplane compatibility; the BENTLY 3500/40M 176449-01 requires a certified 3500-series chassis and stable +24 VDC per rack spec. Place the rack controller in the designated slot close to the rack bus connections and route probe cabling with short, shielded runs to reduce induced noise. Ground the cabinet at a single point and avoid routing power cables parallel to probe or sensor wiring. During first power-up, verify front-panel LEDs and perform loop checks on probe inputs to confirm expected amplitude ranges.
For maintenance, keep firmware images and configuration snapshots archived off-site and label spares with matching firmware versions. Check probe connectors and coax shields at scheduled outages, and use the rack controller’s event logs and timestamps to build trend charts that reveal creeping faults. Replace electrolytic components and non-rechargeable batteries per recommended intervals, typically every 2–3 years depending on site conditions. If anomalous limit trips occur, bench-test with a spare rack and replicate the event before changing cabling or probes; this approach reduces field troubleshooting time and prevents unnecessary hardware swaps.
Product Warranty
A one-year warranty and free replacement service for BENTLY 3500/40M 176449-01 units are provided by Xiamen Xiongba E-commerce Co., Ltd. Branch and not by the original equipment manufacturer. Customers should retain proof of purchase and the unit serial number when contacting Xiongba for claims. Xiongba offers pre-shipment testing, datasheet verification, and serial-number traceability to minimize risk before dispatch, and they coordinate diagnostics and cross-border logistics to speed replacement turnaround. To initiate a claim, contact Xiamen Xiongba’s support team with purchase documents and the module serial number for expedited handling.
