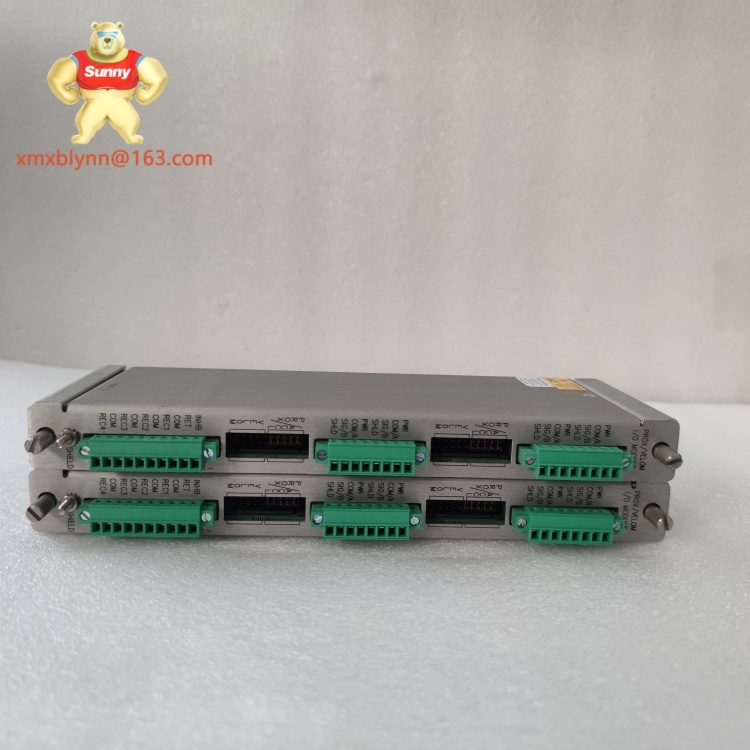

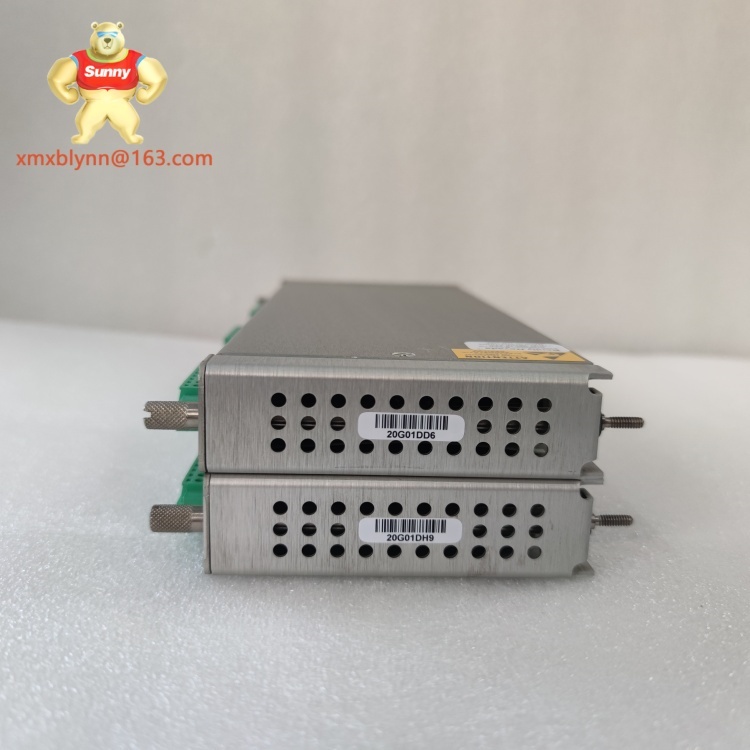

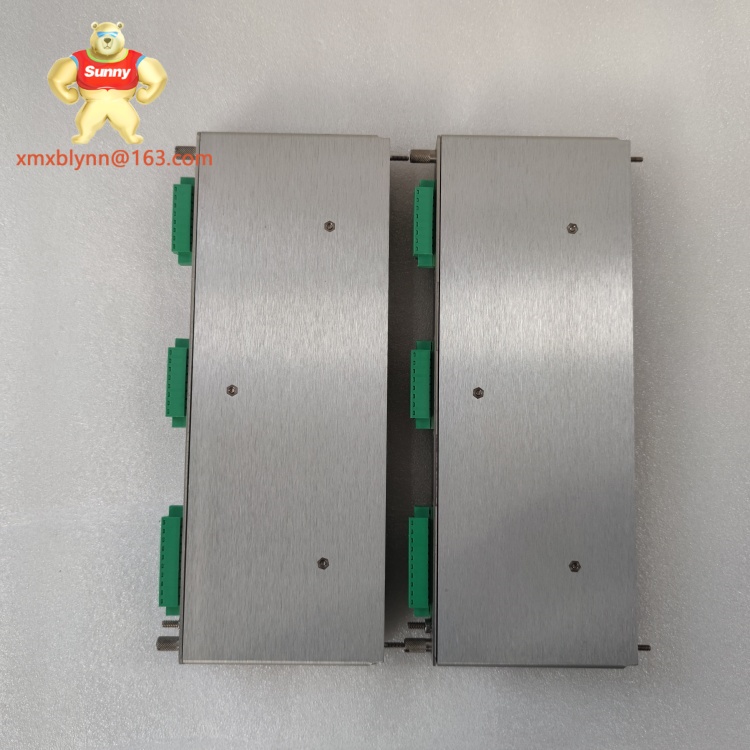

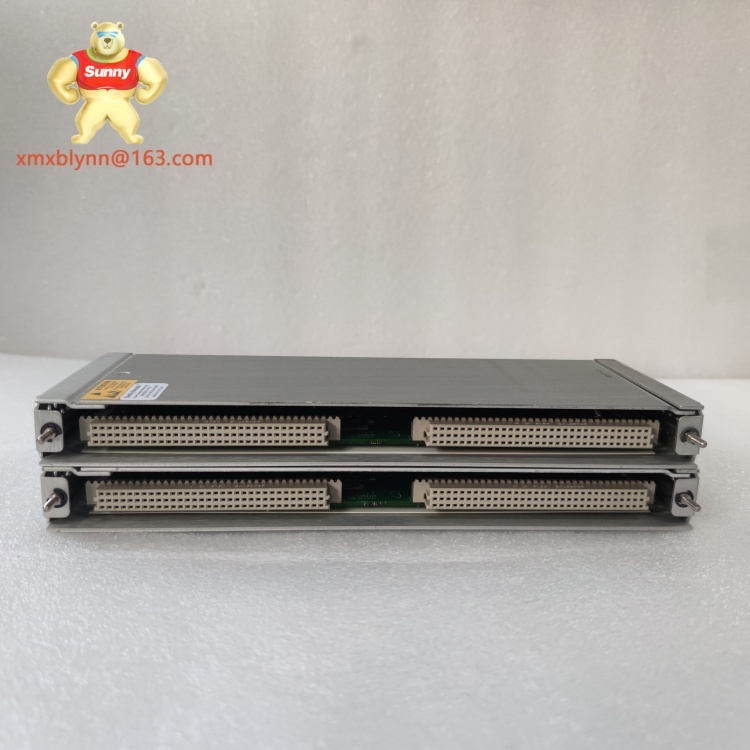

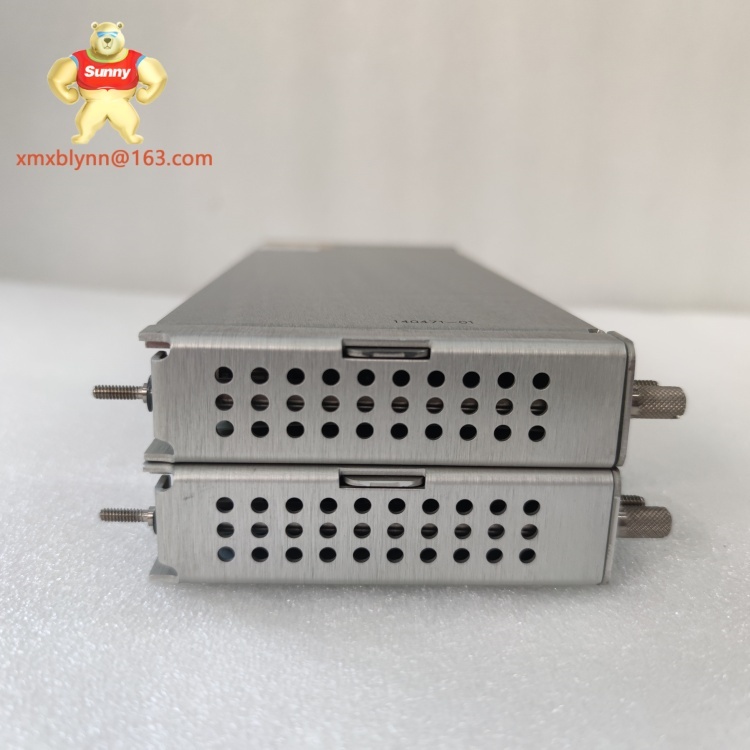

Product Overview
The BENTLY 3500/42 140471-01 is a high-performance 4-channel vibration monitor module, a cornerstone of Bently Nevada’s 3500 Machinery Protection System, designed to continuously track and analyze vibration in rotating machinery. As a critical component of the 3500 series, this module transforms raw vibration data from proximity probes and accelerometers into actionable insights, enabling early detection of faults like imbalance, misalignment, or bearing wear.
The BENTLY 3500/42 140471-01 excels at real-time monitoring, with each channel operating independently to ensure precise measurements across multiple machinery points—such as turbine shafts or compressor rotors. Its ability to process both radial and axial vibration data, combined with configurable alarm thresholds, makes it adaptable to diverse industrial needs. What sets the BENTLY 3500/42 140471-01 apart is its balance of accuracy and ruggedness, performing reliably in harsh environments while seamlessly integrating with 3500 relay modules (like the 3500/32) to trigger safety actions when thresholds are breached. This integration ensures that potential failures are addressed before they escalate, making it indispensable for maintaining machinery health and operational continuity.
Technical Specifications
| Parameter |
Value |
| Product Model |
BENTLY 3500/42 140471-01 |
| Manufacturer |
Bently Nevada |
| Product Type |
4-Channel Vibration Monitor Module (3500 Series) |
| Number of Channels |
4 (independent, configurable) |
| Measurement Type |
Radial/axial vibration, displacement, velocity |
| Frequency Range |
0.1 Hz to 10 kHz |
| Input Signal |
AC (from proximity probes or accelerometers) |
| Output Signals |
4-20 mA analog, digital status via 3500 backplane |
| Alarm Capabilities |
Configurable warning/critical thresholds per channel |
| Operating Voltage |
+5 VDC (from 3500 rack backplane) |
| Operating Temperature |
0°C to +60°C |
| Mounting |
3500 Series Rack (1-slot width) |
| Diagnostic Features |
Channel health monitoring, signal loss detection |
| Compliance |
UL 508, ATEX, IECEx |
| Weight |
250 grams |
Key Features and Benefits
The BENTLY 3500/42 140471-01 delivers exceptional measurement accuracy, with a wide frequency range (0.1 Hz to 10 kHz) that captures both low-speed rumble and high-frequency bearing defects—critical for comprehensive machinery health assessments. Each of its four channels operates independently, allowing simultaneous monitoring of multiple points on a single machine (e.g., front and rear bearings of a turbine) without cross-interference, ensuring data integrity.
A standout feature is its robust diagnostic suite, which continuously checks for signal loss, probe faults, or module errors, alerting operators via the 3500 system interface. This proactive fault detection reduces downtime by enabling timely maintenance of sensors or wiring, rather than reacting to failed measurements.
The BENTLY 3500/42 140471-01 integrates seamlessly with other 3500 components, such as the 3500/32 relay module, to automate safety actions—triggering alarms or shutdowns when vibration exceeds user-defined thresholds. Its rugged design, resistant to vibration, dust, and temperature swings, ensures reliable performance in harsh industrial environments, from refineries to power plant turbine halls. Configurable via 3500 Rack Software, the module adapts to specific machinery types, enhancing its versatility across industries.
Application Scenarios
The BENTLY 3500/42 140471-01 is widely deployed in industries where rotating machinery reliability directly impacts safety and productivity. In coal-fired power plants, it monitors steam turbine vibration, tracking subtle changes in rotor balance that could indicate blade wear or steam path erosion. By integrating with 3500/32 relays, it triggers alarms at early warning levels, allowing maintenance during scheduled outages rather than unplanned shutdowns.
In offshore oil platforms, the BENTLY 3500/42 140471-01 monitors centrifugal compressors, detecting vibration spikes caused by gas slugging or impeller damage. Its ATEX certification ensures safe operation in hazardous zones, while its 4-channel design allows simultaneous monitoring of motor and compressor ends, providing a complete picture of equipment health.
Chemical processing plants use the BENTLY 3500/42 140471-01 to track agitator and pump vibration, where misalignment or bearing failure could disrupt batch processes or cause leaks. Its ability to distinguish between normal operational vibration and abnormal patterns helps prevent unnecessary shutdowns, balancing safety with efficiency.
In automotive manufacturing, the module monitors robotic arm motors, ensuring vibration levels stay within tight tolerances to maintain precision in welding or assembly—critical for product quality and production line uptime.
Related Models
3500/42M 125808-01 – Enhanced variant of BENTLY 3500/42 140471-01 with extended frequency range (up to 20 kHz) for high-speed machinery.
3500/42 140471-02 – Low-power version of BENTLY 3500/42 140471-01, optimized for battery-backed monitoring systems in remote locations.
3500/32 125712-01 – 4-channel relay module that works with BENTLY 3500/42 140471-01 to trigger alarms or shutdowns.
3500/42 140470-01 – Previous generation model with basic diagnostic features, often used as a cost-effective alternative for less critical applications.
3500/20 125768-01 – Power supply module that provides stable voltage to BENTLY 3500/42 140471-01 in the 3500 rack.
3500/92 125782-01 – System display module that visualizes vibration data from BENTLY 3500/42 140471-01 for operators.
330180-90-00 – Proximity probe signal conditioner compatible with BENTLY 3500/42 140471-01 for enhanced signal quality.
Installation and Maintenance
Installation of BENTLY 3500/42 140471-01 requires insertion into an empty slot in the 3500 rack, with secure connection to the backplane for power and communication. Ensure the rack is mounted in a clean, dry environment with ambient temperatures between 0°C and 60°C, away from direct heat sources or excessive vibration. Probe wiring should be shielded and routed separately from high-voltage cables to avoid interference, with proper grounding of both the module and sensors to ensure measurement accuracy.
For maintenance, check the
BENTLY 3500/42 140471-01’s front-panel LEDs monthly—steady green indicates normal operation, while red signals a channel or module fault. Calibrate the module annually using Bently Nevada’s calibration tools to verify measurement accuracy across its frequency range. Inspect probe connections quarterly for corrosion or looseness, as poor contacts can degrade signal quality. Replace the module every 8-10 years under normal operation, or immediately if diagnostic tools indicate consistent measurement drift, to maintain reliable machinery monitoring.
Product Warranty
The BENTLY 3500/42 140471-01 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and performance issues under normal operating conditions. During this period, we provide free replacement for any unit that fails to meet specified accuracy, channel independence, or diagnostic standards, ensuring minimal disruption to your 3500 Machinery Protection System. Our technical support team offers guidance on installation, configuration, and integration with other 3500 components, leveraging over a decade of experience in industrial automation. We stand behind the reliability of BENTLY 3500/42 140471-01, ensuring customers receive consistent performance and responsive service to support their critical machinery monitoring needs.
