Product Overview

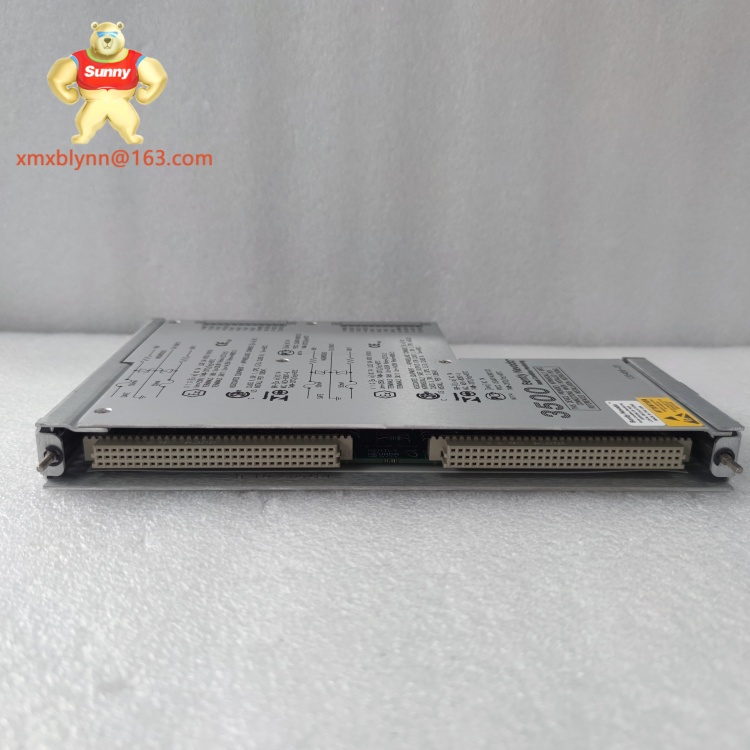

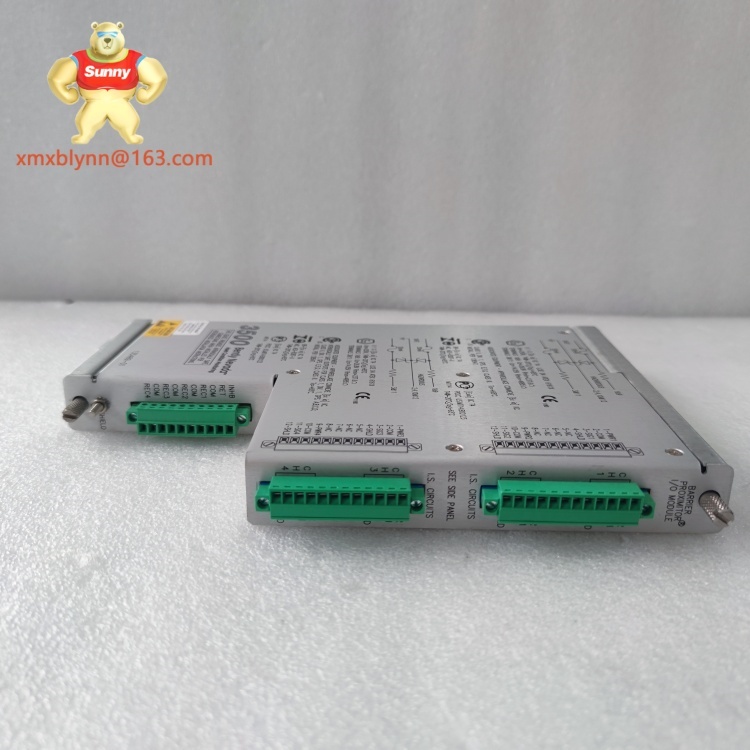

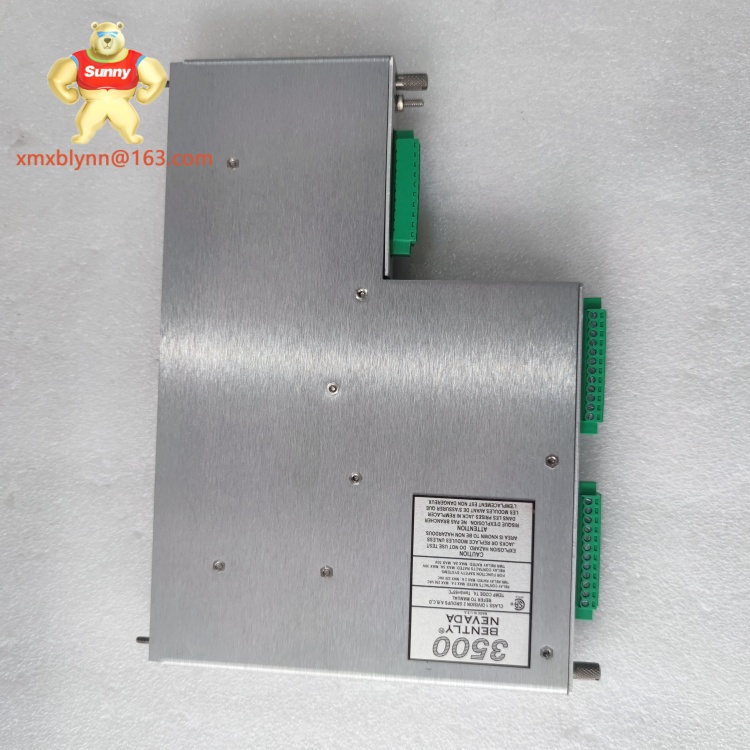

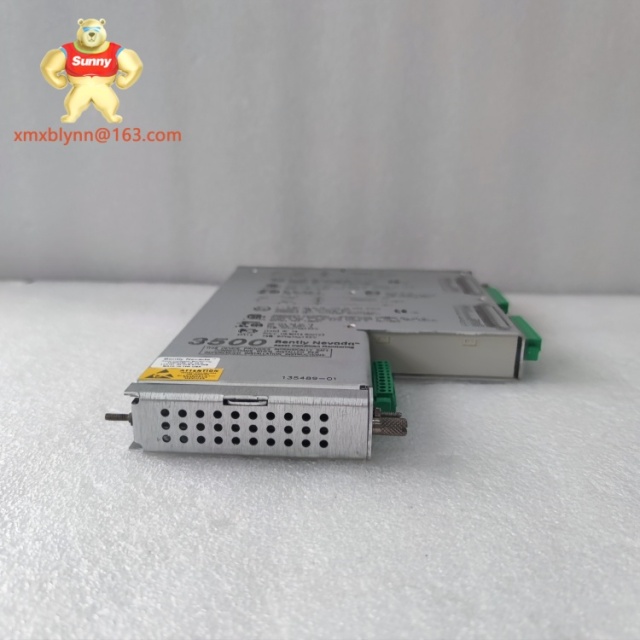

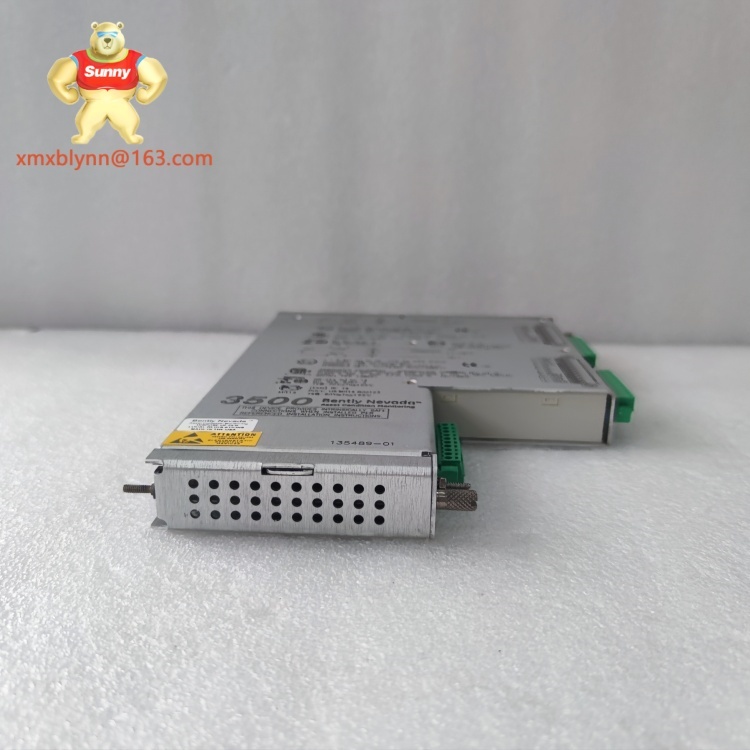

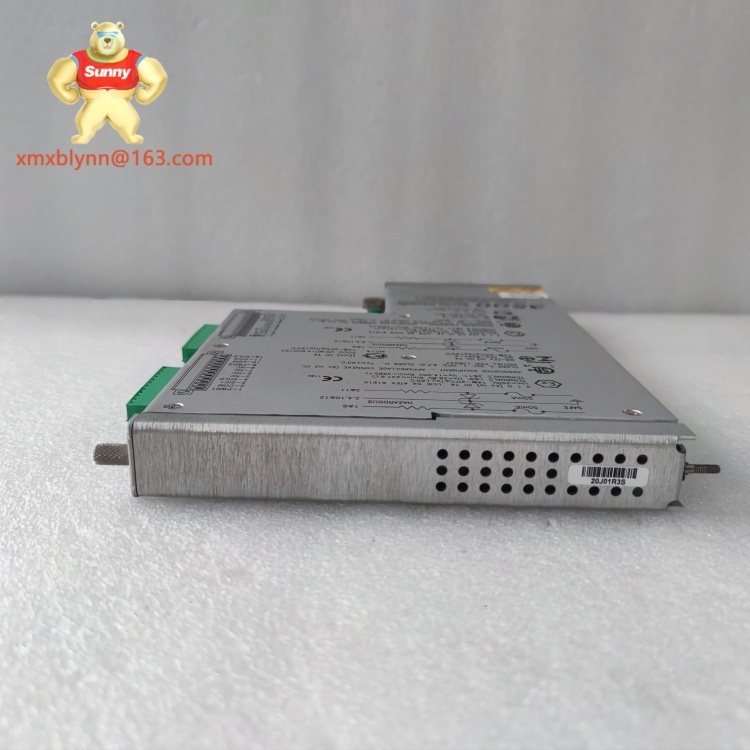

The 3500/42M 135489-01 is a precision temperature monitoring module from Bently Nevada’s 3500 machinery protection system, designed to safeguard critical rotating equipment by tracking thermal conditions in industrial environments. As a specialized component of the 3500 series, its core function is to measure temperature from multiple sensors—such as RTDs (resistance temperature detectors) and thermocouples—installed on machinery like turbines, compressors, and pumps. This real-time data is crucial for detecting overheating, a common precursor to bearing failure or mechanical breakdown, making the 3500/42M 135489-01 indispensable in automation setups where equipment reliability directly impacts safety and operational efficiency.
What distinguishes the 3500/42M 135489-01 is its ability to handle multiple temperature inputs while integrating seamlessly with the 3500 ecosystem. It works alongside modules like the 3500/05 power supply and 3500/22M communication gateway, providing synchronized temperature data to complement vibration and position measurements. Its rugged design withstands extreme temperatures, vibration, and electromagnetic interference, ensuring reliable performance in harsh settings—from power plant turbine rooms to offshore oil platforms. Whether deployed in large-scale facilities or compact industrial setups, the 3500/42M 135489-01 delivers the accuracy needed to prevent thermal-related failures, making it a trusted choice for industries like energy, oil and gas, and chemical processing.
Technical Specifications
| Parameter |
Value |
| Product Model |
3500/42M 135489-01 |
| Manufacturer |
Bently Nevada |
| Product Type |
Multi-Channel Temperature Monitoring Module (3500 Series) |
| Input Compatibility |
RTDs (Pt100, Pt1000), thermocouples (Type K, J, T) |
| Number of Channels |
16 configurable channels |
| Temperature Range |
-200°C to +850°C (-328°F to +1562°F) |
| Measurement Accuracy |
±0.1°C (at 0°C reference) |
| Operating Voltage |
24 VDC (from 3500 chassis backplane) |
| Operating Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Mounting Type |
3500 system chassis slot |
| Certifications |
UL, CE, ATEX, IECEx |
| Output Signals |
4–20 mA analog, digital (EtherNet/IP) |
| Compatibility |
3500/05 power supply, 3500/22M gateway, 3500/33 vibration module |
Key Features and Benefits
The 3500/42M 135489-01 excels in versatility and accuracy, making it a cornerstone of comprehensive machinery protection. With 16 configurable channels, it monitors temperature from a mix of RTDs and thermocouples, eliminating the need for multiple single-channel modules. This reduces system complexity and saves space in 3500 chassis—critical for crowded industrial enclosures.
Precision is a standout attribute. The module measures temperature with ±0.1°C accuracy, ensuring early detection of subtle thermal shifts—such as a 2°C rise in a turbine bearing—that could indicate impending failure. Configurable alarm thresholds trigger alerts when temperatures exceed safe limits, enabling proactive maintenance before costly breakdowns occur.
Integration with the 3500 ecosystem is seamless. It communicates via the chassis backplane with vibration modules like the 3500/33, providing a unified view of machinery health (vibration + temperature) to operators. Data is easily transmitted to SCADA or cloud platforms via 3500/22M gateways, supporting data-driven decision-making.
Rugged design ensures reliability in harsh environments. The 3500/42M 135489-01 withstands extreme temperatures, vibration, and electromagnetic interference, performing consistently in settings from desert power plants to humid chemical facilities. Built-in diagnostics, including sensor fault detection and LED status indicators, simplify troubleshooting, minimizing downtime during system checks.
Application Scenarios
The 3500/42M 135489-01 is vital in industries where thermal monitoring prevents catastrophic failures. In combined-cycle power plants, it tracks bearing temperatures on gas turbines and steam generators, using RTDs embedded in critical components. By alerting operators to abnormal heating—often caused by lubrication issues or misalignment—it helps avoid turbine shutdowns, ensuring continuous power generation.
In oil and gas refineries, the module monitors temperature in centrifugal compressor bearings and motor windings. Thermocouples installed near seal chambers detect overheating due to friction, while RTDs track motor stator temperatures, preventing insulation breakdown. Its ability to operate in hazardous zones (ATEX-certified) makes it ideal for offshore platforms and refinery processing areas.
For chemical processing facilities, the
3500/42M 135489-01 monitors reactor jacket temperatures and pump bearing heat. By integrating with 3500 vibration modules, it provides a complete picture of equipment health, ensuring processes remain within safe thermal limits and product quality is maintained. In all these roles, the module acts as a critical early warning system, protecting assets and optimizing operations.
Related Models
3500/42M 135489-02 – High-channel variant with 32 inputs, suitable for large-scale machinery trains.
3500/42 125679-01 – Previous generation module with 8 channels, compatible with legacy 3500 systems.
3500/05 – Power supply module providing 24 VDC to the 3500/42M 135489-01 in 3500 chassis.
3500/22M 288055-01 – Communication gateway transmitting temperature data from the 3500/42M 135489-01 to enterprise systems.
330103-00-04-10-02-00 – Proximity probe whose data, paired with the module’s temperature readings, offers full machinery health insights.
3500/33 – Vibration monitoring module that, when combined with the 3500/42M 135489-01, provides comprehensive protection.
Installation and Maintenance
Installing the 3500/42M 135489-01 requires a 3500 chassis with an available slot. Power off the chassis, slide the module into place until it locks, and secure connections to sensors via terminal blocks. Use shielded cables for RTDs/thermocouples, routing them away from high-voltage lines to avoid interference. Ensure the chassis is grounded to ≤4Ω and verify 24 VDC supply from the 3500/05 module before powering on.
For maintenance, inspect the module quarterly. Check LED indicators to confirm power and sensor connectivity; red lights may signal faulty wiring or sensor drift. Clean dust from vents with compressed air to prevent overheating. Calibrate annually using Bently’s calibration tools to maintain accuracy, especially for critical applications like turbine monitoring. Update firmware via 3500 Configuration Software yearly to support new sensor types. With proper care, the
3500/42M 135489-01 operates reliably for 8–10 years.
