Product Overview

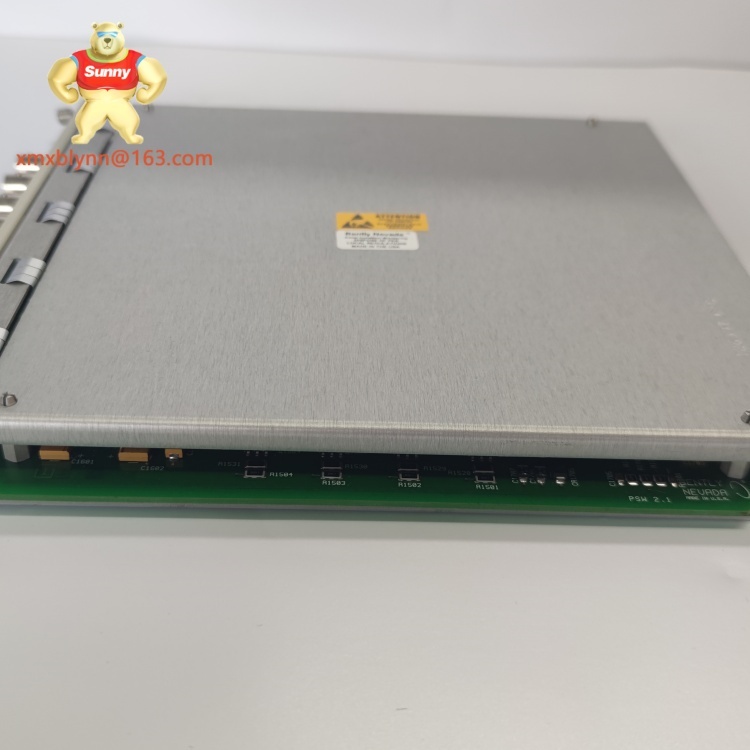

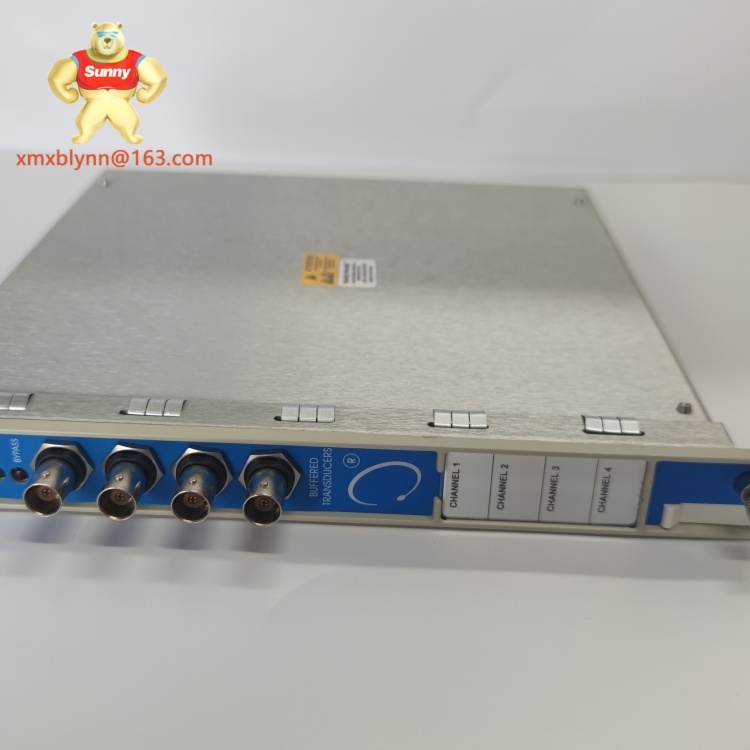

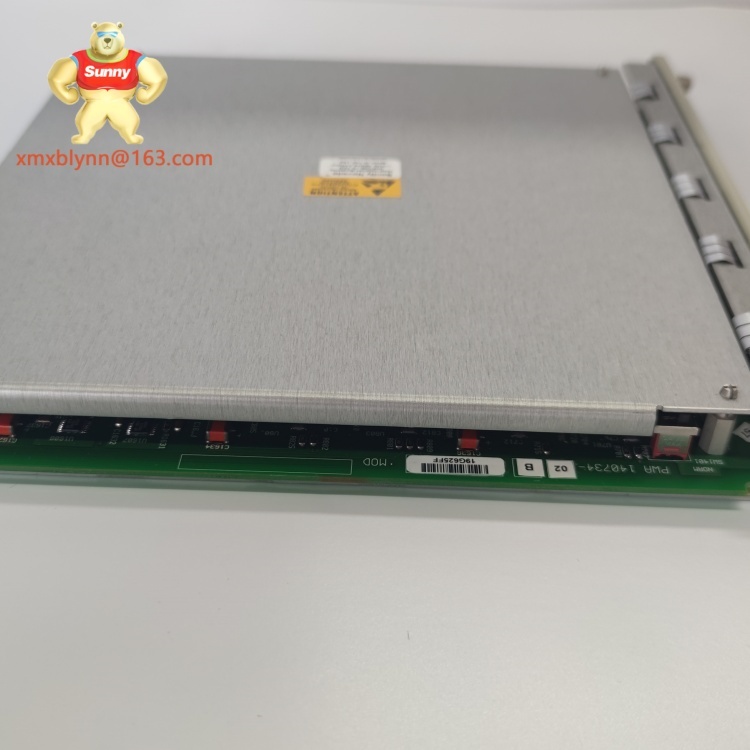

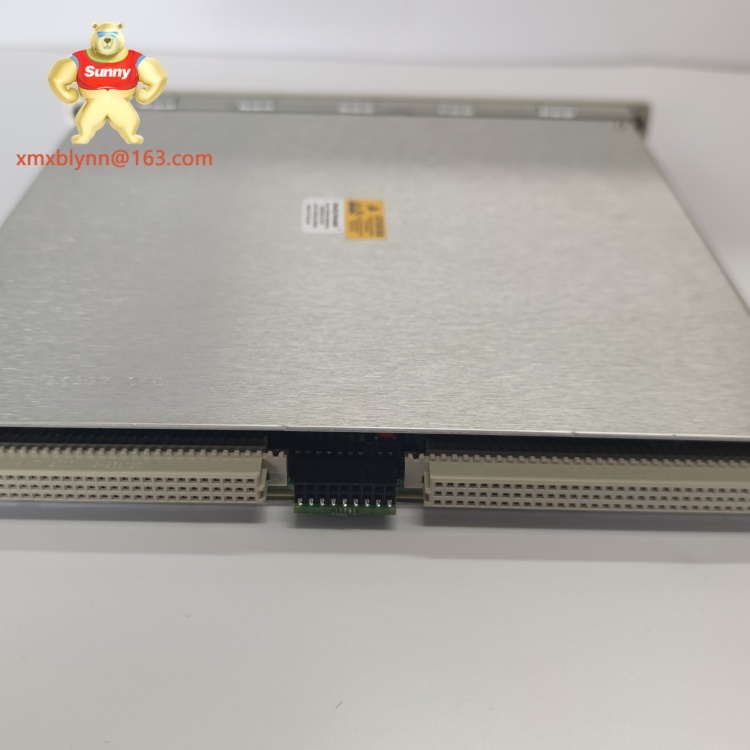

The BENTLY 3500/42M 140734-02 is an advanced 4-channel vibration and position monitor module, designed as a premium solution within Bently Nevada’s 3500 Machinery Protection System. Engineered for high-accuracy monitoring of rotating equipment, this module processes data from proximity probes, accelerometers, and velocity sensors to detect early signs of machinery degradation—such as imbalance, misalignment, or bearing wear—before they lead to failure.
As an enhanced variant of the 3500/42 series, the BENTLY 3500/42M 140734-02 integrates triple modular redundancy (TMR) logic in critical circuits, ensuring reliable operation even in the event of component faults. This makes it ideal for safety-critical applications where uninterrupted monitoring is essential. The BENTLY 3500/42M 140734-02 seamlessly connects with 3500 relay modules (like the 3500/34) to trigger alarms or shutdowns when thresholds are exceeded, bridging the gap between data collection and actionable safety responses. Its combination of precision, redundancy, and rugged design solidifies its role as a cornerstone of machinery health management in demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Product Model |
BENTLY 3500/42M 140734-02 |
| Manufacturer |
Bently Nevada |
| Product Type |
4-Channel Vibration & Position Monitor Module (3500 Series) |
| Number of Channels |
4 (independent, configurable) |
| Measurement Types |
Radial/axial vibration, shaft displacement, velocity |
| Frequency Range |
0.1 Hz to 20 kHz (extended for high-speed machinery) |
| Input Signals |
AC (from proximity probes, accelerometers) |
| Output Signals |
4-20 mA analog, digital status via 3500 backplane |
| Redundancy |
Critical circuits with TMR (Triple Modular Redundancy) logic |
| Alarm Capabilities |
Configurable warning/critical thresholds per channel |
| Operating Voltage |
+5 VDC (from 3500 rack backplane) |
| Operating Temperature |
-20°C to +70°C |
| Mounting |
3500 Series Rack (1-slot width) |
| Compliance |
IEC 61508 (SIL 2), ATEX, IECEx, UL 508 |
Key Features and Benefits
The BENTLY 3500/42M 140734-02 stands out with its extended frequency range (up to 20 kHz), enabling it to capture high-frequency vibrations—such as those from bearing defects in high-speed turbines or compressors—that standard monitors might miss. This capability is critical for early fault detection, allowing maintenance teams to address issues before they escalate.
Its TMR logic in critical circuits ensures reliable operation, even if a single component fails, reducing the risk of false alarms or missed faults. Each of the four independent channels processes data without cross-interference, ensuring accurate measurements across multiple machinery points—from turbine shafts to pump bearings.
The module integrates seamlessly with 3500 series relays (like the 3500/34 TMR relay) to automate safety actions, triggering alarms or shutdowns when thresholds are breached. Advanced diagnostics, accessible via the 3500 system interface, provide real-time status of channels, probes, and internal components, simplifying troubleshooting. Its rugged design withstands extreme temperatures (-20°C to +70°C) and industrial vibration, making it reliable in harsh environments such as refineries and power plant turbine halls.
Application Scenarios
The BENTLY 3500/42M 140734-02 is widely used in industries where high-speed rotating machinery demands precise monitoring. In combined-cycle power plants, it tracks gas turbine vibration, detecting blade passage frequency anomalies that indicate erosion or tip clearance issues. By integrating with 3500/34 relays, it ensures timely shutdowns if critical thresholds are met, preventing catastrophic rotor damage.
In LNG processing facilities, the module monitors centrifugal compressors, where high rotational speeds (up to 15,000 RPM) generate subtle vibrations that signal impeller imbalance or seal wear. Its extended frequency range captures these nuances, supporting predictive maintenance and reducing unplanned downtime.
Chemical plants rely on the BENTLY 3500/42M 140734-02 to monitor agitators and mixer motors, where even minor vibration increases can indicate gearbox wear or coupling misalignment—threats to batch consistency and equipment longevity. Its ability to operate in extreme temperatures also makes it suitable for monitoring machinery in furnace-associated systems, such as boiler feed pumps.
Related Models
3500/42M 140734-01 – Previous generation of BENTLY 3500/42M 140734-02 with a 10 kHz frequency limit, suitable for medium-speed machinery.
3500/34 – TMR relay module that pairs with BENTLY 3500/42M 140734-02 for safety-critical shutdowns in hazardous environments.
3500/20 125768-01 – Power supply module that provides stable power to BENTLY 3500/42M 140734-02 in the 3500 rack.
330180-90-00 – Proximity probe signal conditioner optimized for use with BENTLY 3500/42M 140734-02 to enhance signal quality.
3500/92 125782-01 – System display module that visualizes vibration data from BENTLY 3500/42M 140734-02 for operators.
3500/42 140471-01 – Standard 4-channel vibration monitor, a cost-effective alternative to BENTLY 3500/42M 140734-02 for less demanding applications.
Installation and Maintenance
Installation of BENTLY 3500/42M 140734-02 requires insertion into an empty slot in the 3500 rack, with secure connection to the backplane for power and communication. The rack should be mounted in a clean, dry area with ambient temperatures between -20°C and +70°C, away from direct heat sources or excessive vibration. Probe wiring must use shielded cables, routed separately from high-voltage lines to avoid interference, and grounded at both the module and sensor ends to ensure measurement accuracy.
For maintenance, check the
BENTLY 3500/42M 140734-02’s front-panel LEDs monthly—steady green indicates normal operation, while flashing red signals a channel or probe fault. Calibrate the module annually using Bently Nevada’s calibration tools to verify accuracy across its frequency range. Inspect probe connections quarterly for corrosion or looseness, as poor contacts can distort signals. Replace the module every 8-10 years under normal operation, or immediately if diagnostics show consistent measurement drift, to maintain reliable monitoring.
Product Warranty
The BENTLY 3500/42M 140734-02 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and performance issues under normal operating conditions. During this period, we provide free replacement for any unit that fails to meet specified accuracy, frequency range, or reliability standards, ensuring minimal disruption to your 3500 Machinery Protection System. Our technical support team offers guidance on installation, configuration, and integration with other 3500 components, leveraging over a decade of industrial automation expertise. We stand behind the BENTLY 3500/42M 140734-02’s performance, ensuring customers receive consistent reliability and responsive service for their critical machinery monitoring needs.
