Product Overview

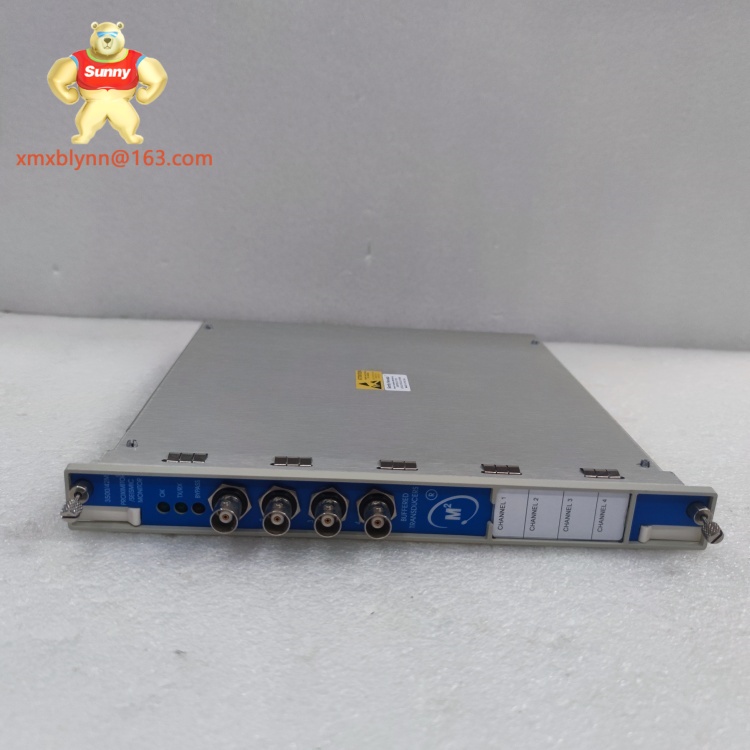

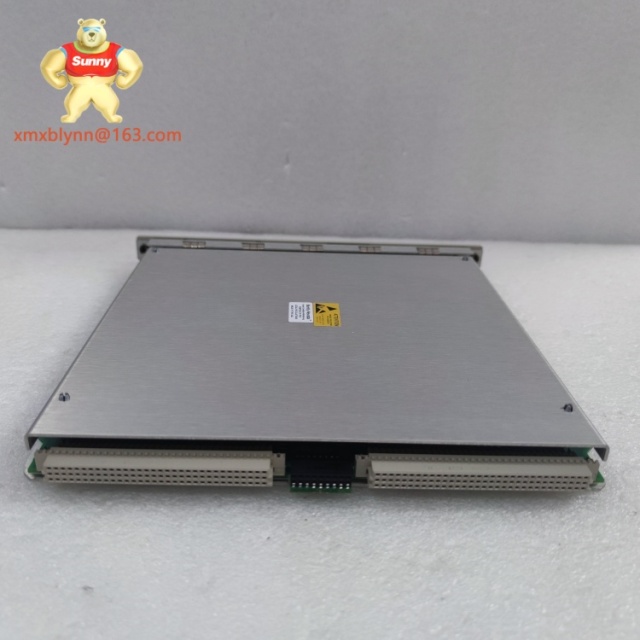

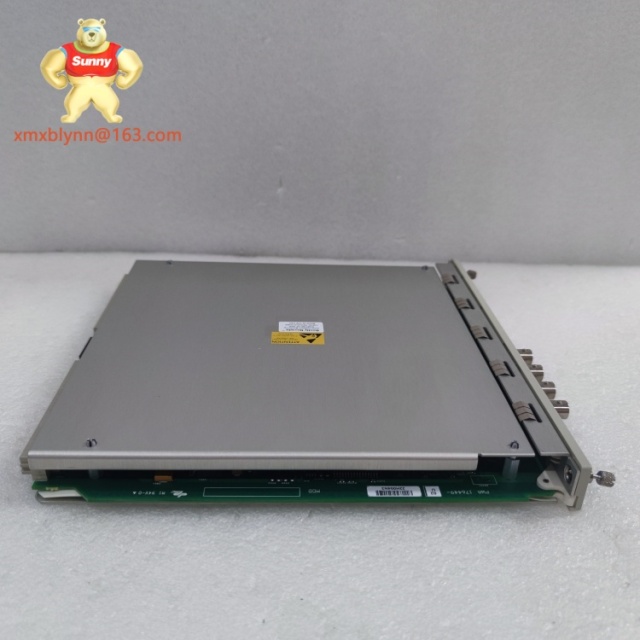

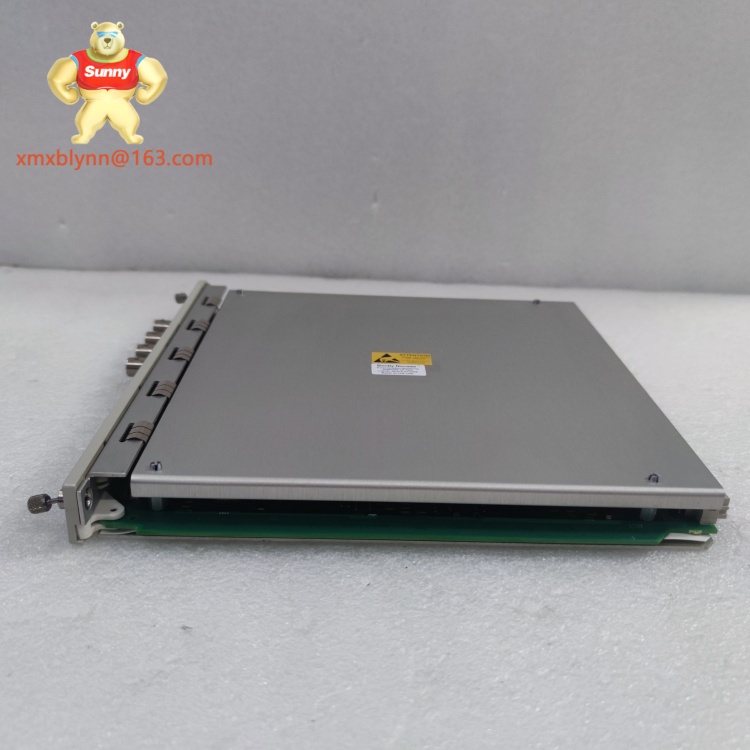

The 3500/42M 176449-02 02U is an advanced multi-channel vibration monitoring module from Bently Nevada, serving as a critical component of the 3500 Machinery Protection System. Designed to enhance machinery health surveillance, this module processes high-fidelity signals from proximity probes, accelerometers, and velocity transducers, transforming raw vibration data into actionable insights for early detection of faults in rotating equipment.
As an 8-channel variant, 3500/42M 176449-02 02U extends the capabilities of its 4-channel counterparts, enabling simultaneous monitoring of multiple machinery points—such as turbine bearings, compressor shafts, and pump housings. Its seamless integration with 3500 system racks, power supplies (like 3500/05), and communication modules (3500/22M) creates a cohesive ecosystem for comprehensive equipment health management. What sets 3500/42M 176449-02 02U apart is its enhanced signal processing engine, which filters noise and identifies subtle vibration patterns indicative of emerging issues, making it indispensable for large-scale industrial operations where unplanned downtime carries significant costs.
Technical Specifications
| Parameter |
Value |
| Product Model |
3500/42M 176449-02 02U |
| Manufacturer |
Bently Nevada (GE) |
| Product Type |
8-Channel Vibration Monitoring Module |
| Number of Channels |
8 |
| Input Signal Types |
Proximity probe (DC), accelerometer (IEPE), velocity (AC) |
| Frequency Range |
0.1 Hz to 10 kHz |
| Power Requirement |
24 V DC (from 3500 rack backplane) |
| Operating Temperature Range |
0°C to 60°C (32°F to 140°F) |
| Dimensions |
160 mm × 100 mm × 220 mm (W × H × D) |
| Mounting Type |
3500 System rack-mount (1 slot) |
| Compatibility |
3500/20 racks, 3500/22M communication modules, 3300/3500 probes |
| Alarm Capabilities |
Configurable high/low thresholds with digital/relay outputs |
| Signal-to-Noise Ratio |
>90 dB |
| Certification |
CE, UL 508, IEC 61010-1 |
Key Features and Benefits
The 3500/42M 176449-02 02U distinguishes itself with 8 independent channels, enabling simultaneous monitoring of diverse machinery points—from turbine rotor shafts to auxiliary pump bearings. This multi-channel capability is invaluable for large-scale equipment, where correlating vibration data across components (e.g., detecting coupling misalignment via paired bearing readings) is critical for accurate diagnostics.
Its advanced signal processing engine, with a signal-to-noise ratio exceeding 90 dB, filters industrial noise from motors, drives, and high-voltage systems, ensuring precise measurement of even subtle vibrations—such as those from early bearing fatigue or rotor imbalance. This precision is enhanced by compatibility with both proximity probes (for shaft relative vibration) and accelerometers (for absolute bearing vibration), eliminating the need for specialized modules and simplifying system design.
Integration with 3500 racks is seamless: the module slides into a single slot, connecting to the backplane for power and data transfer without adapters. Configurable alarm thresholds trigger real-time alerts, transmitted via 3500/22M modules to control systems, allowing operators to address issues before they escalate. Built for durability, 3500/42M 176449-02 02U operates reliably in temperatures up to 60°C, with a rugged chassis resisting dust and vibration—ensuring long-term performance in critical environments like turbine enclosures and refinery control rooms.
Application Scenarios
The 3500/42M 176449-02 02U is ideal for large industrial facilities with complex rotating equipment. In combined-cycle power plants, it monitors gas turbines, steam turbines, and generators, using 8 channels to track vibration on turbine shafts (3 points), generator bearings (2 points), and auxiliary lube oil pumps (3 points). This comprehensive coverage helps detect issues like thermal distortion in turbine casings or generator rotor imbalance, preventing outages that disrupt power grids.
In offshore oil platforms, 3500/42M 176449-02 02U monitors multi-stage centrifugal compressors, processing signals from proximity probes (shaft vibration) and accelerometers (bearing condition) across 8 points. Its noise-filtering capabilities are critical here, as offshore environments are dense with electrical equipment that could otherwise distort data—ensuring accurate detection of saltwater-induced bearing wear.
Chemical processing plants utilize
3500/42M 176449-02 02U to monitor large agitators and reciprocating pumps, with channels allocated to mixer shafts, pump crankshafts, and gearbox bearings. By correlating vibration patterns across these components, it identifies systemic issues like foundation loosening, reducing unplanned downtime in hazardous material processing.
Related Models
3500/42M 176449-01 – 4-channel variant of 3500/42M 176449-02 02U, suitable for smaller machinery setups.
3500/42 133470-01 – Legacy 4-channel module with basic processing, compatible with older 3500 racks.
3500/42M 176449-03 – Explosion-proof version of 3500/42M 176449-02 02U, certified for ATEX Zone 2.
3500/20 125760-01 – 3500 system rack that houses 3500/42M 176449-02 02U and supporting modules.
3500/22M 138607-01AE – Communication module that transmits data from 3500/42M 176449-02 02U to SCADA/DCS.
330101-00-20-05-02-05 – Proximity probe optimized for use with 3500/42M 176449-02 02U in high-temperature settings.
3500/05 125760-01 – Power supply module providing stable 24 V DC to 3500/42M 176449-02 02U.
Installation and Maintenance
Installing 3500/42M 176449-02 02U requires a 3500 system rack with an available slot, mounted in a dry environment within 0°C to 60°C. The rack must be securely fastened to a rigid surface to prevent vibration-induced signal interference. Sensor wiring should use shielded cables, with shields grounded at both the module and probe ends to minimize EMI. Route cables separately from high-voltage lines to avoid noise pickup.
For maintenance, inspect
3500/42M 176449-02 02U quarterly: check that all sensor connections are tight, verify status LEDs indicate normal operation, and clean dust from ventilation slots with compressed air. Calibrate annually using a traceable vibration standard to ensure measurement accuracy. Test alarm functionality semi-annually by simulating threshold breaches. Replace the module if channels fail to process signals or calibration drift exceeds 3%, typically every 8-10 years in continuous operation.
Product Warranty
The 3500/42M 176449-02 02U is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and offering free replacement for units failing under normal operating conditions. This warranty reflects our confidence in Bently Nevada’s engineering and our commitment to supporting industrial operations reliant on uninterrupted machinery monitoring. Our global support team provides prompt assistance with installation, troubleshooting, and warranty claims, ensuring minimal downtime. Direct overseas sourcing ensures replacement modules are readily available, reinforcing our dedication to keeping your 3500 system operational.
