Product Overview

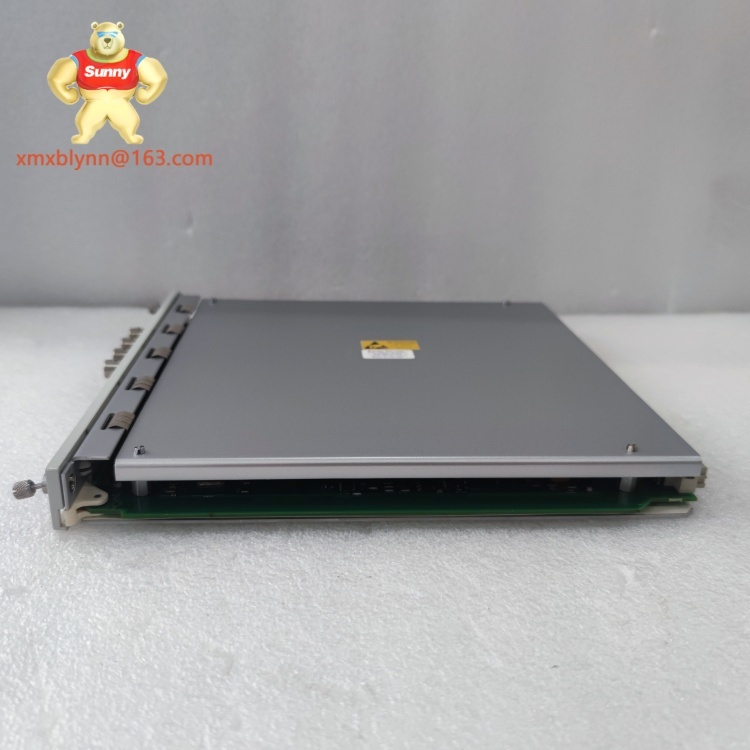

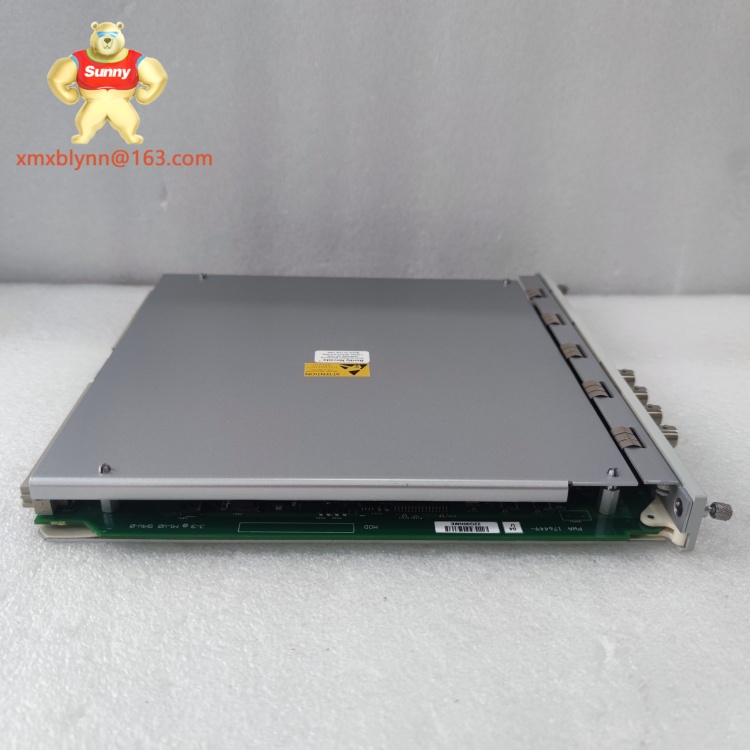

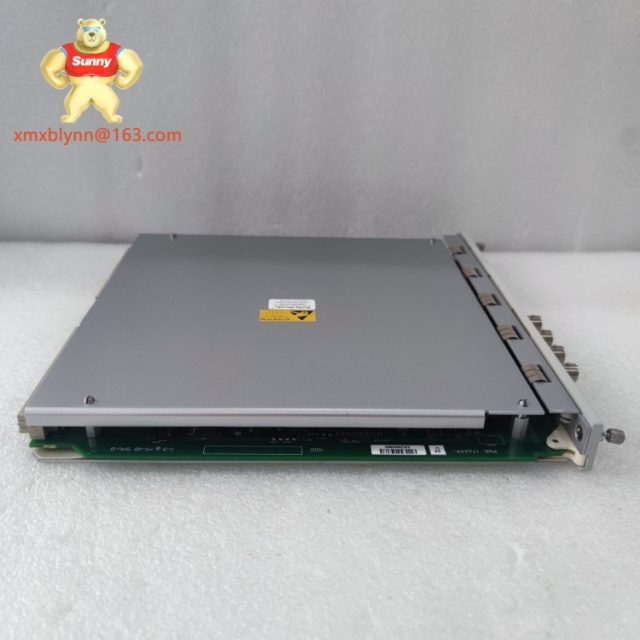

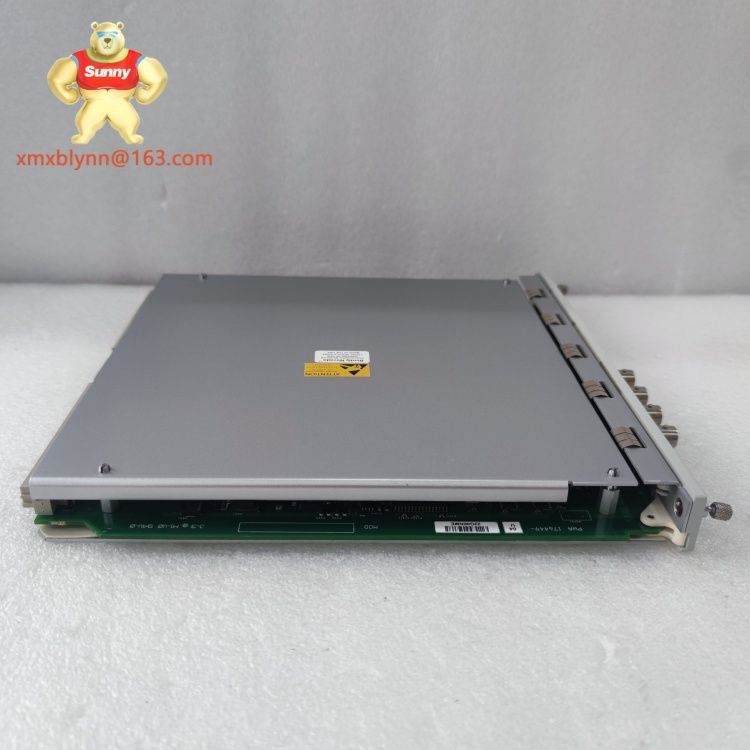

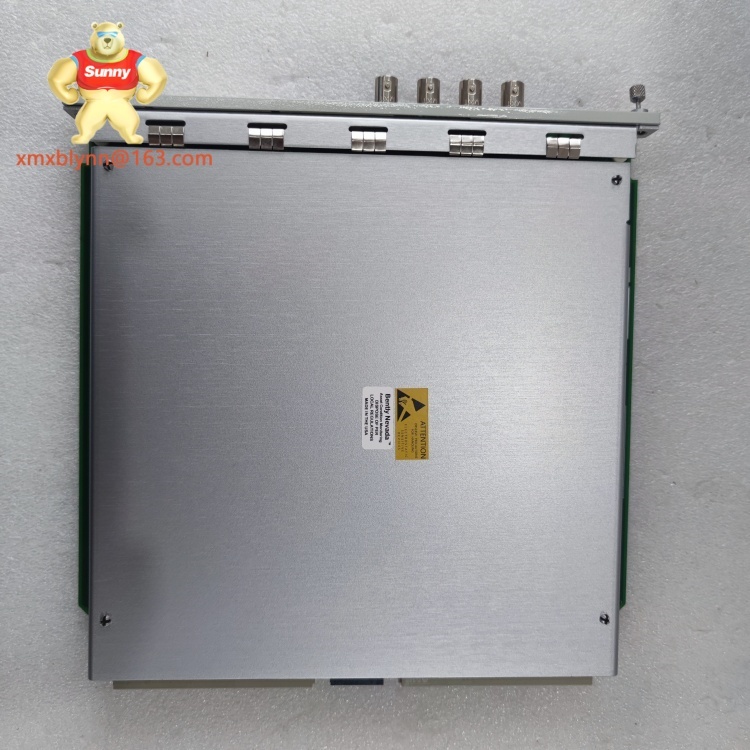

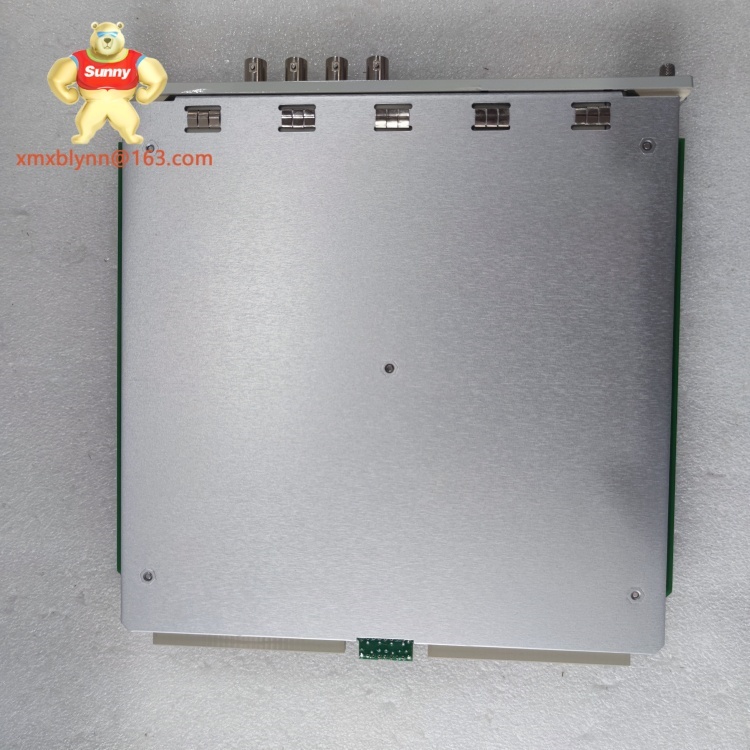

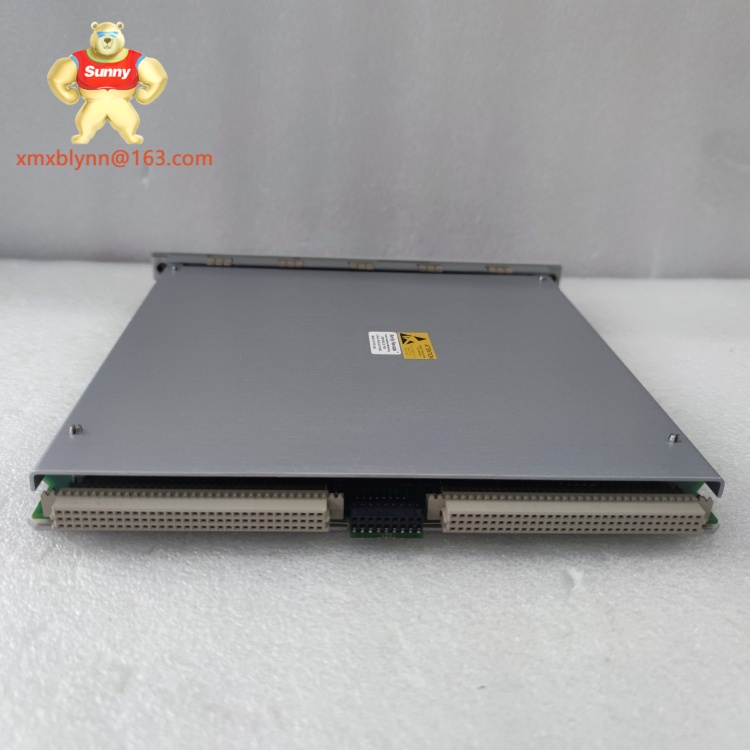

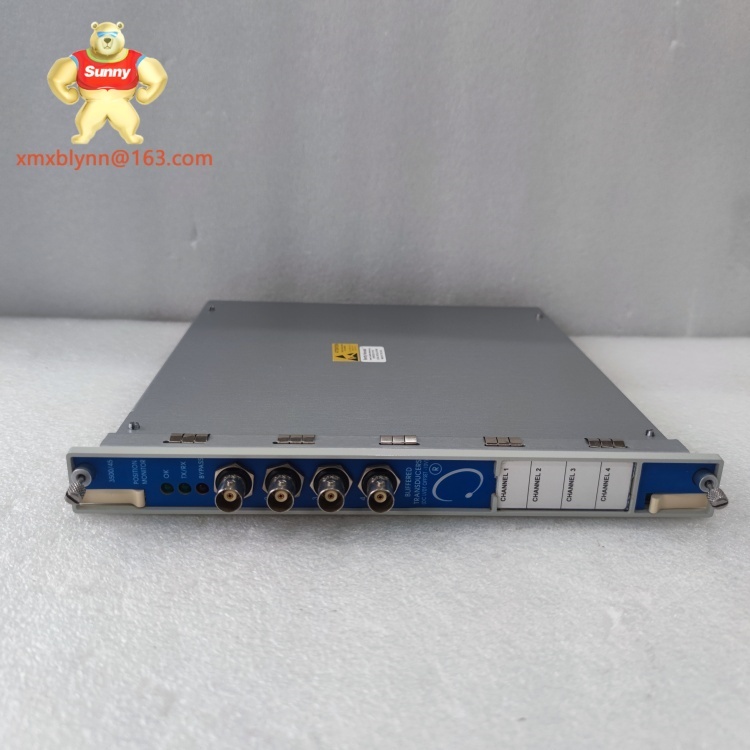

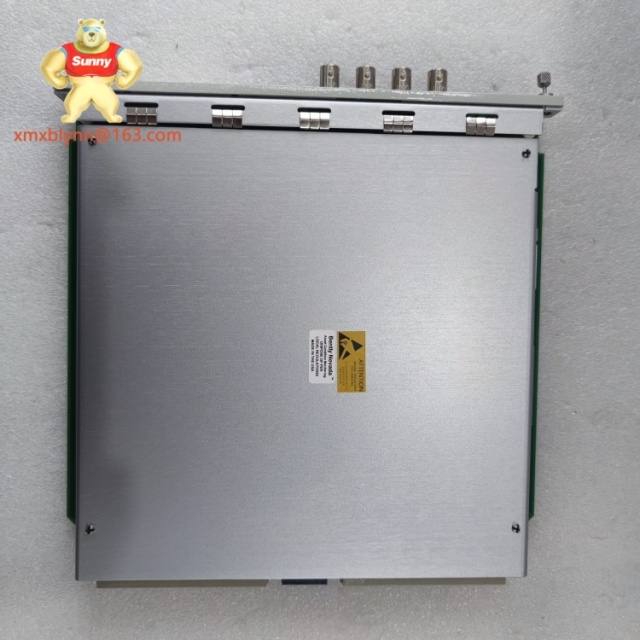

The 3500/45 176449-04 is a high-performance speed and position monitoring module from Bently Nevada’s 3500 machinery protection system, designed to safeguard critical rotating equipment by tracking rotational speed, direction, and position in industrial environments. As a specialized component of the 3500 series, its core function is to process signals from proximity probes, tachometers, and gear tooth sensors installed on machinery like turbines, compressors, and motors. This real-time data is crucial for detecting anomalies such as overspeed, underspeed, or reverse rotation—common precursors to mechanical failure—making the 3500/45 176449-04 indispensable in automation setups where equipment reliability directly impacts safety and operational efficiency.
What distinguishes the 3500/45 176449-04 is its seamless integration with the 3500 ecosystem. It works alongside modules like the 3500/05 power supply and 3500/22M communication gateway, providing synchronized speed and position data to complement vibration and temperature measurements. Its rugged design withstands extreme temperatures, vibration, and electromagnetic interference, ensuring reliable performance in harsh settings—from power plant turbine rooms to offshore oil platforms. Whether monitoring a steam turbine’s speed or a motor’s rotation direction, the 3500/45 176449-04 delivers the accuracy needed to trigger timely alerts, preventing catastrophic failures and minimizing downtime.
Technical Specifications
| Parameter |
Value |
| Product Model |
3500/45 176449-04 |
| Manufacturer |
Bently Nevada |
| Product Type |
Speed & Position Monitoring Module (3500 Series) |
| Input Compatibility |
Proximity probes, gear tooth sensors, tachometers |
| Speed Range |
0.1 RPM to 60,000 RPM |
| Position Resolution |
±0.1° (angular) |
| Output Signals |
4–20 mA analog, digital (EtherNet/IP), relay contacts |
| Operating Voltage |
24 VDC (from 3500 chassis backplane) |
| Operating Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Mounting Type |
3500 system chassis slot |
| Certifications |
UL, CE, ATEX, IECEx |
| Alarm Capabilities |
Overspeed, underspeed, reverse rotation |
| Compatibility |
3500/05 power supply, 3500/22M gateway, 330103 probes |
| Response Time |
<10 ms for critical alarms |
Key Features and Benefits
The 3500/45 176449-04 excels in precision and versatility, making it a cornerstone of comprehensive machinery protection. Its wide speed range (0.1 RPM to 60,000 RPM) accommodates diverse equipment, from slow-speed pumps to high-speed gas turbines, eliminating the need for multiple specialized modules. This flexibility reduces system complexity and saves space in 3500 chassis—critical for crowded industrial enclosures.
Accuracy is a standout attribute. The module measures speed with ±0.01% precision, ensuring reliable detection of subtle fluctuations—such as a 2 RPM increase in a turbine—that could indicate impending issues. It also tracks rotational direction, a critical safety feature for equipment where reverse rotation (e.g., in a compressor) could cause mechanical damage. Configurable alarm thresholds trigger instant alerts, enabling operators to shut down equipment safely before failures occur.
Integration with the 3500 ecosystem is seamless. It communicates via the chassis backplane with vibration modules like the 3500/33 and temperature modules like the 3500/42M, providing a unified view of machinery health. Data is easily transmitted to SCADA or cloud platforms via 3500/22M gateways, supporting data-driven decision-making.
Rugged design ensures reliability in harsh environments. The 3500/45 176449-04 operates reliably in extreme temperatures and resists vibration and electrical noise, making it suitable for offshore rigs, chemical plants, or dusty manufacturing facilities. Built-in diagnostics, including LED status indicators and fault logging, simplify troubleshooting, minimizing downtime during system checks.
Application Scenarios
The 3500/45 176449-04 is vital in industries where rotational speed and position are critical to equipment safety. In power generation, it monitors steam turbine speed, using signals from 330103 proximity probes to detect overspeed—an emergency condition that could cause catastrophic failure. By triggering safety shutdowns when speed exceeds 110% of rated limits, it protects turbines and prevents unplanned outages.
In oil and gas refineries, the module tracks centrifugal compressor speed and direction, ensuring proper rotation to maintain process pressure. Its ability to operate in high-temperature, high-humidity environments ensures reliable performance in refinery settings, while integration with 3500/22M gateways sends real-time data to control rooms, enabling proactive adjustments to prevent process upsets.
For manufacturing facilities, the
3500/45 176449-04 monitors motor speed in conveyor systems, ensuring consistent production flow. By detecting underspeed (a sign of belt slippage) or reverse rotation, it prevents product jams and equipment damage, maintaining throughput and reducing maintenance costs. In all these roles, the module acts as a critical safety net, ensuring equipment operates within safe parameters.
Related Models
3500/45 176449-03 – Previous generation model with basic speed monitoring, compatible with legacy 3500 systems.
3500/05 – Power supply module providing 24 VDC to the 3500/45 176449-04 in 3500 chassis.
3500/22M 288055-01 – Communication gateway transmitting speed data from the 3500/45 176449-04 to enterprise systems.
330103-00-04-10-02-00 – Proximity probe whose signals are processed by the 3500/45 176449-04 for speed measurement.
3500/33 – Vibration monitoring module that, when paired with the 3500/45 176449-04, provides comprehensive machinery health data.
3500/45 176449-05 – Enhanced variant with expanded speed range (up to 100,000 RPM) for high-speed machinery.
Installation and Maintenance
Installing the 3500/45 176449-04 requires a 3500 chassis with an available slot. Power off the chassis, slide the module into place until it locks, and connect input signals from sensors using shielded cables. Route cables away from high-voltage lines to minimize interference, and ensure the chassis is grounded to ≤4Ω. Verify 24 VDC supply from the 3500/05 module before powering on, and configure speed thresholds via Bently’s 3500 Configuration Software.
For maintenance, inspect the module quarterly. Check LED indicators to confirm power and sensor connectivity; red lights may signal wiring faults or sensor drift. Clean dust from vents with compressed air to prevent overheating. Calibrate annually using Bently’s calibration tools to maintain accuracy, especially for critical applications like turbine overspeed protection. Update firmware via 3500 Configuration Software yearly to access new features. With proper care, the
3500/45 176449-04 operates reliably for 8–10 years.
Product Warranty
The 3500/45 176449-04 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and premature failure under normal operating conditions. If the module malfunctions, Xiamen Xiongba provides free replacement, ensuring minimal downtime for your 3500 system. Their technical team, experienced in Bently Nevada’s 3500 series, offers guidance on installation, sensor integration, and troubleshooting, leveraging direct access to genuine parts. This commitment to quality ensures users trust the 3500/45 176449-04 for critical speed and position monitoring in industrial environments.
