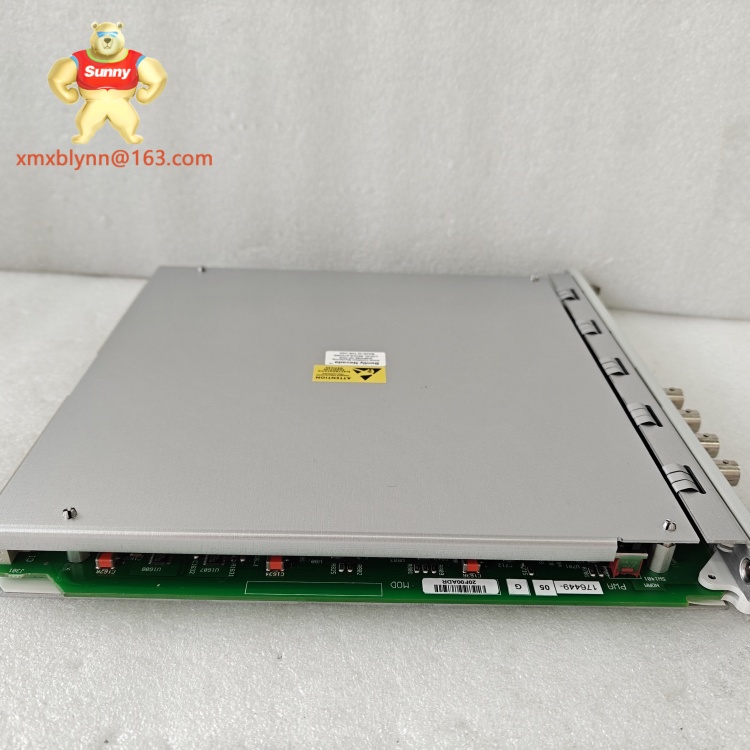

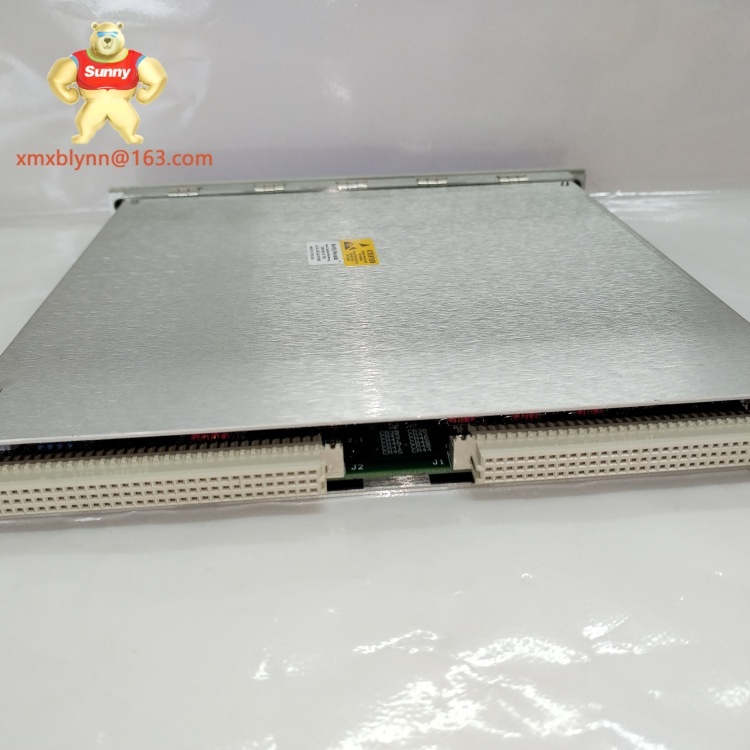

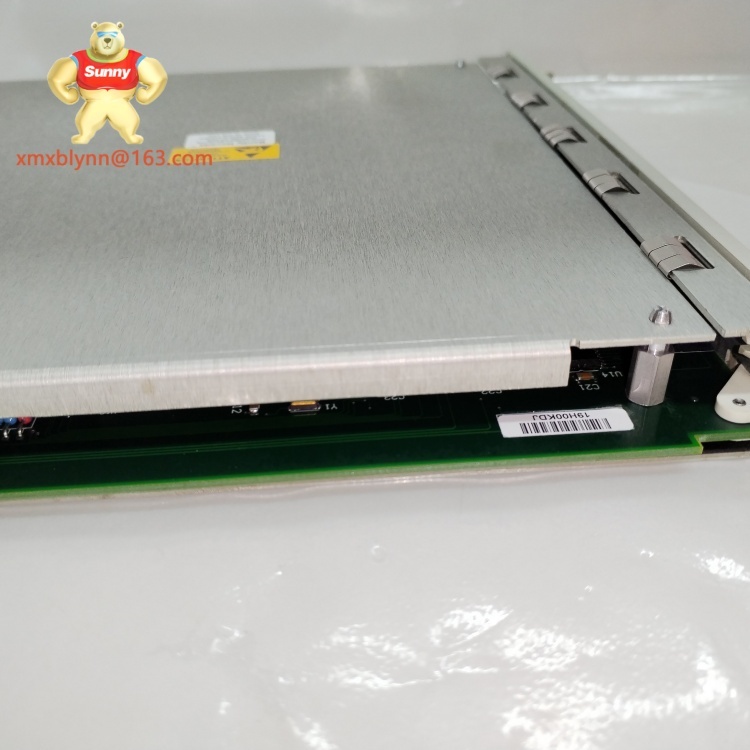

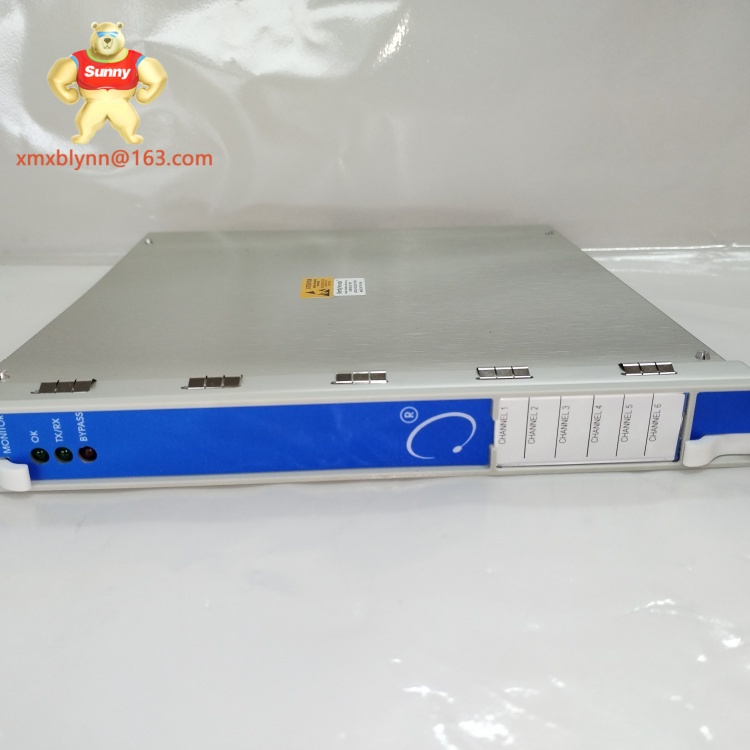

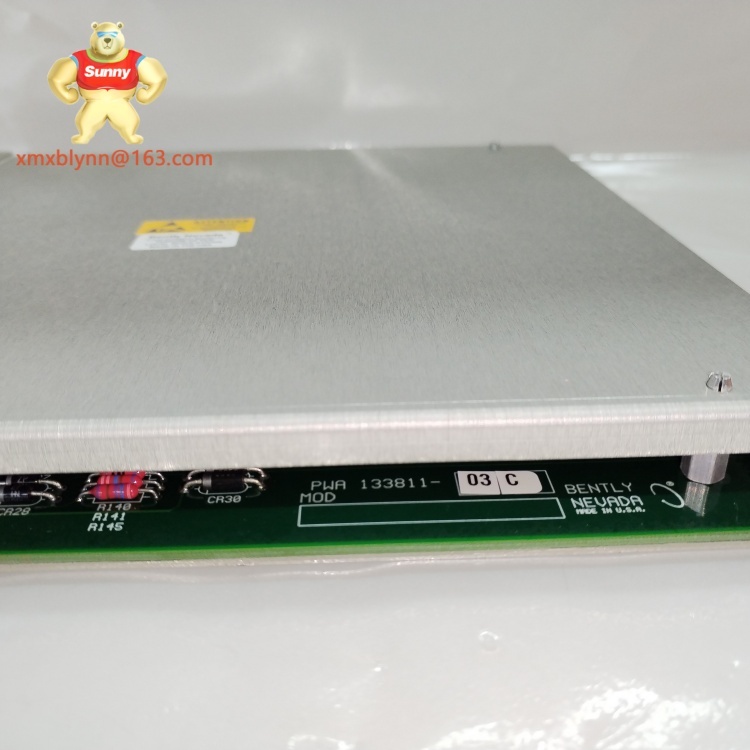

Product Overview
The BENTLY 3500/62 is a key temperature monitoring module within Bently Nevada’s 3500 Machinery Protection System, designed to deliver precise, real-time temperature measurements for critical rotating equipment. As an integral component of the 3500 ecosystem, it specializes in tracking temperature variations in bearings, windings, and casings—parameters that directly indicate machinery health and performance.
By continuously monitoring temperature data and integrating seamlessly with the 3500 system’s central processing, the BENTLY 3500/62 enables early detection of overheating, a common precursor to component failure. Its ability to process multiple sensor inputs simultaneously makes it a versatile solution for complex machinery, where temperature fluctuations can signal issues like lubrication breakdown, electrical faults, or mechanical strain. What distinguishes the BENTLY 3500/62 is its reliability in harsh industrial environments, ensuring consistent performance even amid vibration, dust, or temperature extremes—critical for maintaining operational continuity in mission-critical settings.
Technical Specifications
| Parameter |
Value |
| Product Model |
BENTLY 3500/62 |
| Manufacturer |
Bently Nevada |
| Product Type |
Temperature Monitor Module |
| Input Channels |
8 (supports thermocouples, RTDs, and resistance inputs) |
| Temperature Measurement Range |
-200°C to 1800°C (depending on sensor type) |
| Communication Protocol |
3500 System Backplane; RS-485 via 3500 gateway |
| Operating Voltage |
24 VDC ±10% |
| Operating Temperature |
-20°C to 70°C |
| Mounting Type |
3500 System Rack (19-inch standard) |
| Protection Rating |
IP20 (panel-mounted) |
| Alarm Capability |
Configurable high/low thresholds with relay outputs |
| Response Time |
<200 ms (for temperature excursions) |
| Compatibility |
3500/15 Power Supply, 3500/20 Rack Interface Module |
Key Features and Benefits
The BENTLY 3500/62 excels in multi-sensor compatibility, supporting a range of temperature sensors including thermocouples (Type K, J, T, E) and RTDs (PT100, PT1000), eliminating the need for specialized modules for different sensor types. This flexibility simplifies system design and reduces integration costs.
Its high-precision measurement (±0.1°C at 0–100°C) ensures accurate data, critical for distinguishing normal operating variations from early warning signs. The module’s configurable alarm thresholds allow customization to specific machinery requirements, triggering alerts or safety shutdowns when temperatures exceed safe limits—preventing catastrophic failures and unplanned downtime.
Seamless integration with the 3500 system software enables centralized data logging and trend analysis, making it easy to correlate temperature data with other parameters (e.g., vibration from the 3500/53 module) for a holistic view of machinery health. The BENTLY 3500/62 also includes built-in self-diagnostics, automatically flagging sensor faults or connection issues to maintain data integrity.
Application Scenarios
The BENTLY 3500/62 is indispensable in industries where rotating machinery reliability directly impacts safety and productivity. In power generation, it monitors turbine bearing temperatures, detecting overheating that could indicate lubrication failure or misalignment—critical for preventing turbine trips in coal, gas, or nuclear plants.
In oil and gas refineries, the module tracks compressor motor windings and pump casings, where excessive heat may signal insulation breakdown or impeller wear. This early detection avoids unplanned shutdowns in pipeline compression stations or offshore platforms.
Chemical processing plants rely on the
BENTLY 3500/62 to monitor agitator bearings in reactor vessels, ensuring temperatures remain within safe limits to prevent material degradation or vessel damage. Similarly, in pulp and paper mills, it oversees dryer roller bearings, where heat spikes could indicate bearing seizure and costly production halts. Across all these settings, the
BENTLY 3500/62 acts as a first line of defense against temperature-related failures.
Related Models
BENTLY 3500/62-01 – Enhanced variant with 16 input channels for larger machinery arrays.
BENTLY 3500/61 – Previous generation temperature monitor with basic 4-channel capability, compatible with legacy 3500 systems.
BENTLY 3500/53 – Vibration monitor module, frequently paired with BENTLY 3500/62 for comprehensive machinery health monitoring.
BENTLY 3500/22M – Rack interface module that facilitates communication between BENTLY 3500/62 and the 3500 system controller.
BENTLY 3500/15 – Power supply module required to operate BENTLY 3500/62 within the 3500 rack.
BENTLY 3500/65 – High-temperature specialized variant designed for environments exceeding 70°C ambient.
BENTLY 3500/42 – Velocity sensor module, works with BENTLY 3500/62 to correlate vibration and temperature data.
Installation and Maintenance
Installation of the BENTLY 3500/62 requires a compatible 3500 system rack with adequate space for wiring—minimum 10 cm clearance on all sides to ensure proper airflow. The module must be mounted on a grounded, vibration-isolated surface to prevent electrical interference, which can skew temperature readings. Environmental conditions should be controlled within -20°C to 70°C, with relative humidity below 90% (non-condensing) to protect internal components.
For maintenance, quarterly checks of sensor connections are recommended to ensure secure, corrosion-free contacts—loose connections can cause erratic readings. Calibration against a certified temperature standard should be performed annually to maintain accuracy. The
BENTLY 3500/62 includes diagnostic LEDs; persistent fault indicators should prompt a review via the 3500 software to identify issues like sensor degradation or power supply irregularities. Replacement of aging sensors (typically every 3–5 years) helps sustain reliable performance.
