BENTLY 3500/64M 176449-05 | Dynamic Pressure Monitoring Module

BENTLY 3500/64M 176449-05

Parameter	Value
Product Model	3500/64M 176449-05
Manufacturer	Bently Nevada
Product Type	Dynamic Pressure Monitoring Module (3500 Series)
Input Compatibility	3-wire/2-wire high-temperature pressure transducers
Channels	4 isolated channels
Pressure Range	0–64 MPa
Accuracy	±0.1% of reading ±1 digit
Output Signals	4–20 mA analog, digital (Modbus RTU)
Communication Protocol	Modbus RTU
Operating Voltage	24 VDC (from 3500 chassis backplane)
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Protection Rating	IP67
Mounting Type	3500 system chassis slot
Certifications	ATEX, IECEx (hazardous area compliance)
Response Time	<100 ms for critical alarms
Dimensions	156.2 mm × 88.9 mm × 200.7 mm
Weight	0.7 kg (1.5 lbs)

1. Precision Dynamic Pressure Analysis:
   The 3500/64M 176449-05 uses advanced bandpass filtering and notch filtering to isolate pressure fluctuations within specific frequency ranges. This capability is critical for identifying issues like cavitation in pumps or aerodynamic instability in turbines, where narrowband pressure spikes indicate impending failure. The module’s 100 mV/psi sensitivity  ensures even subtle pressure changes are detected, enabling proactive maintenance.
2. Rugged Industrial Design:
   Built for harsh environments, the module’s IP67 rating  protects against dust and water ingress, while its -25°C to 70°C operating range  suits extreme climates. ATEX and IECEx certifications  make it suitable for Zone 1/2 hazardous areas, ensuring compliance with strict safety standards in oil refineries or chemical plants.
3. Seamless System Integration:
   As part of the 3500 ecosystem, the 3500/64M 176449-05 communicates via the chassis backplane, eliminating the need for external wiring. It provides keyphasor signals to other modules like the 3500/45 position monitor, synchronizing pressure data with rotational speed and direction for comprehensive machinery diagnostics.
4. User-Friendly Configuration:

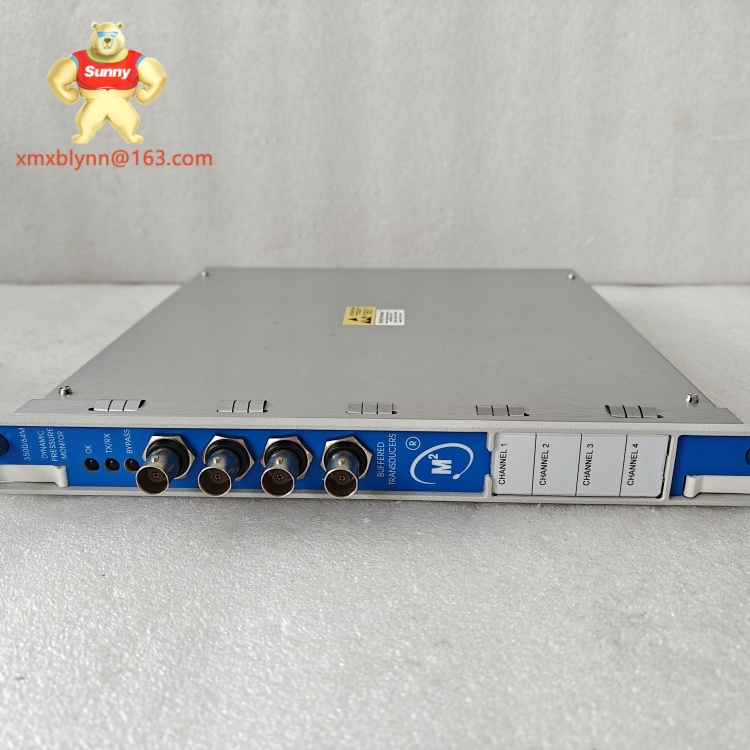

   Configurable alarm thresholds and filter settings are managed via Bently’s 3500 Configuration Software, allowing operators to define custom parameters without coding expertise. Front-panel LEDs  indicate power, communication status, and alarm conditions, simplifying troubleshooting.

• Oil & Gas:
  In offshore platforms, the 3500/64M 176449-05 monitors dynamic pressure in subsea compressors, detecting pressure surges caused by pipeline blockages. By triggering shutdowns or adjusting flow rates via 4–20 mA outputs, it prevents equipment damage and ensures uninterrupted production.
• Power Generation:
  In steam turbines, the module tracks pressure oscillations in the blade passages, a key indicator of blade fatigue. Integration with the 3500/33 vibration module  enables correlating pressure data with vibration signatures to predict blade failure and schedule timely replacements.
• Chemical Processing:
  For centrifugal pumps handling corrosive fluids, the 3500/64M 176449-05 identifies cavitation by analyzing high-frequency pressure fluctuations. Early detection allows operators to adjust pump speed or replace worn impellers, avoiding costly downtime.
• Manufacturing:
  In steel mills, the module monitors hydraulic press pressure profiles, ensuring consistent forming of metal sheets. Deviations from baseline pressure curves trigger alerts, preventing material waste and maintaining product quality.

• 3500/64M 140734-05 – Enhanced variant with extended temperature range (-40°C to 85°C)  for extreme environments.
• 3500/22M 288055-01 – Communication gateway transmitting pressure data from the 3500/64M 176449-05 to enterprise systems via Ethernet/IP .
• 3500/05 – Power supply module providing stable 24 VDC to the 3500/64M 176449-05 in 3500 chassis.
• 3500/33 – Relay module enabling automated responses (e.g., activating bypass valves during pressure spikes) .
• 330103-00-04-10-02-00 – Proximity probe whose signals complement pressure data for holistic machinery analysis .

1. Slide the 3500/64M 176449-05 into an available slot in the 3500 chassis, ensuring secure backplane contact.
2. Connect shielded cables from pressure transducers to the module’s terminals, using coaxial connectors  for low-noise signal transmission. Route cables away from high-voltage lines and ground the chassis to ≤4Ω .
3. Configure sensor types, filter settings, and alarm thresholds via Bently’s 3500 Configuration Software. Verify 24 VDC supply from the 3500/05 module.

• Quarterly Checks: Inspect LED indicators for fault codes and clean dust from vents using compressed air.
• Annual Calibration: Use a precision pressure simulator to validate accuracy within ±0.1% . Update firmware to support new sensor protocols or diagnostic features.
• Redundancy Testing: If deployed in a TMR (Triple Module Redundancy) setup, test failover functionality by disconnecting one module and confirming others maintain data flow.
