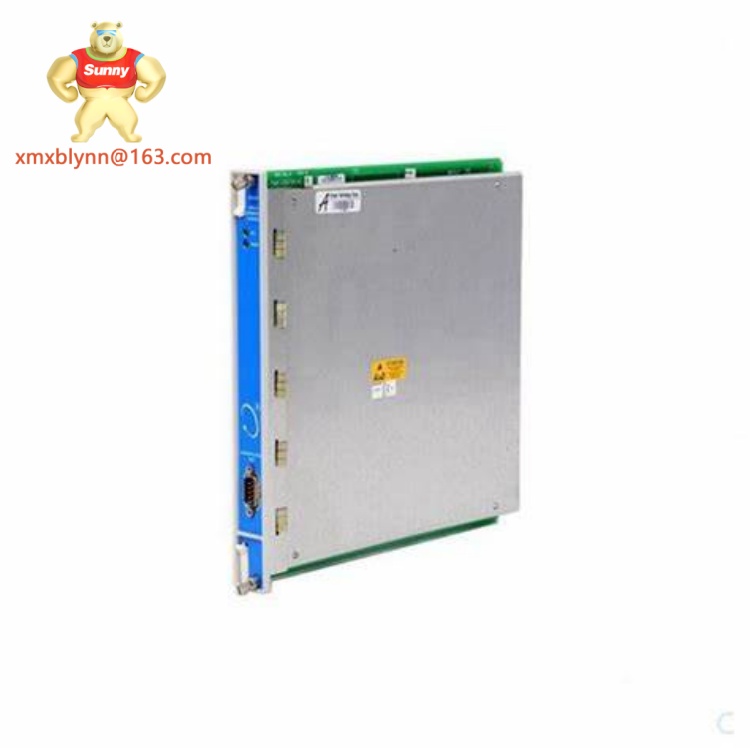

The BENTLY 3500/91 161216-01 is a rack-mounted keyphasor/tachometer-style module in the Bently Nevada 3500 family, engineered to deliver precise rotor-speed measurement and timing pulses for high-value rotating machinery. As an in-rack timing source, the BENTLY 3500/91 161216-01 conditions signals from proximity probes or magnetic pickups, produces clean tachometer outputs and keyphasor pulses, and feeds trip logic and vibration channels across the 3500 backplane. Installers typically place this module in a 3500 monitoring rack inside a control cabinet, turbine auxiliary panel, or substation bay so that timing signals remain local to the protection system and wiring runs are kept short.
Field technicians value the BENTLY 3500/91 161216-01 for its low-noise conditioning and dependable pulse integrity; this reduces false trips and gives condition-monitoring systems robust inputs for orbit and speed-derived alarms. Moreover, the module’s clear status LEDs and rack-compatible form factor make it easy to swap during scheduled maintenance—an approach favored in brownfield sites where distributed control system parts, ABB I/O modules, or ABB AC 800M supervisors coexist. For customers seeking trusted sourcing, Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing.
| Parameter | Value |
|---|---|
| Product Model | BENTLY 3500/91 161216-01 |
| Manufacturer | Bently Nevada (3500 series) |
| Product Type | Keyphasor / Tachometer / Timing Module |
| Power | 24 VDC via 3500 rack backplane (typical) |
| Communication / Protocol | Discrete trip outputs, analog outputs via rack gateway; serial diagnostics via rack gateway |
| Operating Temperature | -20 °C to +60 °C |
| Mounting | 3500-series rack insertion (control cabinet/19" panel) |
| Protection / Ingress | IP20 (cabinet-installed); optional conformal coating may apply |
| Dimensions (HxWxD) | Module fits 3500 slot; approx. 120 × 35 × 160 mm |
| Weight | ≈0.35 kg |
| Typical Interfaces | Pickup/probe inputs, tachometer/keyphasor output, status LEDs, relay/trip interface via rack |
| Compliance | CE, RoHS; site-specific certs and hazardous-area versions may exist |
Precision timing underpins the BENTLY 3500/91 161216-01’s utility. First, the module delivers low-jitter keyphasor pulses that feed vibration channels and speed-based trip logic with minimal processing latency. Second, robust input conditioning tolerates noisy plant environments so that tachometer signals remain accurate even near heavy drives or welders. Third, clear front-panel LEDs and fault flags accelerate troubleshooting; technicians can identify lost pickup signals or polarity issues at a glance.
Reliability is engineered in. The BENTLY 3500/91 161216-01 uses industrial-grade components and predictable restart behavior to avoid spurious alarms after power cycles. Integration is straightforward: the module fits cleanly into 3500 racks and exposes signals the rack gateway can map into historians and control systems, so tying data into distributed control system parts is quick. In mixed-vendor installations, it works well alongside ABB I/O modules and integrates into architectures that include ABB AC 800M with minimal gateway effort. Finally, lifecycle cost is lower when teams standardize on modular 3500 spares; stocking this module reduces emergency procurement and shortens repair windows.
Use the BENTLY 3500/91 161216-01 wherever accurate speed and phase information are critical to machinery health and protection. In combined-cycle plants, it commonly provides the master keyphasor for turbine rotor-dynamics analysis and overspeed protection, ensuring that orbit and phase-related alarms are synchronized. In gas-compression trains and centrifugal compressors, the module supplies timing pulses used by order-tracking and torsional vibration analytics, helping avoid resonance excursions that can damage shafts and couplings.
Municipal pumping stations also benefit. For example, in a municipal water pump station, technicians replaced a noisy tachometer converter with BENTLY 3500/91 161216-01 and restored continuous 24/7 monitoring within a single shift. In mining and processing, the module stabilizes conveyor-drive protection by delivering consistent speed references despite harsh electrical noise and mechanical shock. For retrofit programs, it supports phased upgrades where distributed control system parts and ABB DO810 or ABB I/O modules remain in service while protection hardware is modernized—minimizing downtime and avoiding costly re-cabling.
BENTLY 3500/91 — Standard keyphasor module variant used for general timing duties.
BENTLY 3500/42M — Vibration measurement module often paired with 91 timing inputs.
BENTLY 3500/15 — Rack gateway providing serial and Ethernet diagnostics aggregation.
BENTLY 3500/48M — Higher-density channel module for expanded vibration monitoring.
BENTLY 3500/22 — Discrete alarm module used alongside timing channels for expanded trips.
BENTLY 3500/56 — Accelerometer input module for direct acceleration measurement.
ABB DO810 — Example ABB I/O module referenced for mixed-rack integration planning.
Before installation, verify rack health and the 3500 backplane +24 V bus. When you fit BENTLY 3500/91 161216-01, ensure the control cabinet has adequate ventilation and that pickup wiring uses screened, grounded pairs routed away from power runs to limit EMI. Mount the module in the designated 3500 slot and secure retaining clips; then follow a controlled power-up sequence and confirm LED indications for presence and input-lock. If hot-swap is supported at your site, use the vendor’s safe-insertion procedure to avoid bus contention; otherwise schedule a brief maintenance window.
For maintenance, combine visual checks with analytics. Inspect front-panel LEDs and review the rack’s event logs after each shift change. Archive module configuration and firmware images so a replacement BENTLY 3500/91 161216-01 can be restored quickly; this practice reduces mean time to repair to a single shift. Monitor slow trends in keyphasor stability and pickup signal amplitude; rising noise or intermittent loss usually precede failures. Replace modules showing persistent transient behavior rather than attempting board-level repairs—practical spares-first decisions minimize downtime and simplify warranty processing. Store spares in anti-static packaging within a temperature-controlled area.
Xiamen Xiongba E-commerce Co., Ltd. Branch provides a one-year warranty and free replacement service for BENTLY 3500/91 161216-01 units purchased through our distribution channel. This warranty covers manufacturing defects and functional failures under normal industrial use and excludes damage from improper installation, abuse, or unauthorized modification. To submit a claim, customers contact Xiamen Xiongba’s support team; our staff coordinates pre-shipment testing, datasheet verification, serial-number traceability, and RMA handling to expedite replacements. Warranty logistics and technical assistance are handled by Xiongba directly, not the original equipment manufacturer.
