Product Overview

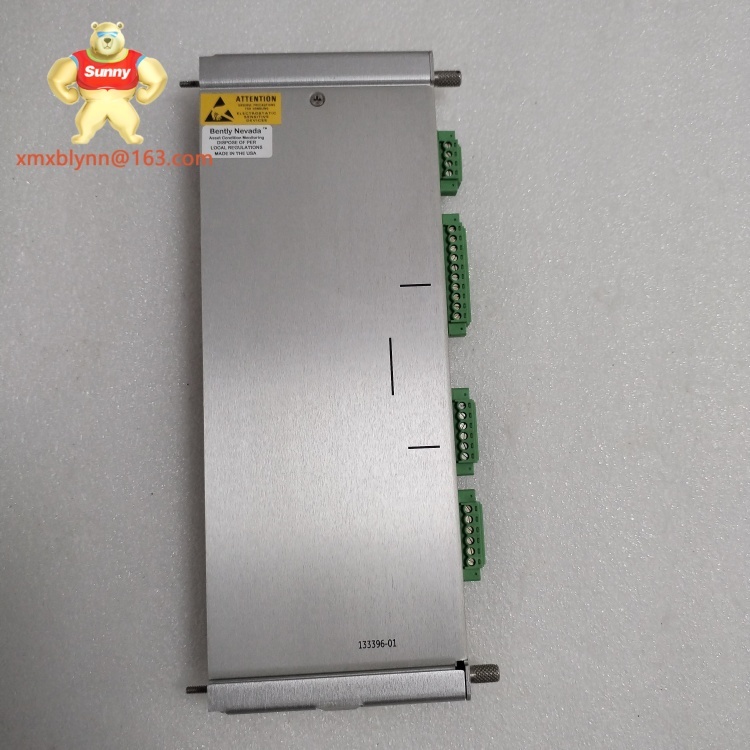

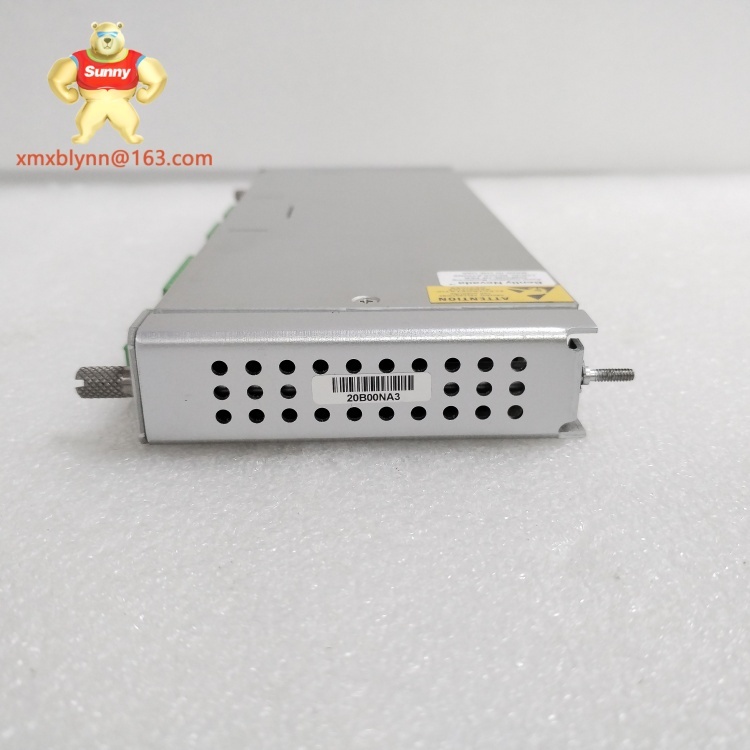

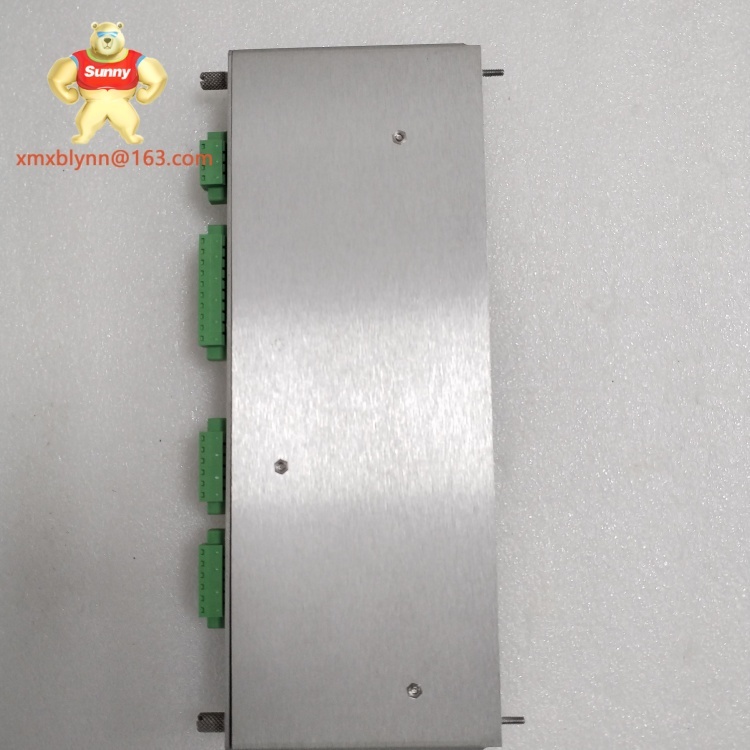

The BENTLY 3701/55 323174-01 is a precision machinery protection monitor from Bently Nevada’s 3700 series, engineered to deliver continuous, reliable monitoring of critical rotating equipment. As a versatile module, it specializes in measuring key parameters such as radial vibration, axial position, and differential expansion—vital for detecting early signs of wear, misalignment, or imbalance in industrial machinery.
Integral to the 3700 system architecture, the BENTLY 3701/55 323174-01 acts as a bridge between sensors and control systems, processing raw data into actionable insights that help prevent unplanned downtime. Its design prioritizes accuracy and durability, making it suitable for harsh industrial environments where temperature fluctuations, vibration, and electrical noise are common. What sets the BENTLY 3701/55 323174-01 apart is its ability to adapt to diverse machinery types, from small pumps to large turbines, ensuring consistent performance across applications. This flexibility, combined with robust data processing, makes it a trusted choice for industries where machinery reliability directly impacts safety and productivity.
Technical Specifications
| Parameter |
Value |
| Product Model |
BENTLY 3701/55 323174-01 |
| Manufacturer |
Bently Nevada |
| Product Type |
Machinery Protection Monitor |
| Input Channels |
2 configurable channels (vibration/position) |
| Measurement Range |
±500 μm (vibration), 0–50 mm (axial position) |
| Communication Protocol |
RS-485 (Modbus RTU), 4-20 mA analog output |
| Operating Voltage |
18–32 VDC |
| Operating Temperature |
-10°C to 65°C |
| Mounting Type |
DIN rail or panel mount |
| Protection Rating |
IP30 (enclosed housing) |
| Alarm Capability |
Configurable high/low thresholds with relay outputs |
| Compatibility |
3700/12 Power Supply, 3700/20 Display Module |
| Response Time |
<10 ms for critical alarm triggers |
Key Features and Benefits
The BENTLY 3701/55 323174-01 stands out for its multi-parameter monitoring capability, supporting both vibration and position sensors without the need for additional hardware. This versatility reduces system complexity and installation costs, making it ideal for facilities with mixed machinery types.
Its high-precision measurement (±0.5% of full scale) ensures accurate data, even in noisy industrial environments, thanks to advanced filtering algorithms that minimize interference from electrical or mechanical noise. The module’s configurable alarm settings allow customization to specific machinery requirements, triggering alerts or safety shutdowns when parameters exceed predefined limits—critical for preventing catastrophic failures.
Integration is simplified through its Modbus RTU protocol support, enabling seamless communication with PLCs, DCS, and SCADA systems. This allows operators to access real-time data alongside other process metrics, creating a holistic view of equipment health. The BENTLY 3701/55 323174-01 also includes built-in self-diagnostics, continuously monitoring sensor connections and internal components to flag issues like cable degradation or power fluctuations, ensuring data integrity.
Application Scenarios
The BENTLY 3701/55 323174-01 finds critical use in industries 依赖于 rotating machinery. In natural gas processing plants, it monitors centrifugal compressor vibration and axial position, detecting subtle shifts that may indicate bearing wear or seal degradation. By alerting operators early, it prevents compressor failures that could halt gas processing and lead to costly repairs.
In pulp and paper mills, the module oversees large induction motors driving papermaking machines, tracking vibration patterns to identify rotor imbalance—an issue that can cause uneven paper quality or motor burnout. Its ability to integrate with mill DCS systems allows engineers to correlate motor health with production output, optimizing maintenance schedules.
In water treatment facilities, the
BENTLY 3701/55 323174-01 monitors pump vibration, ensuring consistent performance of critical equipment used in water distribution. Early detection of impeller wear or bearing issues helps avoid pump failures that could disrupt water supply to communities.
Related Models
BENTLY 3701/55 323174-02 – Enhanced variant with expanded input channels (4 channels) for larger machinery sets.
BENTLY 3701/50 323173-01 – Previous generation model with basic 2-channel monitoring and limited protocol support.
BENTLY 3701/60 323175-01 – High-temperature variant rated for ambient conditions up to 85°C, ideal for furnace-associated equipment.
BENTLY 3700/12 323168-01 – Companion power supply module, required to operate BENTLY 3701/55 323174-01 in 3700 systems.
BENTLY 3701/20 323170-01 – Local display module that pairs with BENTLY 3701/55 323174-01 for on-site parameter viewing.
BENTLY 3701/42 323172-01 – Vibration sensor module optimized for use with BENTLY 3701/55 323174-01 to enhance measurement accuracy.
BENTLY 3701/70 323176-01 – Wireless communication adapter that enables remote monitoring of BENTLY 3701/55 323174-01 data.
Installation and Maintenance
Installation of the BENTLY 3701/55 323174-01 requires a DIN rail or panel mount in a clean, dry environment with ambient temperatures between -10°C and 65°C. The module must be grounded to a dedicated earth connection (≤1Ω) to minimize electrical interference, which can distort measurement accuracy. Wiring should use shielded cables with proper termination to prevent signal loss, and a minimum of 5 cm clearance around the module is needed for airflow.
For maintenance, quarterly checks of sensor connections are recommended to ensure tight, corrosion-free contacts—loose connections are a common cause of erratic readings. Calibration against a certified standard should be performed annually to maintain precision. The
BENTLY 3701/55 323174-01 includes status LEDs; persistent fault indicators should prompt a review of sensor health or power supply stability via the system interface. Replacing aging sensors every 2–3 years helps sustain reliable performance.
Product Warranty
The BENTLY 3701/55 323174-01 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and performance issues. During this period, we provide free replacement for any unit that fails to meet operational specifications, ensuring minimal disruption to your machinery protection setup. Our technical support team offers guidance on installation, sensor pairing, and troubleshooting, leveraging over a decade of experience in industrial automation. This warranty reflects our confidence in the BENTLY 3701/55 323174-01’s quality and our commitment to keeping your critical equipment monitoring systems reliable.
