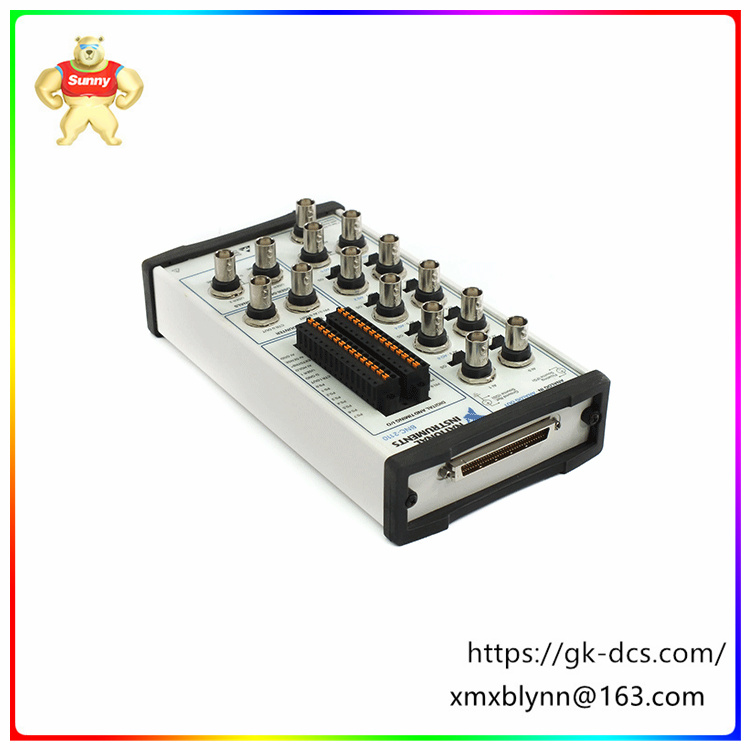

The BNC-2110 is a shielded DIN rail desktop mount terminal manufactured by National Instruments. This terminal is mainly used to connect 68-pin female SCSI to 1-pin female BNC, and supports 30-pin female spring terminal connection. The BNC-2110 can be used with a variety of NI multifunction I/O and analog output devices, helping to simplify the connection of analog signals, as well as some digital signals, to DAQ devices.
The shielded terminals are available in tabletop and DIN rail mounting configurations and are equipped with a shielded housing for better measurement integrity. In addition, the BNC-2110 is only suitable for differential analog input signals and can measure floating signals by moving the corresponding switch under the BNC connector to the FS position. For signals that are ground-referenced, the switch under the BNC connector for the AI channel should be moved to the GS position.
The BNC-2110 is equipped with 15 BNC connectors and features a 68-pin male SCSI male I/O connector. The device runs with NI-DAQmx driver software, which is compatible with packages such as LabVIEW, LabWindows/CVI or Measurement Studio. Device hardware can be configured using the Measurement & Automation Explorer (MAX) tool. In addition, the BCN-2110 can be used with 100-pin or 68-pin E/M/S series or 68-pin NI-672x, NI-671x and NI-673x Analog Output (AO series) DAQ devices.
The BNC-2110 is widely used in demanding production, test and laboratory environments and is suitable only for these environments.
The BNC-2110 is used in demanding production, test and laboratory environments. It is mainly used to connect 68-pin SCSI to 1-pin BNC, and supports 30-pin spring terminal connections. This product can be used with a variety of NI multifunction I/O and analog output devices, simplifying the connection of analog signals and some digital signals to DAQ devices.
In specific application scenarios, the BNC-2110's differential analog input signal function is particularly useful. By simply moving the switch under the BNC connector into place, the user can measure a floating signal or a ground reference signal. This feature makes the BNC-2110 extremely valuable in applications where precise signal measurement is required.
In addition, the BCN-2110's shielded housing design provides better measurement integrity, which is particularly important for accurate measurements in environments with high electromagnetic interference. Its desktop mount and DIN rail mount configurations also make it flexible for use in a variety of laboratory and production environments.
Overall, the BNC-2110 is primarily suitable for applications that require high-precision signal measurement and connectivity, especially in laboratory and production environments where electromagnetic environments are complex or require flexible installation. When selecting and using BCN-2110, it is recommended to configure and install it according to the specific application requirements and technical requirements to ensure the best performance.
