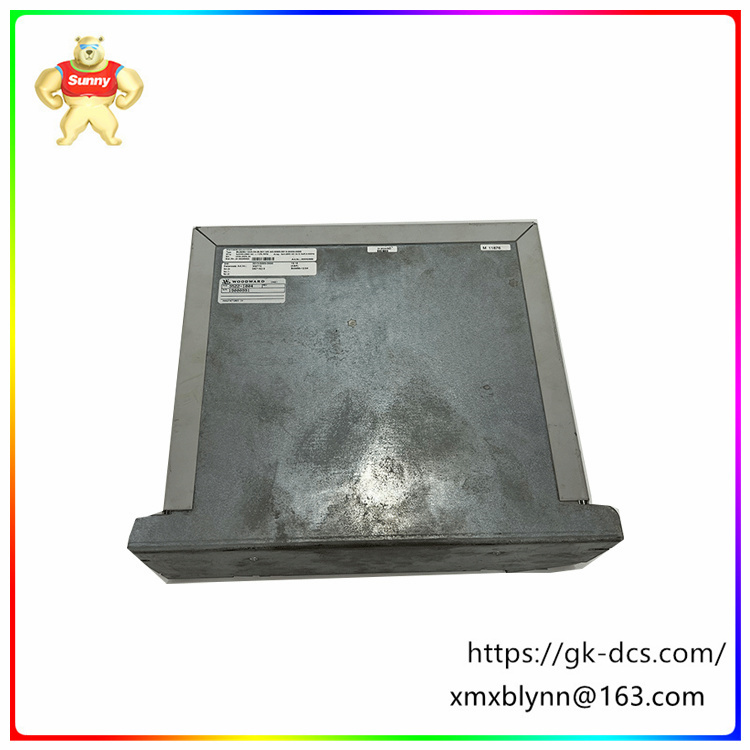

BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000-3522-1004 | Rack power supply | Provide motor energy

Brand: WOODWARD
Model number: BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000-3522-1004
Product type: Rack power supply
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000-3522-1004 The single power unit BUM60 complements the baum ller modular system in the medium performance range.
Plug-in analog controller cards should be used for closed-loop control.
BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000-3522-1004 Single power unit BUM60 consists of a feed converter on the power side and a motor end inverter
The whole device is composed of three parts: mains side feed converter, inverter and controller card.

- Feed current converter on the power side
The input current converter is an uncontrollable B6 rectifier with a starting current load release and ballast circuit.
- Start current load release
BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000-3522-1004 Because the intermediate circuit capacity does not have starting current load relief, direct switching on the device will result in unacceptably high levels of impulse current. To avoid this pulsed current, the starting current is limited by a resistor.
- Ballast circuit
In some operating modes, motor energy is supplied to the unit. This energy is stored, causing the intermediate circuit voltage to rise. To avoid reaching the overvoltage turn-off threshold, the feedback energy is converted to heat in the internal or external ballast resistance.
- Motor end inverter
BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000-3522-1004 Motor end inverter includes an IGBT power supply unit and an attached detector. On the one hand, the detector provides the measurement signal, and on the other hand, it provides the self-protection facilities of the power electronic equipment. The control of the inverter is operated by the controller.
BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000-3522-1004 servo actuator is widely used in the following fields due to its excellent performance and wide application:

Aerospace: In aircraft control systems and engine control systems, this servo actuator provides precise motion control, ensuring flight safety and stable performance.
Industrial applications: In industrial machinery control systems, the servo actuator is used in a variety of equipment and machines requiring high-precision position control and speed control, such as automated production lines, robots, etc.
Other fields: In addition, the servo actuator can also be applied to other fields requiring high-precision motion control, such as medical equipment, precision instruments, etc.
