Fong/Single end analog input.

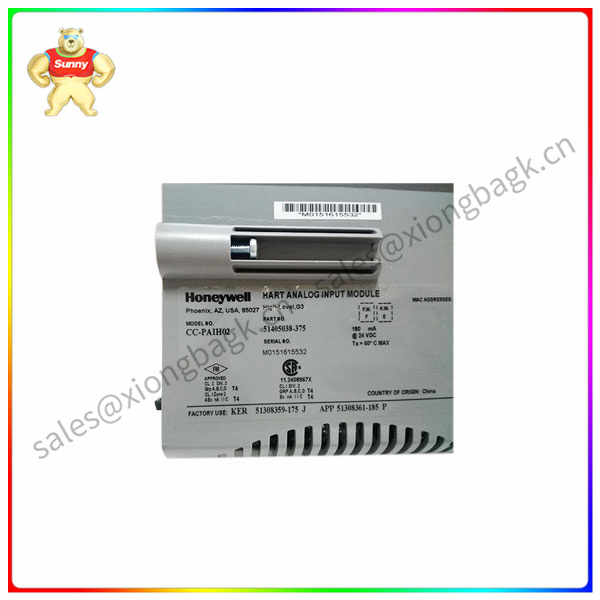

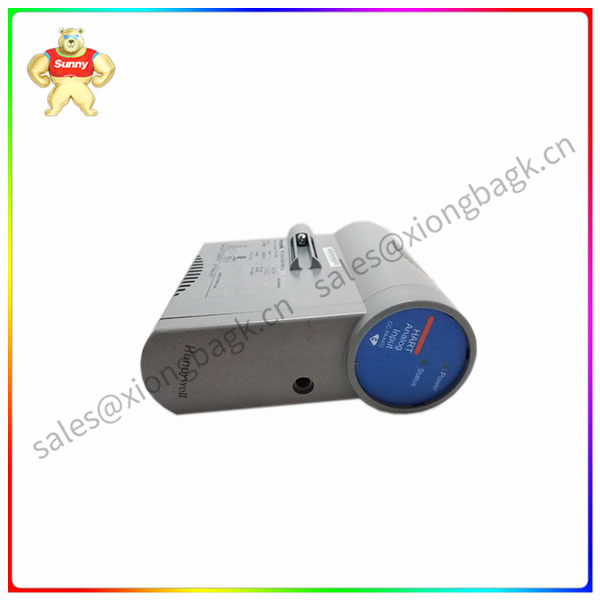

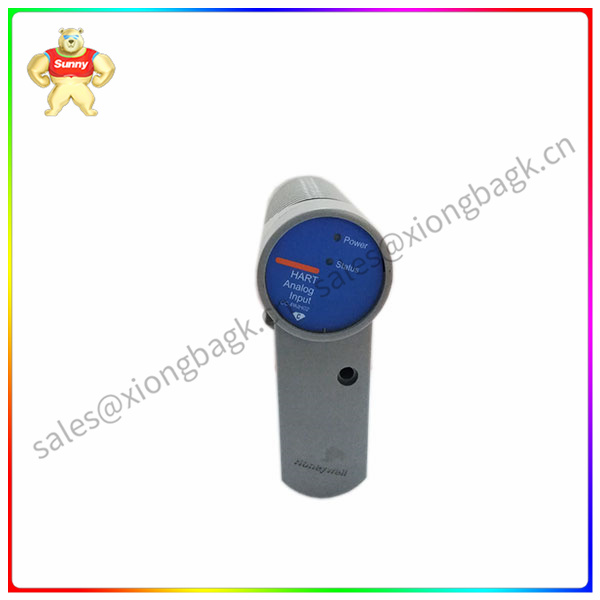

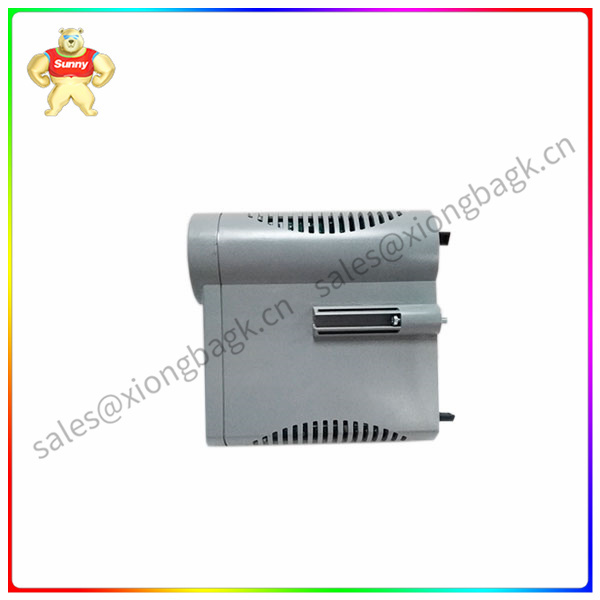

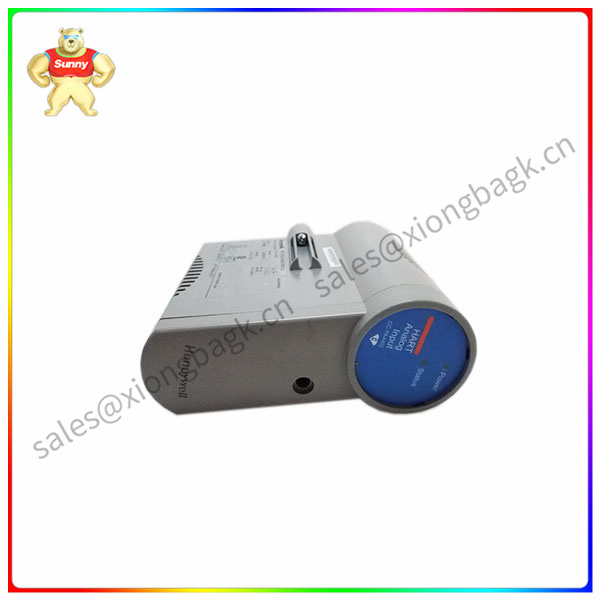

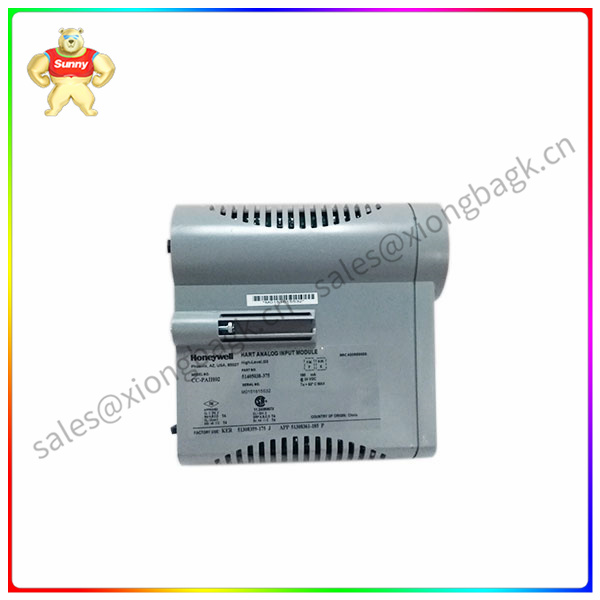

CC-PAIH02 is an advanced analog input module with 16 channels, of which 12 are single-ended channels and 4 are differential channels. The input range for each channel is 0 to 5V, 1 to 5V, 0.4 to 2V, or 4 to 20mA. It has A common-mode rejection ratio of 70dB, A normal-mode rejection ratio of 60dB, and A/D converter resolution of 16 bits. In addition, the CC-PAIH02 offers a variety of features such as integrated wiring, reduced footprint, double row terminals, easy installation and maintenance, and optional redundancy.
In addition to the above input range and resolution features, CC-PAIH02 has several other features.
First, it has HART communication capabilities, which allows it to communicate with other devices through HART protocols, allowing for remote monitoring and control of process variables.
Secondly, CC-PAIH02 also has a self-diagnostic function, which can automatically detect the status of the module and report any faults, improving the reliability and safety of the system.
In addition, the CC-PAIH02 features redundancy and line break detection, which allows the system to operate normally in the event of a single module failure, improving the availability of the system.
In addition, CC-PAIH02 can be used with a wide range of sensors and transmitters, such as pressure, temperature, level, flow and weight, enabling process control for a wide range of industrial automation applications.
In summary, the CC-PAIH02 is a powerful, reliable, easy to install and maintain analog input module for a variety of industrial automation applications that require high precision, high reliability, fast response and remote monitoring.
