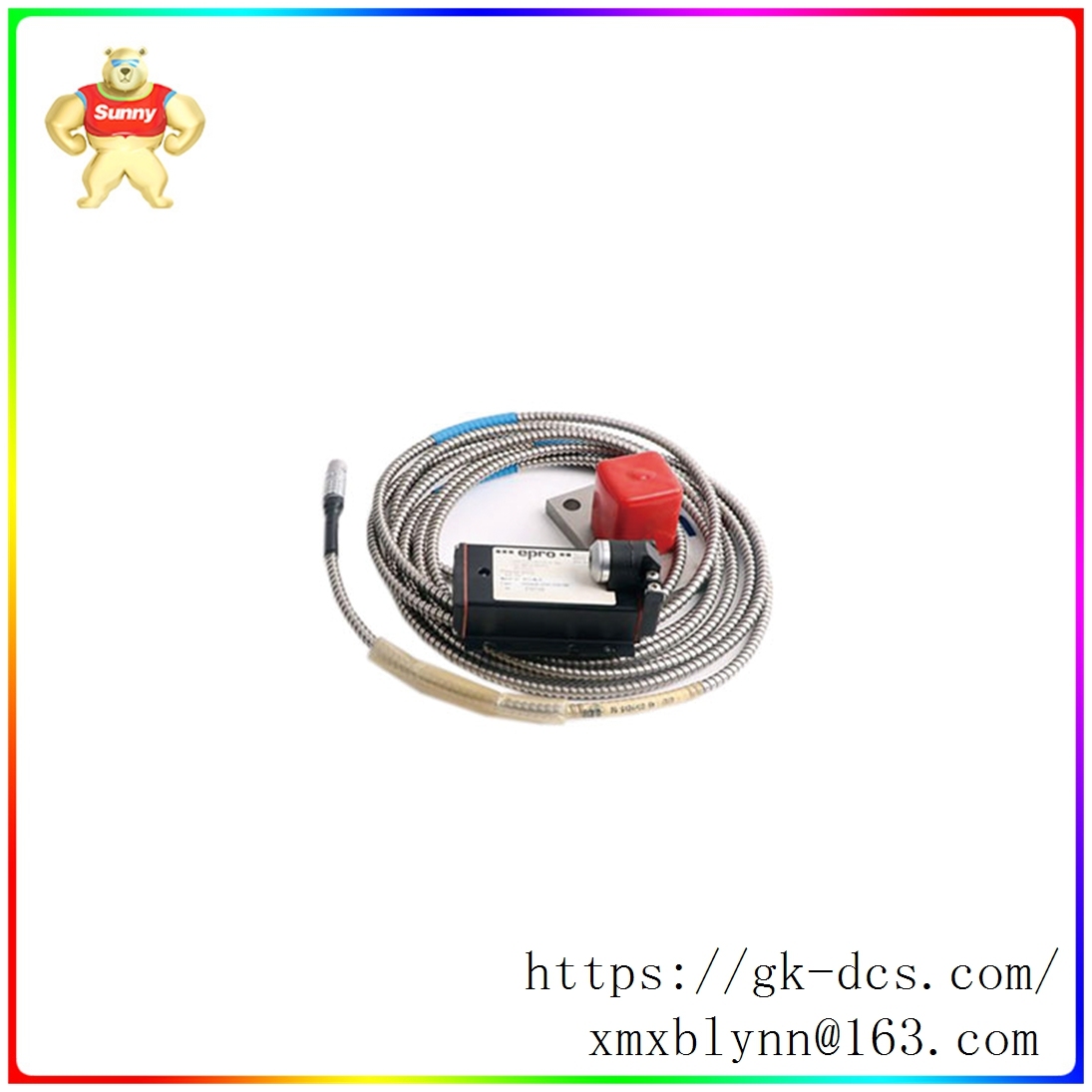

CON021/916-240|Eddy current sensor system
High accuracy: The system is known for its high precision and reliability, providing accurate measurement results.
Non-contact measurement: The use of non-contact measurement, avoiding direct contact may bring wear and error.
Widely used: It is suitable for condition monitoring and fault diagnosis of various turbomachinery to ensure the safety and stability of mechanical operation.
Pressure resistance: The sensor head has high pressure resistance and can withstand high working pressure.
Temperature adaptability: It has a wide operating temperature range and can work normally under various temperature conditions.
Measuring range: static ±4.0 mm (0.157 "), axle diameter ≥200 mm (7.87 ").
Sensitivity: 2 V/mm (50.8 mV/mil) ±1.5% Max.
Temperature deviation: <4 hours 200°C (392°F).
Weight: The sensor and 1M cable (unarmoured) weigh about 800g (28.22 oz).
Operating temperature: -35 to 180°C(-31 to 356°F).
Shock and vibration: 5g @ 60 Hz @ 25°C (77°F).
Size: including shell thread, shell length, wrench plane and other dimensions parameters, see the product manual for details.
